Cross-reference
The closest equivalents from other brands, with the differences stated so you can check before you order.
Danfoss 032U7133
G 1-1/4" Brass Servo-Operated Diaphragm Solenoid Valve, 2/2 NC, NBR/FKM
Danfoss EV220B is a servo-operated (indirect, pilot-assisted) diaphragm solenoid valve in a brass body, normally closed, for water, compressed air and light industrial fluids. Code 032U7133 is the EV220B 32B build: DN 32, G 1-1/4" BSPP female, FKM seals, normally closed, with a 32 mm orifice and a flow coefficient of Kv 18 m3/h. Against the ACL E107GV37 offered here, the flow coefficient is Kv 18 m3/h on both, and both are brass-bodied, FPM/FKM sealed, 2/2 normally closed servo-assisted diaphragm valves on a G 1-1/4" ISO 228 port rated to 10 bar maximum. The ACL has the larger orifice at 37 mm against 32 mm, and opens from 0.15 bar minimum differential pressure against 0.3 bar. Both are supplied as valve bodies with the coil ordered separately.
Specifications of the Danfoss part
- Port Size
- G 1-1/4" BSPP female
- Body Material
- Brass
- Seal Material
- FKM (Viton) option
- Operation
- Servo-operated diaphragm
- Function
- 2/2 Normally Closed
- Coil
- Sold separately
IMI Norgren 8240503.9101.02400
G 1-1/4" Brass Servo-Assisted Diaphragm Solenoid Valve, 2/2 NC, FKM
IMI Buschjost series 82400, supplied under IMI Norgren, is an indirectly solenoid-actuated (servo-assisted) diaphragm valve in a brass body (CW617N), normally closed, for neutral gases and liquids. Code 8240503.9101.02400 is the ISO G, G 1-1/4" build with option 03 for an FPM seat seal, the 9101 solenoid rated 0.1 to 10 bar, and a 24 V d.c. coil. Against the ACL E107GV37 offered here, both are brass-bodied, FPM-sealed, 2/2 normally closed servo-assisted diaphragm valves on a G 1-1/4" port rated to 10 bar maximum. Three differences should be noted. The Buschjost valve has the higher flow capacity, Kv 23 m3/h against the ACL's 18 m3/h, so the ACL is not a like-for-like substitute where the full rated flow is required. The Buschjost opens from 0.1 bar minimum differential pressure against the ACL's 0.15 bar. And the Buschjost order code includes a 24 V d.c. solenoid, whereas the ACL valve is supplied as a valve body with the coil ordered separately, allowing the voltage to be chosen. Fluid temperature on the Buschjost FPM option is -5 to +110 C; the ACL's FPM build is rated -10 to +140 C.
Specifications of the IMI Norgren part
- Port Size
- G 1-1/4" BSPP female
- Body Material
- Brass
- Seal Material
- FKM (Viton)
- Operation
- Servo-assisted diaphragm
- Function
- 2/2 Normally Closed
- Coil
- Sold separately
Festo VZWF-L-M22C-G114-400-V-2AP4-10
G 1-1/4" Brass Pilot-Operated Diaphragm Solenoid Valve, 2/2 NC, FKM
Festo VZWF is a force pilot-operated diaphragm solenoid valve in a brass body (CW617N), normally closed, for compressed air, inert gases, water, mineral oil and neutral liquids. VZWF-L-M22C-G114-400-V-2AP4-10 (Festo part number 1492243) is the G 1-1/4" BSPP, DN 40, FPM-sealed build rated to 10 bar, supplied with an integral 110 V AC solenoid and a 3-pin plug socket. Two differences matter when considering the ACL E107GV37 offered here. First, the Festo valve is force pilot-operated and Festo rates it to open from 0 bar differential pressure, whereas the ACL is servo-assisted and requires a minimum differential pressure of 0.15 bar to open; on a gravity-fed or near-zero-head line the ACL will not open where the Festo does. Second, the Festo order code includes its 110 V AC coil, while the ACL valve is supplied as a valve body with the coil ordered separately, allowing the voltage to be chosen. Otherwise the two correspond closely: both are brass, 2/2 normally closed diaphragm valves on a G 1-1/4" port, sealed in FPM and rated to 10 bar maximum. The Festo is DN 40 with a flow coefficient of Kv 20 m3/h, against the ACL's 37 mm orifice and Kv 18 m3/h.
Specifications of the Festo part
- Port Size
- G 1-1/4" BSPP female
- Body Material
- Brass
- Seal Material
- FKM (Viton)
- Operation
- Pilot-operated diaphragm
- Function
- 2/2 Normally Closed
- Coil
- Sold separately
Bürkert 134498
G 1-1/4" Brass Servo-Assisted Diaphragm Solenoid Valve, 2/2 NC, FKM
Bürkert Type 5282 is a servo-assisted diaphragm solenoid valve in brass body with FKM seals, available in G 1-1/4" BSPP female connection, normally closed. It is widely used in water treatment, HVAC, and process utilities across GCC industrial sites. The valve body is supplied without coil; Bürkert coils are selected separately by voltage.
Specifications of the Bürkert part
- Port Size
- G 1-1/4" BSPP female
- Body Material
- Brass
- Seal Material
- FKM (Viton)
- Operation
- Servo-assisted diaphragm
- Function
- 2/2 Normally Closed
- Coil
- Sold separately
ASCO SCG238E016V
G 1-1/4" Brass Servo-Assisted Diaphragm Solenoid Valve, 2/2 NC, FKM Seals
ASCO Series 238 is a pilot-operated solenoid valve with a built-in pilot and floating diaphragm, in a brass body, normally closed, for automatic control of water, air and other fluids compatible with the sealing materials. SCG238E016V is the G 1-1/4" BSPP female build with FPM (fluoroelastomer) seals, diaphragm and disc, the V suffix denoting the FPM option. Against the ACL E107GV37 offered here, both are 2/2 normally closed brass servo-assisted diaphragm valves on a G 1-1/4" ISO 228 port rated to 10 bar maximum, both sealed in FPM. The ACL has the larger orifice at 37 mm against 30 mm and the higher flow coefficient at Kv 18 m3/h against 15 m3/h, and it opens from 0.15 bar minimum differential pressure against 0.5 bar, so it operates across the full duty range of the ASCO valve. The ASCO catalogue number covers the valve with its solenoid, with coil voltage specified at the point of order; the ACL valve listed here is supplied as a valve body and its coil is ordered separately.
Specifications of the ASCO part
- Port Size
- G 1-1/4" BSPP female
- Body Material
- Brass
- Seal Material
- FKM (Viton)
- Operation
- Servo-assisted diaphragm
- Function
- 2/2 Normally Closed
- Coil
- Sold separately
ASCO (Emerson) SCG238E016V.230/50
Series 238 pilot-operated, built-in pilot, floating diaphragm, brass body, 2/2 NC (catalogue numbers SCE238D### and SCG238C###/E###)
ASCO Series 238 equivalent - 2/2 normally closed, pilot-operated brass solenoid valve with built-in pilot and floating diaphragm, G 1-1/4 BSPP, FPM seals, quoted against the 230 V 50 Hz build. Sizes differ and should be checked before substituting: the ASCO part has a 30 mm orifice and Kv 15 m3/h, while this valve has a 37 mm orifice and Kv 18 m3/h, roughly 20% more flow. Both are rated to 10 bar, and this valve opens from 0.15 bar differential against 0.5 bar. This valve is also the physically larger of the two, about 3 kg against 1.7 kg, so check the available space and pipe support before swapping. The ASCO catalogue number includes a coil; this valve is supplied without one, so a coil should be selected separately.

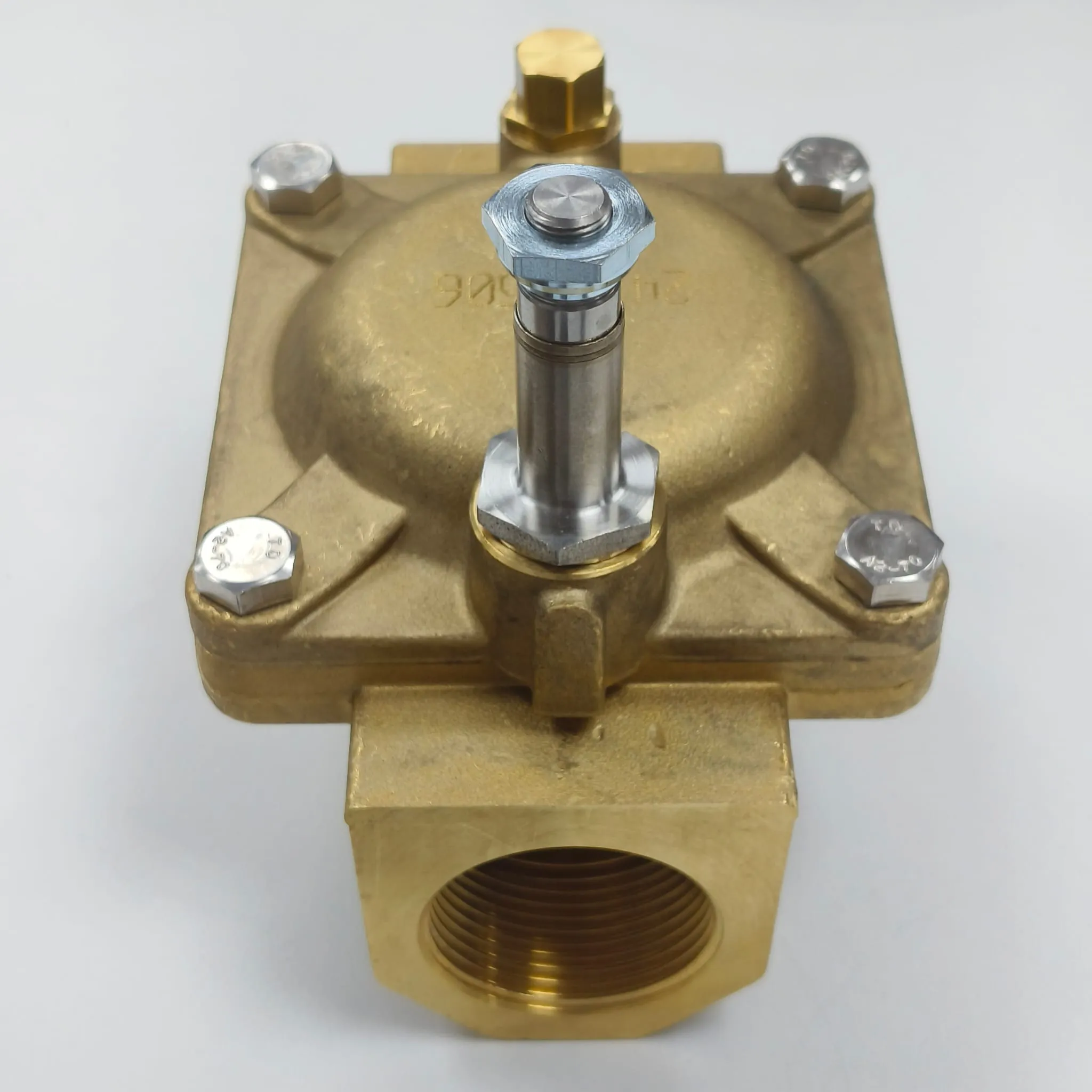

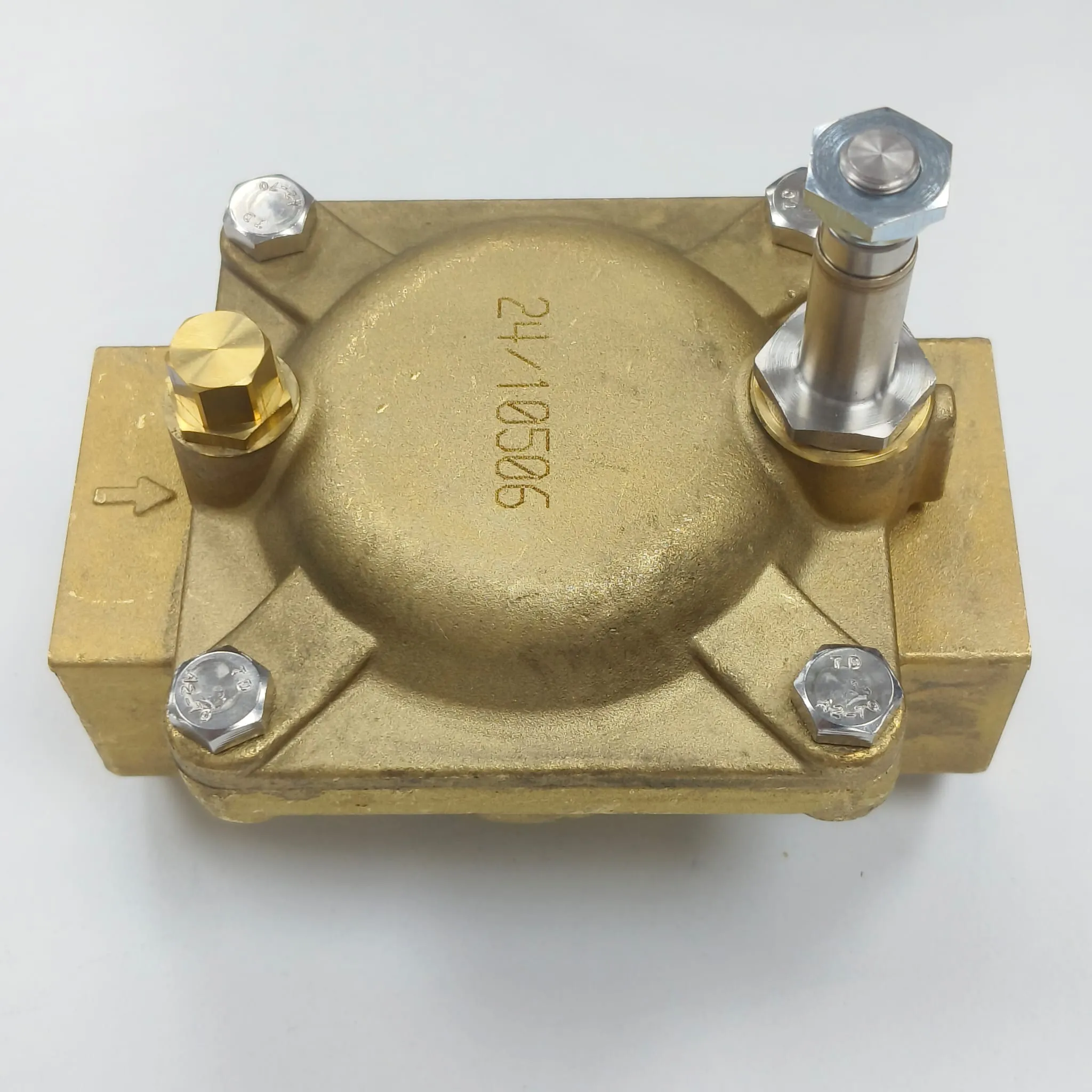

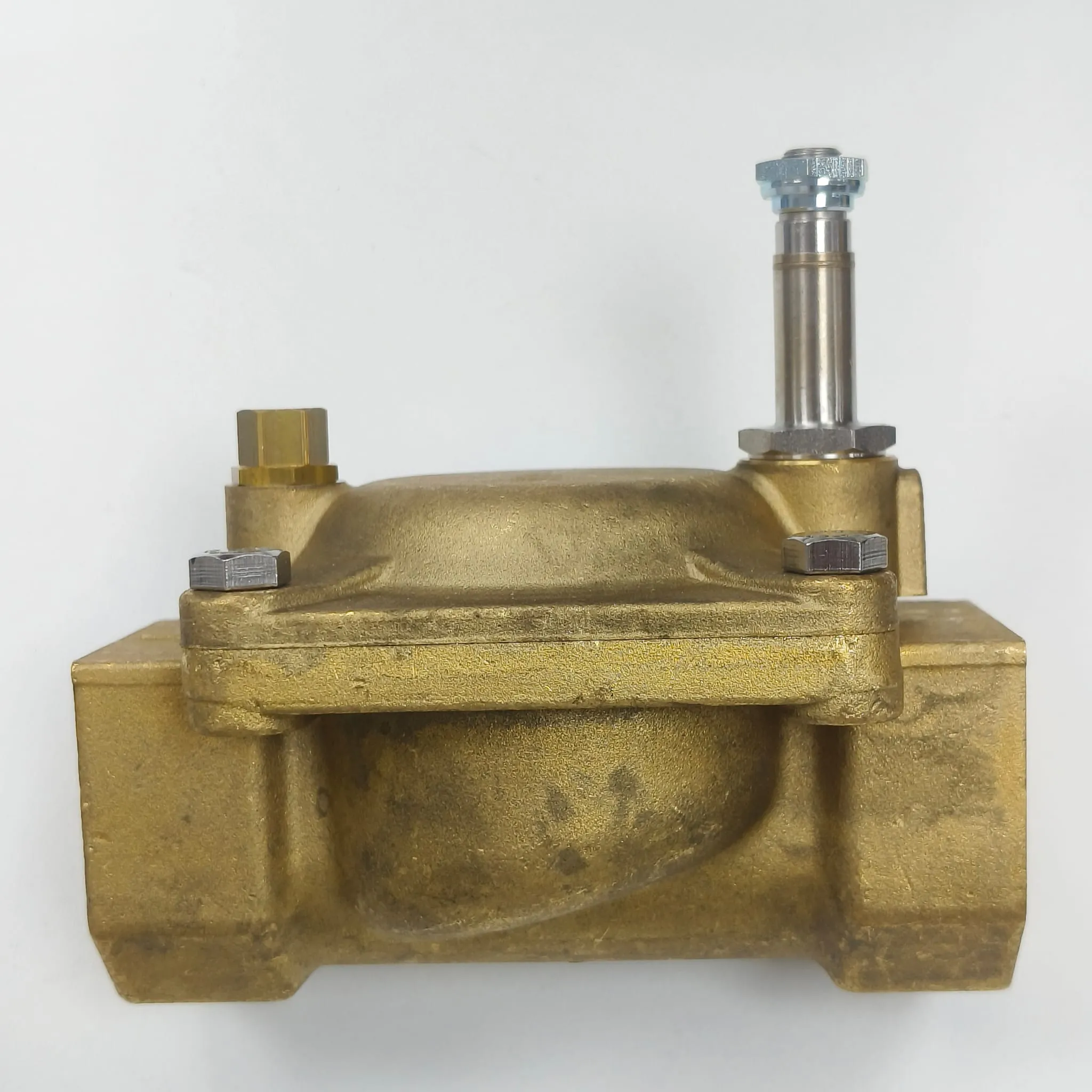

We carry E107GV37 as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →
