| Connection Size | G 1" ISO 228 (BSPP) |
|---|---|
| Valve Function | 2-Way Normally Closed |
| Body Material | Brass |
| Seal Material | Viton (FPM) |
| Media Compatibility | Air, Water, Gas |
| Minimum Differential Pressure | 0.15 bar |
| Maximum Pressure | 10 bar |
| KV Value | 10.2 m³/h |
| Ambient Temperature Range | -10°C to +140°C |
| Valve Type | Servo-Assisted Diaphragm |
| Orifice Size | 25 mm |
| Armature And Spring | AISI 303 / AISI 302 |
| Plunger And Core | AISI 430FR |
| Compatible Coil Series | Series 3 |
| Series | 107 Series |

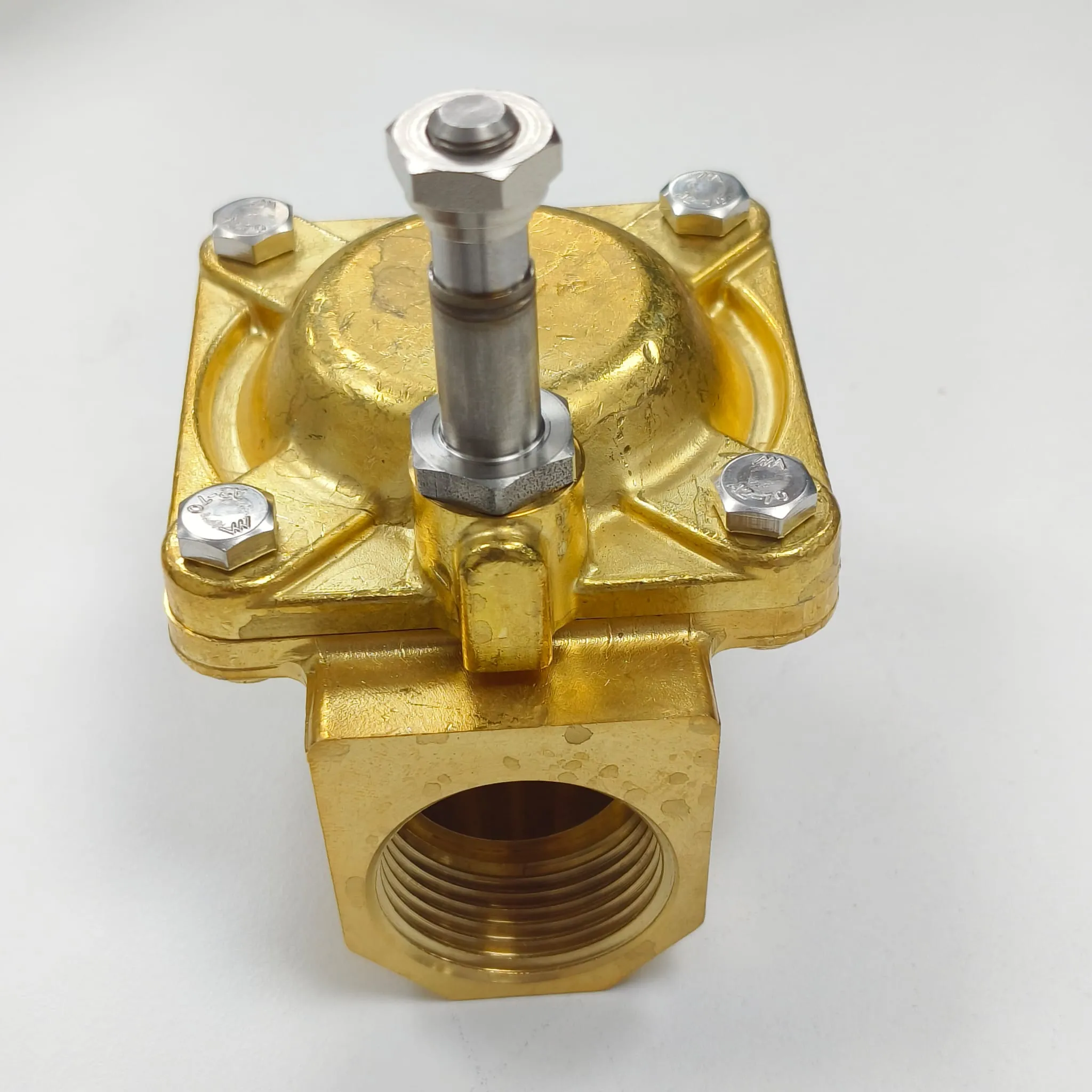

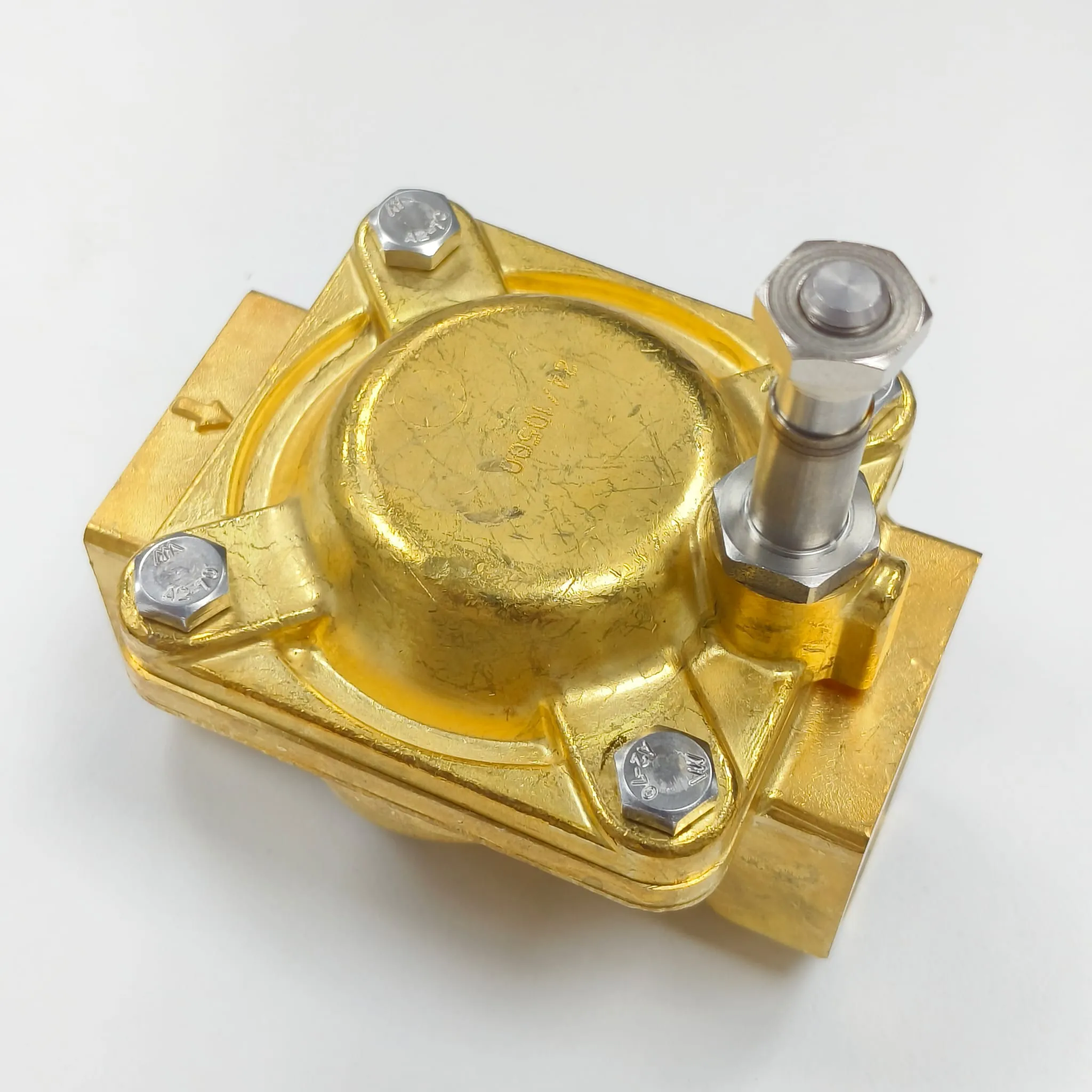

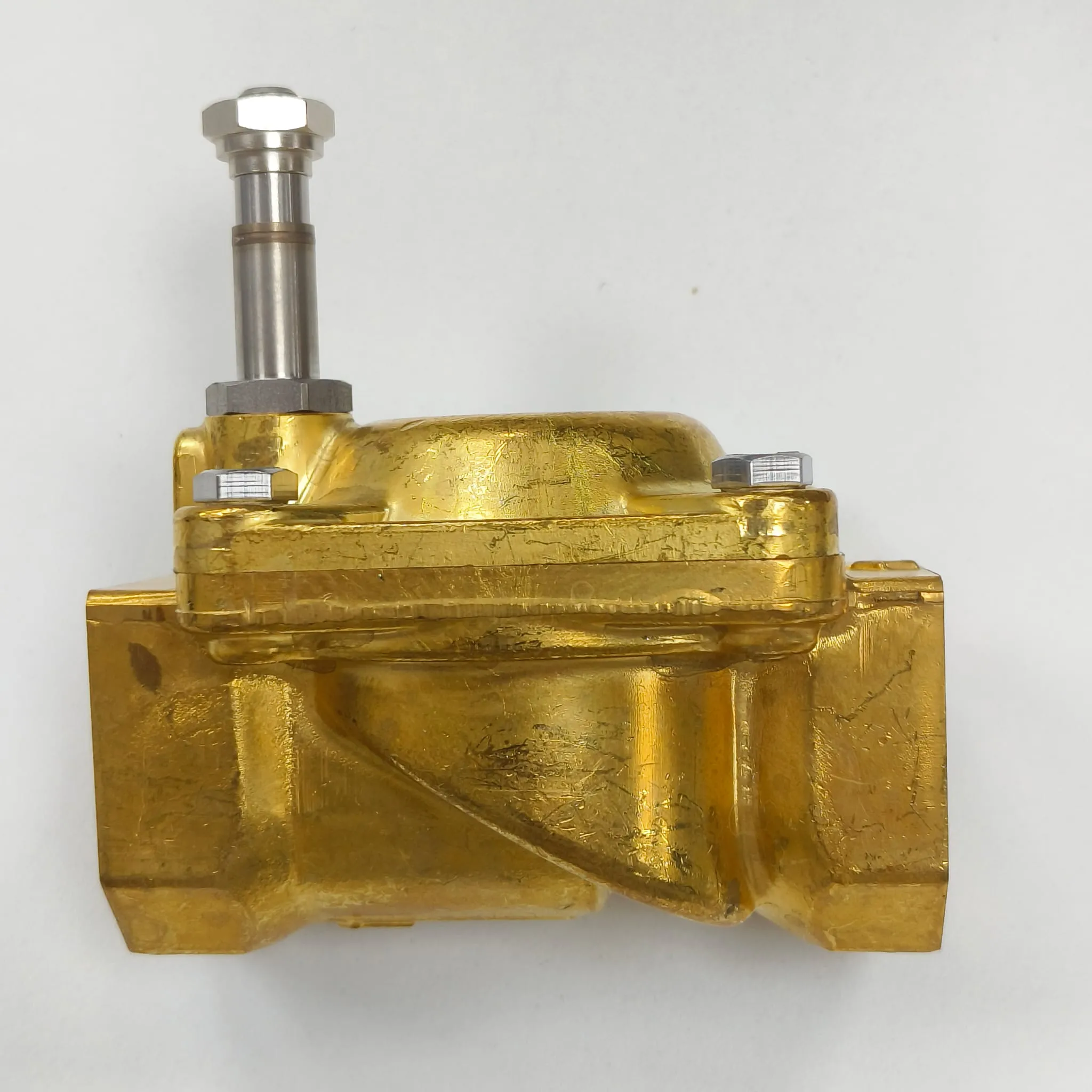

ACL 107 Series is a brass servo-assisted diaphragm solenoid valve with normally closed operation for automatic control of compatible fluids. This valve uses a G 1" female BSPP threaded connection and a Viton (FPM) seal for suitable industrial service. It is intended for machinery, utility systems, water lines, air lines, and process applications where dependable on-off flow control is required. The servo-assisted diaphragm design provides the operating style used for this valve series and helps define its performance in the intended service conditions.
This valve is supplied without a coil. Compatible coils are sold separately, allowing the correct voltage and frequency to be selected for the intended application. To add a suitable coil, please view available coil options.
ACL-107 Series Valves — Datasheet
PDF, 462 KB
The closest equivalents from other brands, with the differences stated so you can check before you order.
ASCO (Emerson) SCE238D005V.230/50-60
Series 238 pilot-operated, built-in pilot, floating diaphragm, brass body, 2/2 NC (catalogue numbers SCE238D### and SCG238C###/E###)
ASCO Series 238 equivalent - 2/2 normally closed pilot-operated brass solenoid valve, G 1 BSPP, 25 mm orifice, Kv 9.9, FPM seals, 230 V 50/60 Hz coil.
Danfoss 032U7126
G 1" Brass Servo-Assisted Diaphragm Solenoid Valve, 2/2 NC, FPM, BSPP
Danfoss EV220B is a servo-operated diaphragm solenoid valve with brass body, normally closed 2-way function, and FPM seals, available in DN25 with G 1" BSPP female connections. It is widely used in water, compressed air, and HVAC utility applications. The coil is a separate accessory, consistent with the ACL modular design.
Bürkert 134494
G 1" Brass Servo-Assisted Diaphragm Solenoid Valve, 2/2 NC, FPM, BSPP
Bürkert Type 5282 is a servo-assisted diaphragm solenoid valve designed for 2/2 normally closed on-off control of water, air, and compatible fluids. The brass body with FPM diaphragm and seals and G 1" BSPP female ports aligns with the ACL 107 series specification. Coil voltage is selected and ordered separately.
ASCO SCE238D005V
G 1" Brass Servo-Assisted Diaphragm Solenoid Valve, 2/2 NC, FPM, BSPP
ASCO Series 238 is a pilot-operated solenoid valve with a built-in pilot and a floating diaphragm, in a brass body, with 2/2 normally closed operation. SCE238D005 is the G 1 size: 25 mm orifice, Kv 9.9 m³/h (165 l/min), 0.3 bar minimum and 10 bar maximum operating pressure differential, fluid temperature -10°C to +85°C, with a combination thread to ISO 228/1 and ISO 7/1. The V suffix is ASCO's seal-material option for an FPM (fluoroelastomer) diaphragm, disc and seals; without that suffix the valve is built with an NBR diaphragm and disc. Two differences a buyer should note against the ACL E107FV25 supplied here. First, the ASCO catalogue number covers the valve complete with its solenoid operator, with the voltage stated at the time of order, whereas the ACL valve is supplied without a coil and takes a Series 3 coil ordered separately. Second, the ACL valve opens from a 0.15 bar differential rather than 0.3 bar and is rated at Kv 10.2 m³/h against 9.9 m³/h.
We carry E107FV25 as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →
Part no. E207IB50
In stock, 2 available
Part no. E207HB37
In stock, 2 available
Part no. E207GB30
In stock, 2 available
Part no. E207FB25
In stock, 5 available
