Solenoid Valves

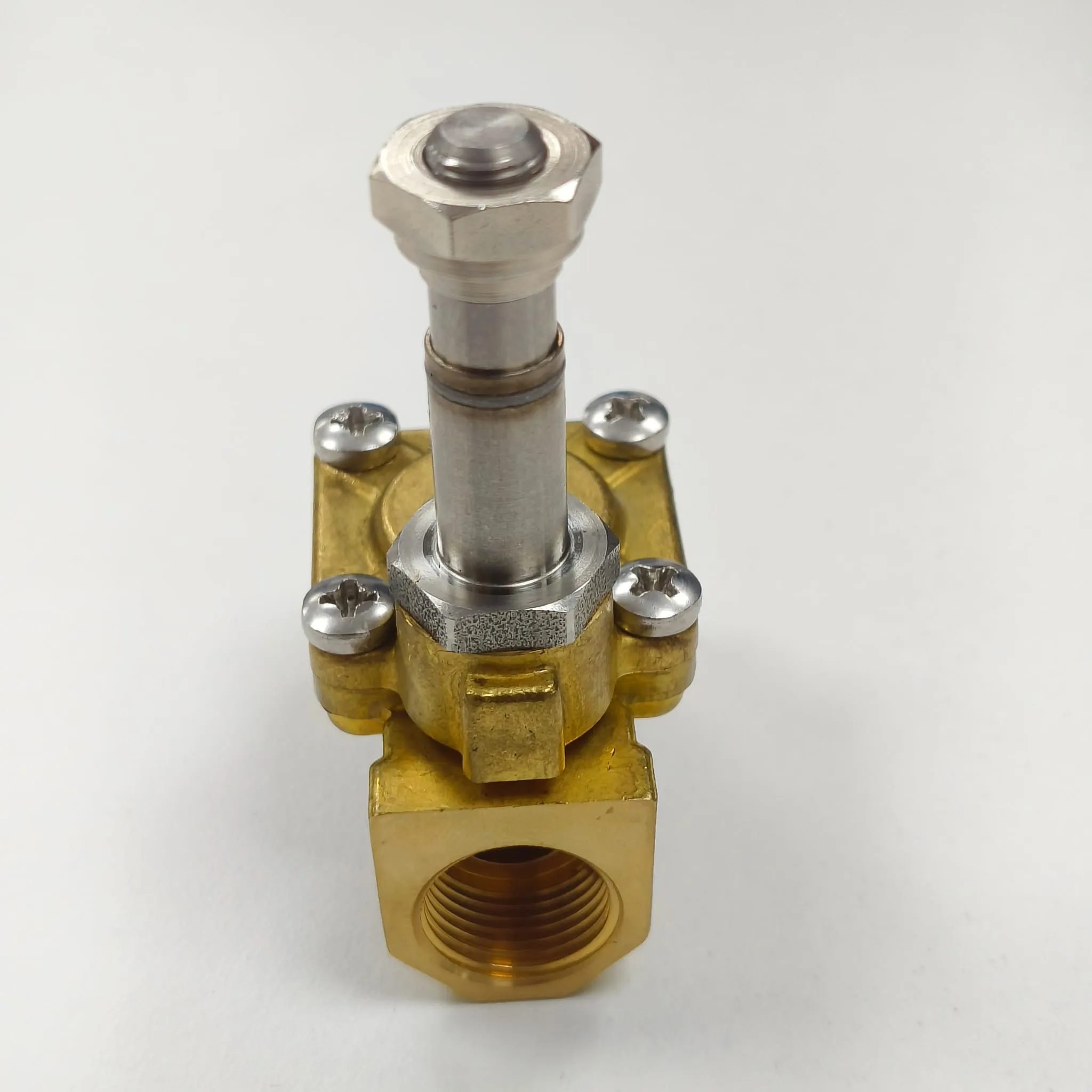

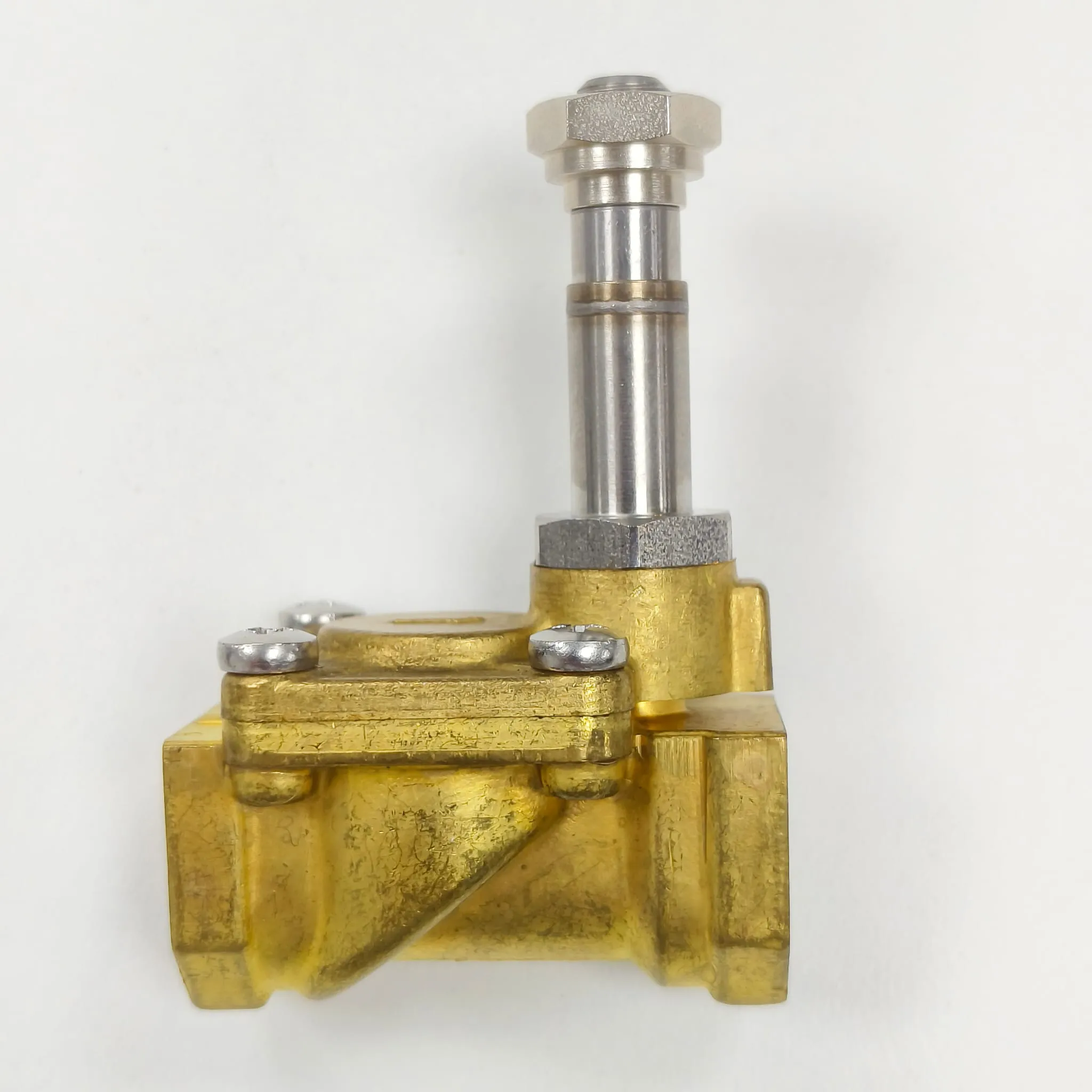

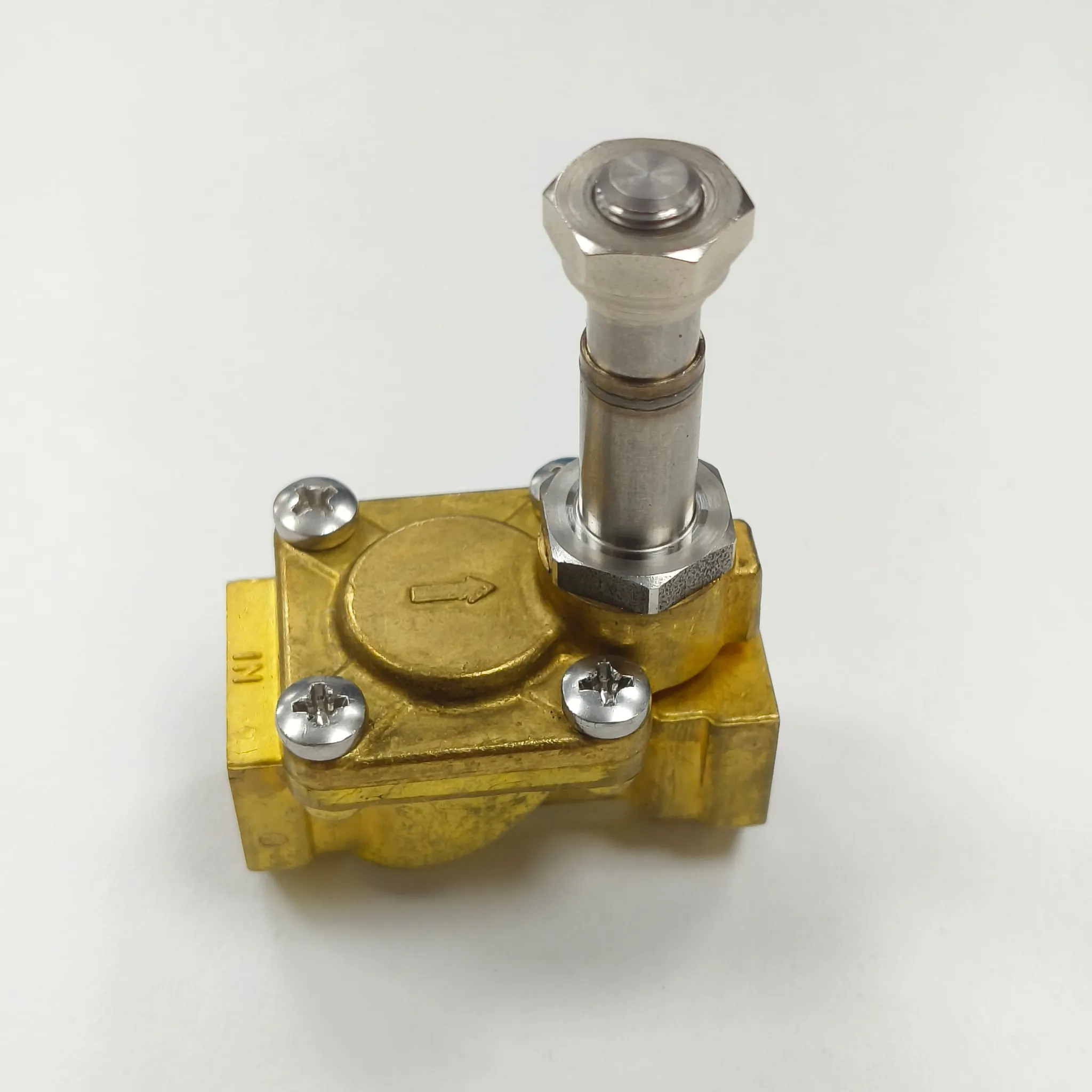

ACL 107 Series Brass Solenoid Valve, Servo-Assisted Diaphragm, 2-Way Normally Closed, FPM (Viton) Seal, G 3/8" Female BSPP Connection, E107CV10
ACL

ACL 107 Series Brass Solenoid Valve, Servo-Assisted Diaphragm, 2-Way Normally Closed, FPM (Viton) Seal, G 3/8" Female BSPP Connection, E107CV10

Mfr. part no.
E107CV10
SKU
SOL-W-107V-06-15B-EU

Specifications

Connection Size G 3/8" ISO 228 (BSPP)
Valve Function 2-Way Normally Closed
Body Material Brass
Seal Material Viton (FPM)
Media Compatibility Air, Water, Gas
Minimum Differential Pressure 0.15 bar
Maximum Pressure 15 bar
KV Value 1.7 m³/h
Ambient Temperature Range -10°C to +140°C
Valve Type Servo-Assisted Diaphragm
Orifice Size 10 mm
Armature And Spring AISI 303 / AISI 302
Plunger And Core AISI 430FR
Compatible Coil Series Series 3
Series 107 Series

Key Features

  • Servo-Assisted Diaphragm construction
  • 2-way normally closed operation
  • Brass valve body
  • Viton (FPM) seal material
  • G 3/8" female BSPP connection
  • Included: Operating & Installation Instructions paperwork inside the box.
  • Made in Italy.

Description

ACL 107 Series is a brass servo-assisted diaphragm solenoid valve with normally closed operation for automatic control of compatible fluids. This valve uses a G 3/8" female BSPP threaded connection and a Viton (FPM) seal for suitable industrial service. It is intended for machinery, utility systems, water lines, air lines, and process applications where dependable on-off flow control is required. The servo-assisted diaphragm design provides the operating style used for this valve series and helps define its performance in the intended service conditions.

Select a Suitable Coil

This valve is supplied without a coil. Compatible coils are sold separately, allowing the correct voltage and frequency to be selected for the intended application. To add a suitable coil, please view available coil options.

Applications

  • Industrial machinery
  • Water and air service
  • Utility and process lines
  • General fluid control systems

Documents

  • ACL-107 Series Valves — Datasheet

    PDF, 462 KB

Cross-reference

The closest equivalent from another brand, with the differences stated so you can check before you order.

ASCO (Emerson) SCE238D001V.230/50-60

Series 238 pilot-operated, built-in pilot, floating diaphragm, brass body, 2/2 NC (catalogue numbers SCE238D### and SCG238C###/E###)

ASCO Series 238 equivalent - 2/2 normally closed, pilot-operated brass solenoid valve with built-in pilot and floating diaphragm, G 3/8 BSPP, FPM seals, quoted against the 230 V 50/60 Hz build. Flow differs and should be checked before substituting: the ASCO part has a 12 mm orifice and Kv 2.4 m3/h, while this valve has a 10 mm orifice and Kv 1.7 m3/h, roughly 29% less flow. This valve is rated to 15 bar against the ASCO part's 10 bar and opens from 0.15 bar differential against 0.3 bar. The ASCO catalogue number includes a coil; this valve is supplied without one, so a coil should be selected separately.

We carry E107CV10 as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →

Browse every published equivalence
