Solenoid Valves

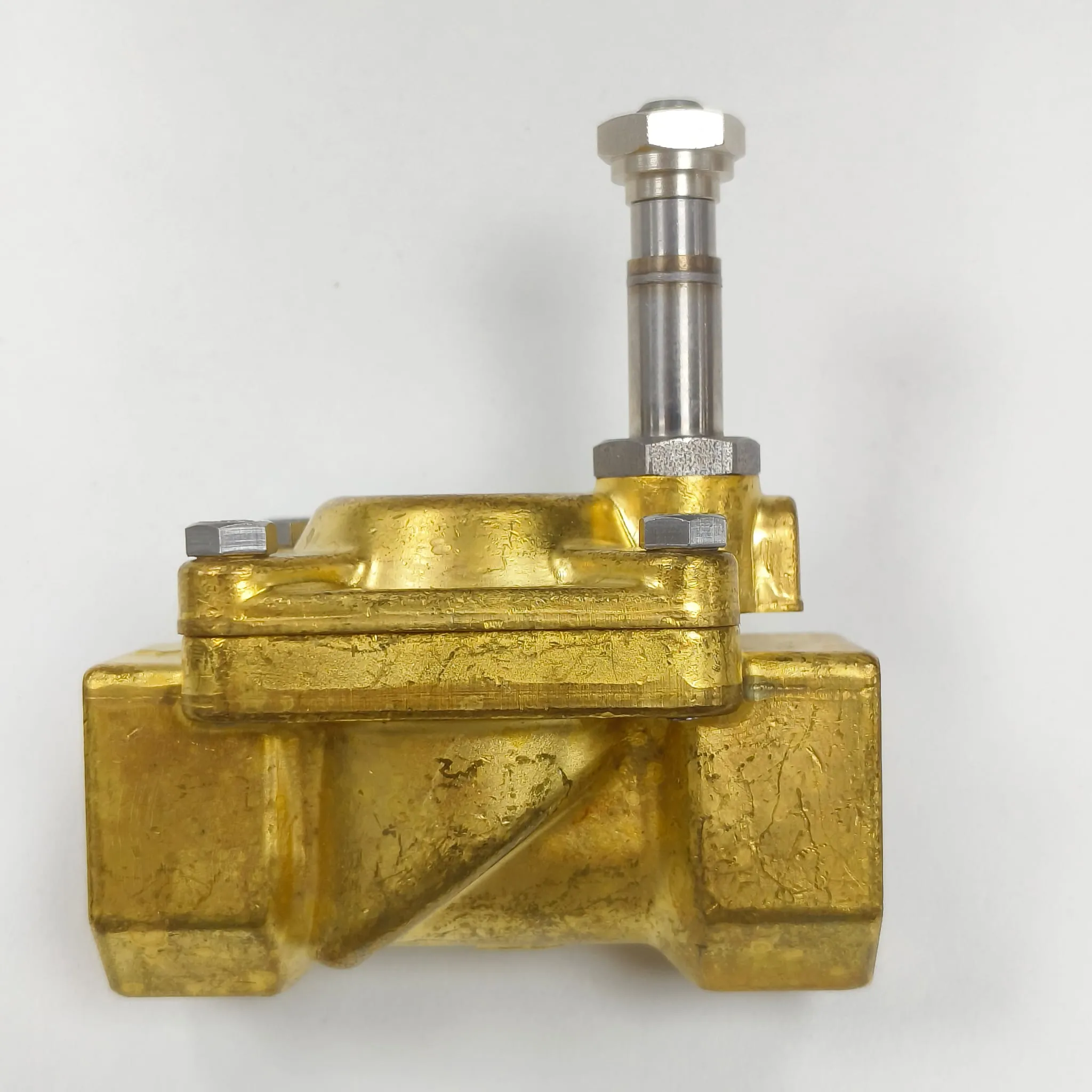

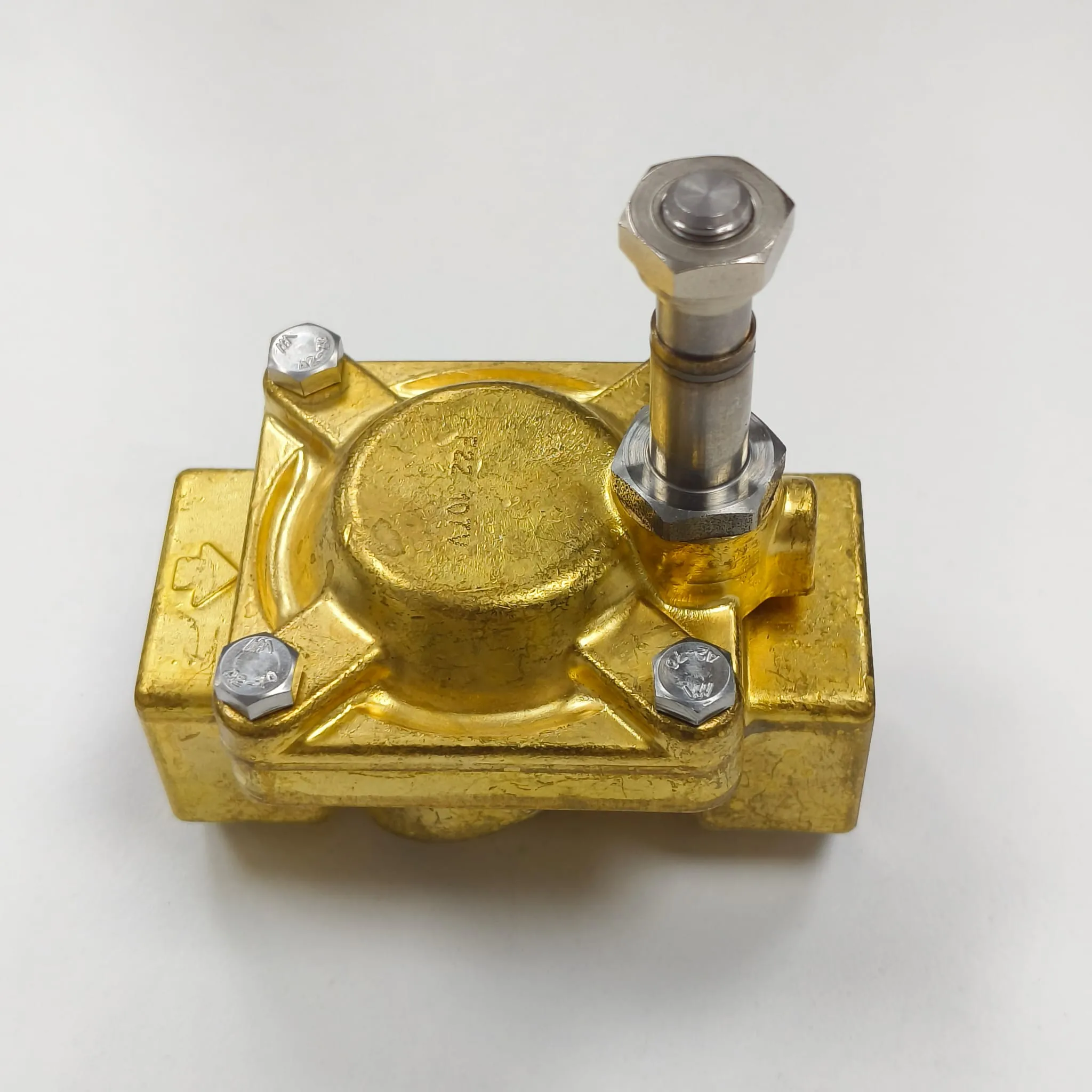

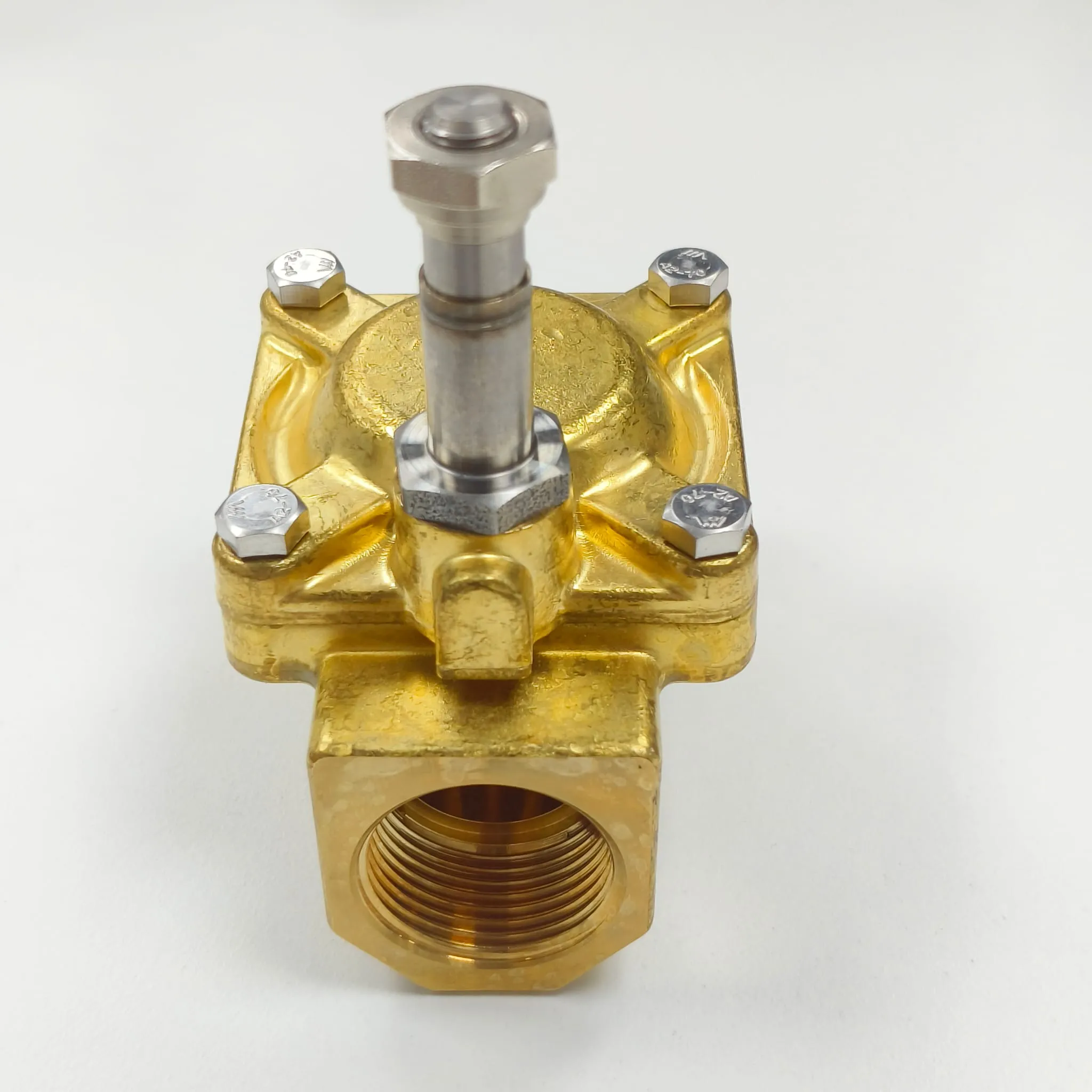

ACL 107 Series Brass Solenoid Valve, Servo-Assisted Diaphragm, 2-Way Normally Closed, FPM (Viton) Seal, G 3/4" Female BSPP Connection, E107EV18
ACL

ACL 107 Series Brass Solenoid Valve, Servo-Assisted Diaphragm, 2-Way Normally Closed, FPM (Viton) Seal, G 3/4" Female BSPP Connection, E107EV18

Mfr. part no.
E107EV18
SKU
SOL-W-107V-12-13B-EU

Specifications

Connection Size G 3/4" ISO 228 (BSPP)
Valve Function 2-Way Normally Closed
Body Material Brass
Seal Material Viton (FPM)
Media Compatibility Air, Water, Gas
Minimum Differential Pressure 0.15 bar
Maximum Pressure 13 bar
KV Value 5.5 m³/h
Ambient Temperature Range -10°C to +140°C
Valve Type Servo-Assisted Diaphragm
Orifice Size 18 mm
Armature And Spring AISI 303 / AISI 302
Plunger And Core AISI 430FR
Compatible Coil Series Series 3
Series 107 Series

Key Features

  • Servo-Assisted Diaphragm construction
  • 2-way normally closed operation
  • Brass valve body
  • Viton (FPM) seal material
  • G 3/4" female BSPP connection
  • Included: Operating & Installation Instructions paperwork inside the box.
  • Made in Italy.

Description

ACL 107 Series is a brass servo-assisted diaphragm solenoid valve with normally closed operation for automatic control of compatible fluids. This valve uses a G 3/4" female BSPP threaded connection and a Viton (FPM) seal for suitable industrial service. It is intended for machinery, utility systems, water lines, air lines, and process applications where dependable on-off flow control is required. The servo-assisted diaphragm design provides the operating style used for this valve series and helps define its performance in the intended service conditions.

Select a Suitable Coil

This valve is supplied without a coil. Compatible coils are sold separately, allowing the correct voltage and frequency to be selected for the intended application. To add a suitable coil, please view available coil options.

Applications

  • Industrial machinery
  • Water and air service
  • Utility and process lines
  • General fluid control systems

Documents

  • ACL-107 Series Valves — Datasheet

    PDF, 462 KB

Cross-reference

The closest equivalent from another brand, with the differences stated so you can check before you order.

ASCO (Emerson) SCE238D004V.230/50-60

Series 238 pilot-operated, built-in pilot, floating diaphragm, brass body, 2/2 NC (catalogue numbers SCE238D### and SCG238C###/E###)

ASCO Series 238 equivalent - 2/2 normally closed, pilot-operated brass solenoid valve with built-in pilot and floating diaphragm, G 3/4 BSPP, FPM seals, quoted against the 230 V 50/60 Hz build. Flow differs and should be checked before substituting: the ASCO part has a 20 mm orifice and Kv 6.6 m3/h, while this valve has an 18 mm orifice and Kv 5.5 m3/h, roughly 17% less flow. ASCO does not offer an 18 mm size in this series. This valve is rated to 13 bar against the ASCO part's 10 bar and opens from 0.15 bar differential against 0.3 bar. The ASCO catalogue number includes a coil; this valve is supplied without one, so a coil should be selected separately.

We carry E107EV18 as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →

Browse every published equivalence
