Solenoid Valves
ACL 107 Series Brass Solenoid Valve, Servo-Assisted Diaphragm, 2-Way Normally Closed, FPM (Viton) Seal, G 2" Female BSPP Connection, E107IV50
ACL

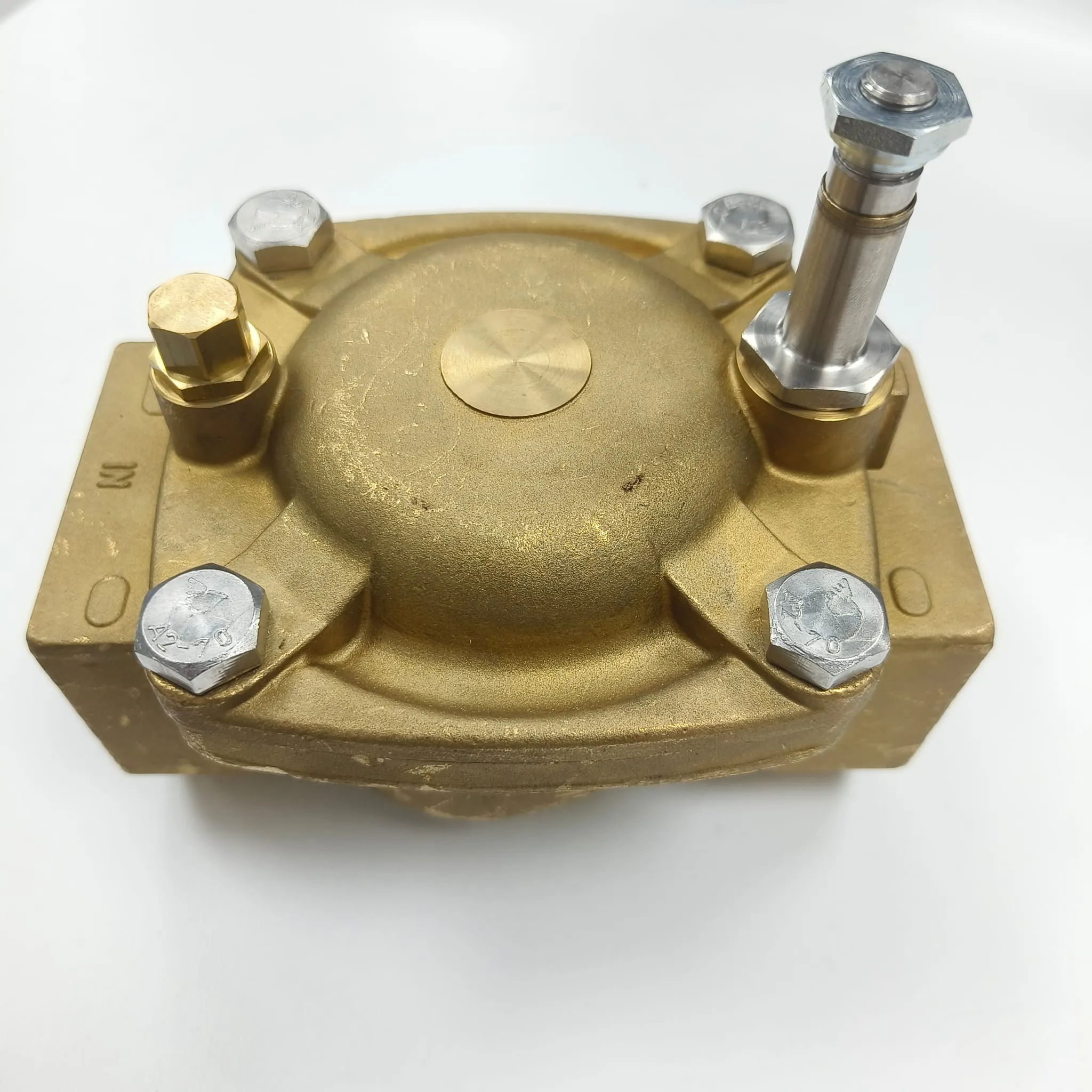

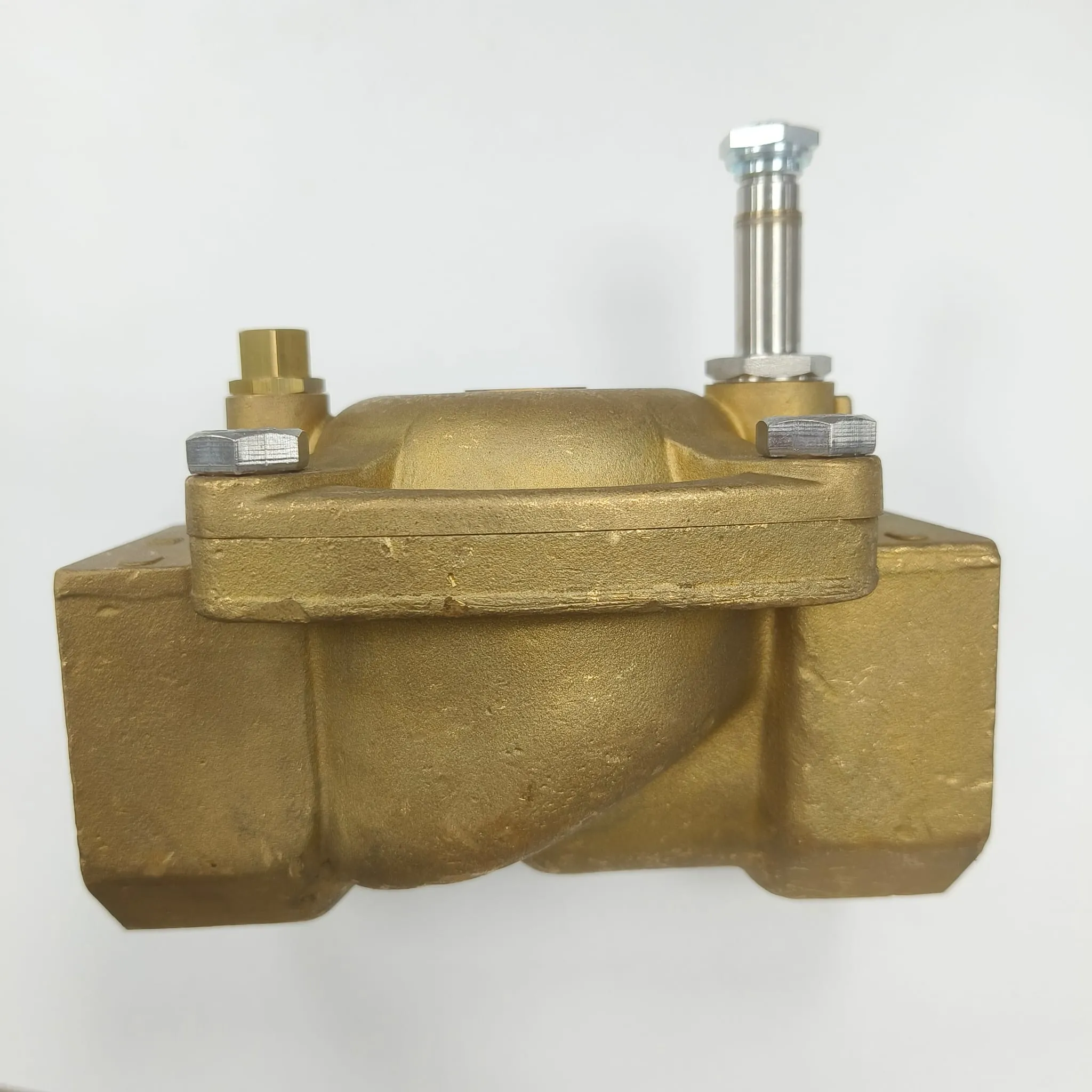

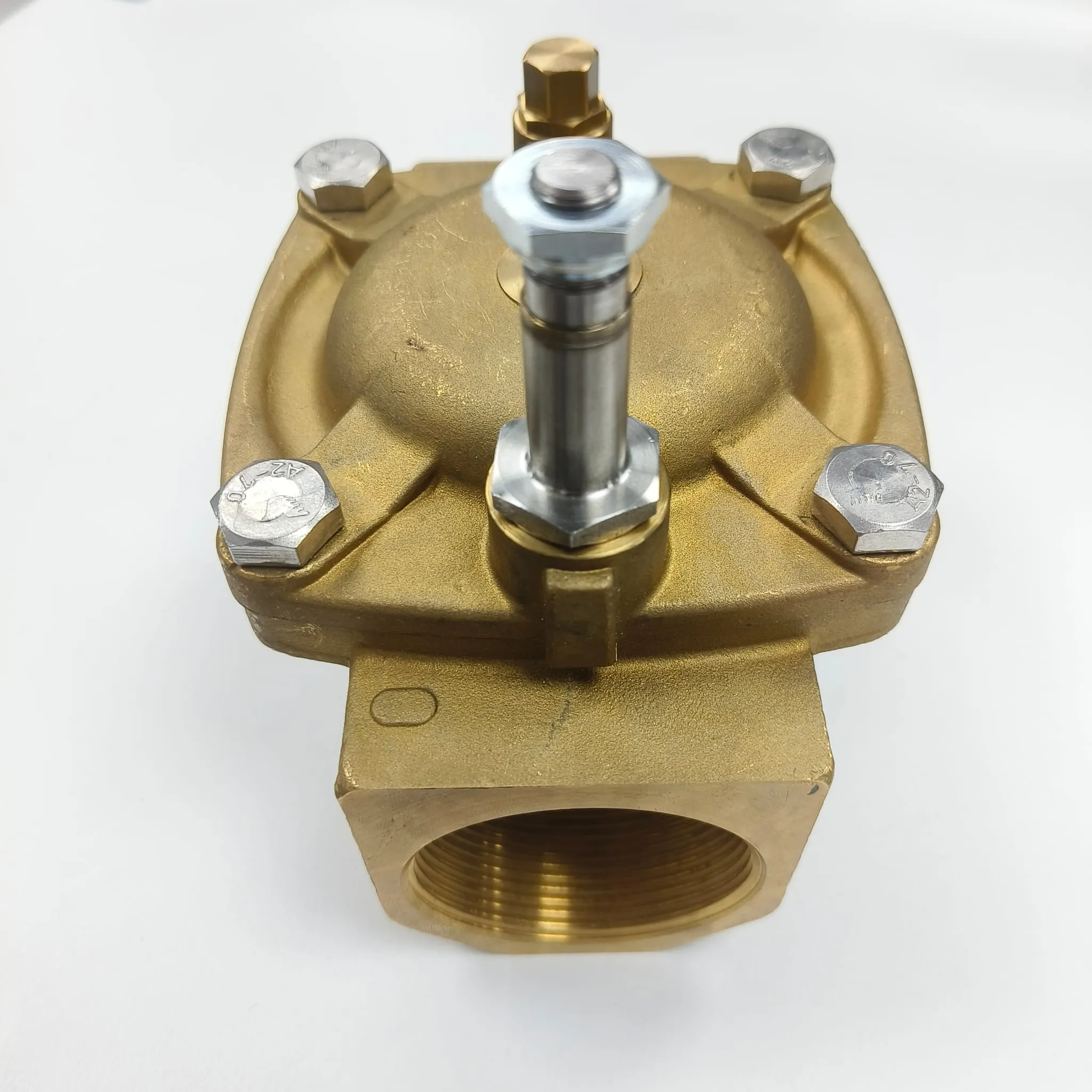

ACL 107 Series Brass Solenoid Valve, Servo-Assisted Diaphragm, 2-Way Normally Closed, FPM (Viton) Seal, G 2" Female BSPP Connection, E107IV50

Mfr. part no.
E107IV50
SKU
SOL-W-107V-32-10B-EU

Specifications

Connection Size G 2" ISO 228 (BSPP)
Valve Function 2-Way Normally Closed
Body Material Brass
Seal Material Viton (FPM)
Media Compatibility Air, Water, Gas
Minimum Differential Pressure 0.15 bar
Maximum Pressure 10 bar
KV Value 36 m³/h
Ambient Temperature Range -10°C to +140°C
Valve Type Servo-Assisted Diaphragm
Orifice Size 50 mm
Armature And Spring AISI 303 / AISI 302
Plunger And Core AISI 430FR
Compatible Coil Series Series 2
Series 107 Series

Key Features

  • Servo-Assisted Diaphragm construction
  • 2-way normally closed operation
  • Brass valve body
  • Viton (FPM) seal material
  • G 2" female BSPP connection
  • Included: Operating & Installation Instructions paperwork inside the box.
  • Made in Italy.

Description

ACL 107 Series is a brass servo-assisted diaphragm solenoid valve with normally closed operation for automatic control of compatible fluids. This valve uses a G 2" female BSPP threaded connection and a Viton (FPM) seal for suitable industrial service. It is intended for machinery, utility systems, water lines, air lines, and process applications where dependable on-off flow control is required. The servo-assisted diaphragm design provides the operating style used for this valve series and helps define its performance in the intended service conditions.

Select a Suitable Coil

This valve is supplied without a coil. Compatible coils are sold separately, allowing the correct voltage and frequency to be selected for the intended application. To add a suitable coil, please view available coil options.

Applications

  • Industrial machinery
  • Water and air service
  • Utility and process lines
  • General fluid control systems

Documents

  • ACL-107 Series Valves Datasheet-02

    PDF, 386 KB

Cross-reference

The closest equivalent from another brand, with the differences stated so you can check before you order.

ASCO (Emerson) SCG238E018V.230/50

Series 238 pilot-operated, built-in pilot, floating diaphragm, brass body, 2/2 NC (catalogue numbers SCE238D### and SCG238C###/E###)

ASCO Series 238 equivalent - 2/2 normally closed, pilot-operated brass solenoid valve with built-in pilot and floating diaphragm, G 2 BSPP, FPM seals, quoted against the 230 V 50 Hz build. Sizes differ slightly: the ASCO part has a 45 mm orifice and Kv 34 m3/h, while this valve has a 50 mm orifice and Kv 36 m3/h, about 6% more flow. Both are rated to 10 bar, and this valve opens from 0.15 bar differential against 0.5 bar. The ASCO catalogue number includes a coil; this valve is supplied without one, so a coil should be selected separately.

We carry E107IV50 as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →
