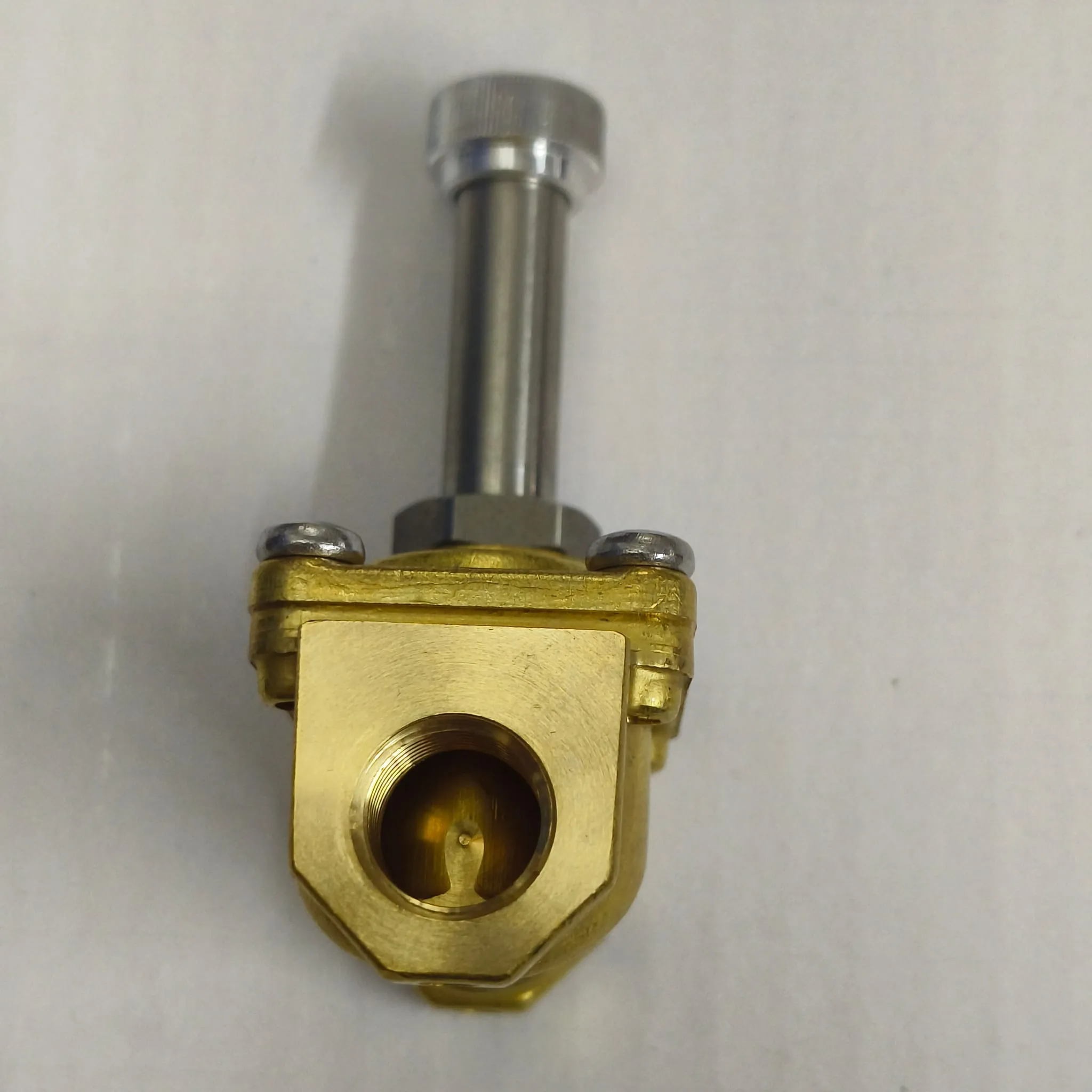

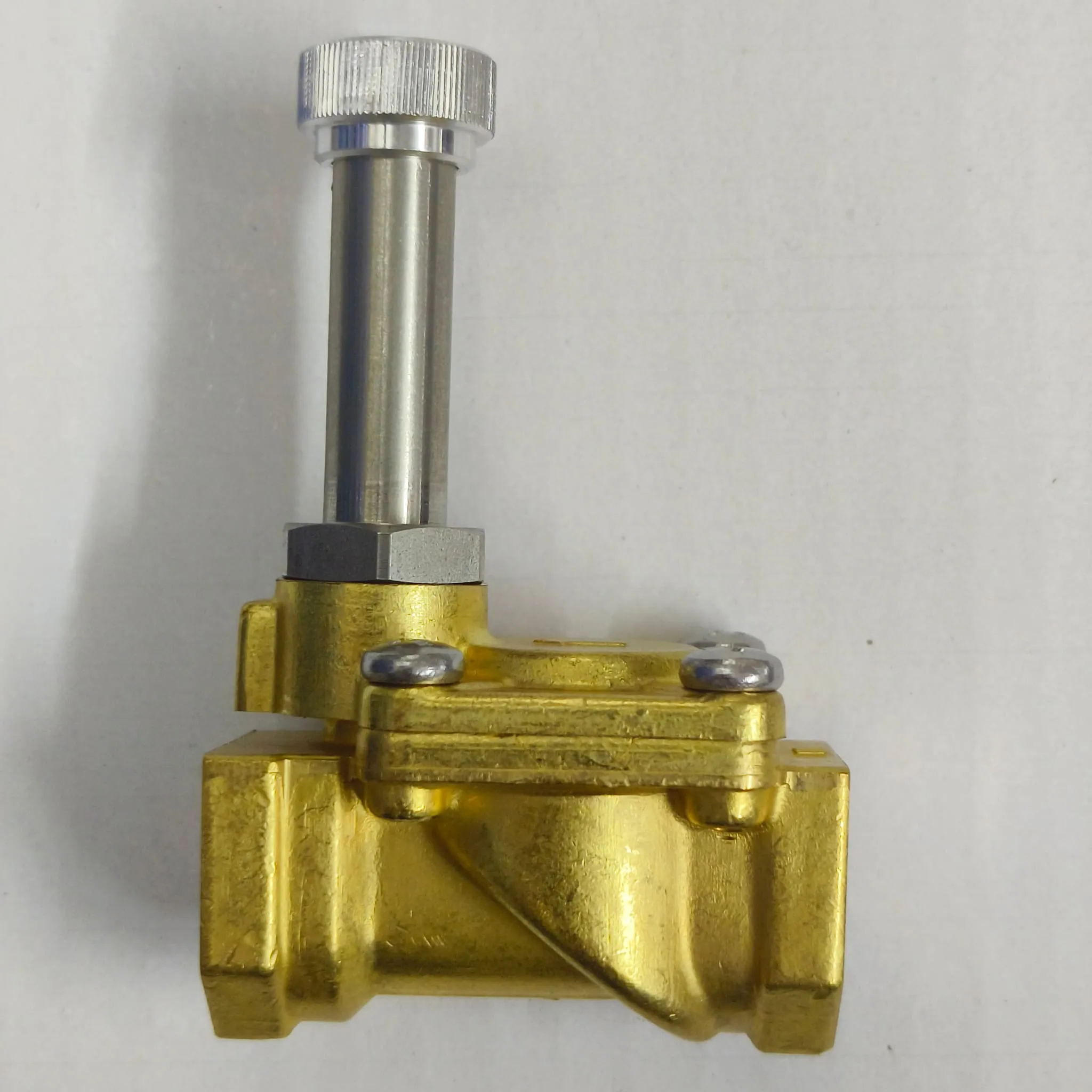

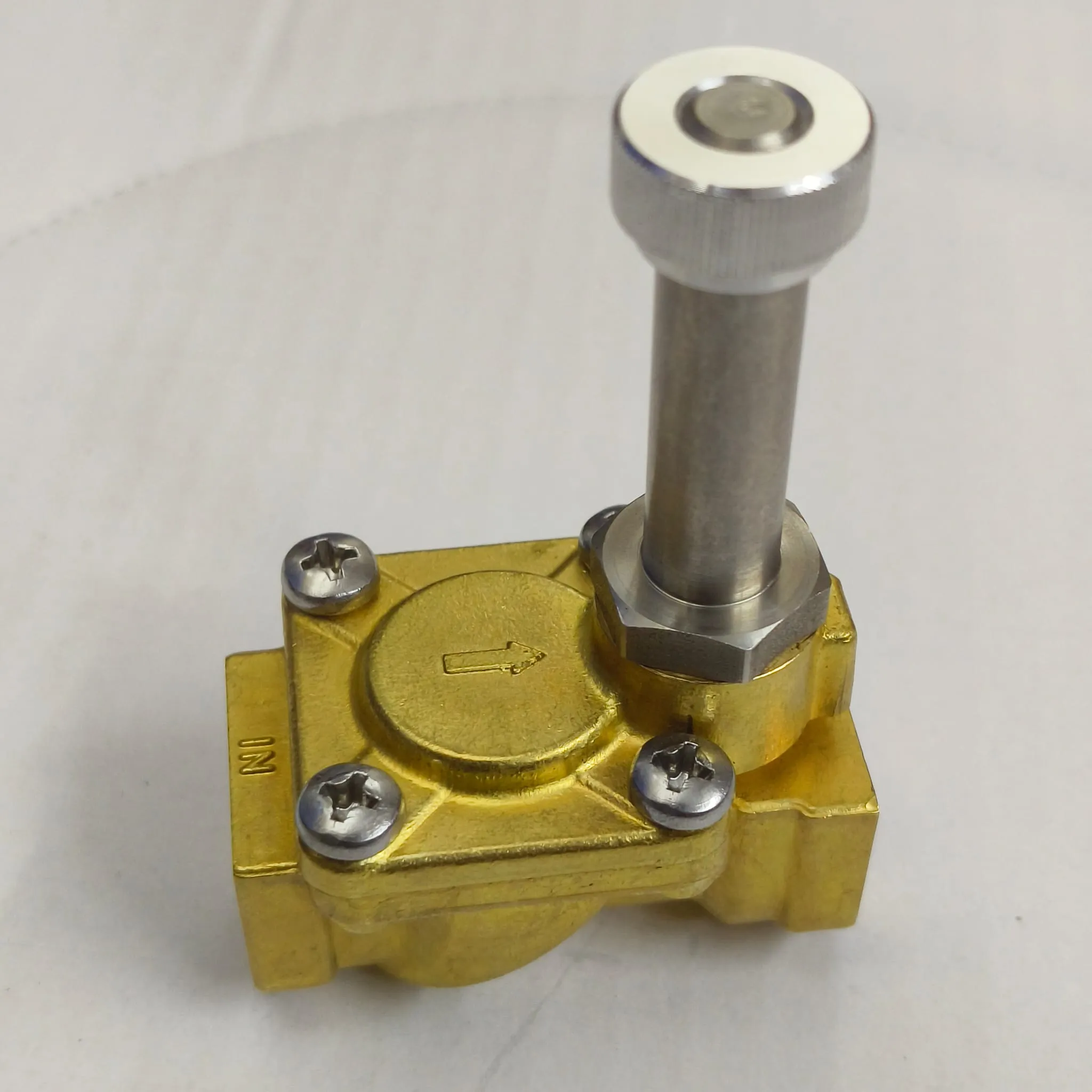

ACL 207 Series Brass Solenoid Valve, Servo-Assisted Diaphragm, 2-Way Normally Open, FPM (Viton) Seal, G 1/4" Female BSPP Connection, E207BB10
Technical overview
ACL 207 Series is a brass servo-assisted diaphragm solenoid valve with normally open operation for automatic control of compatible fluids. This valve uses a G 1/4" female BSPP threaded connection and a Viton (FPM) seal for suitable industrial service. It is intended for machinery, utility systems, water lines, air lines, and process applications where dependable on-off flow control is required. The servo-assisted diaphragm design provides the operating style used for this valve series and helps define its performance in the intended service Conditions.
Select a Suitable Coil
This valve is supplied without a coil. Compatible coils are sold separately, allowing the correct voltage and frequency to be selected for the intended application. To add a suitable coil, please view available coil options.Key Features
- Servo-Assisted Diaphragm construction
- 2-way normally open operation
- Brass valve body
- Viton (FPM) seal material
- G 1/4" female BSPP connection
- Included: Operating & Installation Instructions paperwork inside the box.
- Made in Italy.
Applications
- Industrial machinery
- Water and air service
- Utility and process lines
- General fluid control systems
Specifications
Valve TypeServo-Assisted Diaphragm
Valve Function2-Way Normally Open
Connection SizeG 1/4" ISO 228 (BSPP)
Orifice Size10 mm
KV Value1.5 m³/h
Body MaterialBrass
Armature And SpringAISI 303 / AISI 302
Plunger And CoreAISI 430FR
Seal MaterialViton (FPM)
Media CompatibilityAir, Water, Gas
Minimum Differential Pressure0.15 bar
Maximum Pressure15 bar
Ambient Temperature Range-10°C to +140°C
Compatible Coil SeriesSeries 3
Series207 Series
