Festo CPE14-M1BH-3GL-1/8 (Festo 196929) - unchanged, confirmed twice
Festo CPE Compact Performance — CPE14 (G1/8)

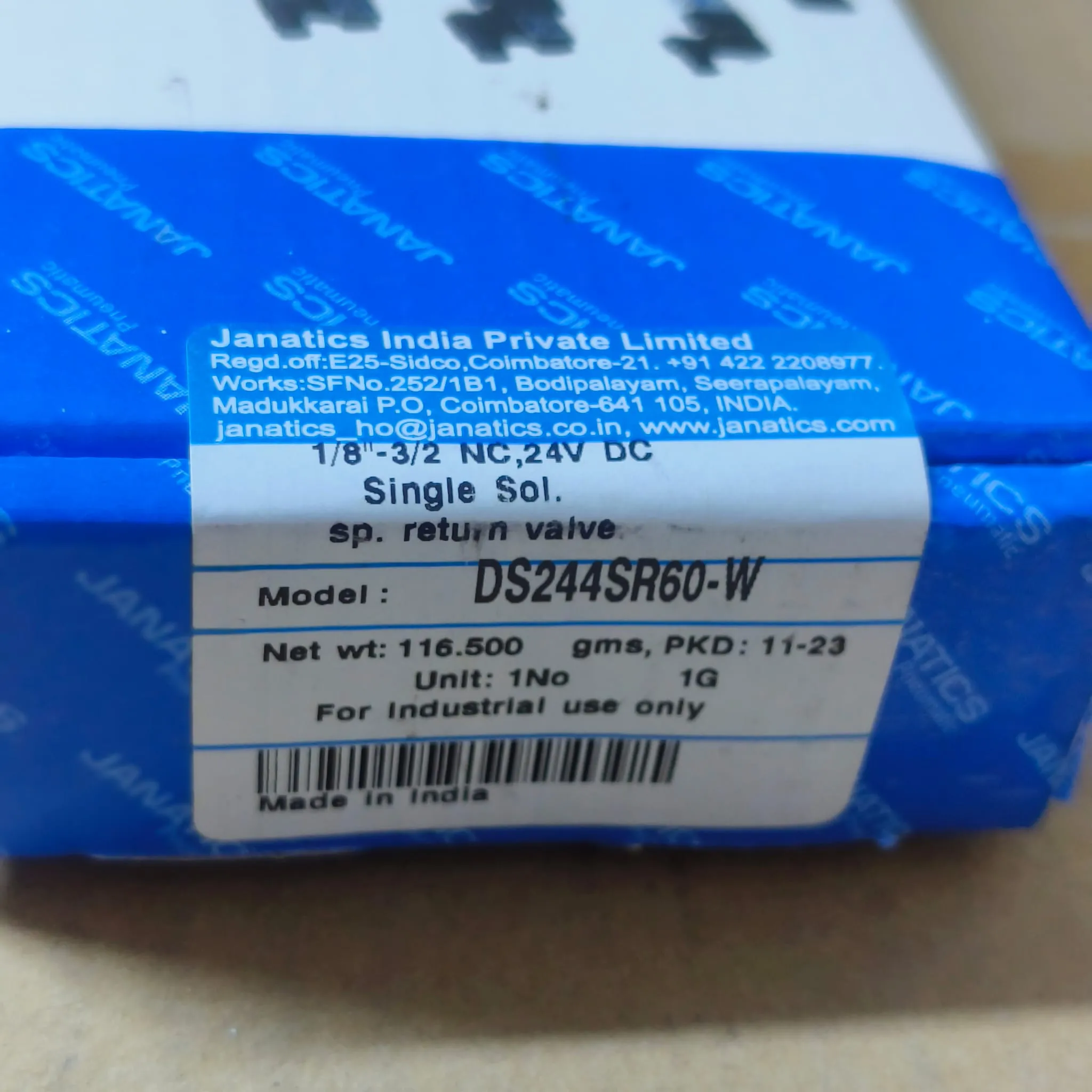

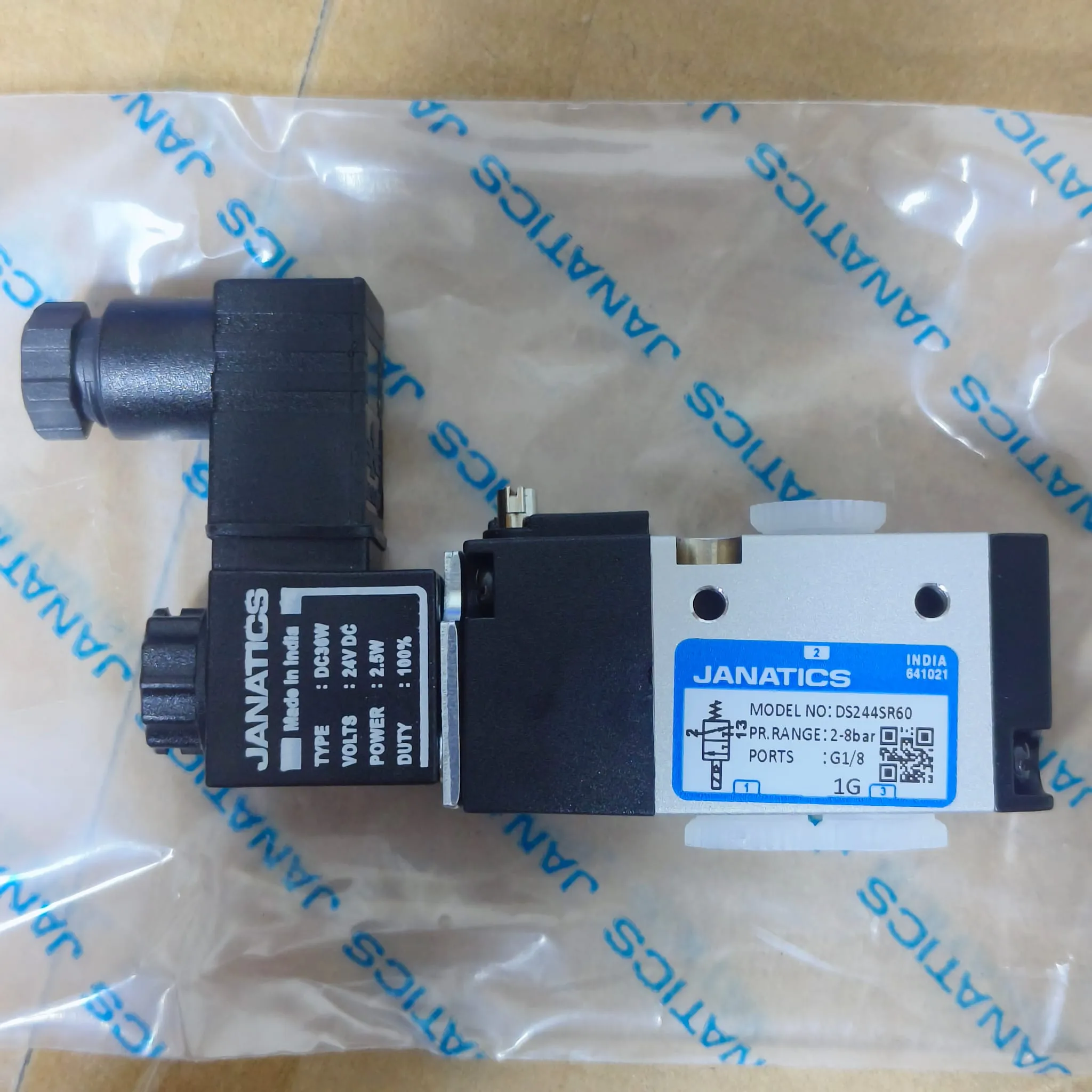

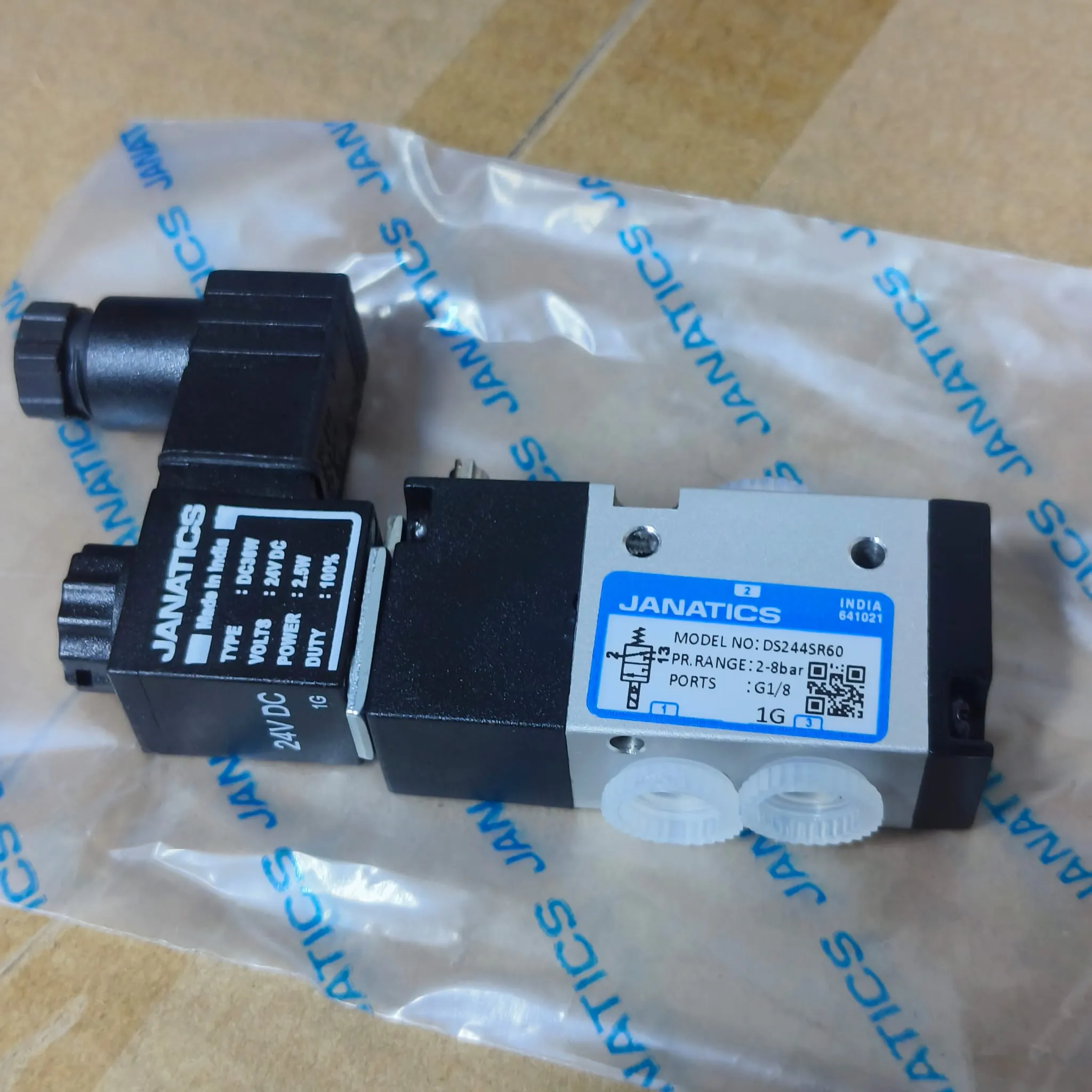

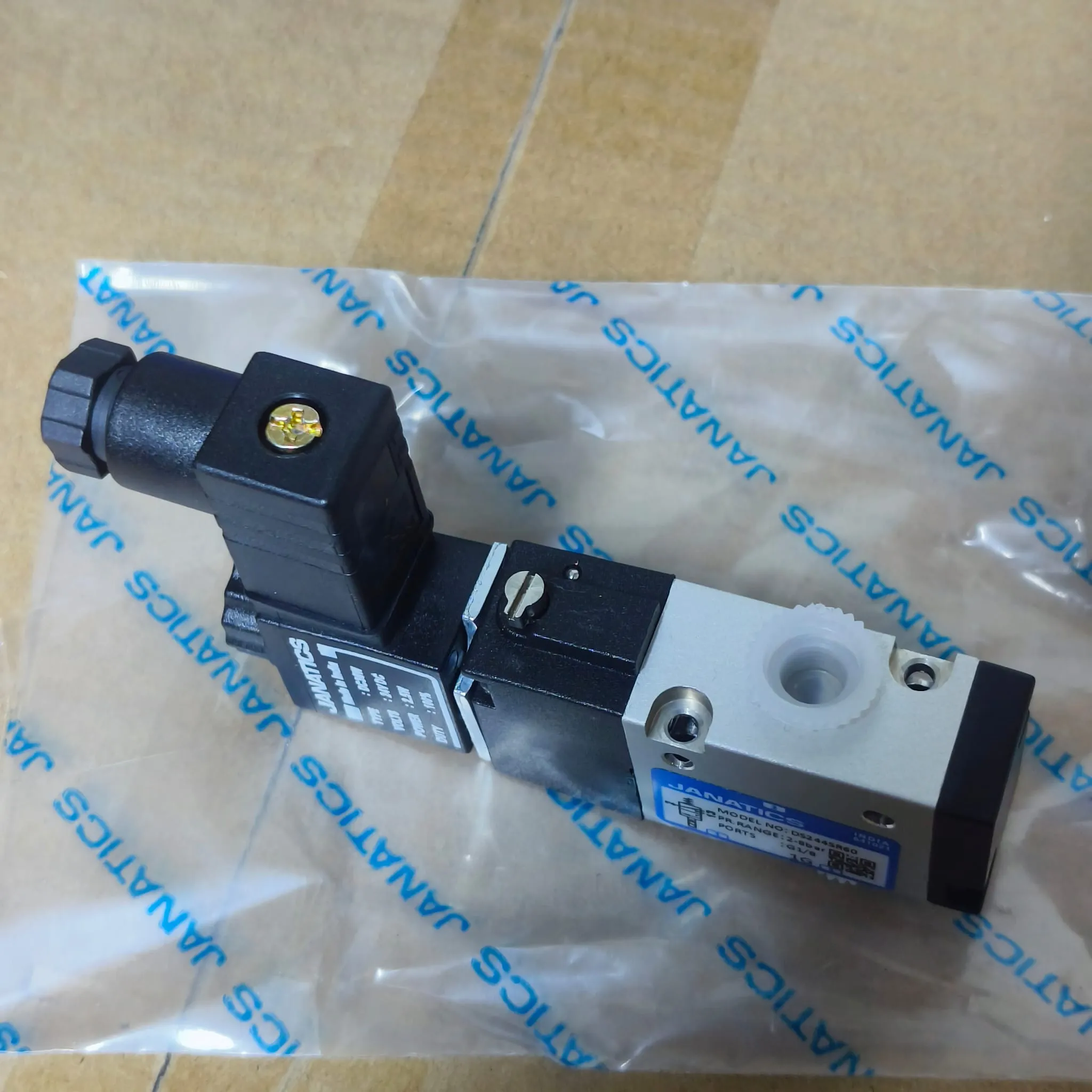

Festo CPE14-M1BH-3GL-1/8 (Festo part no. 196929) - the 3/2-way normally-closed, G1/8, 24 V DC Compact Performance valve this Janatics DS244SR60-W stands in for. Both are internally piloted spool valves with a pneumatic spring return, both carry G1/8 on all three ports, and both are IP65 with the connector fitted. Working pressure is 2 to 8 bar, against 2.5 to 8 bar for the Festo valve. Rated flow is 450 l/min, measured at 6 bar inlet with a 1 bar pressure drop; Festo publishes 900 l/min for its valve as a standard nominal flow rate referred to DIN 1343 standard conditions and does not state the test pressures behind that figure, so read the two as indicative rather than measured alike - but the gap is wide enough to expect slower actuator movement wherever the line is flow-limited. Rated -10 to +60 degC ambient against -5 to +50 degC for the Festo valve, on compressed air from +5 to +50 degC against Festo's -5 to +50 degC. The manual override is push-and-turn locking as standard, where the Festo valve's is non-detenting unless its locking accessory is fitted. The coil is supplied with its own PG7 connector on a 17 mm coil, where the Festo valve takes a 2-pin plug socket, so a Festo socket or cable will not transfer.
