Pneumatic Solenoid Valves

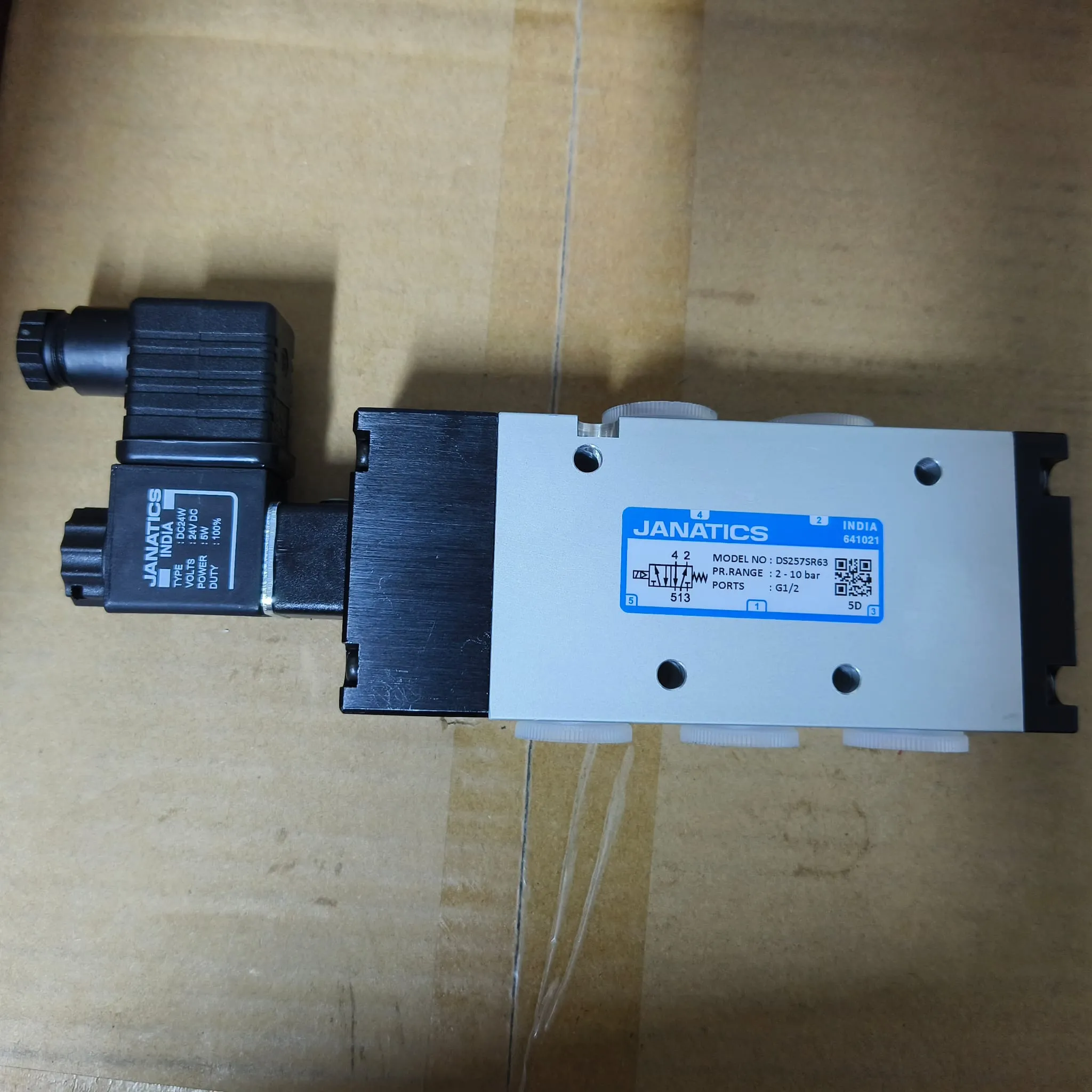

Janatics DS2 Series Pneumatic Solenoid Valve, 5/2 Way, G 1/2" Port, 24V DC Coil with Connector, DS257SR63-W
Janatics

Janatics DS2 Series Pneumatic Solenoid Valve, 5/2 Way, G 1/2" Port, 24V DC Coil with Connector, DS257SR63-W

Mfr. part no.
DS257SR63-W
SKU
PN-SOL-502-08-24DC

Specifications

Series DS2
Valve Type Spool Type
Valve Function 5/2 way
Port Size G 1/2"
Coil Voltage 24 V DC
Electrical Connection PG9 Coil Connector
Power Consumption 5 W
Working Pressure Range 2 to 10 bar
Ingress Protection IP65

Key Features

  • Uses a 5/2-way pilot-operated spool design for dependable directional control.
  • A single 24 V DC solenoid shifts the valve, while the spring returns it when power is removed.
  • PG9 electrical connector allows straightforward wiring.

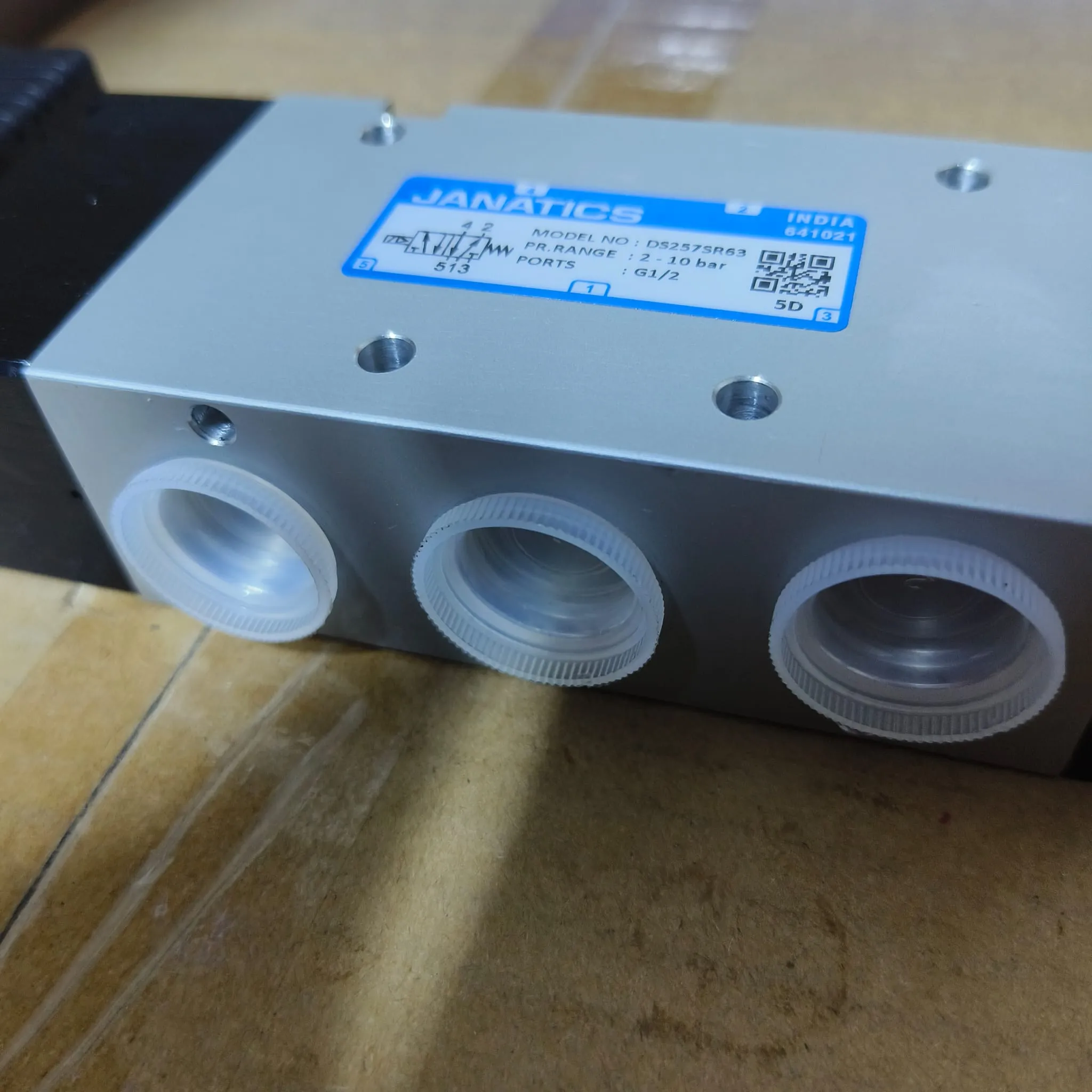

  • The G 1/2" threaded ports allow straight forward connection to the pneumatic circuit.
  • Provides a nominal flow rate of 3500 L/min for reliable pneumatic operation.
  • Operates within a working pressure range of 2 to 10 bar.
  • The push-and-turn manual override can be locked during setup, testing or servicing.
  • The IP65-rated coil is protected against dust and water jets when correctly installed.
  • Made in India.

Description

The Janatics DS2 Series provides compact directional control for pneumatic cylinders and actuators used in automated machinery. This 5/2-way valve combines a pilot-operated spool with a single 24 V DC solenoid rated at 5 W and spring return. The valve has G 1/2" connections, 3500 L/min nominal inlet-to-outlet flow and a 2 to 10 bar working pressure range. The 24 V DC solenoid coil is supplied with a PG9 connector for wiring and installation. A push-and-turn locking manual override and IP65 coil protection help with commissioning, and the valve can be mounted individually or on a manifold. It is intended for dry, filtered compressed air in packaging, assembly, material-handling and general actuator-control systems.

Applications

  • Double-acting pneumatic cylinders
  • Rotary pneumatic actuators
  • Machine automation systems
  • Packaging and assembly equipment
  • Pneumatic control panels

Documents

  • DS257SR63 W — Datasheet

    PDF, 1.5 MB

  • Janatics-DS2-5-2-3 Solenoid Valve — Catalog

    PDF, 7.5 MB

Cross-reference

The closest equivalents from other brands, with the differences stated so you can check before you order.

Parker P2LDX514ESNXB549

Parker Viking Xtreme — P2LDX (G1/2)

Parker P2LDX514ESNXB549 — Viking 5/2-way directional control valve: G1/2 ports, single solenoid with spring return, 24 V DC, 15 mm solenoid, internal pilot supply, 10 bar maximum. The Janatics DS257SR63-W shown here matches it on valve function, port size, coil voltage and maximum working pressure, and it shifts from 2 bar where the Parker needs 3.5 bar. Two differences worth knowing. Temperature: this valve is rated +5 °C to +60 °C, where the Parker part is rated -10 °C to +50 °C, so it is not a like-for-like choice below +5 °C. Supply: the Parker part number covers the valve and solenoid only, with the plug ordered separately and built to the 15 mm Form C / ISO 15217 pattern, whereas this valve is supplied complete with a 22 mm coil and a PG9 connector. If you are reusing an existing wired plug, check the connector form before ordering.

Airtac 4V410-15BG

Airtac 4V400 Series (5/2-way)

Airtac 4V410-15BG — the 5/2-way, 1/2" G-thread, 24 V DC single-solenoid valve equivalent to this Janatics DS257SR63-W.

We carry DS257SR63-W as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →
