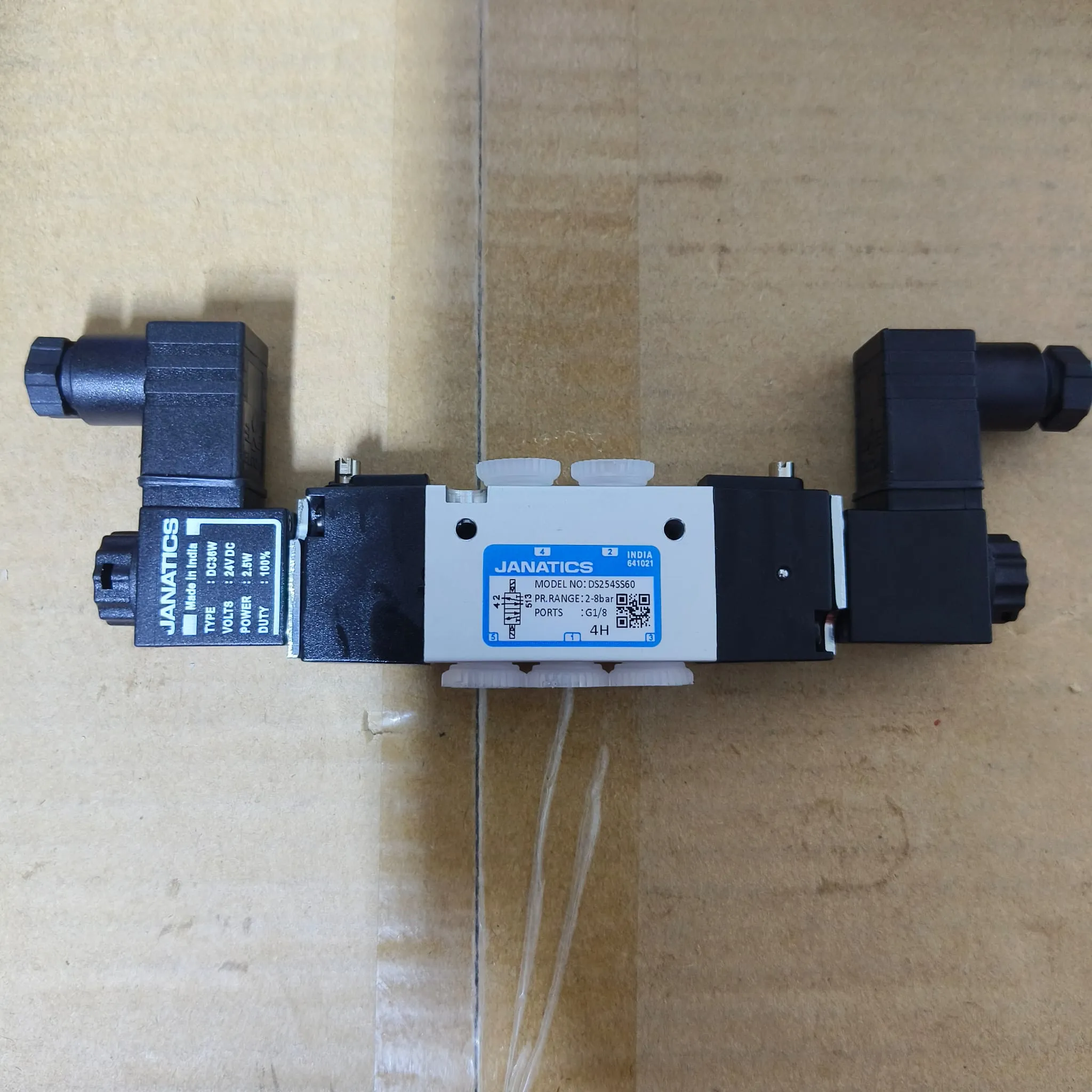

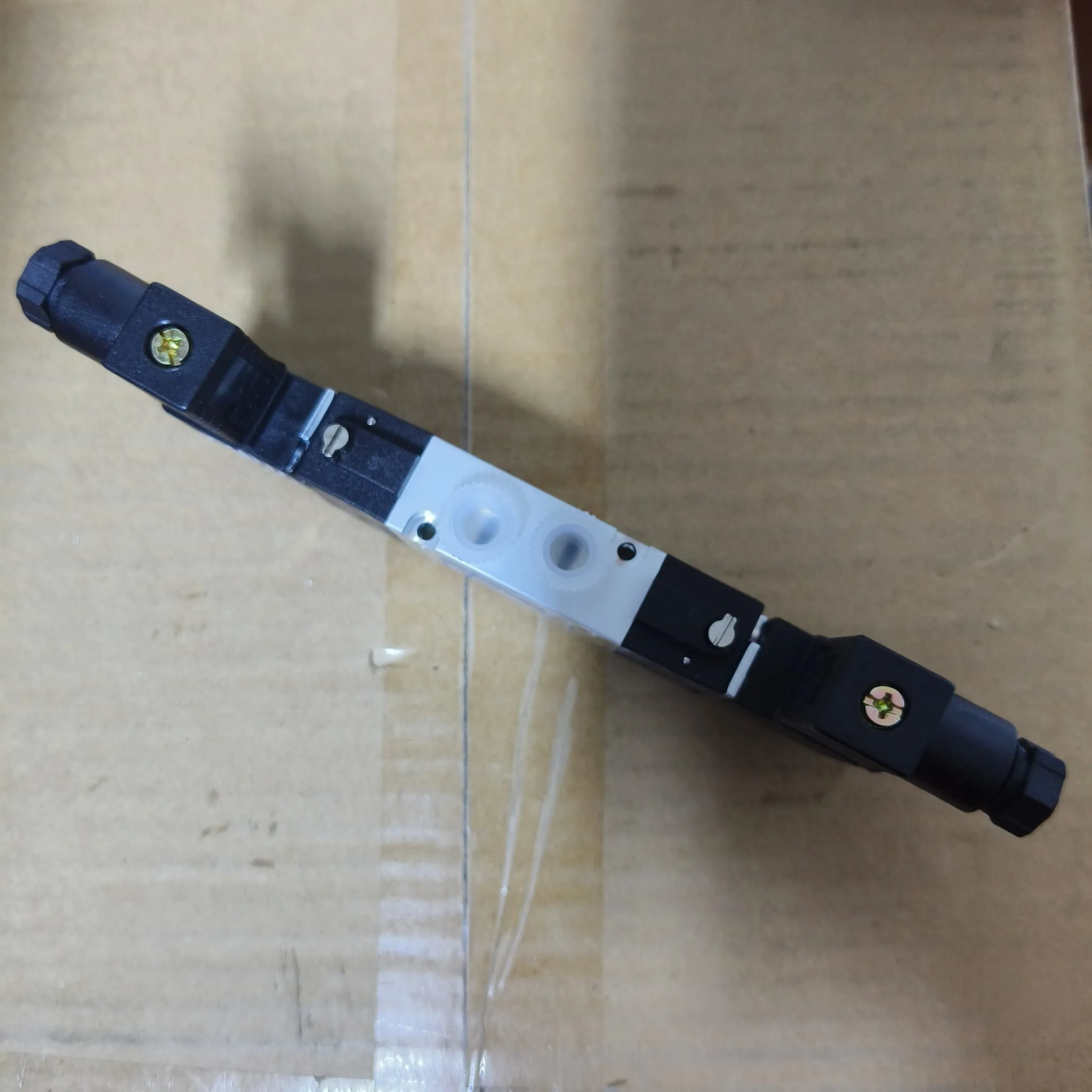

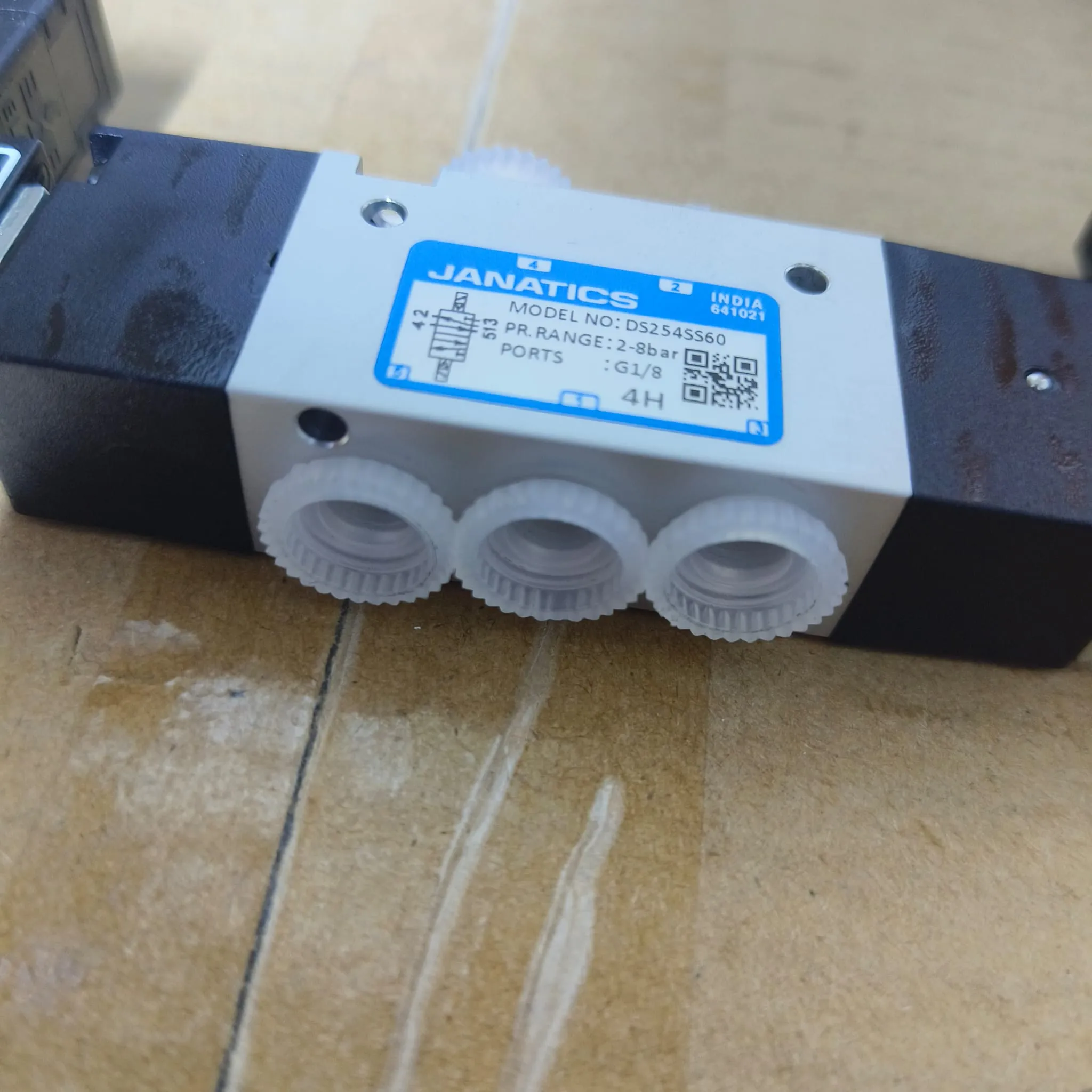

Janatics DS2 Series Pneumatic Solenoid Valve, 5/2 Way, G 1/8" Port, Double Solenoid, 24V DC Coils with Connectors, DS254SS60-W

Festo CPE14-M1BH-5J-1/8 (Festo 196939) - unchanged, confirmed twice

Festo CPE Compact Performance — CPE14 (G1/8)

Festo CPE14-M1BH-5J-1/8 (Festo part no. 196939) - the 5/2-way double-solenoid, G1/8, 24 V DC Compact Performance valve this Janatics DS254SS60-W stands in for. Both are internally piloted bistable spool valves, both carry G1/8 on all five ports, both run 2 to 8 bar, and both are IP65 with the connectors fitted. Rated flow is 450 l/min, measured at 6 bar inlet with a 1 bar pressure drop; Festo publishes 800 l/min for its valve as a standard nominal flow rate referred to DIN 1343 standard conditions and does not state the test pressures behind that figure, so read the two as indicative rather than measured alike - but the gap is wide enough to expect slower actuator movement wherever the line is flow-limited. Rated -10 to +60 degC ambient against -5 to +50 degC for the Festo valve, on compressed air from +5 to +50 degC against Festo's -5 to +50 degC. The manual override is push-and-turn locking as standard, where the Festo valve's is non-detenting unless its locking accessory is fitted. The coils are supplied with their own PG7 connectors on 17 mm coils, where the Festo valve takes 2-pin plug sockets, so Festo sockets or cables will not transfer.

Parker P2LAX511EENXB549

Parker Viking Xtreme — P2LAX (G1/8)

Parker P2LAX511EENXB549 — Viking Xtreme 5/2-way directional control valve: G1/8 ports, double solenoid, 24 V DC, 15 mm solenoid, internal pilot supply, rated to 10 bar with a nominal flow of 660 l/min. The Janatics DS254SS60-W shown here matches it on valve function, port size and coil voltage, and all five body ports are G1/8 on both valves. It is the smaller valve of the two and you should check three figures against your application before ordering. Maximum working pressure is 8 bar, against 10 bar for the Parker part. Rated flow is 450 l/min against 660 l/min for the Parker, both measured at 6 bar inlet with a 1 bar pressure drop, so plan on roughly a third less flow. Minimum working pressure is 2 bar, where the Parker part will shift from 1.5 bar. Temperature also differs: this valve is rated +5 °C to +60 °C where the Parker part is rated -10 °C to +50 °C. The Parker number covers the valve and solenoid only, with the plug ordered separately and built to the 15 mm Form C / ISO 15217 pattern; this valve is supplied complete with its 17 mm coils and PG7 connectors.

Airtac 4V120-06BG

Airtac 4V100 Series (5/2-way)

Airtac 4V120-06BG - the 5/2-way double-solenoid, 1/8" G-thread, 24 V DC solenoid valve equivalent to this Janatics DS254SS60-W. Valve function, port size (all five working ports 1/8" on both), thread form, 24 V DC coils, plug connectors and IP65 coil protection all match, and both valves are rated to 8 bar. One difference to check before ordering: this valve is rated at 450 L/min with 6 bar inlet and a 1 bar pressure drop, where Airtac's published flow chart for this body shows roughly 600 L/min at the same condition (Airtac quotes an equivalent orifice of 10.2 mm2, Cv 0.6). Size the circuit on the 450 L/min figure if cylinder speed matters.
