Janatics EF Series Poppet Type Pneumatic Solenoid Valve, 5/2 Way, G 1/4" Port, 220V AC Coil with Connector, EF115615A
Janatics

Janatics EF Series Poppet Type Pneumatic Solenoid Valve, 5/2 Way, G 1/4" Port, 220V AC Coil with Connector, EF115615A

Mfr. part no.
EF115615A
SKU
PN-SOL-POPPET-502-04

Specifications

Series EF
Valve Type Poppet Type Piston Operated
Valve Function 5/2 way
Port Size G 1/4"
Coil Voltage 220 V AC
Electrical Connection PG9 Coil Connector
Power Consumption 6 VA
Working Pressure Range 2.2 to 10 bar
Ingress Protection IP65

Key Features

  • Uses a 5/2-way poppet design for quick and dependable airflow switching.
  • A single 220 V AC solenoid shifts the valve, while the spring returns it when power is removed.
  • PG9 electrical connector allows straightforward wiring.
  • The G 1/4" threaded ports allow straight forward connection to the pneumatic circuit.
  • Provides a nominal flow rate of 1000 L/min for reliable pneumatic operation.
  • Operates within a working pressure range of 2.2 to 10 bar.
  • A 6 mm valve orifice supports the rated airflow through the poppet assembly.
  • The IP65-rated coil is protected against dust and water jets when correctly installed.
  • Made in India.

Description

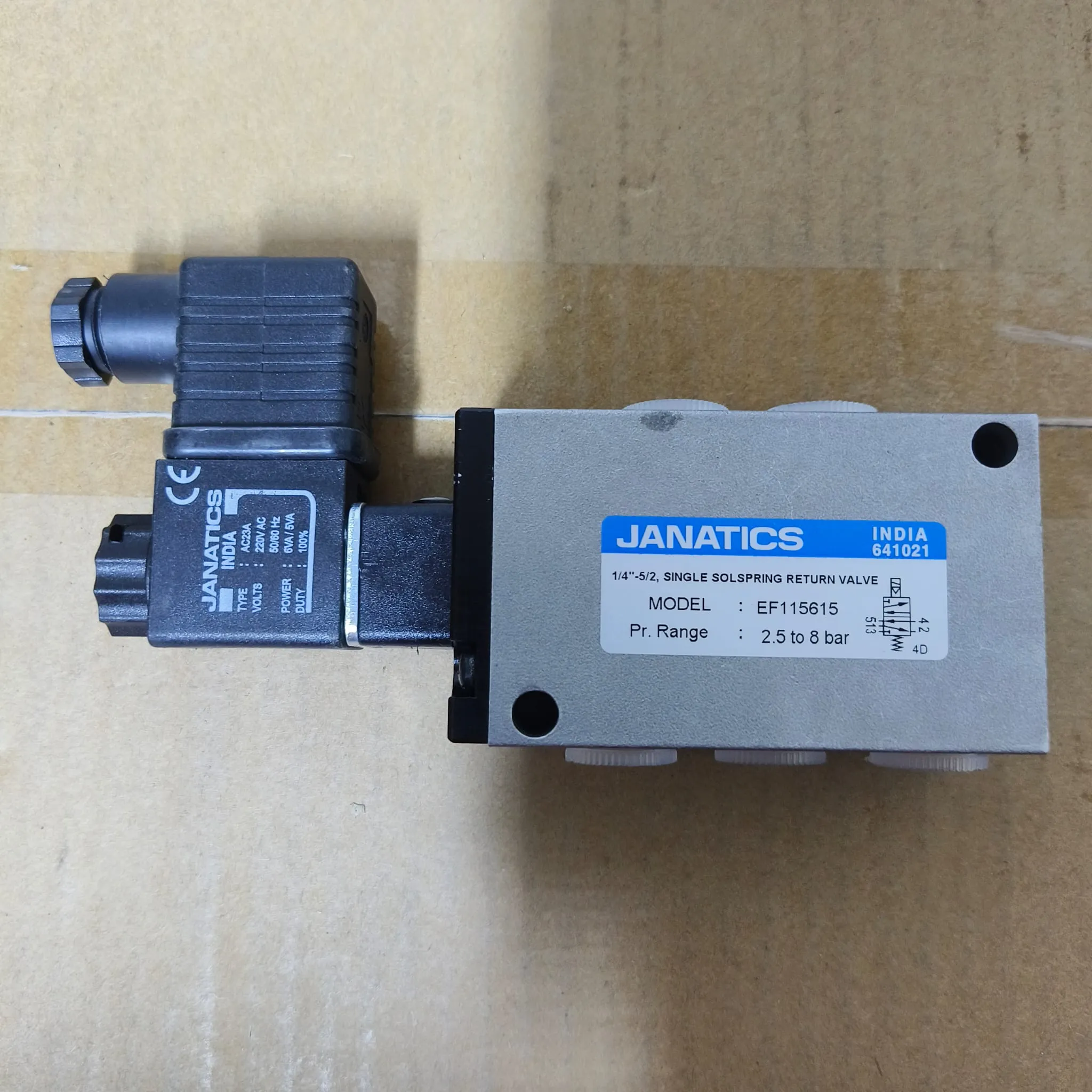

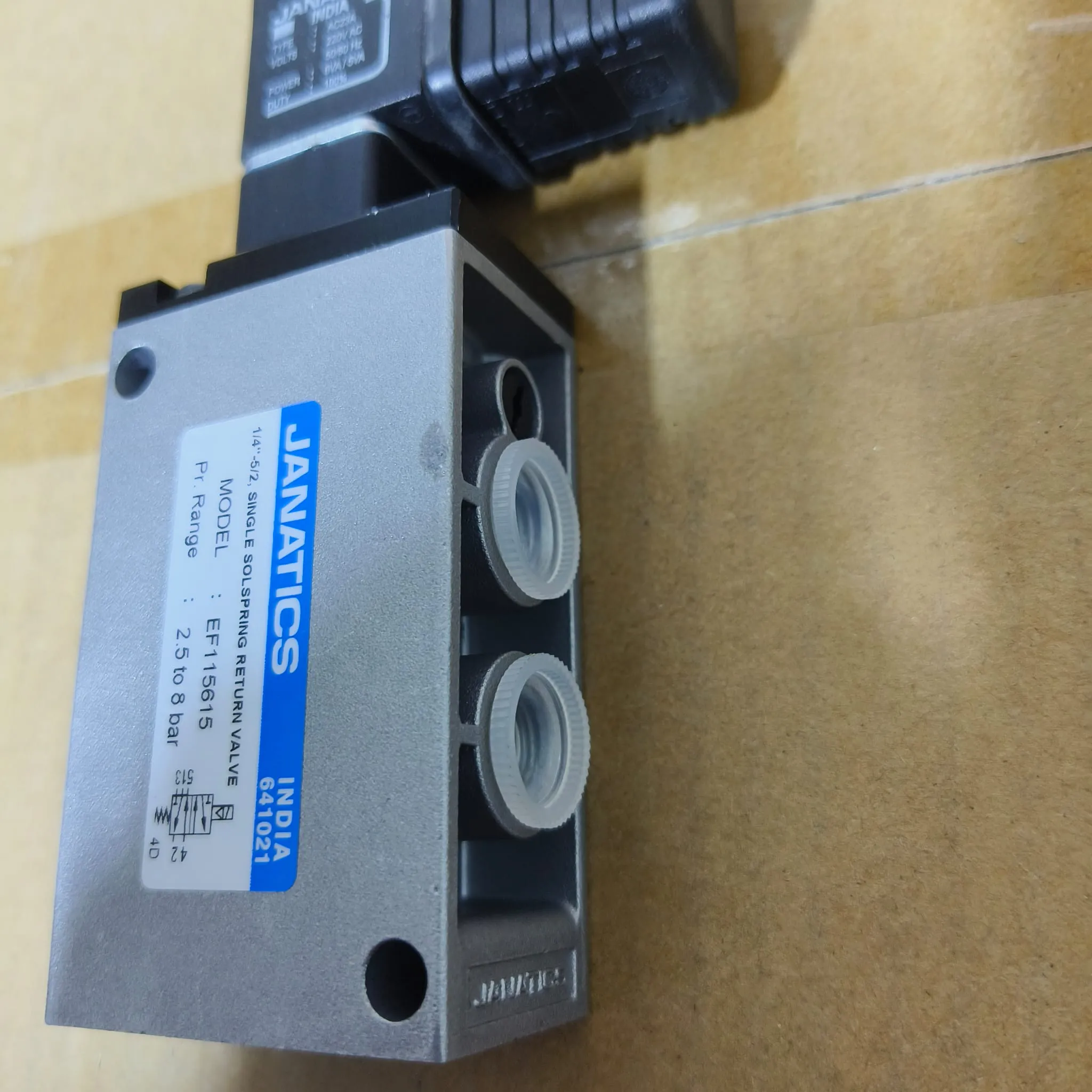

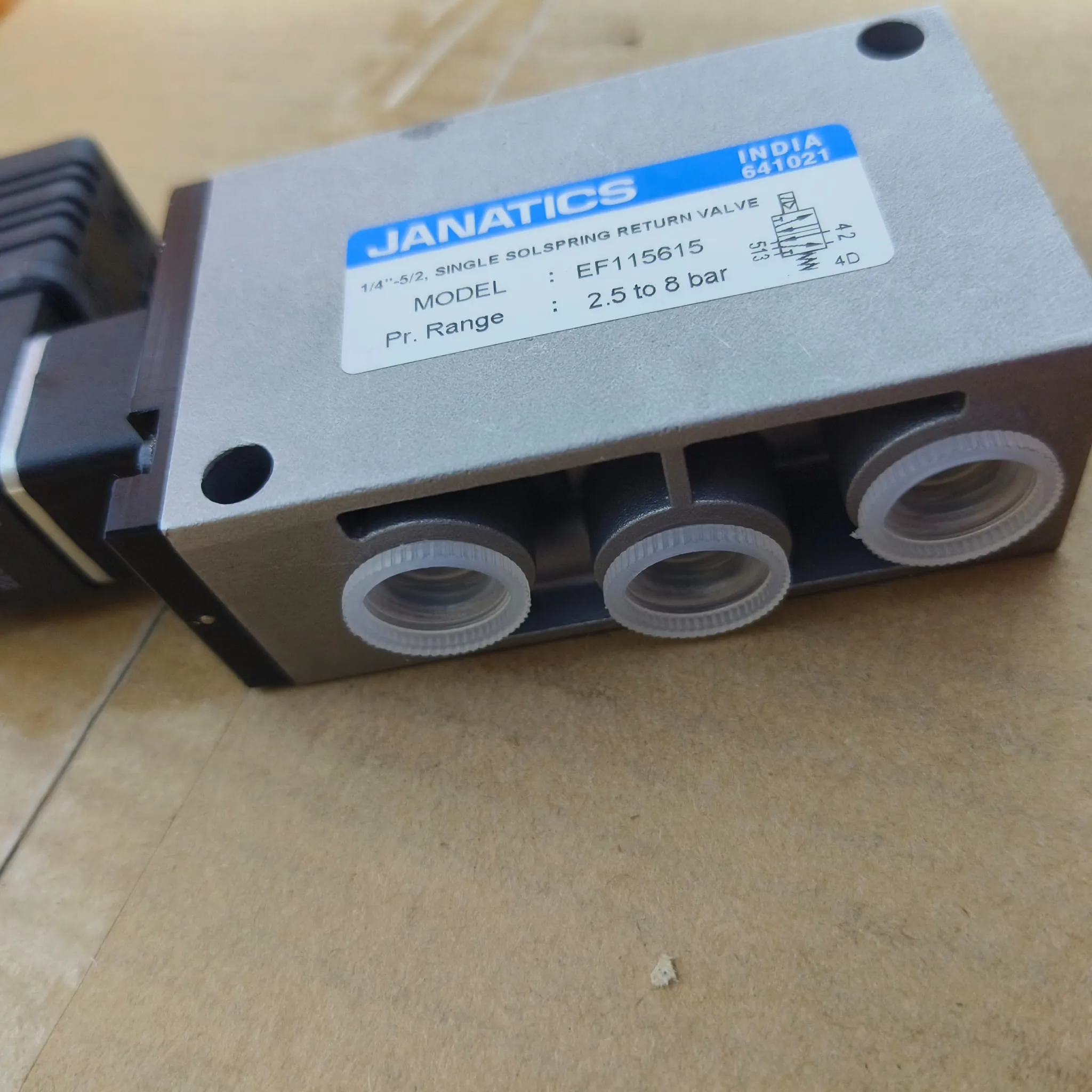

The Janatics EF Series uses a compact, fast-acting poppet design for switching compressed air in industrial pneumatic circuits. This 5/2-way valve combines a pilot-operated poppet with a single 220 V AC solenoid rated at 6 VA and spring return. The valve has G 1/4" connections, 1000 L/min nominal inlet-to-outlet flow and a 2.2 to 10 bar working pressure range, with a 6 mm valve orifice. The 220 V AC solenoid coil is supplied with a PG9 connector for wiring and installation. A push-and-turn locking manual override and IP65 coil protection help with commissioning, and the valve can be mounted individually or on a manifold. It is intended for dry, filtered compressed air in packaging, assembly, material-handling and general actuator-control systems.

Applications

  • Double-acting pneumatic cylinders
  • Rotary pneumatic actuators
  • Machine automation systems
  • Packaging and assembly equipment
  • Pneumatic control panels

Documents

  • EF115615A — Datasheet

    PDF, 1.6 MB

  • Janatics EF Series Poppet Solenoid Valves — Catalog

    PDF, 1.9 MB
