Janatics DS2 Series Pneumatic Solenoid Valve, 5/3 Way Centre Blocked, G 1/2" Port, Double Solenoid, 24V DC Coils with Connectors, DS267SC63-W
All Janatics products
Janatics Pneumatic Solenoid Valves
All Pneumatic Solenoid Valves (every brand)
Technical overview

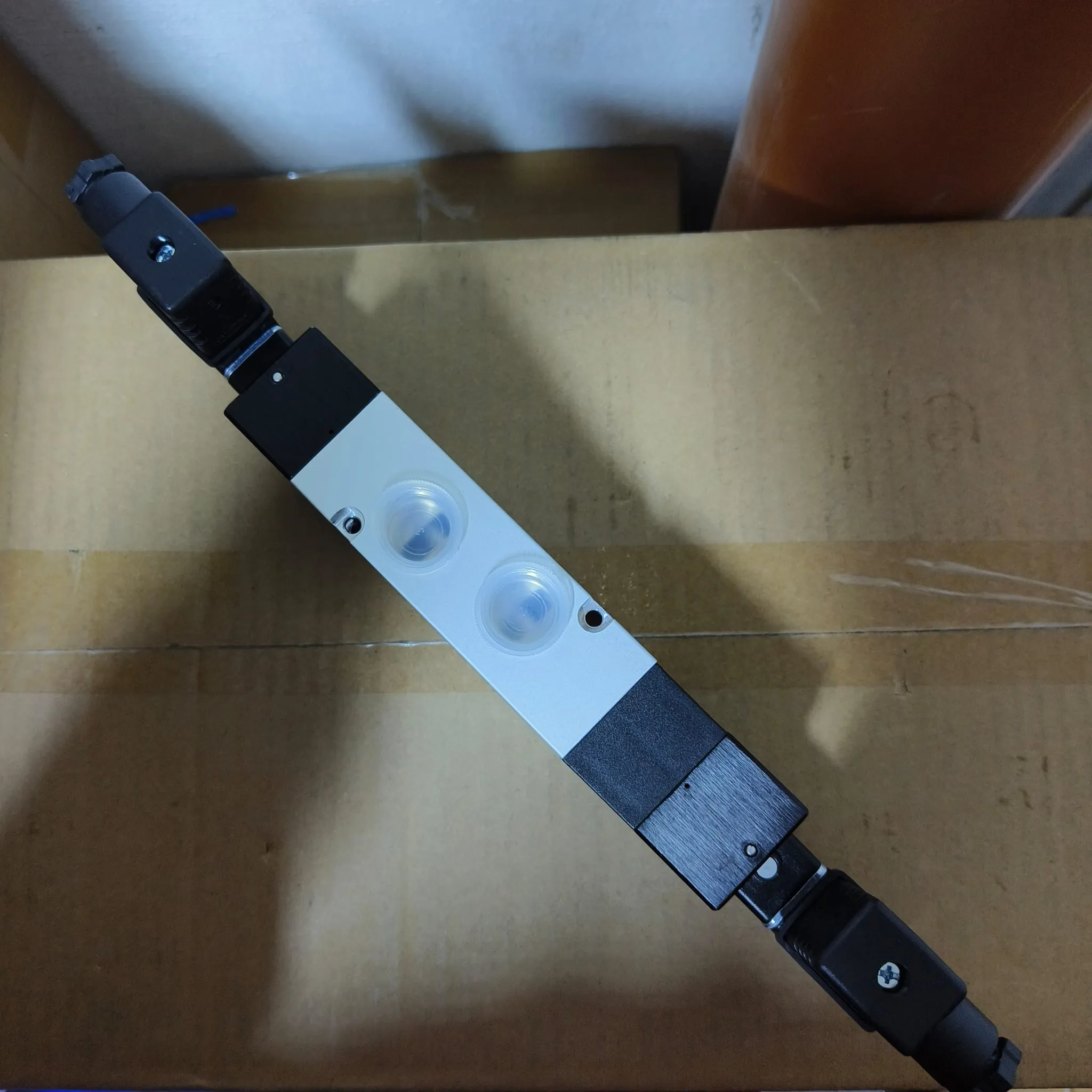

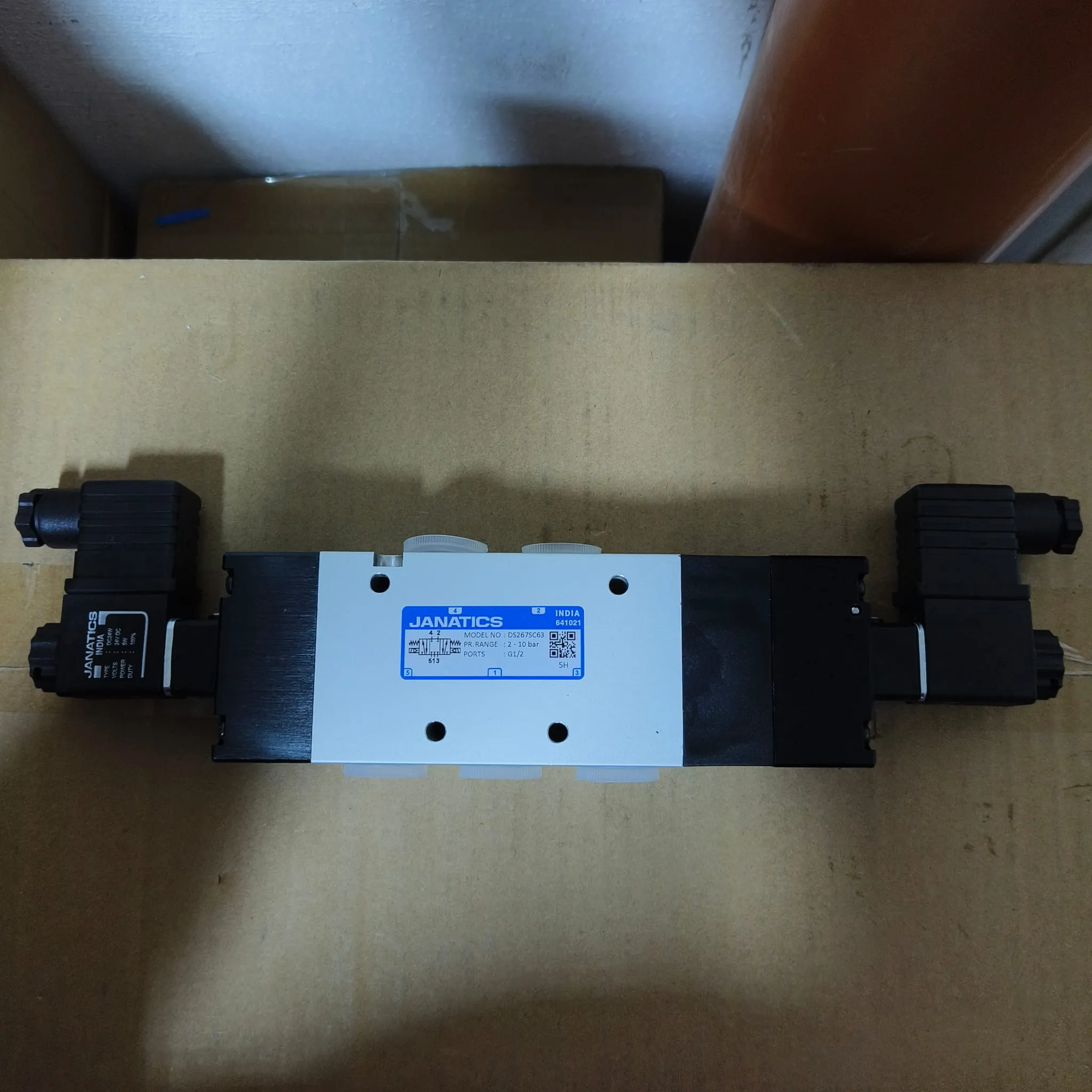

The Janatics DS2 Series provides compact directional control for pneumatic cylinders and actuators used in automated machinery. This 5/3-way centre-blocked valve uses a pilot-operated spool, dual 24 V DC solenoids rated at 5 W, and spring centring to the blocked position. The valve has G 1/2" connections, 3500 L/min nominal inlet-to-outlet flow and a 2 to 10 bar working pressure range. Both 24 V DC solenoid coils are supplied with PG9 connectors for wiring and installation. A push-and-turn locking manual override and IP65 coil protection help with commissioning, and the valve can be mounted individually or on a manifold. It is intended for dry, filtered compressed air in packaging, assembly, material-handling and general actuator-control systems.
Key Features
- Uses a 5/3-way, centre-blocked pilot-operated spool design that blocks airflow in the neutral position.
- Dual 24 V DC solenoids provide electrical actuation in both switching directions.
- Matching PG9 electrical connectors allow straightforward wiring.

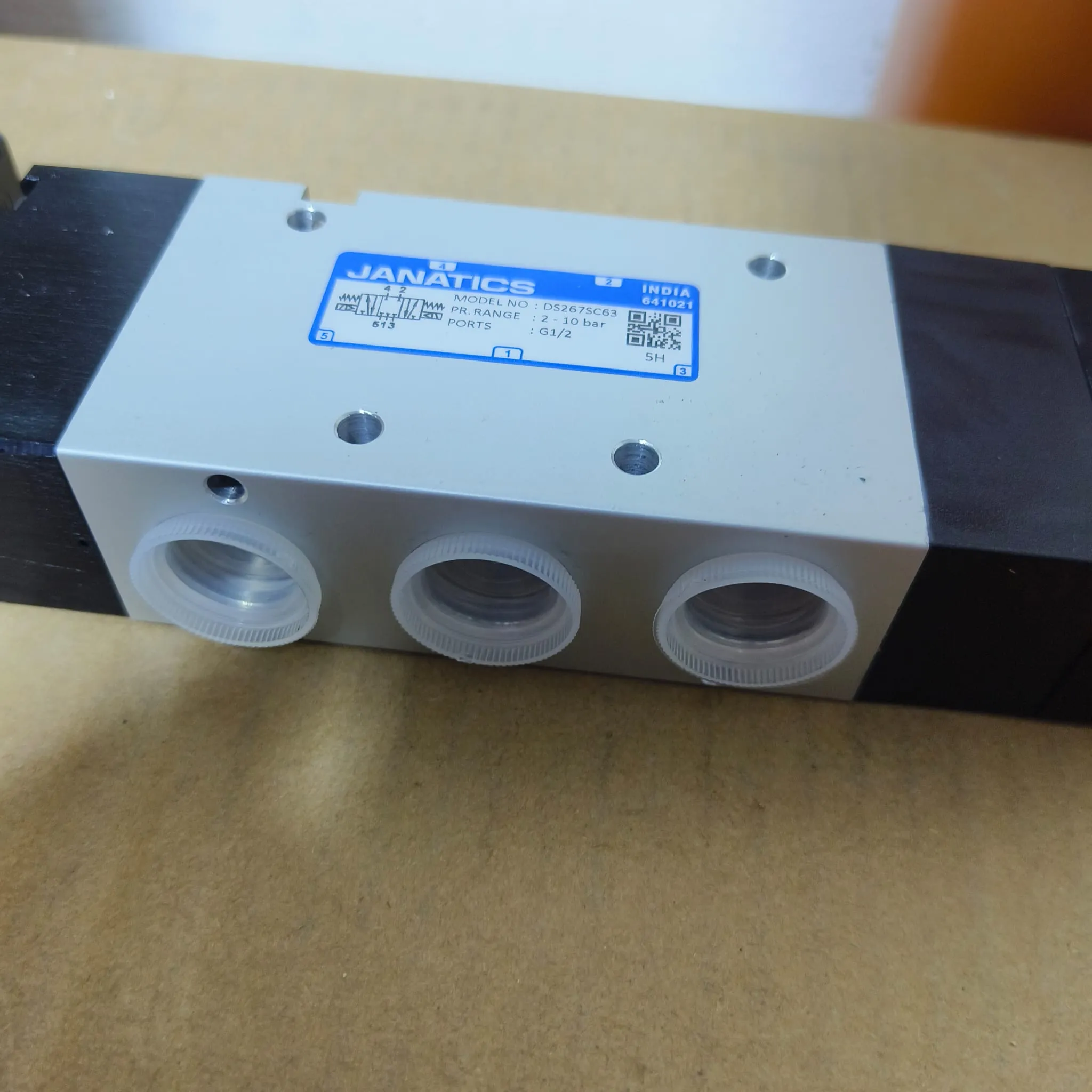

- The G 1/2" threaded ports allow straight forward connection to the pneumatic circuit.
- Provides a nominal flow rate of 3500 L/min for reliable pneumatic operation.
- Operates within a working pressure range of 2 to 10 bar.
- Return springs centre the spool in the blocked position when both solenoids are de-energized.
- The IP65-rated coil is protected against dust and water jets when correctly installed.
- Made in India.
Applications
- Mid-position cylinder control
- Actuator stop and hold circuits
- Machine automation systems
- Material handling equipment
- Pneumatic control panels
Specifications
SeriesDS2
Valve TypeSpool Type
Valve Function5/3 Centre Blocked
Port SizeG 1/2"
Coil Voltage24 V DC
Electrical ConnectionPG9 Coil Connectors
Power Consumption5 W
Working Pressure Range2 to 10 bar
Ingress ProtectionIP65
