Janatics DS3 Series NAMUR Pneumatic Solenoid Valve, 3/2 Way Normally Open, G 1/4" Port, 24V DC Coil with Connector, DS335SR61-W
All Janatics products
Janatics Pneumatic Solenoid Valves
All Pneumatic Solenoid Valves (every brand)
Technical overview
The Janatics DS3 Series is designed for direct NAMUR mounting on pneumatic actuators used in process-valve automation. This 3/2-way normally open valve combines a pilot-operated spool with a single 24 V DC solenoid rated at 5 W and spring return. The valve has G 1/4" connections, 1400 L/min nominal inlet-to-outlet flow and a 2 to 10 bar working pressure range. The 24 V DC solenoid coil is supplied with a PG9 connector for wiring and installation. A push-and-turn locking manual override and IP65 coil protection help with commissioning, while the NAMUR interface mounts directly on the actuator. It is intended for dry, filtered compressed air in process-valve actuation, packaging equipment and general industrial automation.
Key Features
- Uses a 3/2-way, normally open pilot-operated spool design for dependable directional control.
- A single 24 V DC solenoid shifts the valve, while the spring returns it when power is removed.
- PG9 electrical connector allows straightforward wiring.
- The G 1/4" threaded ports allow straight forward connection to the pneumatic circuit.
- Provides a nominal flow rate of 1400 L/min for reliable pneumatic operation.
- Operates within a working pressure range of 2 to 10 bar.

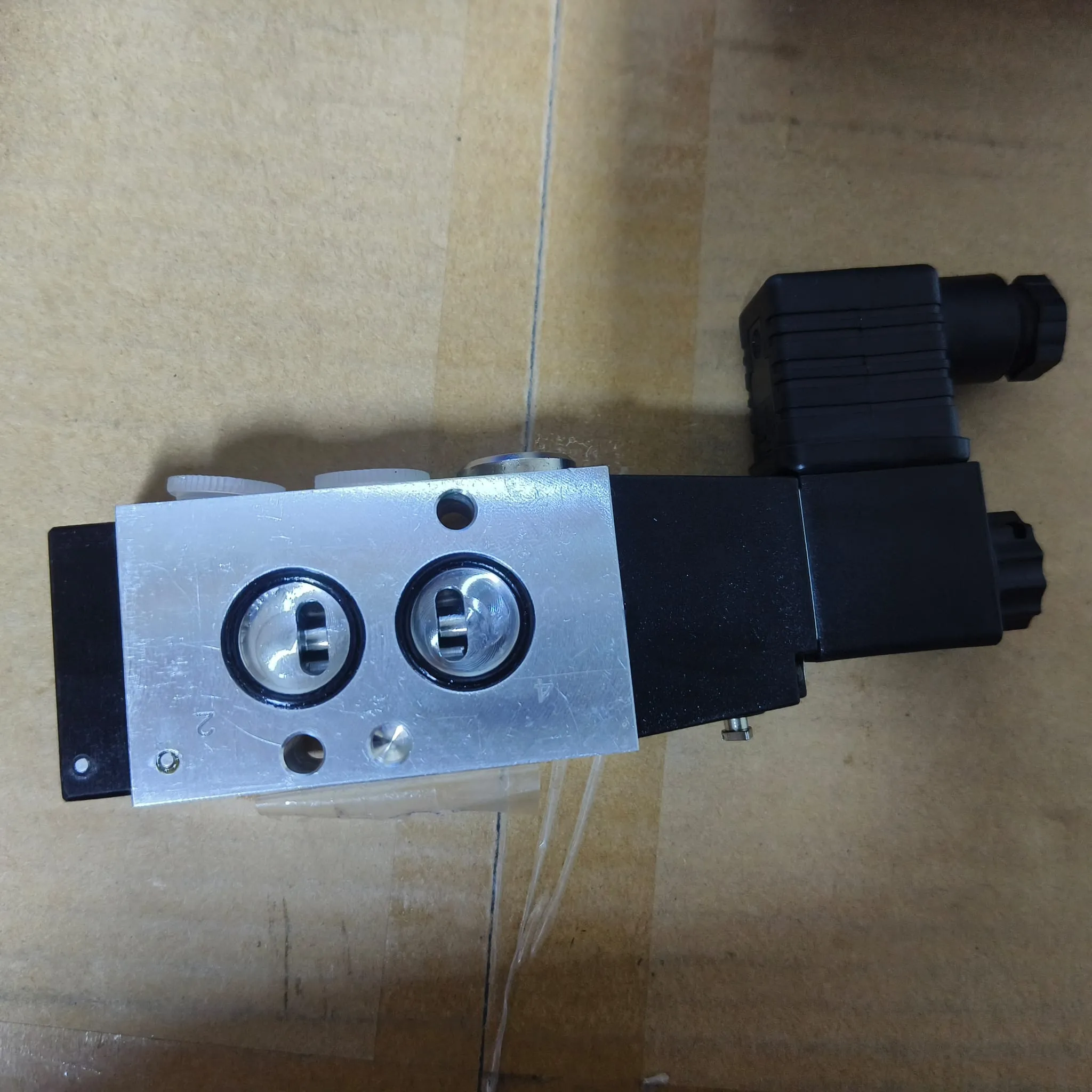

- Mounts directly to a NAMUR-pattern pneumatic actuator, reducing external tubing and installation work.
- The IP65-rated coil is protected against dust and water jets when correctly installed.
- Made in India.
Applications
- Pneumatic rotary actuators
- Process valve automation
- Butterfly and ball valves
- Actuator control packages
- Industrial process plants
Specifications
SeriesDS3 NAMUR
Valve TypeNAMUR Spool Type
Valve Function3/2 Normally Open
Port SizeG 1/4"
Coil Voltage24 V DC
Electrical ConnectionPG9 Coil Connector
Power Consumption5 W
Working Pressure Range2 to 10 bar
Ingress ProtectionIP65
