Manual Pneumatic Valves
Janatics DS2 Series Panel Mounting Pneumatic Valve, 5/2 Way, G 1/8" Port, Red Mushroom Head, DS254P60-MP1A
Janatics

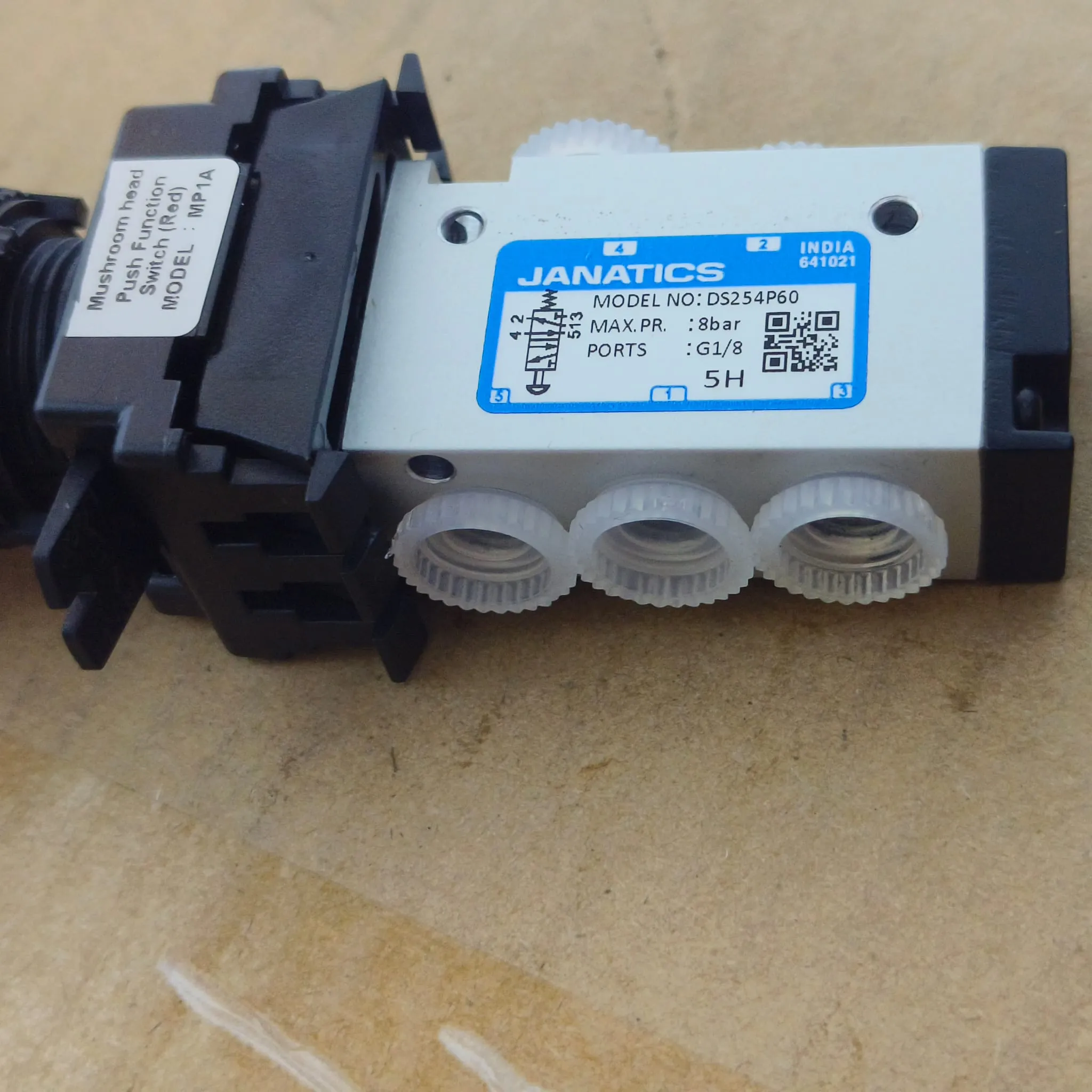

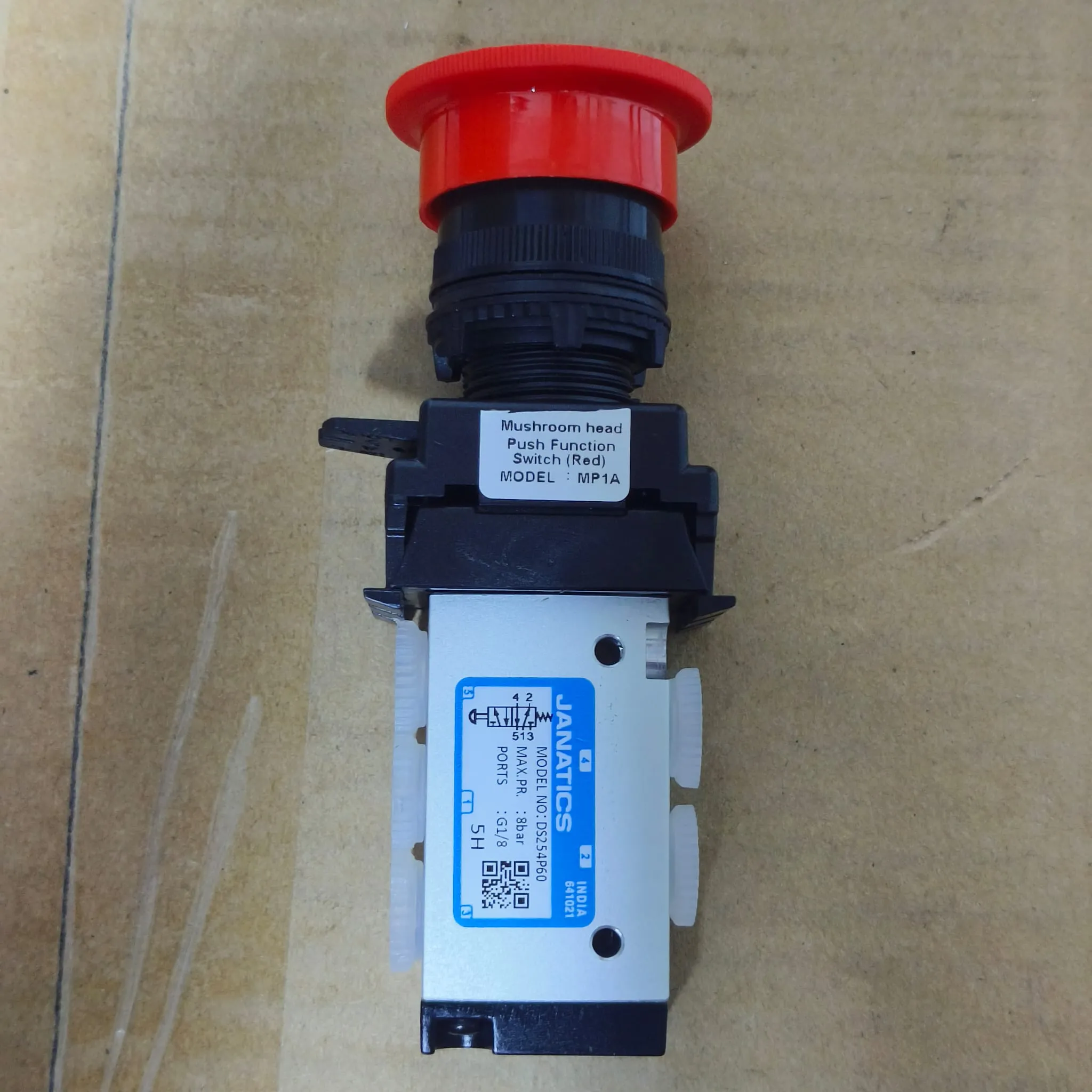

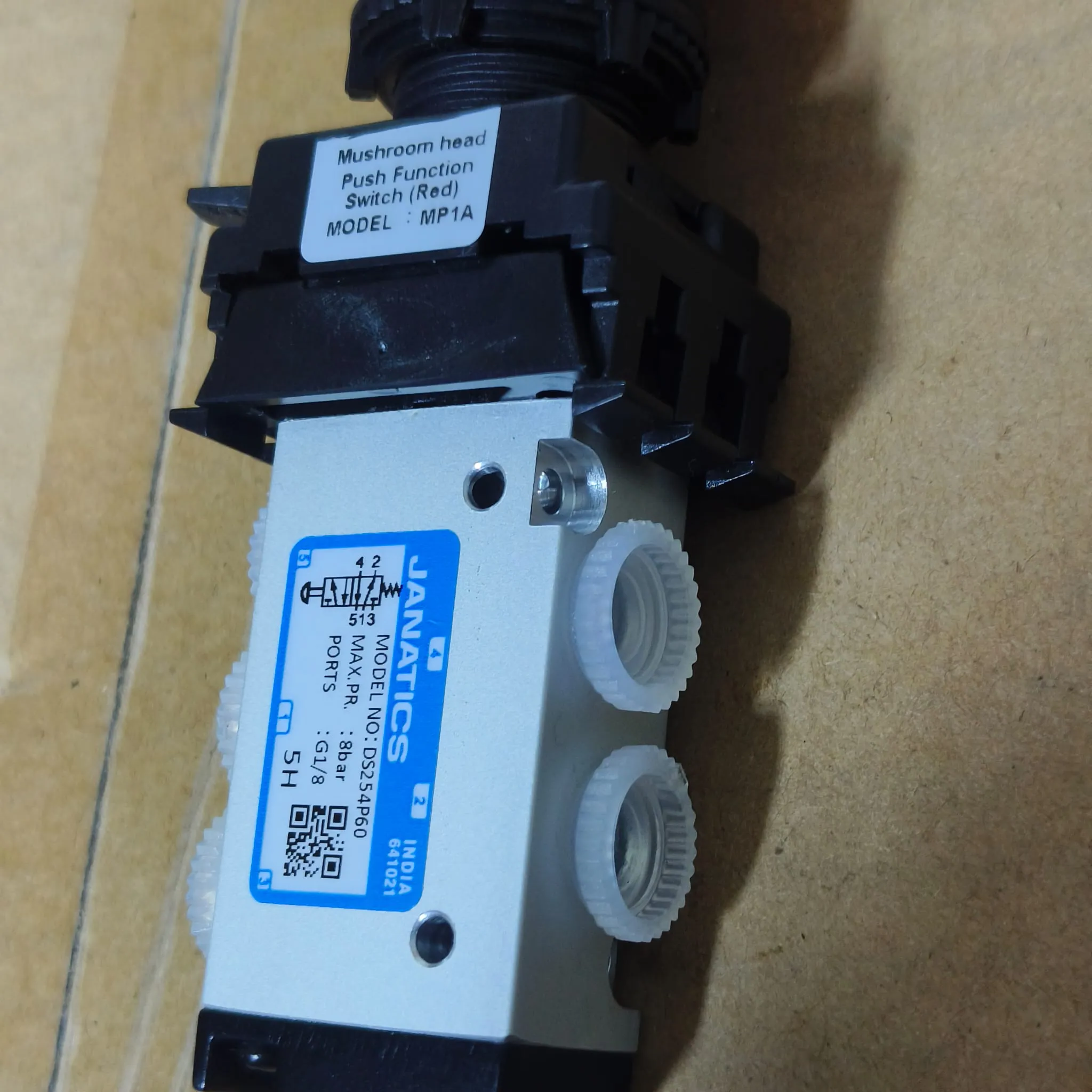

Janatics DS2 Series Panel Mounting Pneumatic Valve, 5/2 Way, G 1/8" Port, Red Mushroom Head, DS254P60-MP1A

Mfr. part no.
DS254P60-MP1A
SKU
PN-SOL-502-02-SWITCH-MSH-RED

Specifications

Series DS2
Valve Type Spool Type
Valve Function 5/2 way
Port Size G 1/8"
Working Pressure Range 1 to 8 bar
Mounting Position Individual panel mounting

Key Features

  • Provides 5/2-way directional control through a panel-mounted manual actuator.

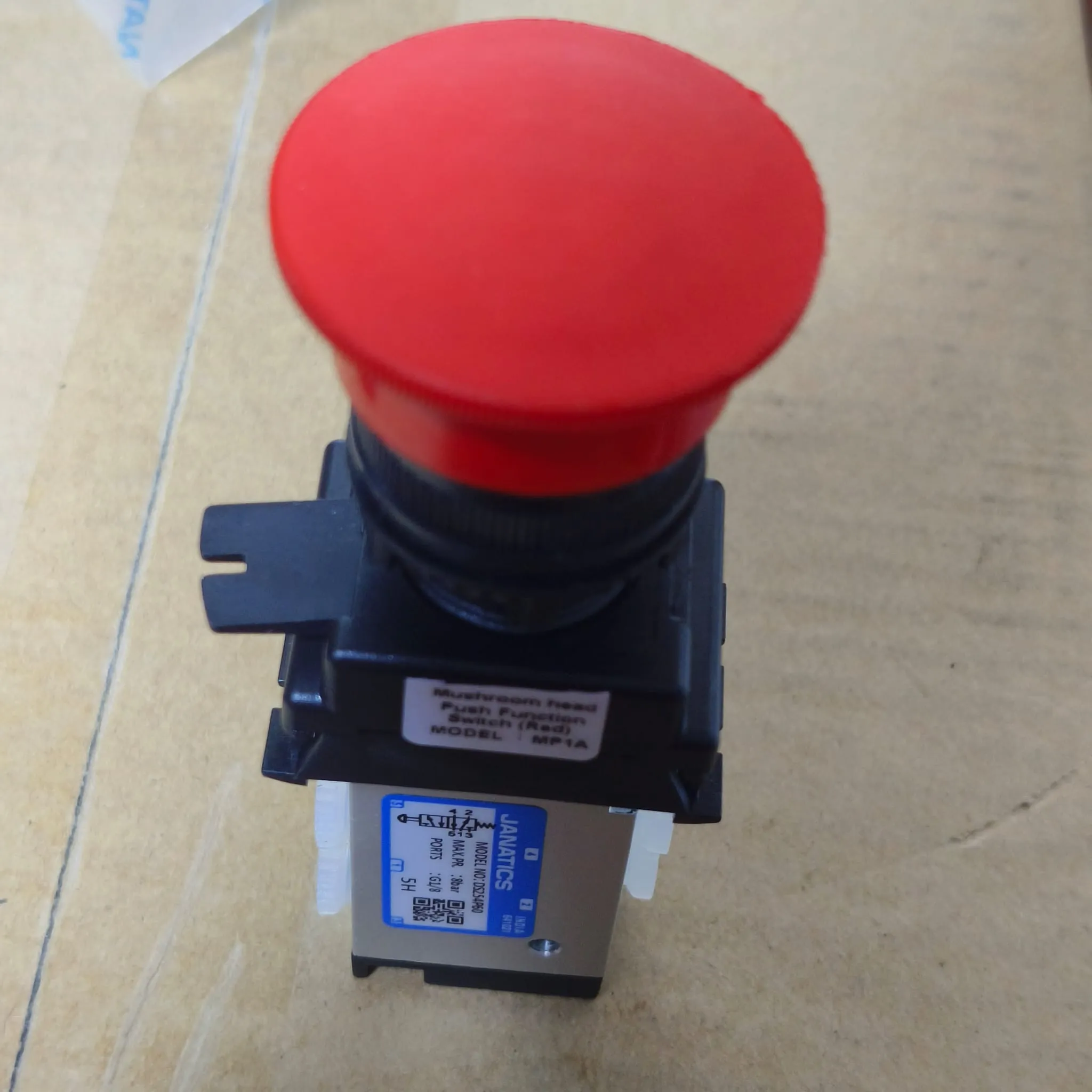

  • The red mushroom-head push button provides a broad and easy-to-operate manual control surface.
  • The G 1/8" threaded ports allow straight forward connection to the pneumatic circuit.
  • Provides a nominal flow rate of 450 L/min for reliable pneumatic operation.
  • Operates within a working pressure range of 1 to 8 bar.
  • The spring-return spool restores the valve to its normal position when the actuator is released.
  • Designed for secure installation on control panels from 1 to 4 mm thick.
  • Made in India.

Description

The Janatics DS2 Series panel valve provides direct manual control of pneumatic cylinders and actuators from a machine panel or operator station. This 5/2-way valve uses a red mushroom-head push-button actuator with spring return, giving the operator a clear mechanical command. The valve has G 1/8" connections, 450 L/min nominal flow and a 1 to 8 bar working pressure range for dry, filtered compressed air. Designed for individual mounting in 1 to 4 mm thick panels, it is well suited to control panels, test benches and manually operated pneumatic equipment.

Applications

  • Manual pneumatic control panels
  • Operator control stations
  • Cylinder direction selection
  • Machine setup and testing
  • Local pneumatic commands

Documents

  • DS254P60-MP1A — Datasheet

    PDF, 1.4 MB

  • Janatics Manually Operated Valves-1-8 — Catalog

    PDF, 1.8 MB
