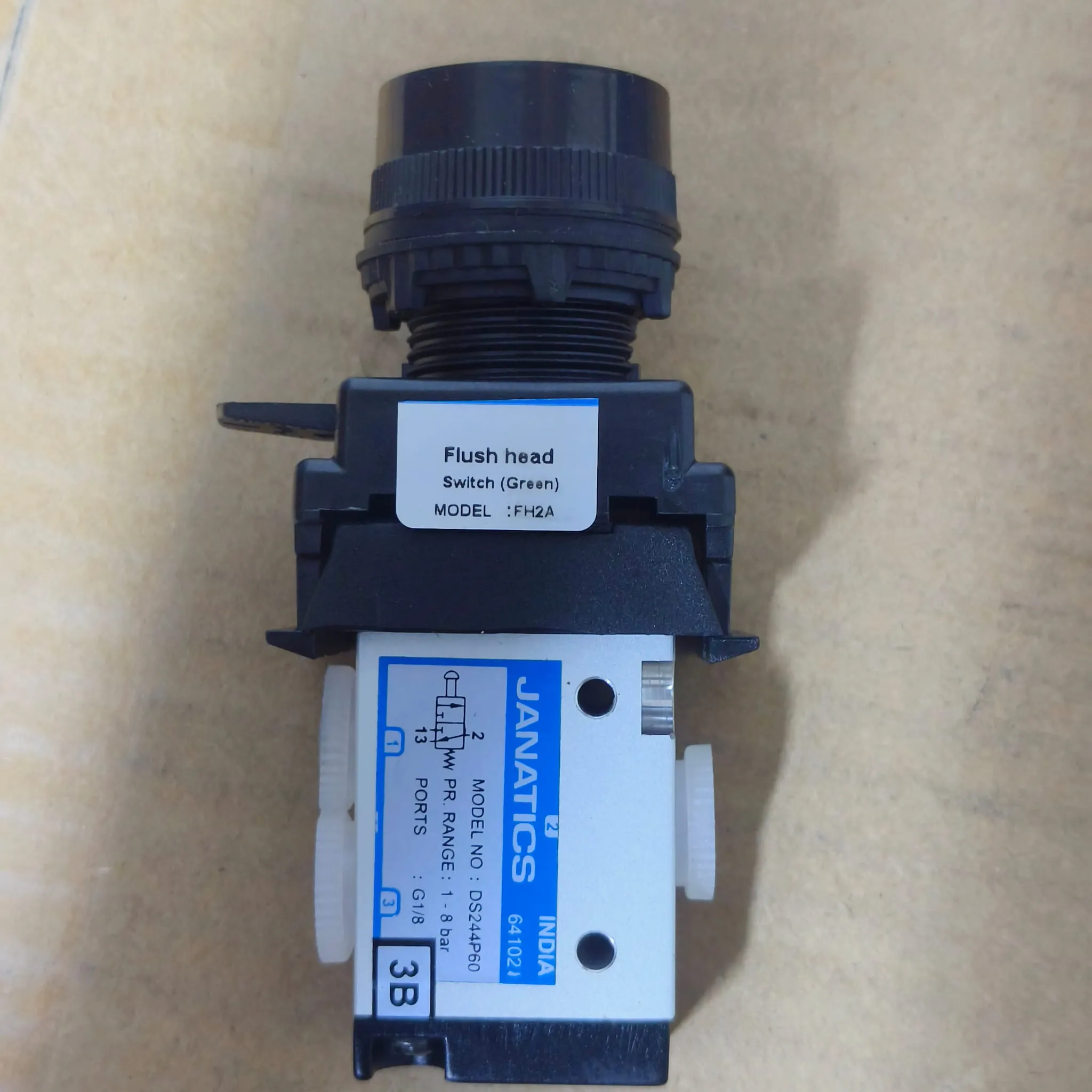

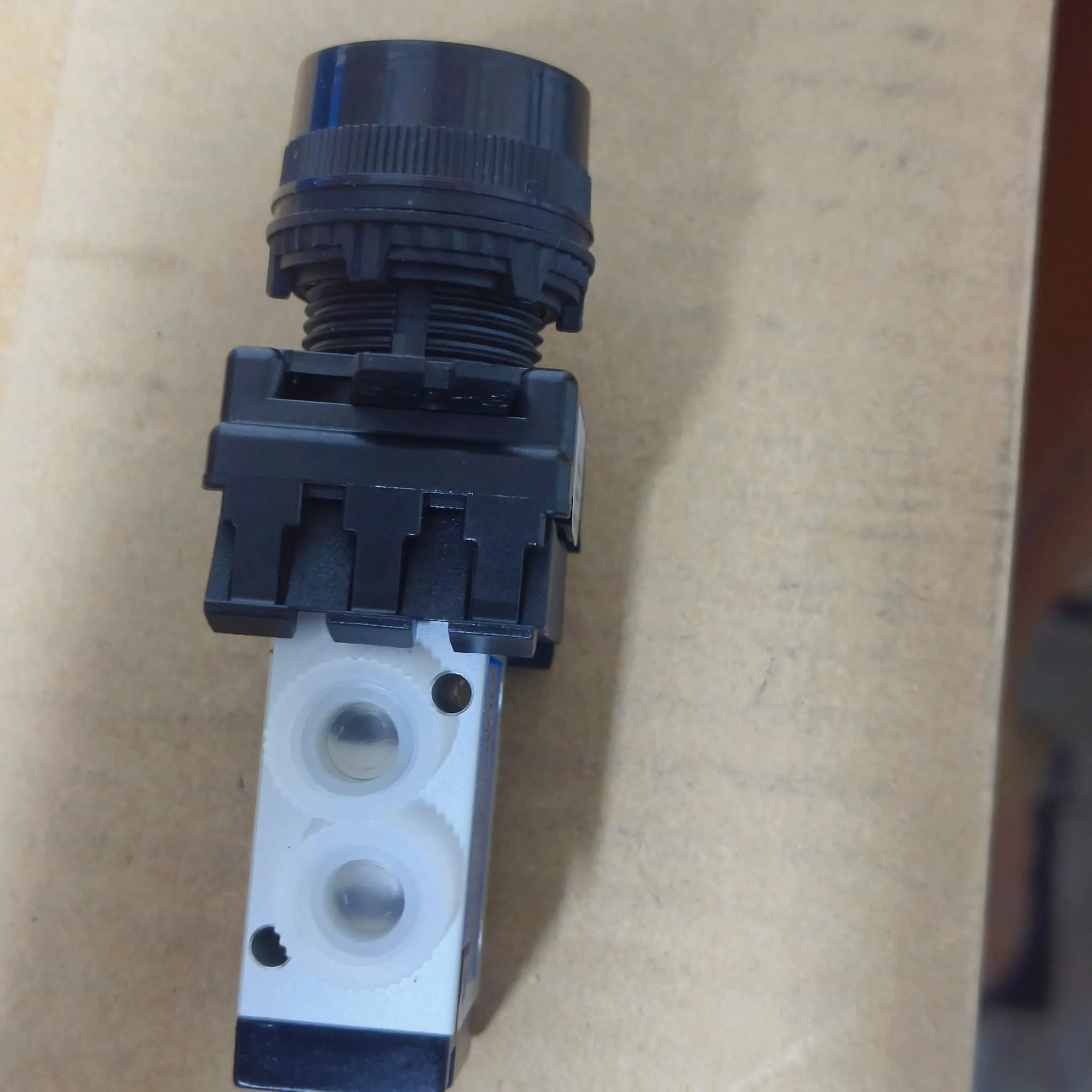

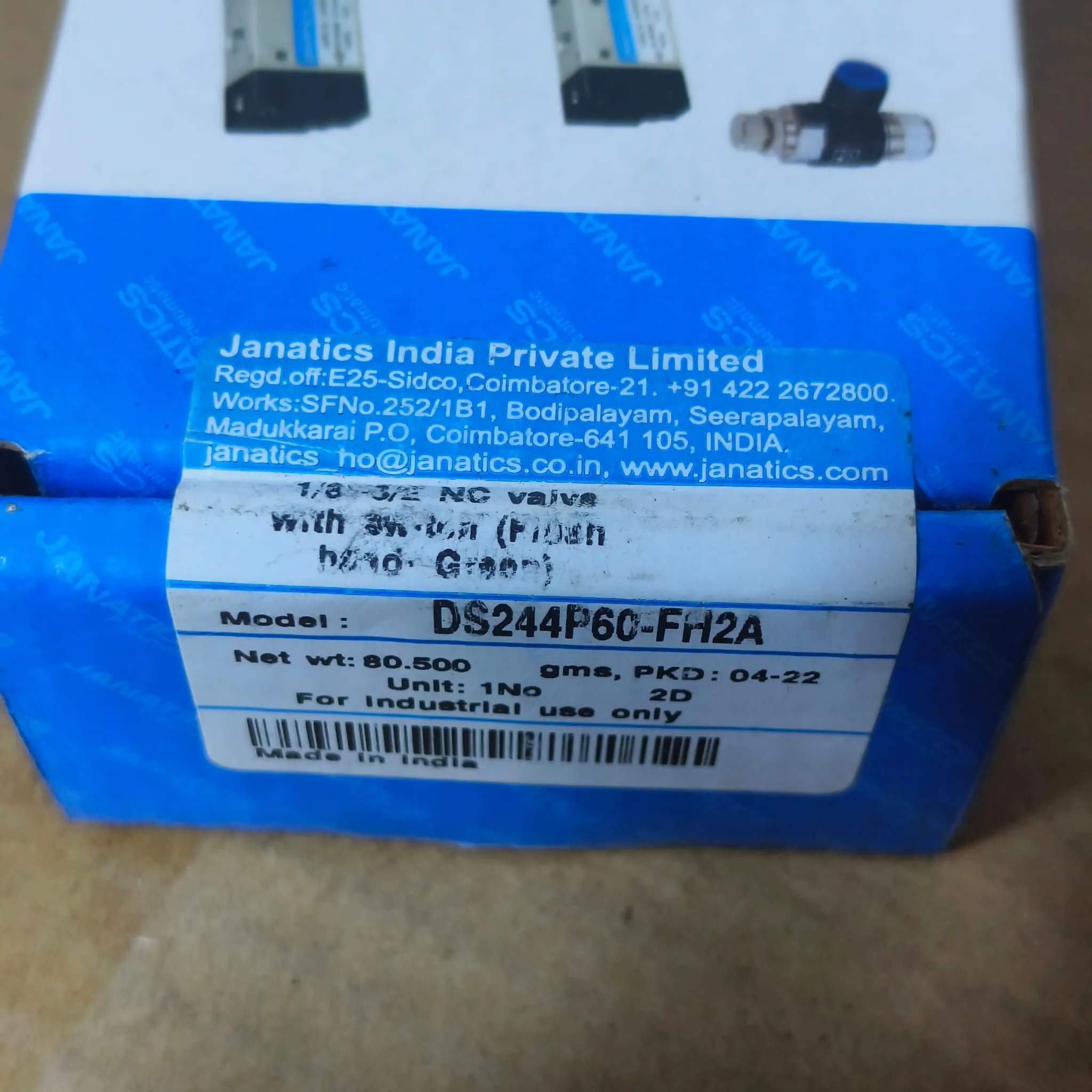

Janatics DS2 Series Panel Mounting Pneumatic Valve, 3/2 Way Normally Closed, G 1/8" Port, Green Flush Head, DS244P60-FH2A
Technical overview
The Janatics DS2 Series panel valve provides direct manual control of pneumatic cylinders and actuators from a machine panel or operator station. This 3/2-way normally closed valve uses a green flush-head actuator with spring return, giving the operator a clear mechanical command. The valve has G 1/8" connections, 450 L/min nominal flow and a 1 to 8 bar working pressure range for dry, filtered compressed air. Designed for individual mounting in 1 to 4 mm thick panels, it is well suited to control panels, test benches and manually operated pneumatic equipment.
Key Features
- Provides 3/2-way normally closed control through a panel-mounted manual actuator.

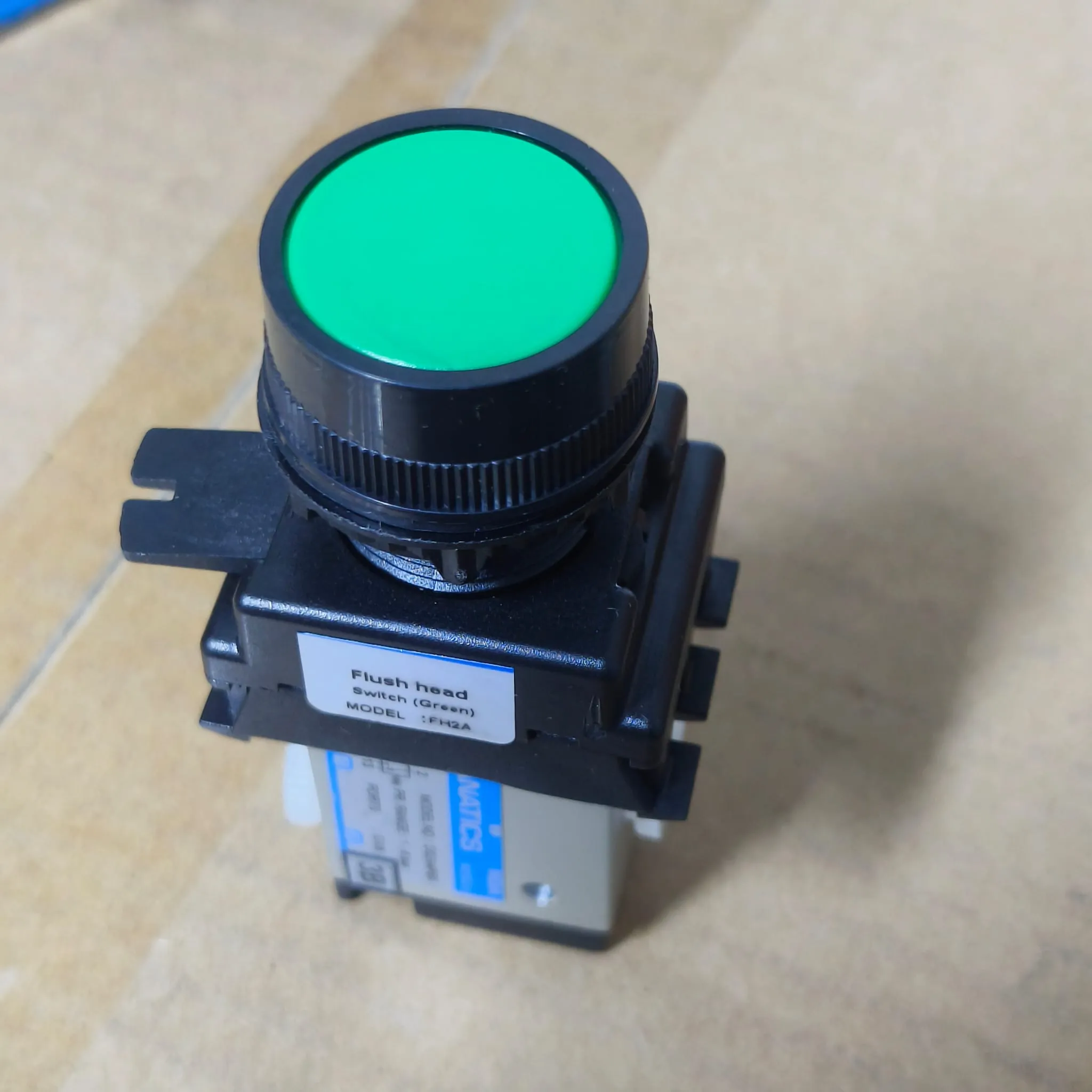

- The green flush-head actuator gives clear visual identification while keeping a low panel profile.
- The G 1/8" threaded ports allow straight forward connection to the pneumatic circuit.
- Provides a nominal flow rate of 450 L/min for reliable pneumatic operation.
- Operates within a working pressure range of 1 to 8 bar.
- The spring-return spool restores the valve to its normal position when the actuator is released.
- Designed for secure installation on control panels from 1 to 4 mm thick.
- Made in India.
Applications
- Manual pneumatic control panels
- Operator control stations
- Cylinder direction selection
- Machine setup and testing
- Local pneumatic commands
Specifications
SeriesDS2
Valve TypeSpool Type
Valve Function3/2 Normally Closed
Port SizeG 1/8"
Working Pressure Range1 to 8 bar
Mounting PositionIndividual panel mounting
