Dimensional Measuring Tools
Mitutoyo Series 103 Mechanical Outside Micrometer, 75 to 100 mm Range, 103-140-10
Mitutoyo

Mitutoyo Series 103 Mechanical Outside Micrometer, 75 to 100 mm Range, 103-140-10

Mfr. part no.
103-140-10
SKU
MT-103-140-10

Specifications

Series 103 Series
Product Type Mechanical Outside Micrometer
Measuring Range 75 to 100 mm
Graduation 0.01 mm
Accuracy ±3 µm
Compliance Standards EN ISO 3611
Measuring Face Carbide Tipped
Model OM-100

Key Features

  • Ratchet stop helps apply consistent measuring force.
  • Carbide-tipped measuring faces support regular industrial use.
  • Satin chrome sleeve and thimble provide clear manual reading.
  • Spindle lock helps hold the measured size during inspection.
  • Includes: Operating Instructions paperwork inside the box.
  • Made in Japan.

Description

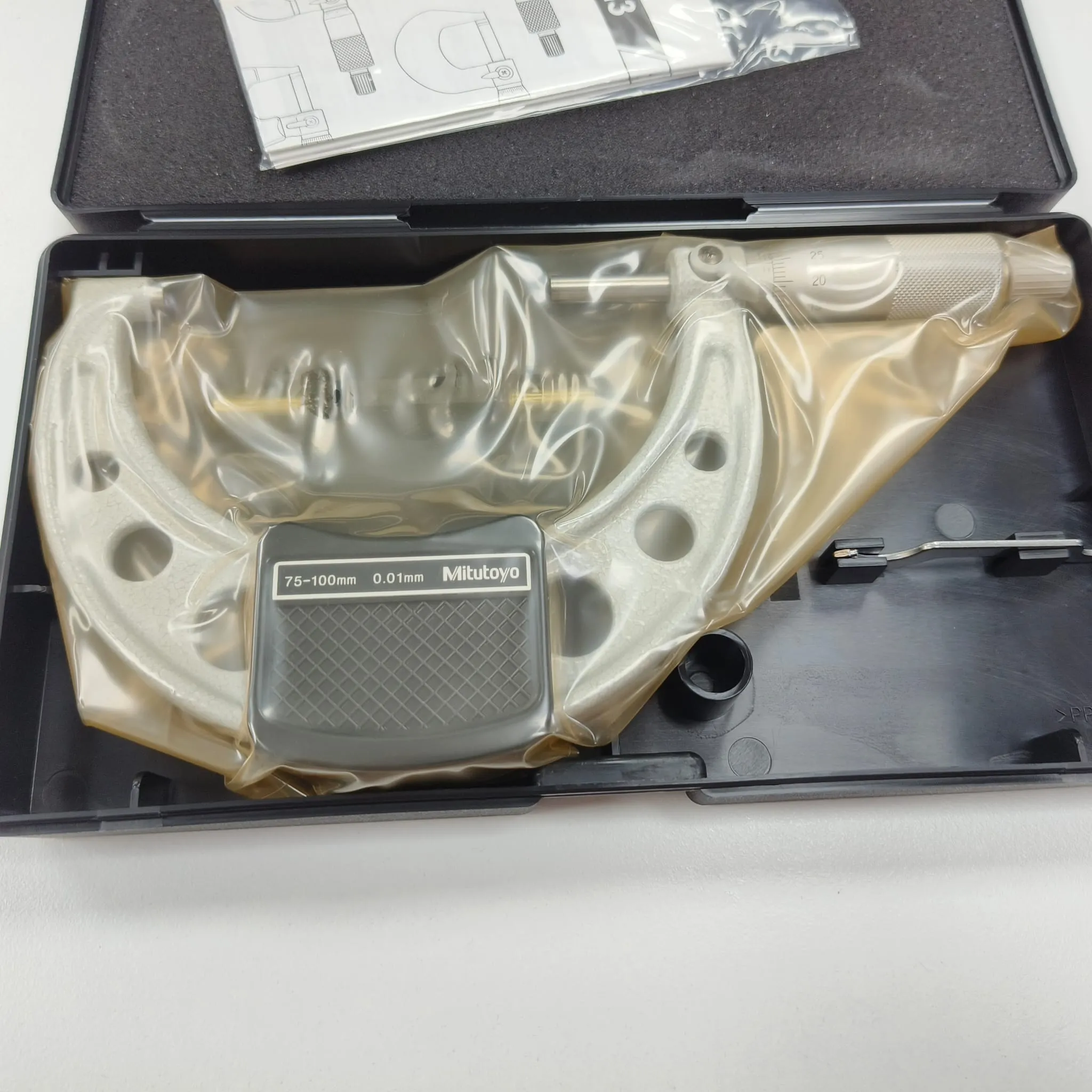

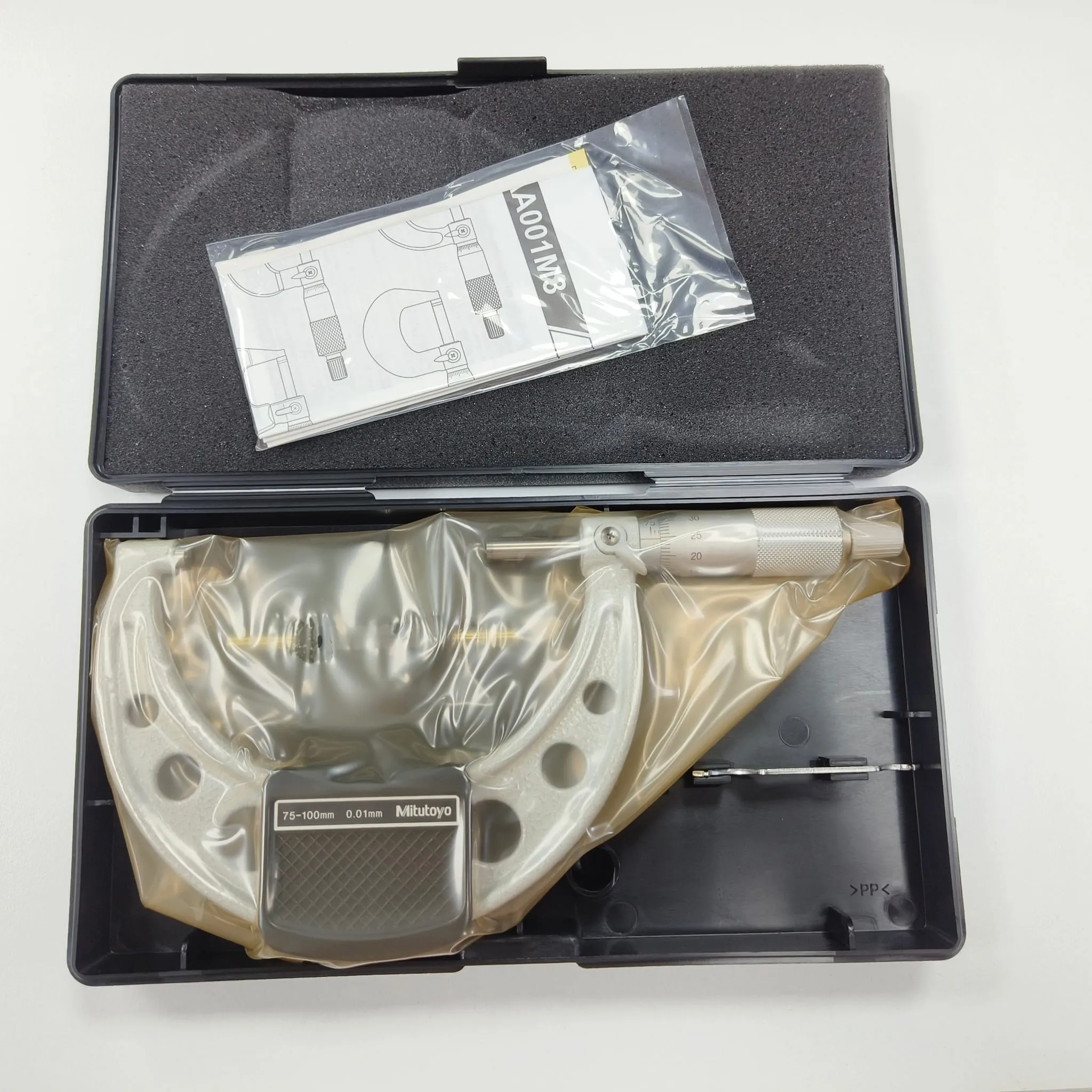

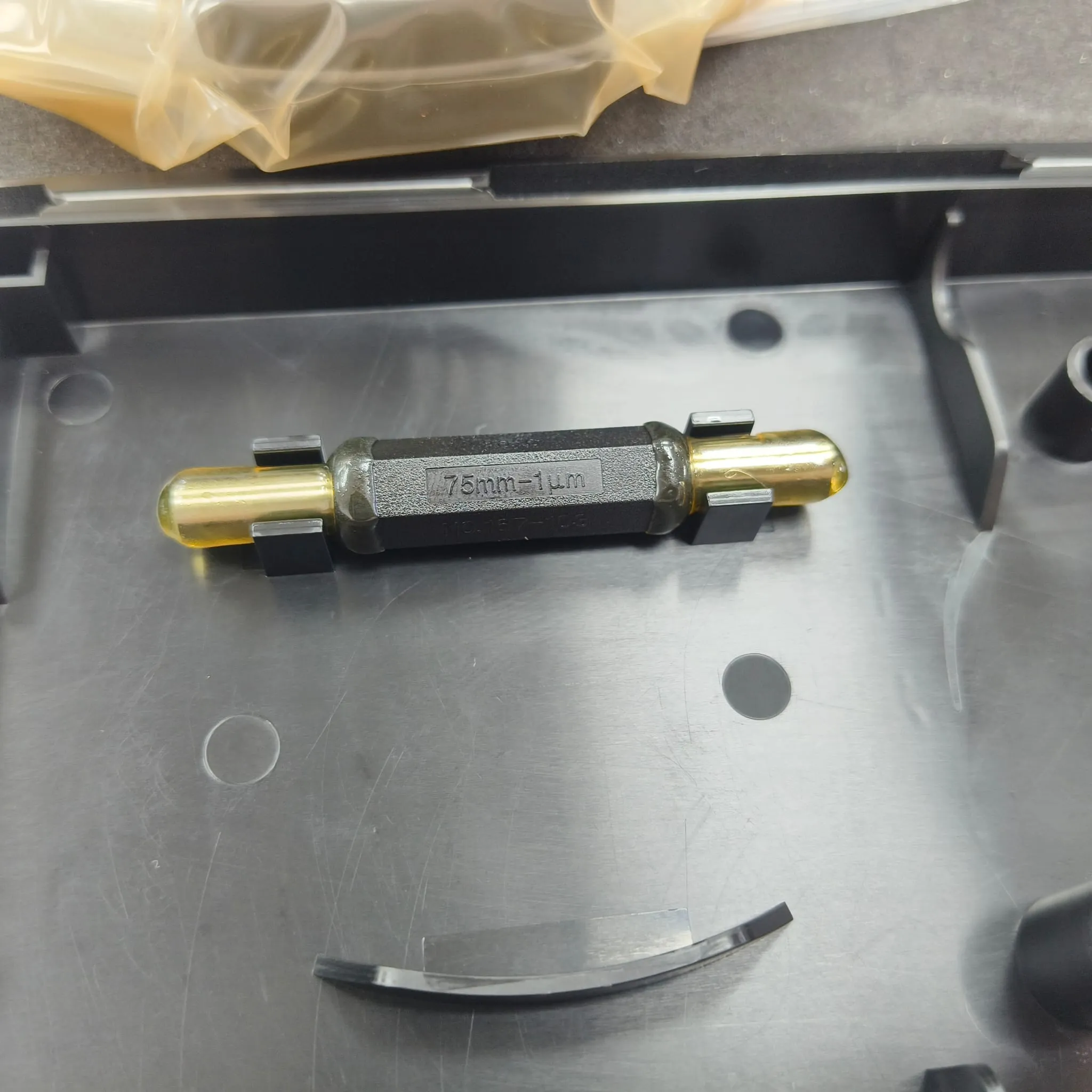

Mitutoyo 103-140-10 / OM-100 is a Series 103 analogue outside micrometer for precise 75 to 100 mm outside measurement with 0.01 mm graduation. It features carbide-tipped micro-lap measuring faces, spindle lock, satin chrome thimble and sleeve, and a ratchet stop to help maintain repeatable force on larger shafts, sleeves, collars, spacers and machined parts. Supplied with box, key and 75 mm setting standard, it is suited for tool rooms, maintenance departments, machine shops and QC inspection benches.

Applications

  • Outside diameter checks on shafts, pins and turned parts.
  • Thickness measurement of washers, plates and machined components.
  • Tool room, inspection bench and mechanical maintenance use.

Documents

  • Mitutoyo-103-140-10 — Datasheet

    PDF, 832 KB

  • Mitutoyo-103 Series Outside Micrometers — Catalog

    PDF, 160 KB
