Mitutoyo Series 103 Mechanical Outside Micrometer, 0 to 25 mm Range, 103-137
All Mitutoyo products
Mitutoyo Dimensional Measuring Tools
All Dimensional Measuring Tools (every brand)
Technical overview

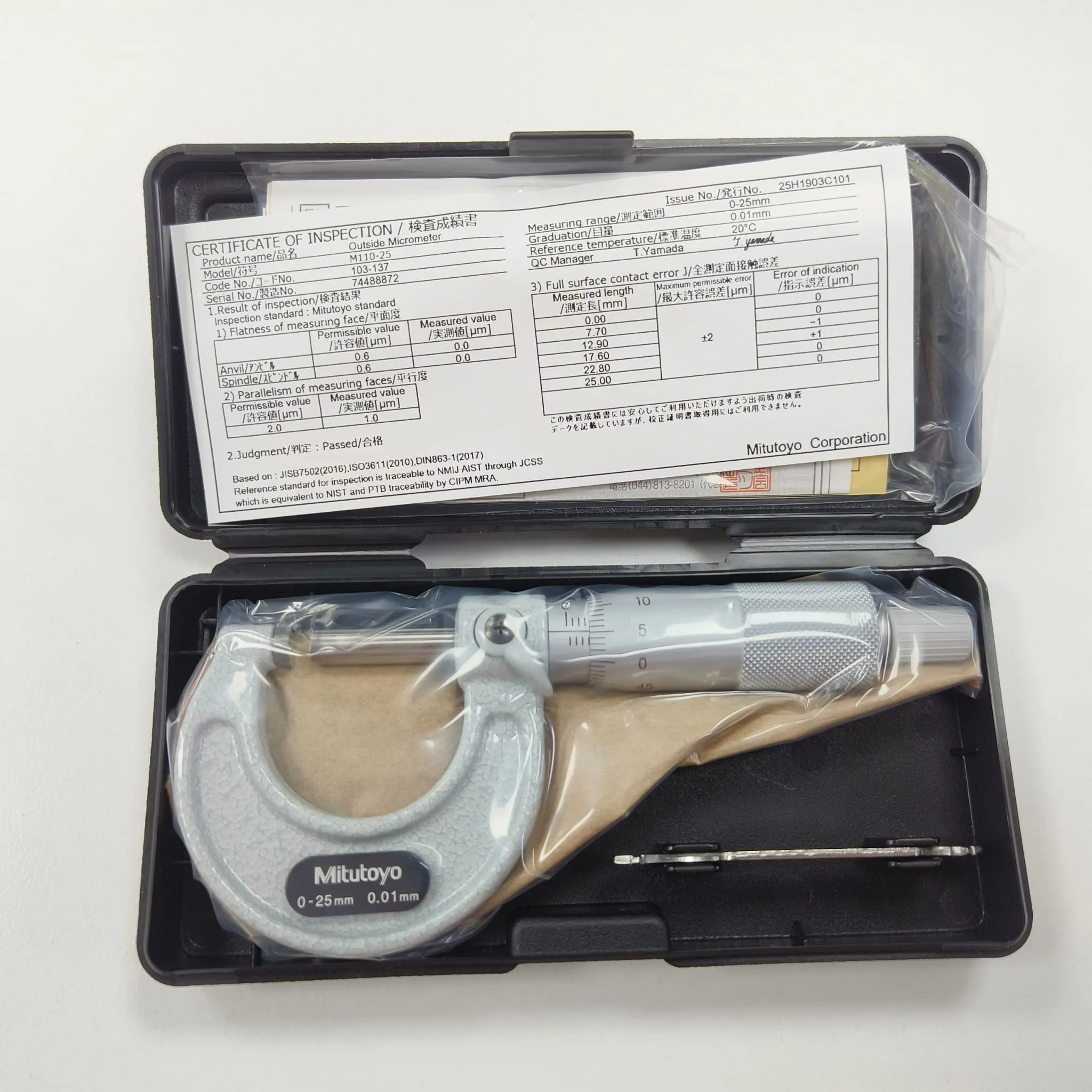

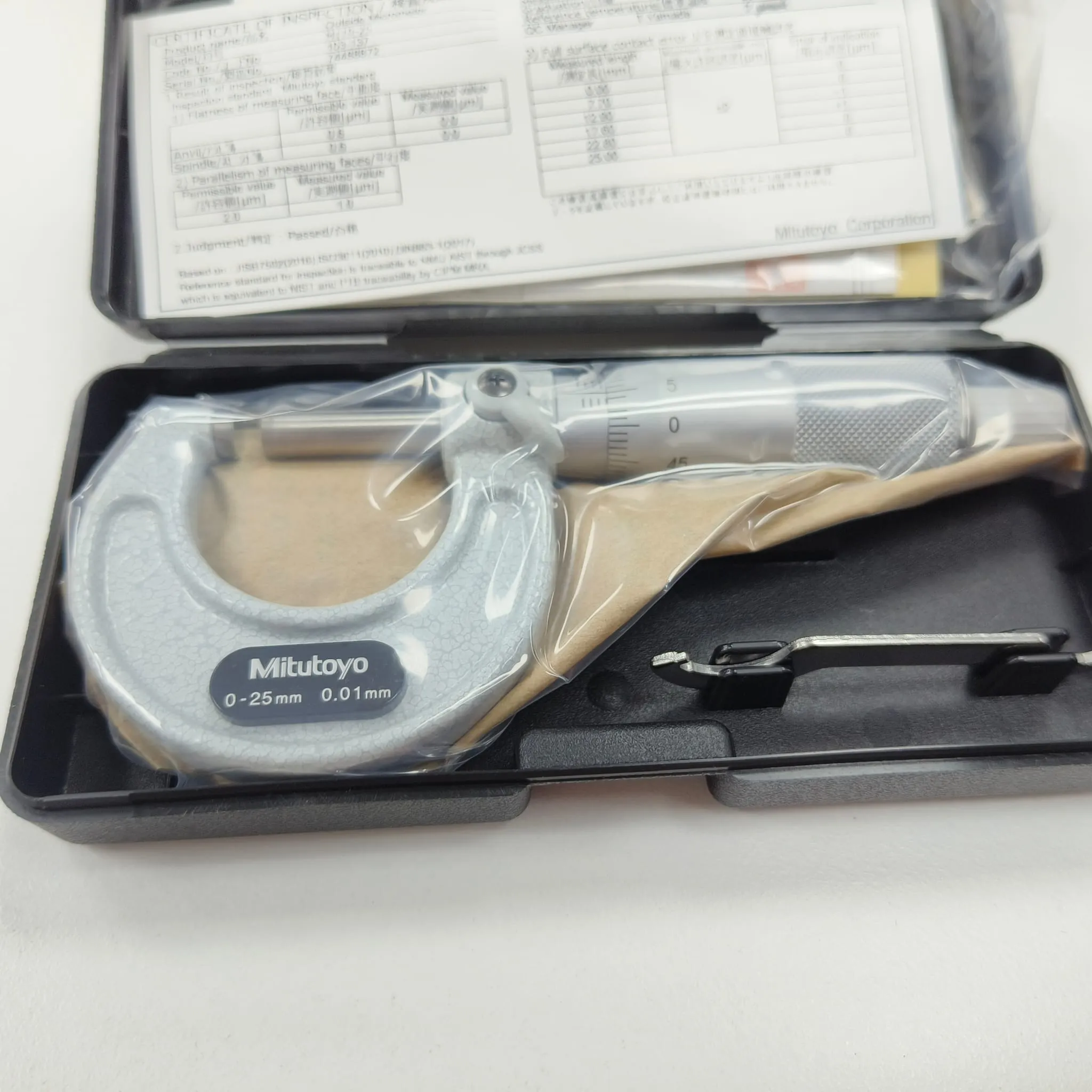

Mitutoyo 103-137 / M110-25 is a Series 103 analogue outside micrometer for precise 0 to 25 mm outside measurement with 0.01 mm graduation. It uses carbide-tipped micro-lap measuring faces, a spindle lock, satin chrome thimble and sleeve, and a ratchet stop to help keep measuring force repeatable on shafts, pins, thickness checks and machined parts. This economy design mechanical micrometer is supplied with box, key and certificate of inspection, making it suitable for machine shops, tool rooms, maintenance departments and quality control benches.
Key Features
- Ratchet stop helps apply consistent measuring force.
- Carbide-tipped measuring faces support regular industrial use.
- Satin chrome sleeve and thimble provide clear manual reading.
- Spindle lock helps hold the measured size during inspection.
- Includes: Certificate of Inspection & Operating Instructions paperwork inside the box.
- Made in Japan.
Applications
- Outside diameter checks on shafts, pins and turned parts.
- Thickness measurement of washers, plates and machined components.
- Tool room, inspection bench and mechanical maintenance use.
Specifications
Series103 Series
Product TypeMechanical Outside Micrometer
Measuring Range0 to 25 mm
Graduation0.01 mm
Accuracy±2 µm
Compliance StandardsEN ISO 3611
Measuring FaceCarbide Tipped

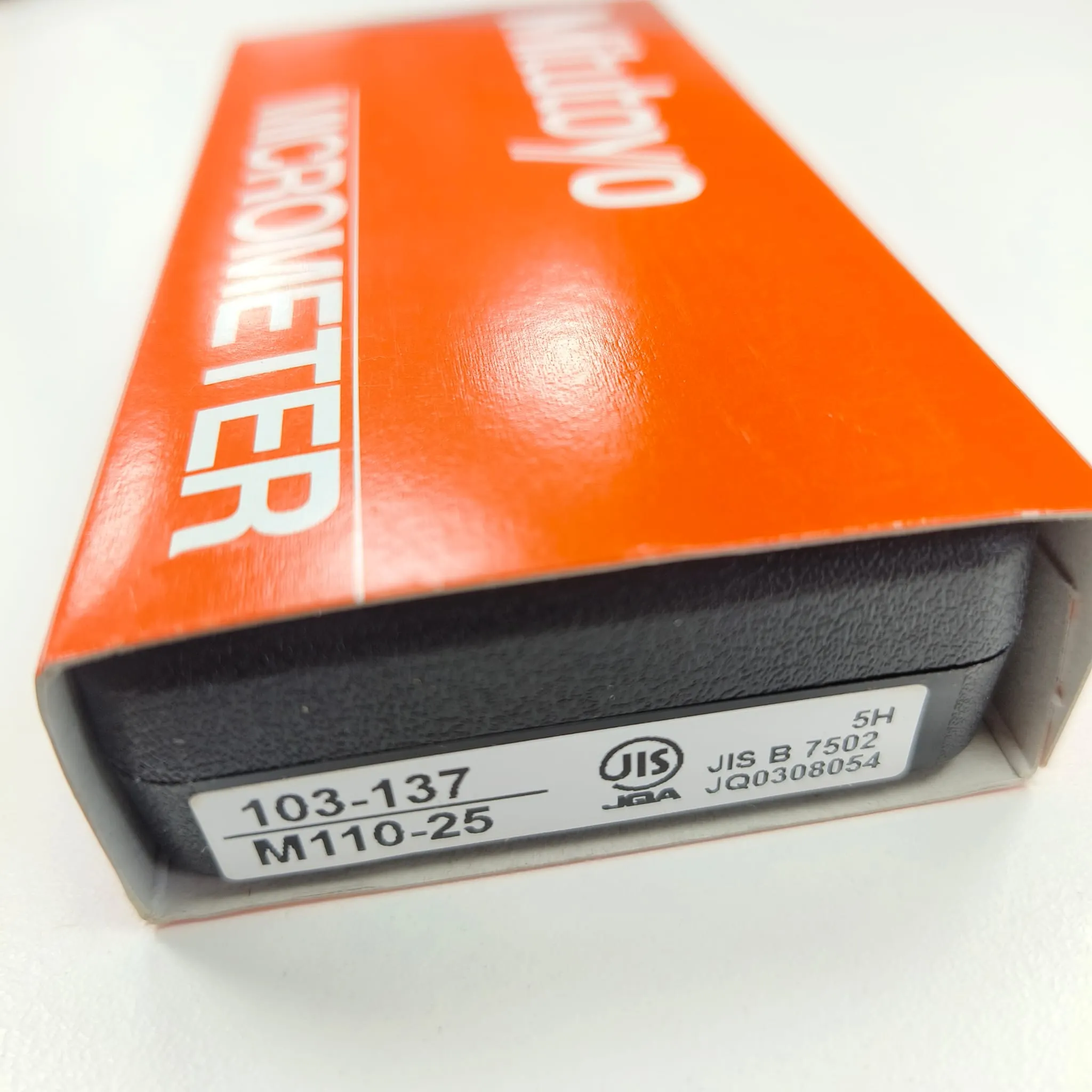

ModelM110-25
