Mitutoyo Series 103 Mechanical Outside Micrometer, 25 to 50 mm Range, 103-138
All Mitutoyo products
Mitutoyo Dimensional Measuring Tools
All Dimensional Measuring Tools (every brand)
Technical overview

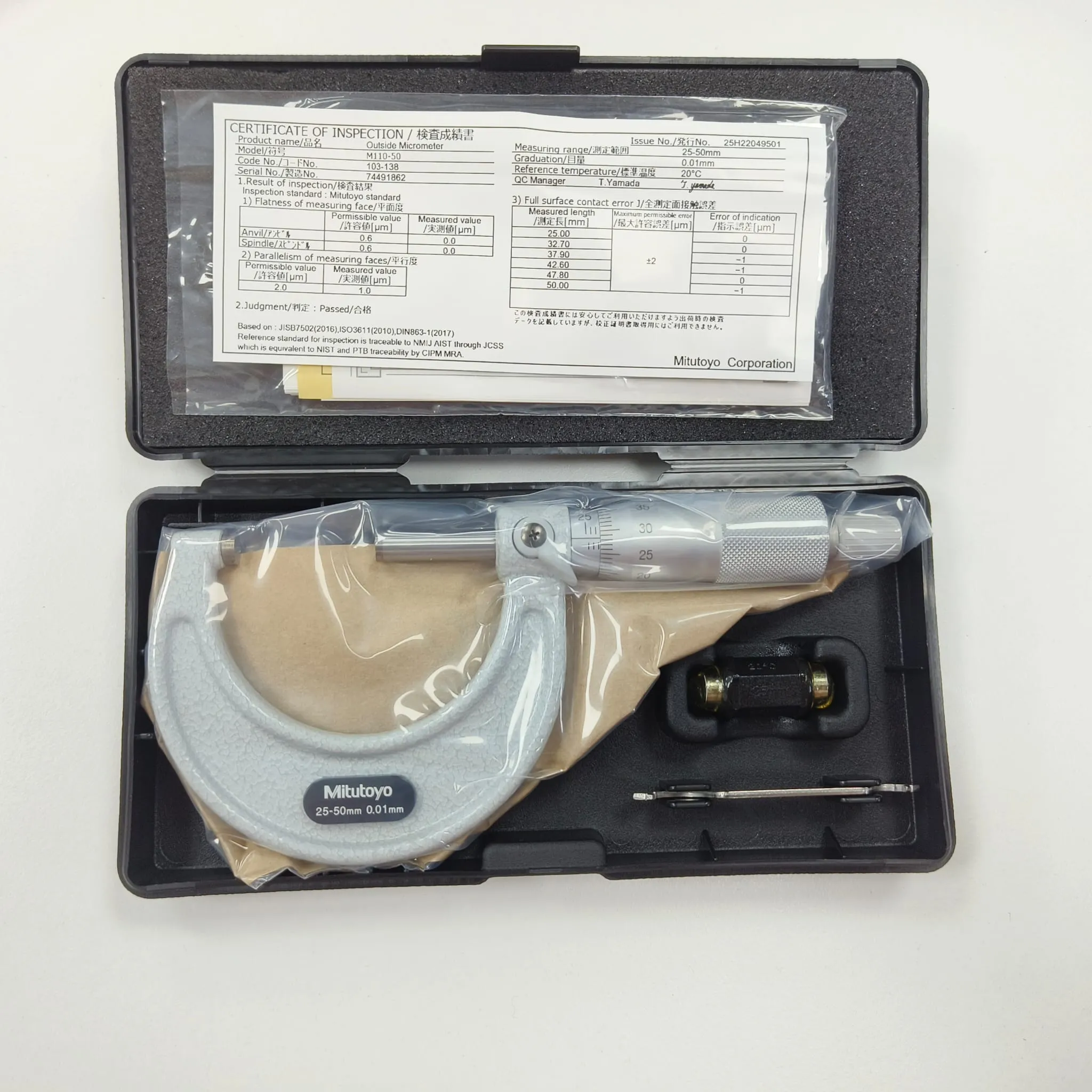

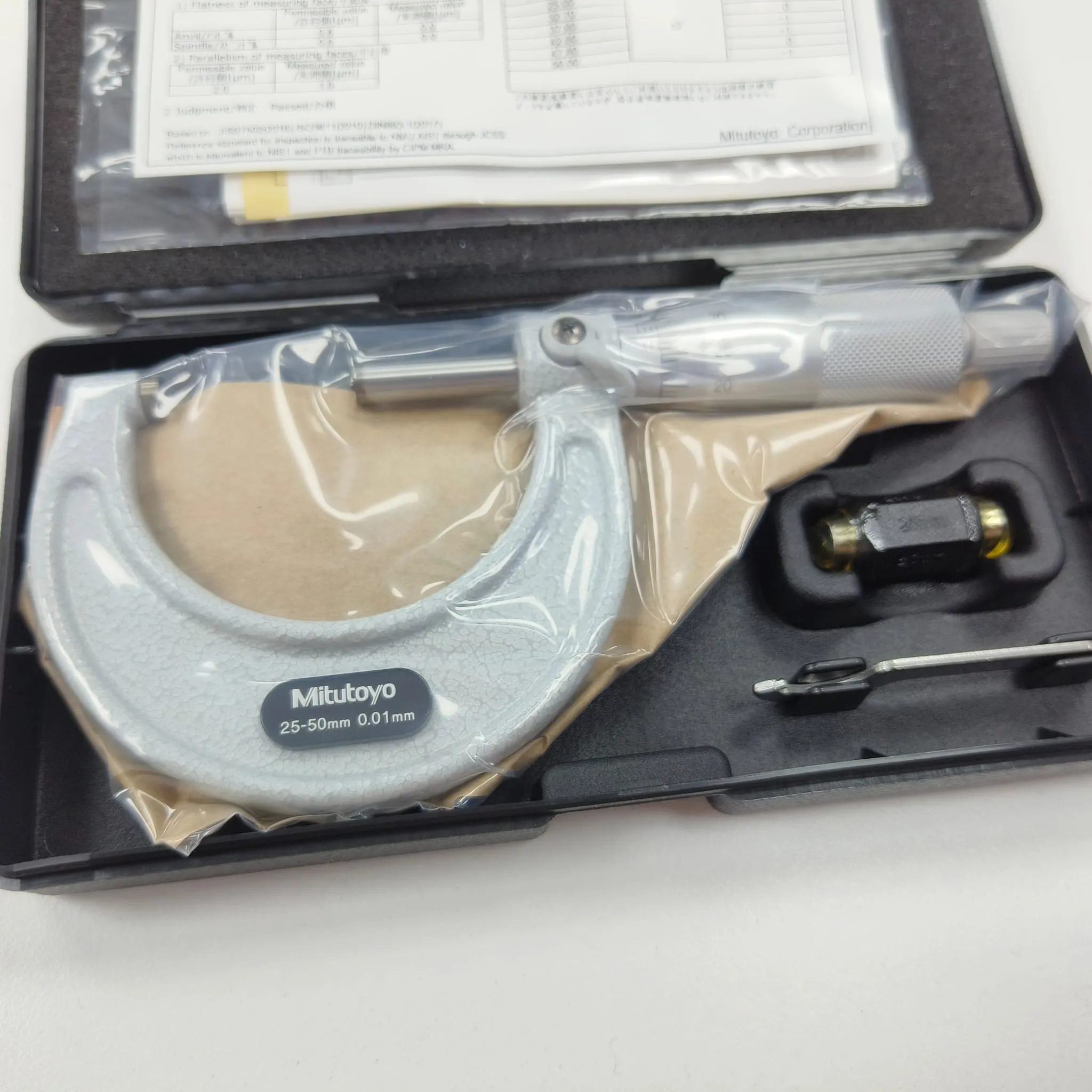

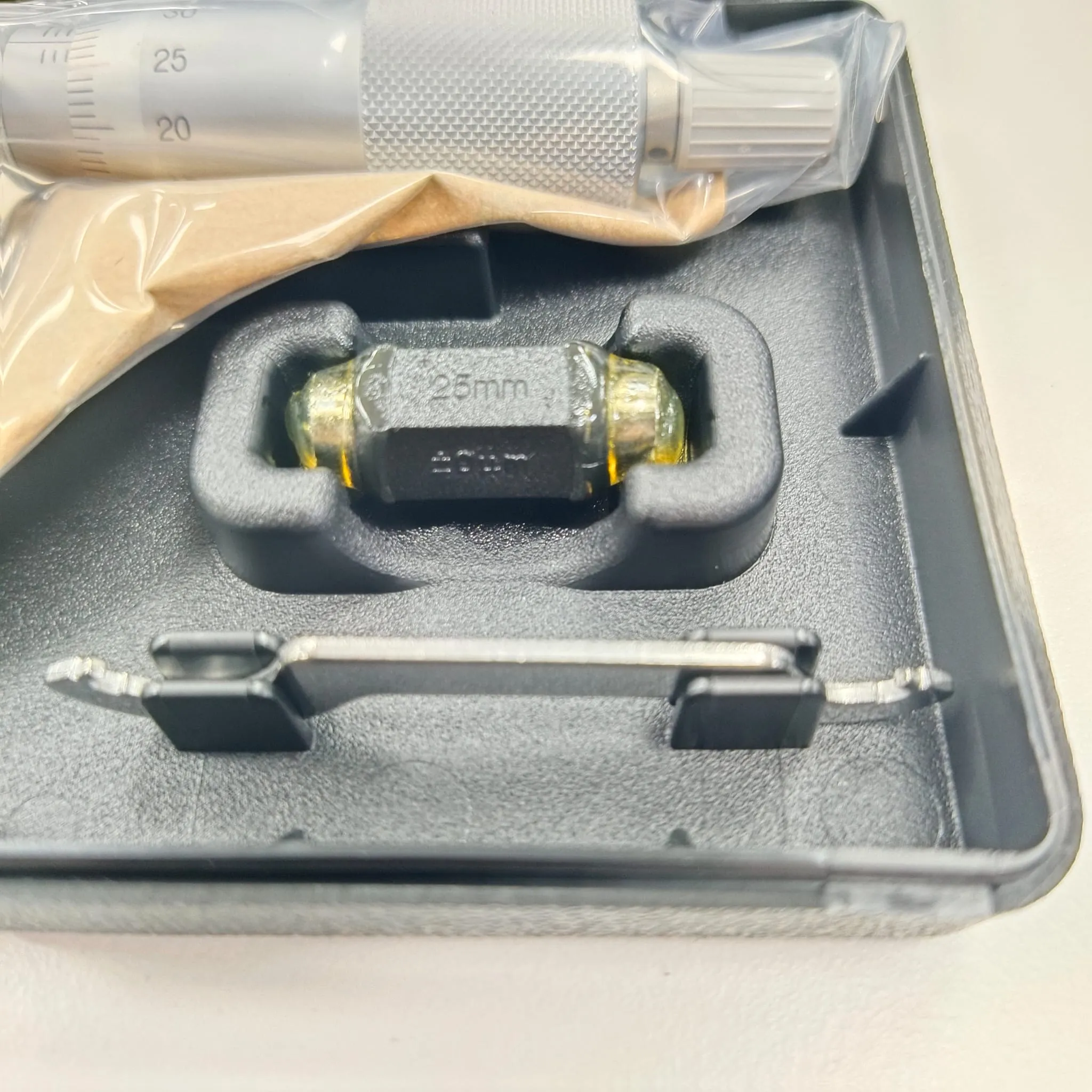

Mitutoyo 103-138 / M110-50 is a Series 103 analogue outside micrometer for 25 to 50 mm outside measurement with 0.01 mm graduation. It has carbide-tipped micro-lap measuring faces, a spindle lock, satin chrome thimble and sleeve, and a ratchet stop that helps maintain repeatable measuring force on shafts, sleeves, pins, spacers and machined components. Supplied with box, key, setting standard and certificate of inspection, it is a practical mechanical micrometer for workshop QC, tool rooms, maintenance teams and receiving inspection.
Key Features
- Ratchet stop helps apply consistent measuring force.
- Carbide-tipped measuring faces support regular industrial use.
- Satin chrome sleeve and thimble provide clear manual reading.
- Spindle lock helps hold the measured size during inspection.
- Includes: Certificate of Inspection & Operating Instructions paperwork inside the box.
- Made in Japan.
Applications
- Outside diameter checks on shafts, pins and turned parts.
- Thickness measurement of washers, plates and machined components.
- Tool room, inspection bench and mechanical maintenance use.
Specifications
Series103 Series
Product TypeMechanical Outside Micrometer
Measuring Range25 to 50 mm
Graduation0.01 mm
Accuracy±2 µm
Compliance StandardsEN ISO 3611
Measuring FaceCarbide Tipped

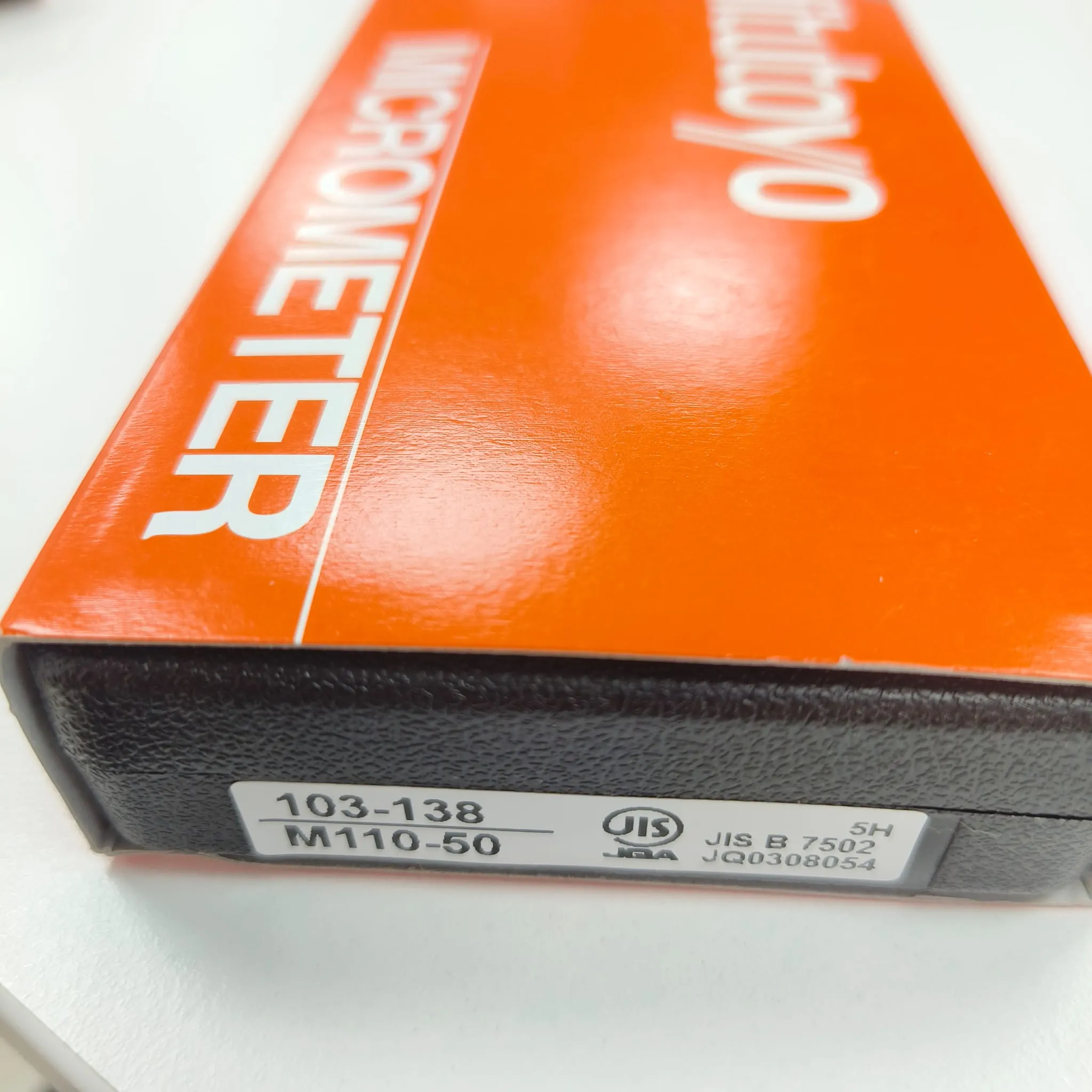

ModelM110-50
