Mitutoyo Coolant Proof Digimatic Micrometer, 25 to 50 mm (1 to 2 inch) Range, IP65, 293-341-30
All Mitutoyo products
Mitutoyo Dimensional Measuring Tools
All Dimensional Measuring Tools (every brand)
Technical overview
Mitutoyo 293-341-30 / MDC-2" PX is an IP65 coolant proof Digimatic outside micrometer for measuring 25 to 50 mm / 1 to 2 inch outside dimensions in machining, maintenance and inspection work. It has carbide-tipped micro-lap measuring faces, spindle lock, satin chrome thimble and sleeve, LCD display and a heat-shielded frame for stable precision measurement around coolant or cutting oil. The ratchet stop gives repeatable measuring force, while the supplied setting standard helps set the micrometer accurately for shaft, sleeve, pin, thickness and precision component checks.
Key Features
- IP65 protection helps resist coolant and cutting oil exposure.
- Ratchet stop supports consistent, repeatable measurement.
- Carbide-tipped measuring faces suit frequent industrial use.
- Supplied with setting standard for the measuring range.

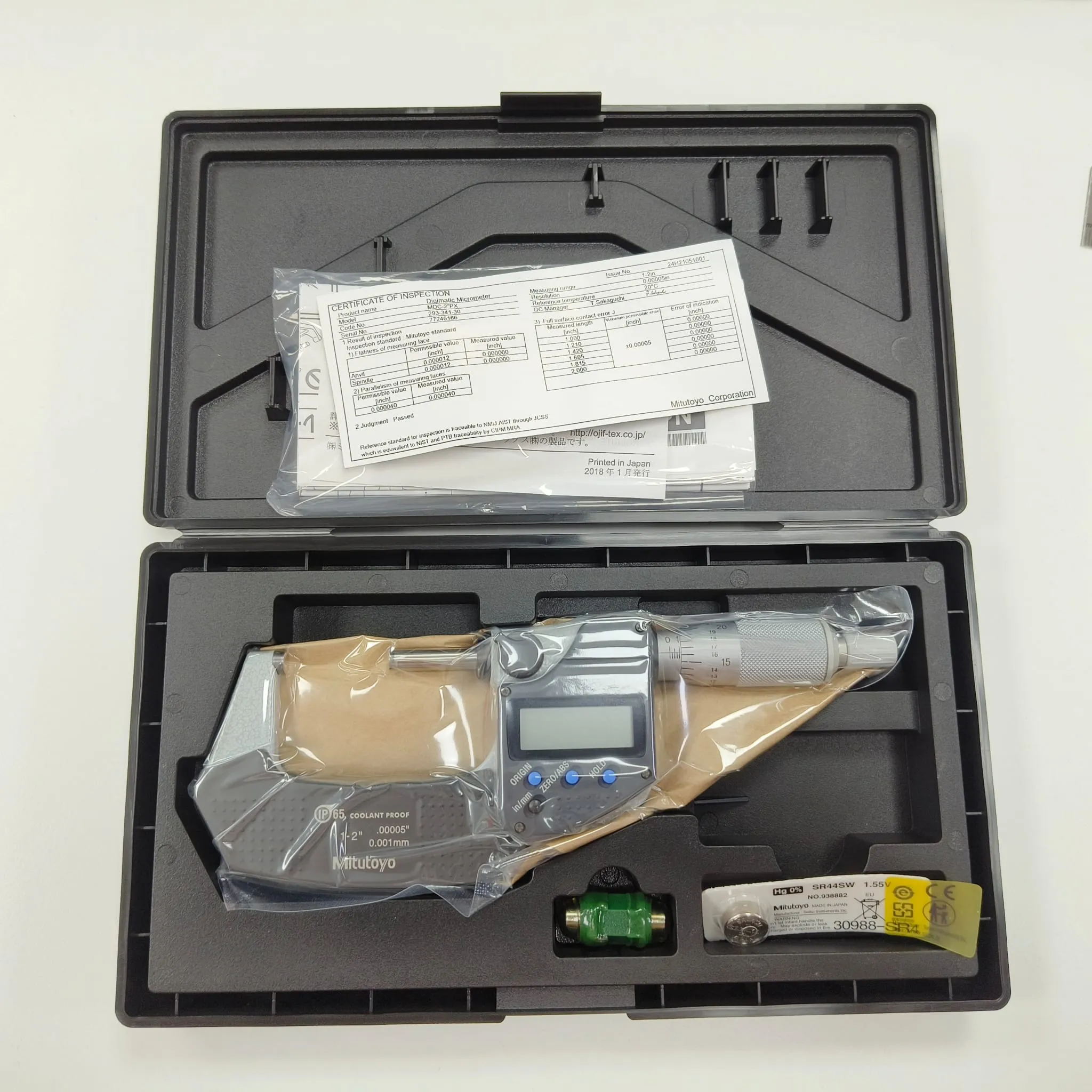

- Includes: Certificate of Inspection, Operating Instructions paperwork and SR44 battery inside the box.
- Made in Japan.
Applications
- Checking shafts, collars, sleeves and larger machined components.
- CNC machine shop, tool room and inspection department use.
- Outside diameter and thickness measurement during production QC.
Specifications
SeriesMDC-MX Series
Product TypeCoolant Proof Digimatic Micrometer
Measuring Range25 to 50 mm / 1 to 2 inch
Display Resolution0.001 mm / 0.00005 inch
Accuracy±0.00005 inch
Ingress ProtectionIP65
Measuring FaceCarbide Tipped
ModelMDC-2" PX
