Mitutoyo Coolant Proof Digimatic Micrometer, 0 to 25 mm (0-1 inch) Range, IP65, 293-340-30
- Mfr. part no.
- 293-340-30
- SKU
- MT-293-340-30
Specifications
| Series | MDC-MX Series |
|---|---|
| Product Type | Coolant Proof Digimatic Micrometer |
| Measuring Range | 0 to 25 mm / 0 to 1 inch |
| Display Resolution | 0.001 mm / 0.00005 inch |
| Accuracy | ±0.00005 inch |
| Ingress Protection | IP65 |
| Measuring Face | Carbide Tipped |
| Model | MDC-1" PX |
Key Features
- IP65 coolant proof design suits machining environments.
- Ratchet stop helps maintain repeatable measuring force.
- Carbide-tipped measuring faces resist wear during regular use.
- Inch and metric display supports mixed measurement standards.

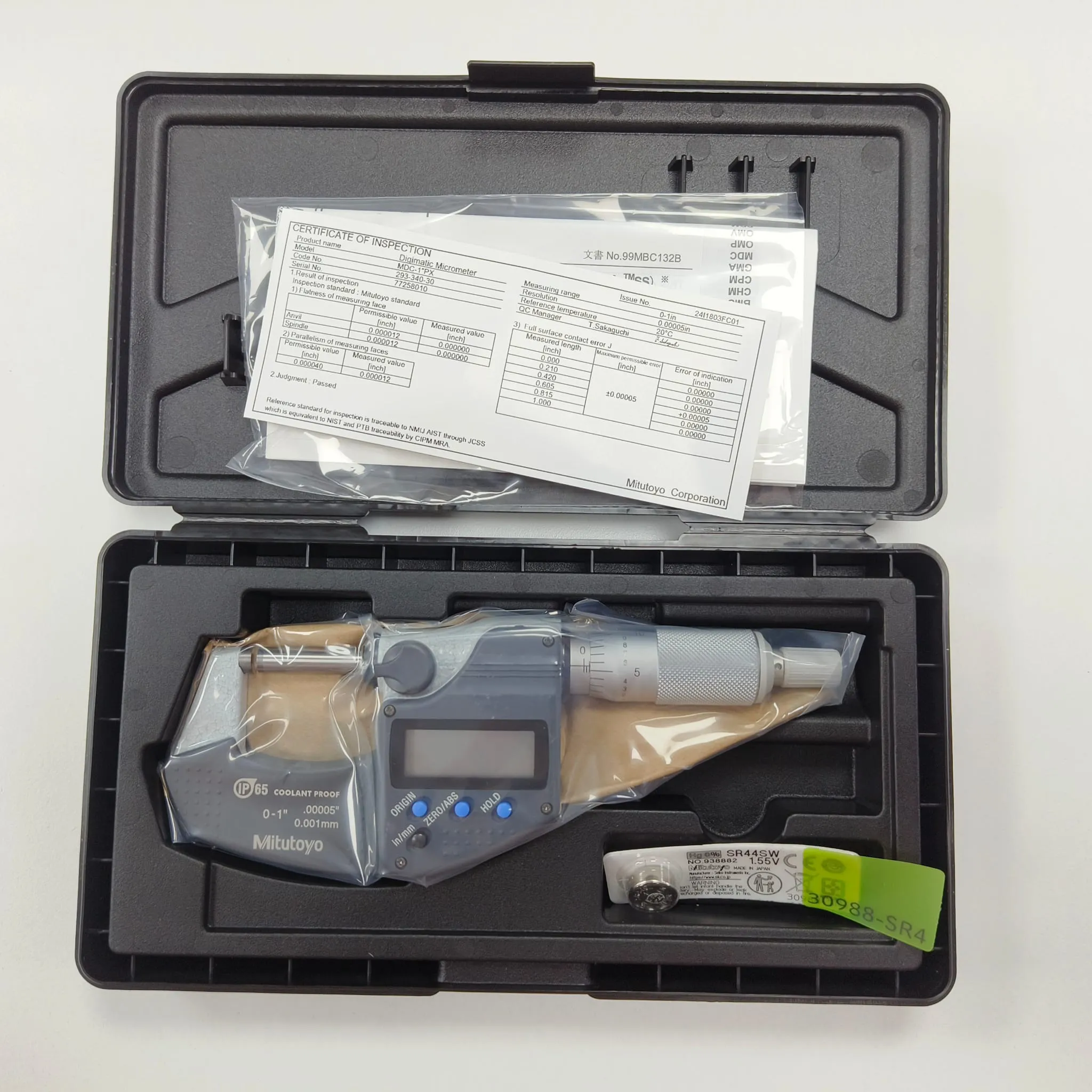

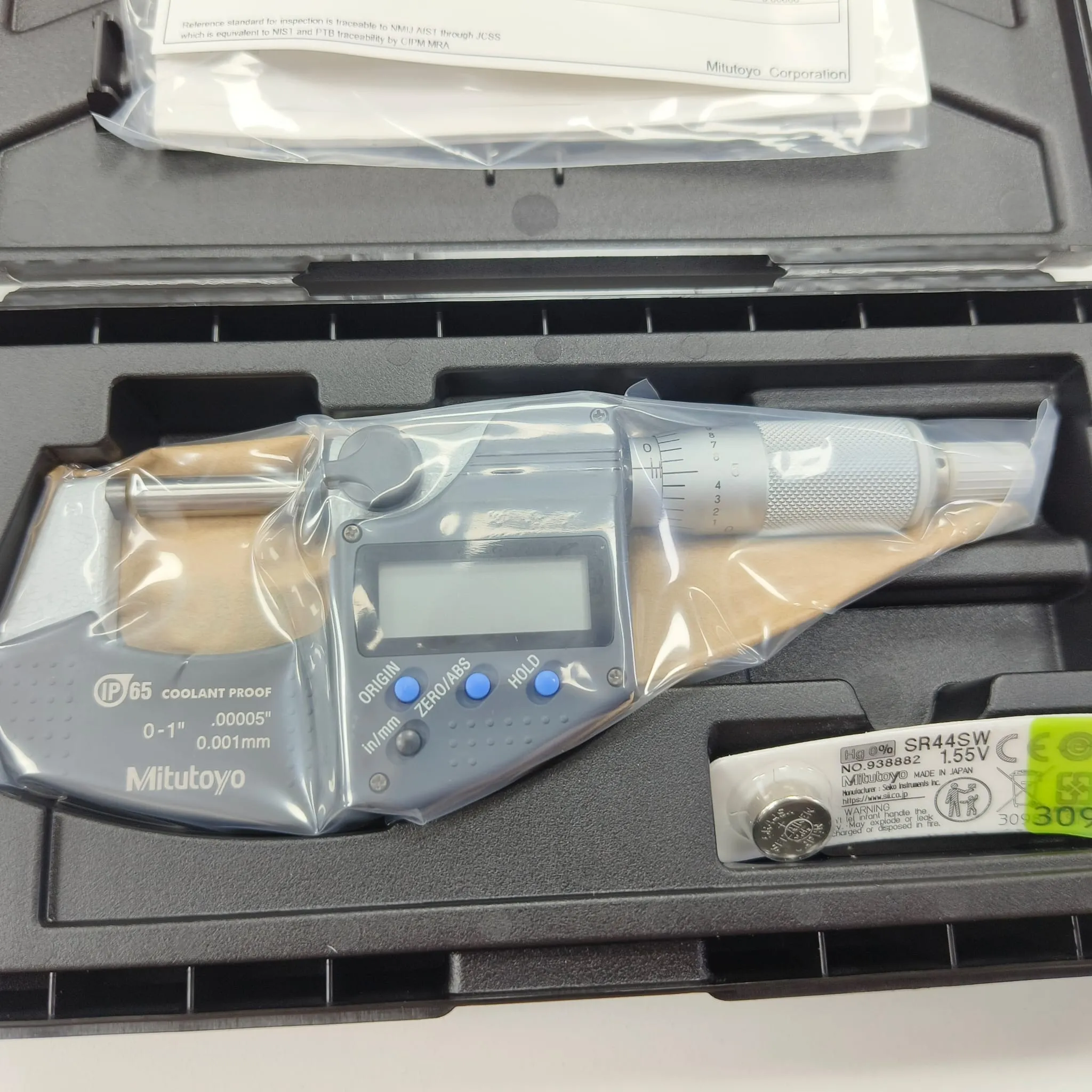

- Includes: Certificate of Inspection, Operating Instructions paperwork and SR44 battery inside the box.
- Made in Japan.
Description
Mitutoyo 293-340-30 / MDC-1" PX is an IP65 coolant proof Digimatic outside micrometer for accurate outside diameter measurement in the presence of coolant or cutting oil. It covers 0 to 25 mm / 0 to 1 inch with 0.001 mm / 0.00005 inch digital step and uses carbide-tipped micro-lap measuring faces, a spindle lock, satin chrome thimble and sleeve, and a heat-shielded frame for stable hand measurement. The LCD display, ABS/INC function, ratchet stop and 5 to 10 N measuring force make it suitable for precision shaft, pin, thickness and machined component inspection in workshop QC and tool rooms.
Applications
- Outside diameter measurement of shafts, pins and turned components.
- Thickness checks on machined plates, washers and precision parts.
- Tool room, CNC machining and quality inspection work.
Documents
