Dimensional Measuring Tools
Mitutoyo Series 505 Dial Caliper, Metric, 0 to 150 mm Range, 505-732
Mitutoyo

Mitutoyo Series 505 Dial Caliper, Metric, 0 to 150 mm Range, 505-732

Mfr. part no.
505-732
SKU
MT-505-732

Specifications

Series 505 Series
Product Type Dial Caliper
Measuring Range 0 to 150 mm
Graduation 0.01 mm
Accuracy ±0.02 mm
Body Material Hardened Stainless Steel
Model D15FX

Key Features

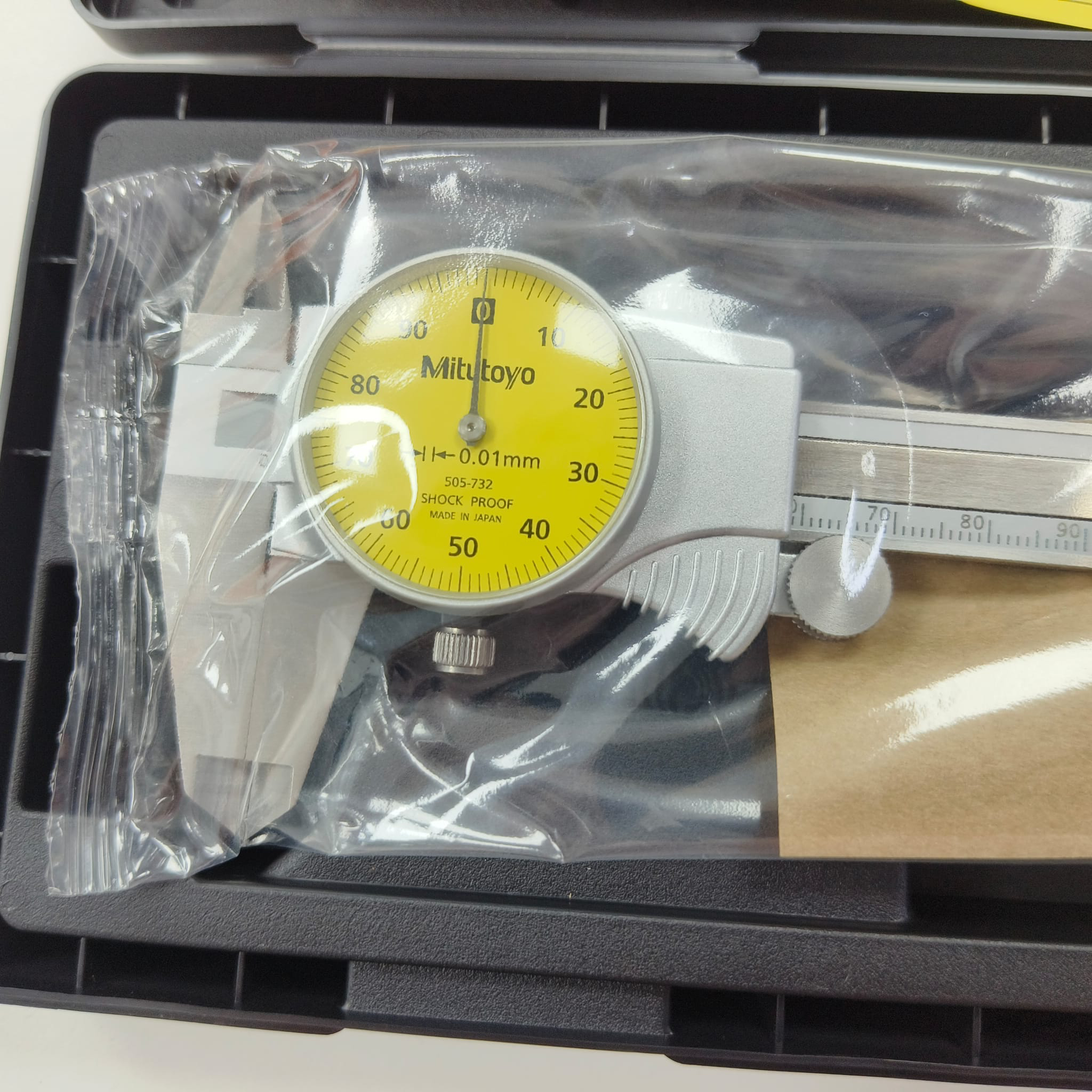

  • Mechanical dial reading is easy to read and does not need batteries.
  • Standard jaws support outside and inside measurement.
  • Flat depth bar supports common depth checks.

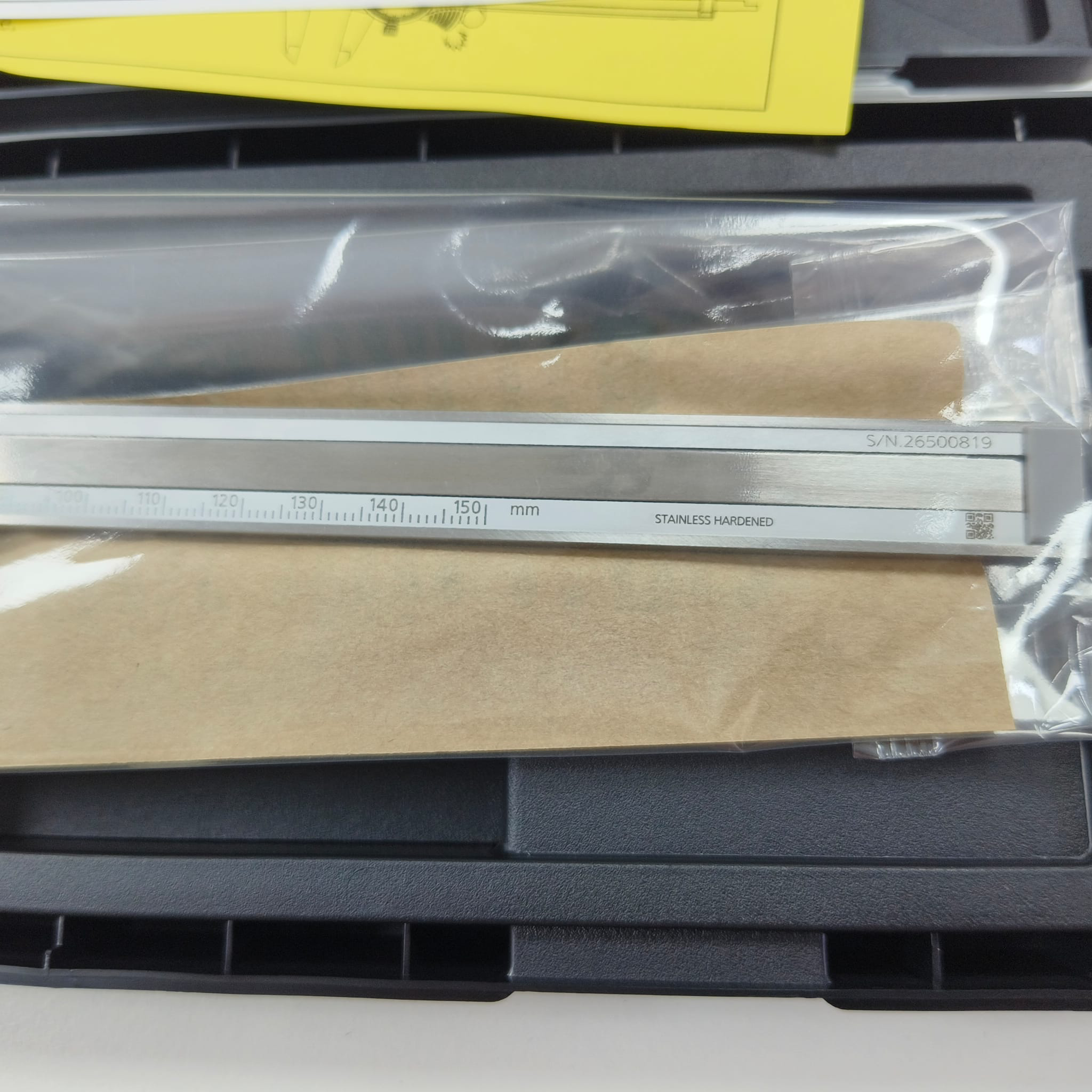

  • Hardened stainless steel body suits regular workshop use.

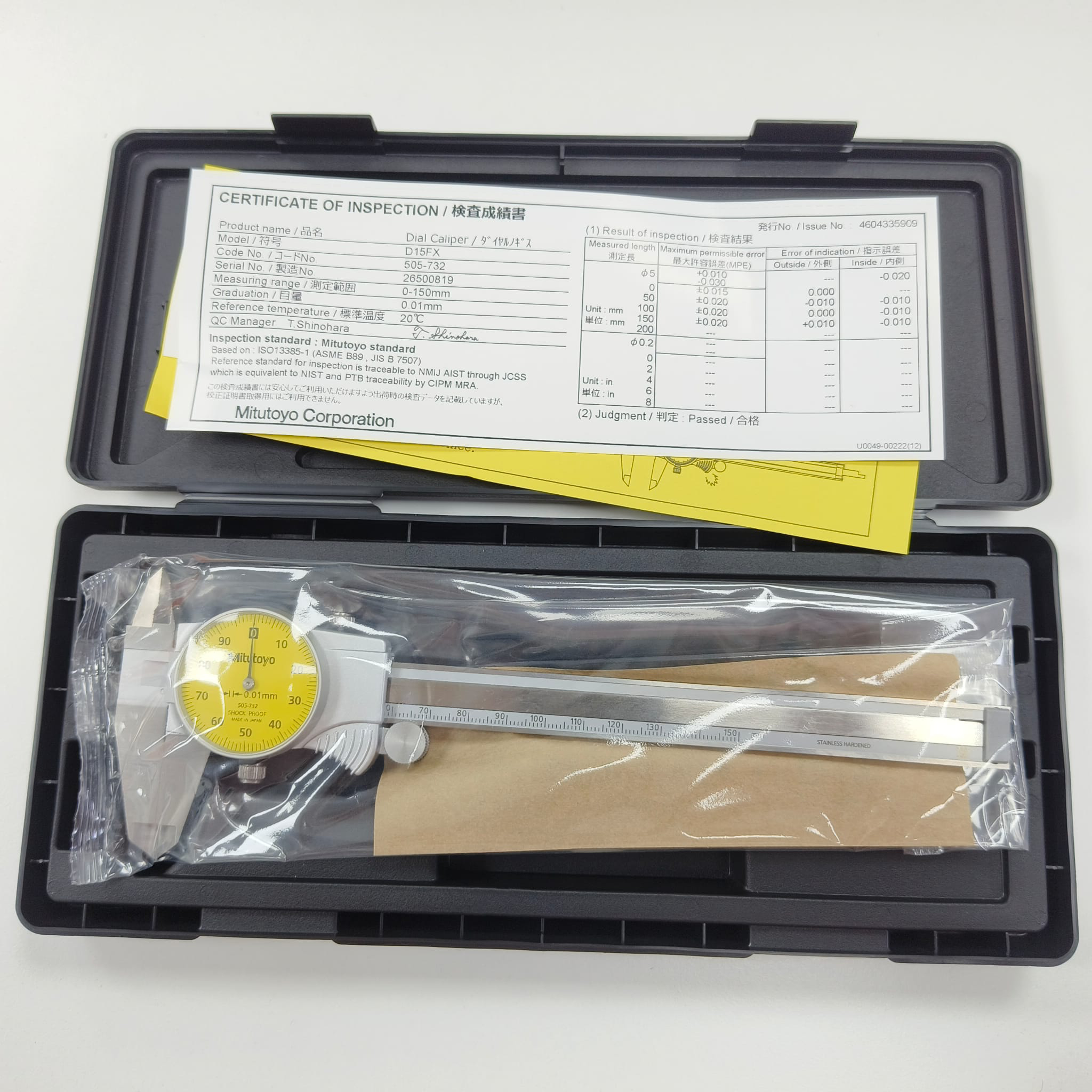

  • Includes: Certificate of Inspection, Operating Instructions paperwork inside the box.
  • Made in Japan.

Description

Mitutoyo 505-732 / D15FX is a Series 505 metric dial caliper with hardened stainless steel construction, titanium-coated sliding surfaces and standard outside and inside jaws for smooth, durable workshop measurement. It covers 0 to 150 mm with 0.01 mm graduation and 1 mm per revolution dial reading, making it practical for checking shafts, bushes, grooves, steps, plates and small mechanical parts without relying on batteries. The lock screw, flat depth bar and fitted plastic case make it suitable for machine shop inspection, maintenance measurement, tool room use and receiving QC.

Applications

  • Machine shop and fabrication dimensional inspection.
  • Maintenance measurement where a dial caliper is preferred.
  • Checking shafts, bores, slots, steps and small mechanical parts.

Documents

  • Mitutoyo-505-732 — Datasheet

    PDF, 1.2 MB

  • Mitutoyo-505 Series Dial Calipers — Catalog

    PDF, 256 KB
