Technical overview
Mitutoyo 500-752-20 / CD-P6" S is an IP67 ABSOLUTE coolant proof Digimatic caliper designed for reliable measurement in machine shops where coolant, water, dust and oil may be present. It measures 0 to 150 mm (0 to 6 inch) with 0.01 mm / 0.0005 inch digital step and includes standard outside and inside jaws, a flat depth bar and a clear LCD display for outside, inside, depth and step measurement. The ABSOLUTE scale requires no origin setting after power-on and the caliper is suitable for CNC inspection, production QC, fabrication measurement and maintenance work on machined parts and industrial spares.
Key Features
- IP67 protection helps resist dust, water and temporary immersion.
- ABSOLUTE scale allows quick measuring without repeated origin setting.
- Inch and metric reading is suitable for local and imported drawings.
- Flat depth bar supports depth measurement on slots and shoulders.

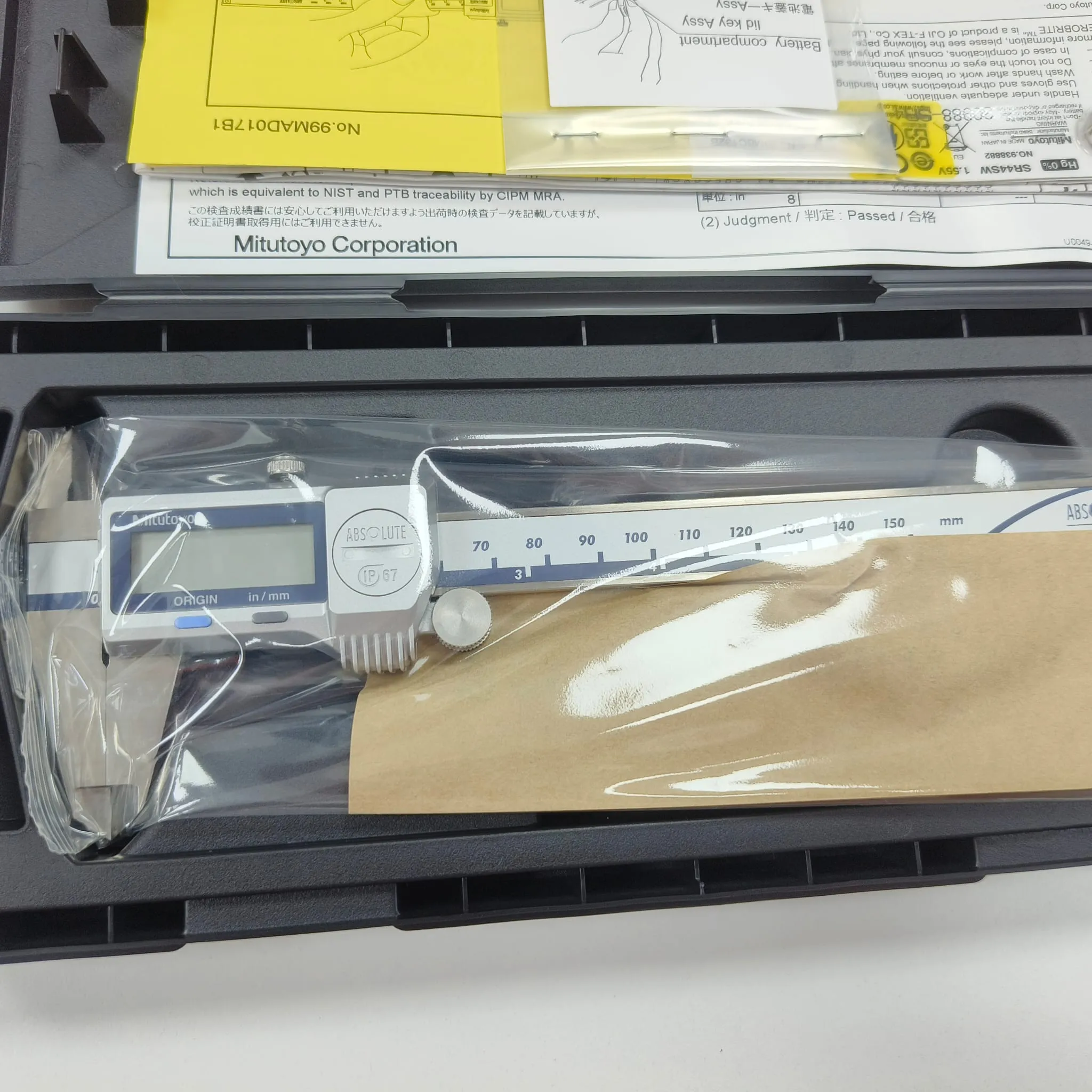

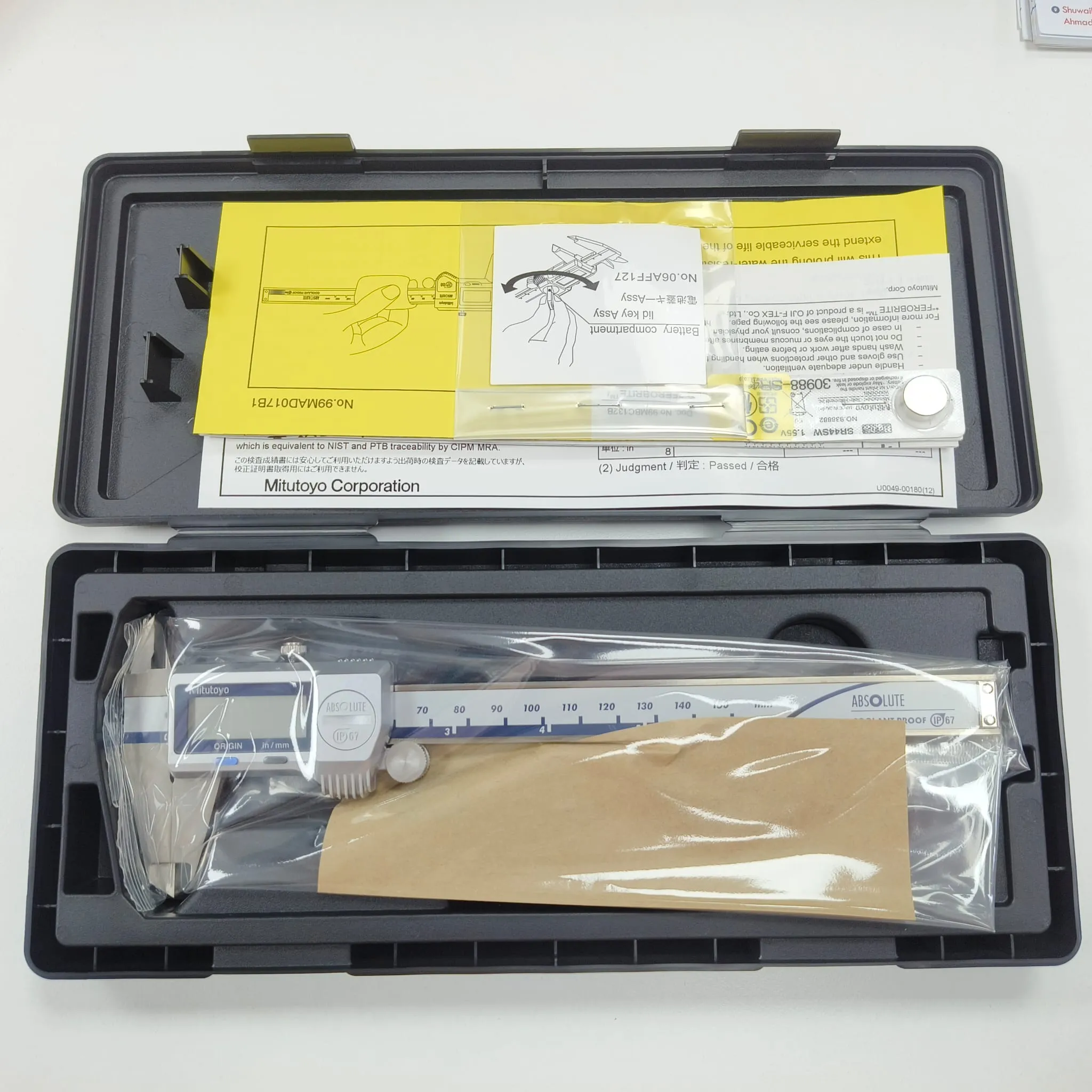

- Includes: Certificate of Inspection, Operating Instructions paperwork and SR44 battery inside the box.
- Made in Japan.
Applications
- CNC machining areas with coolant or cutting oil exposure.
- Workshop QC, maintenance measurement and production inspection.
- Checking external, internal, depth and step dimensions on metal parts.
Specifications
Product TypeCoolant Proof Digimatic Caliper
Measuring Range0 to 150 mm / 0 to 6 inch
Display Resolution0.01 mm / 0.0005 inch
Accuracy±0.02 mm
Ingress ProtectionIP67
ModelCD-P6" S
