Dimensional Measuring Tools
Mitutoyo AOS Absolute Digimatic Caliper, 0 to 150 mm (0-6 inch) Range, 500-196-30
Mitutoyo

Mitutoyo AOS Absolute Digimatic Caliper, 0 to 150 mm (0-6 inch) Range, 500-196-30

Mfr. part no.
500-196-30
SKU
MT-500-196-30

Specifications

Product Type Digimatic Caliper
Measuring Range 0 to 150 mm / 0 to 6 inch
Display Resolution 0.01 mm / 0.0005 inch
Accuracy ±0.02 mm
Body Material Hardened Stainless Steel
Model CD-6” ASX

Key Features

  • ABSOLUTE AOS scale keeps the origin setting ready after power on.
  • Inch and metric digital reading suits mixed engineering drawings.
  • Useful for outside, inside, depth and step measurements.
  • Hardened stainless steel construction supports regular workshop use.

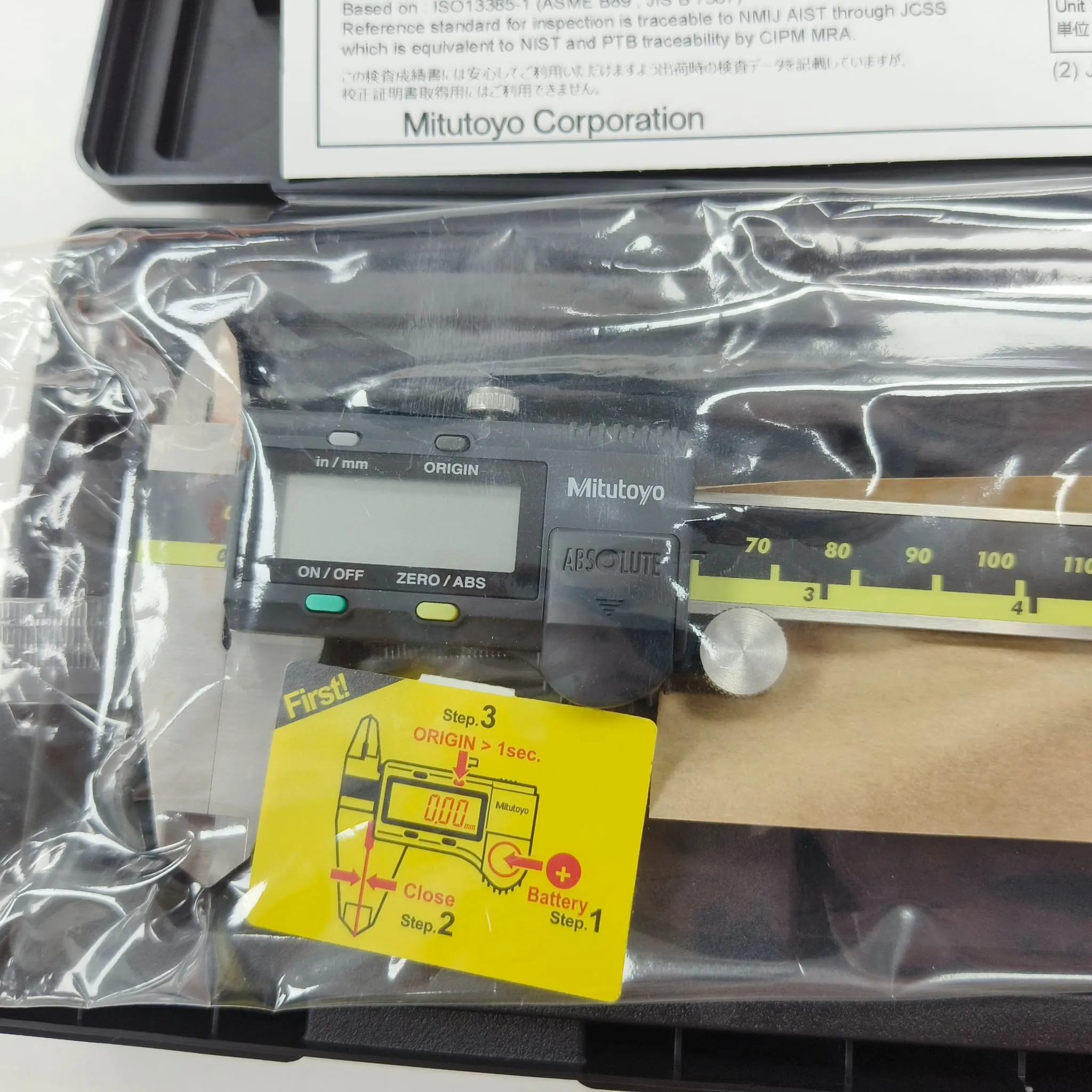

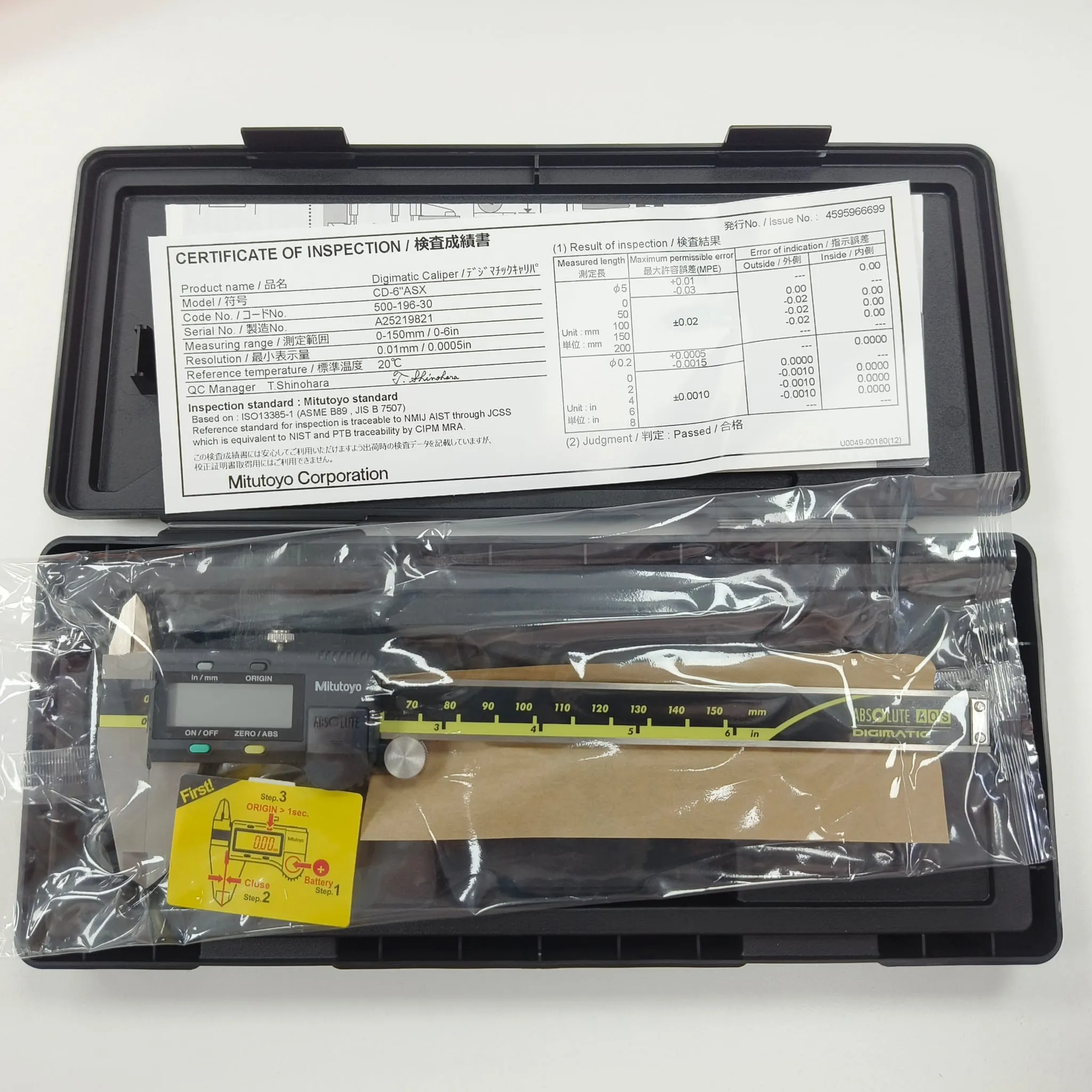

  • Includes: Certificate of Inspection, Operating Instructions paperwork and SR44 battery inside the box.
  • Made in Japan.

Description

Mitutoyo 500-196-30 / CD-6” ASX is an AOS Absolute Digimatic caliper with hardened stainless steel construction, standard outside and inside jaws, a flat depth bar and a clear LCD display for fast inch/metric measurement. It covers 0 to 150 mm (0 to 6 inch) with 0.01 mm / 0.0005 inch digital step, making it suitable for shafts, plates, grooves, sleeves, machined components and fabrication parts. The ABSOLUTE AOS scale retains the origin setting after power-on and supports high-speed response, giving machinists, maintenance teams and QC inspectors a reliable digital vernier caliper for daily workshop inspection.

Applications

  • Machining, fabrication and maintenance dimensional checks.
  • Inspection of shafts, sleeves, plates, grooves and small mechanical parts.
  • Quality control benches, tool rooms and industrial stores.

Documents

  • Mitutoyo-500-196-30 — Datasheet

    PDF, 475 KB

  • Mitutoyo AOS Absolute Digimatic Caliper — Catalog

    PDF, 1.5 MB
