Mitutoyo AOS Absolute Digimatic Caliper, 0 to 200 mm (0 to 8 inch) Range, 500-197-30
All Mitutoyo products
Mitutoyo Dimensional Measuring Tools
All Dimensional Measuring Tools (every brand)
Technical overview

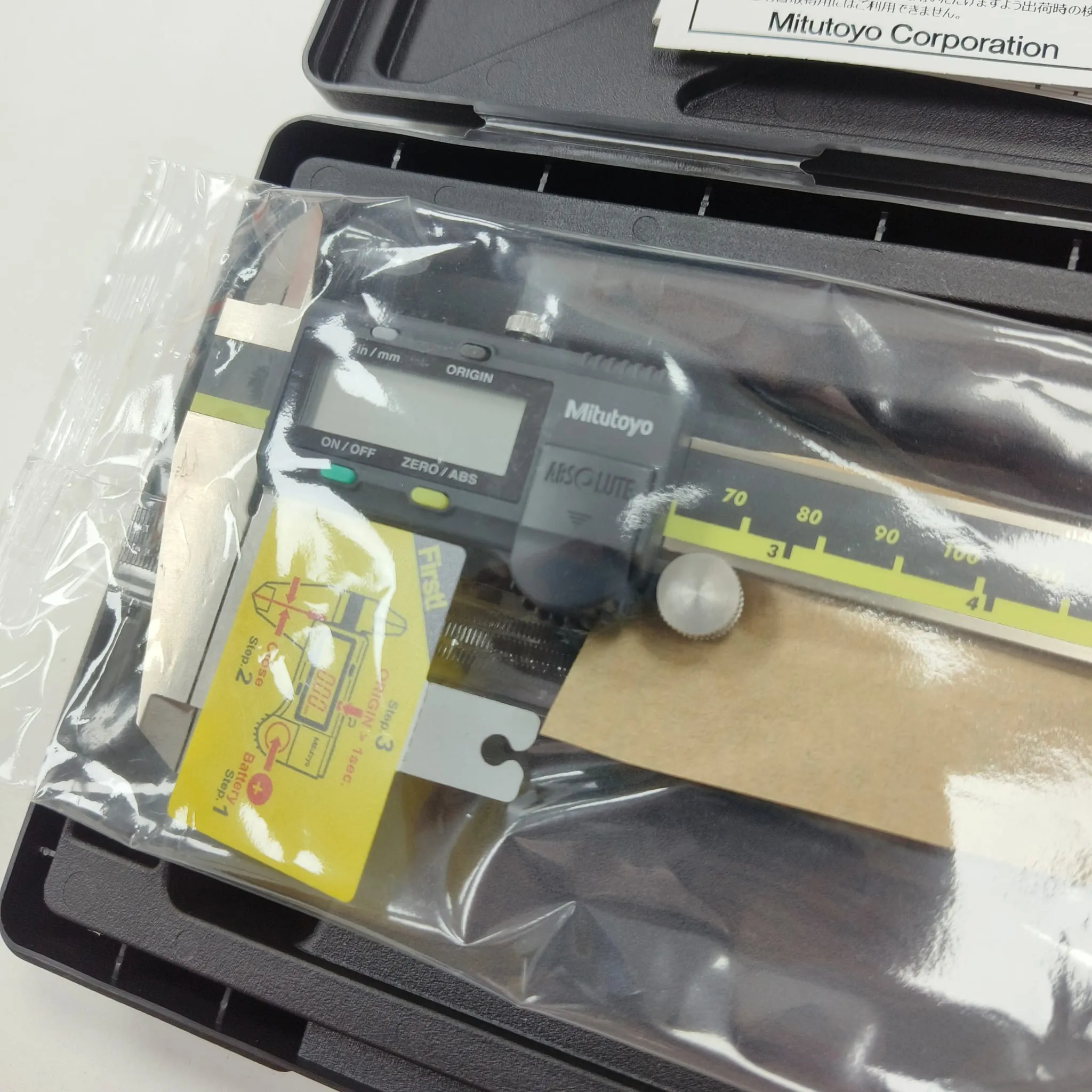

Mitutoyo 500-197-30 / CD-8" ASX is a 200 mm AOS Absolute Digimatic caliper built with hardened stainless steel construction, standard outside and inside jaws, a flat depth bar and an LCD display for clear inch/metric readings. The 0 to 200 mm (0 to 8 inch) range gives extra capacity for shafts, housings, plates, brackets, tubes and larger fabricated parts where a 150 mm caliper is not enough. Its ABSOLUTE AOS scale keeps the origin setting ready after power-on and provides fast digital measurement for machining, maintenance, receiving inspection and quality control benches.
Key Features
- Hardened stainless steel body with standard outside and inside jaws.
- ABSOLUTE AOS scale supports stable and quick digital measurement.
- Inch and metric switching helps when drawings use different units.
- Suitable for outside, inside, depth and step measurement.

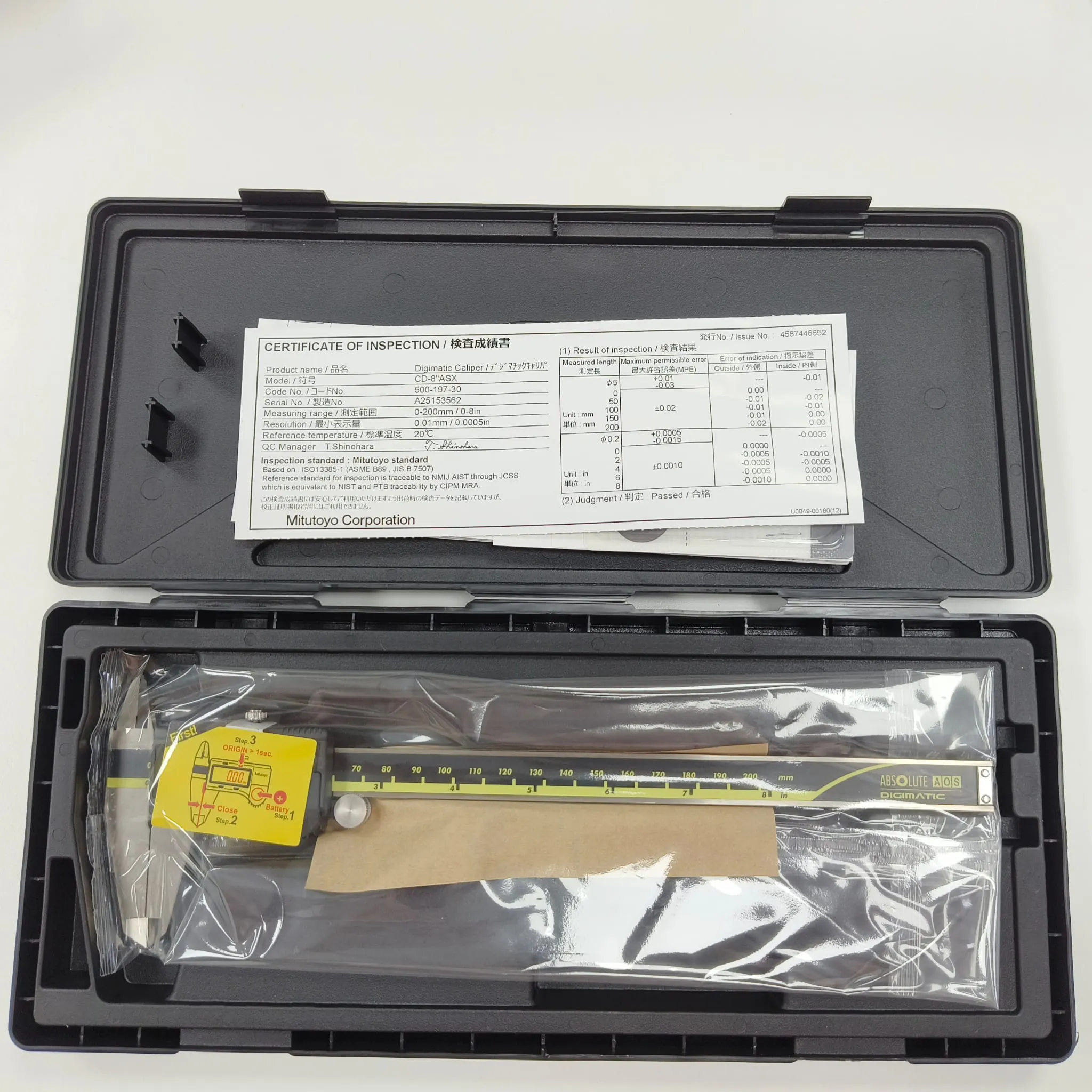

- Includes: Certificate of Inspection, Operating Instructions paperwork and SR44 battery inside the box.
- Made in Japan.
Applications
- Machining and fabrication inspection for medium size components.
- Checking sleeves, shafts, plates, brackets and maintenance spares.
- Tool room, QC bench and industrial stores measurement.
Specifications
Product TypeDigimatic Caliper

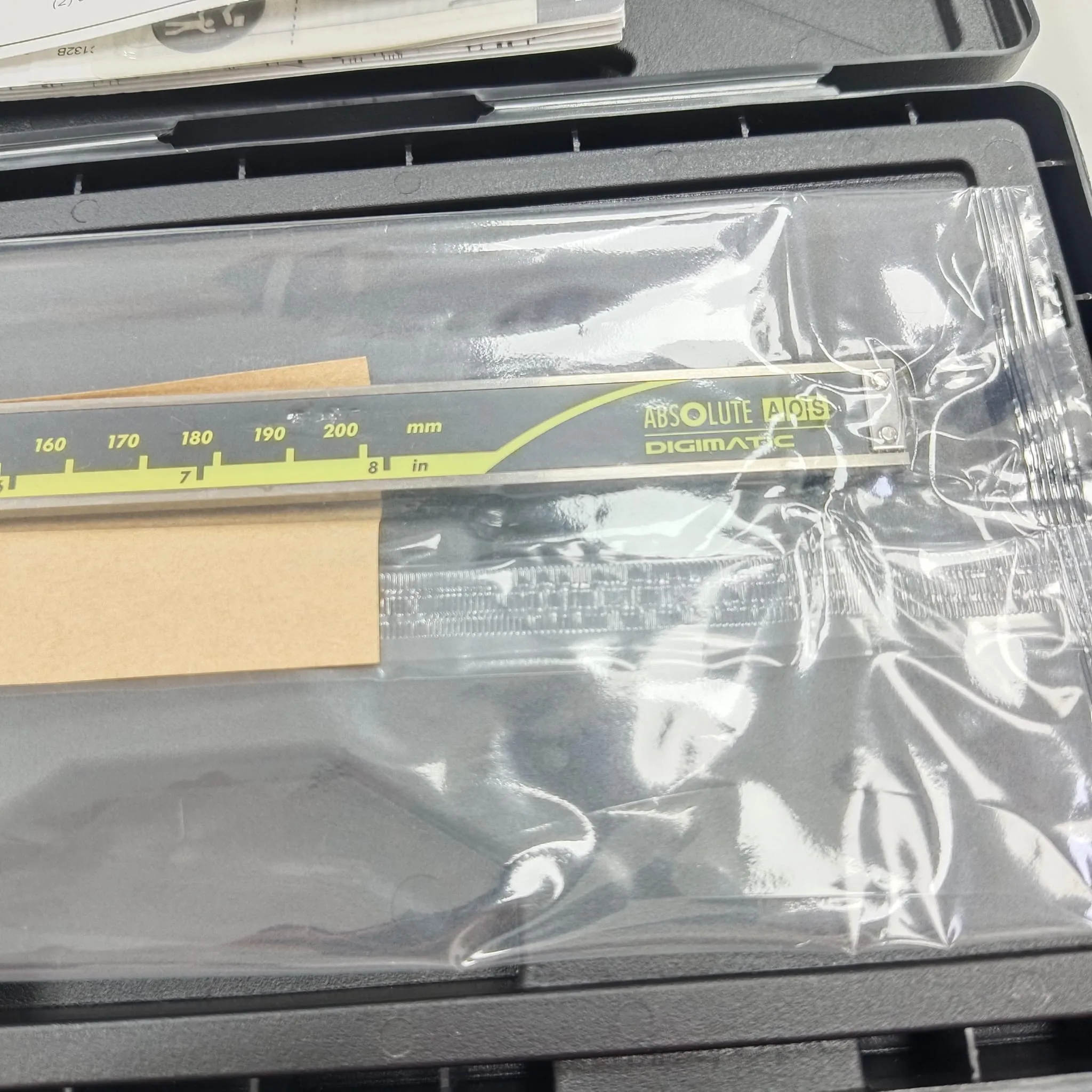

Measuring Range0 to 200 mm / 0 to 8 inch
Display Resolution0.01 mm / 0.0005 inch
Accuracy±0.02 mm
Body MaterialHardened Stainless Steel

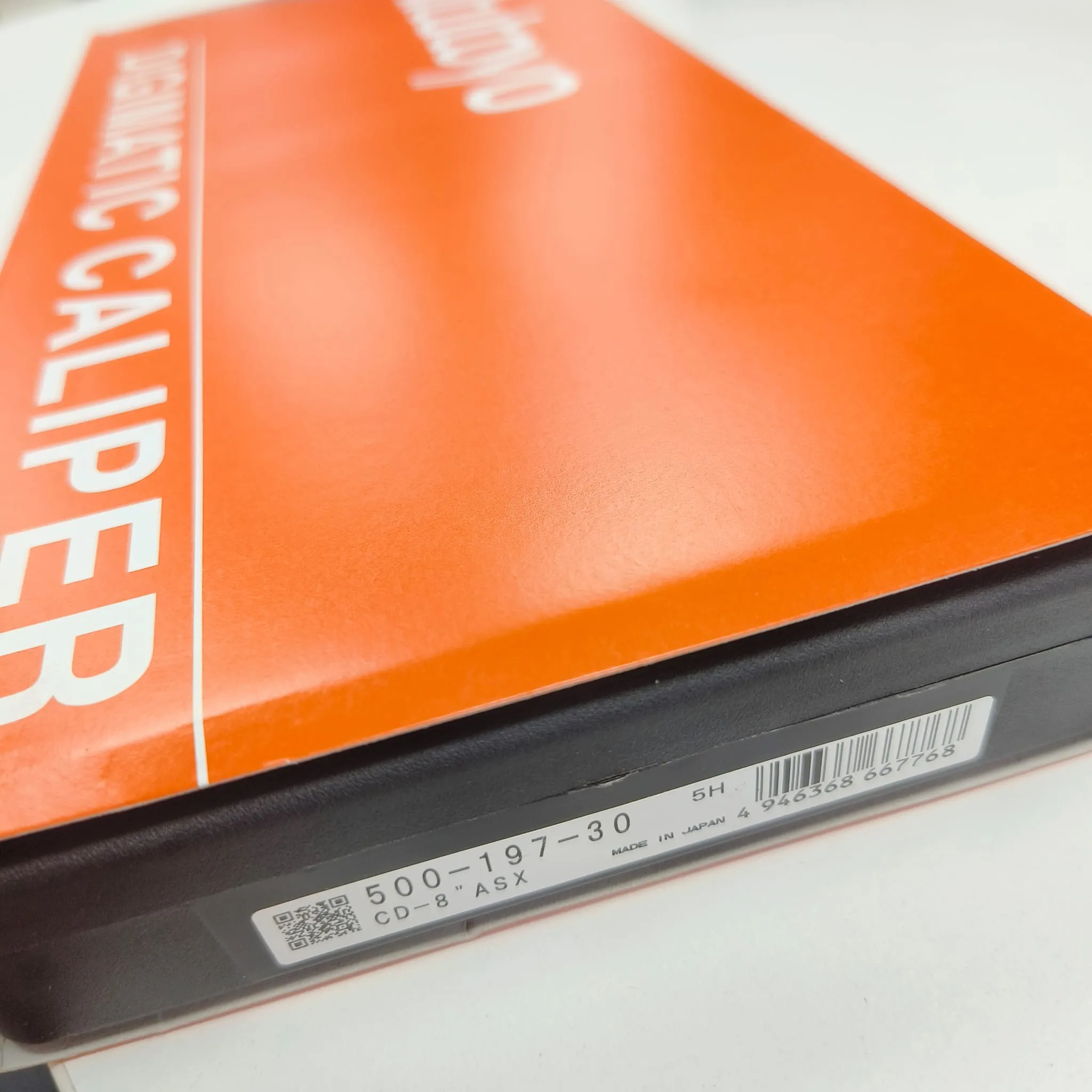

ModelCD-8” ASX
