Mitutoyo IP67 Absolute Coolant Proof Digimatic Caliper, 0 to 300 mm (0-12 inch) Range, 500-754-20
Mitutoyo

Mitutoyo IP67 Absolute Coolant Proof Digimatic Caliper, 0 to 300 mm (0-12 inch) Range, 500-754-20

Mfr. part no.
500-754-20
SKU
MT-500-754-20

Specifications

Product Type Coolant Proof Digimatic Caliper

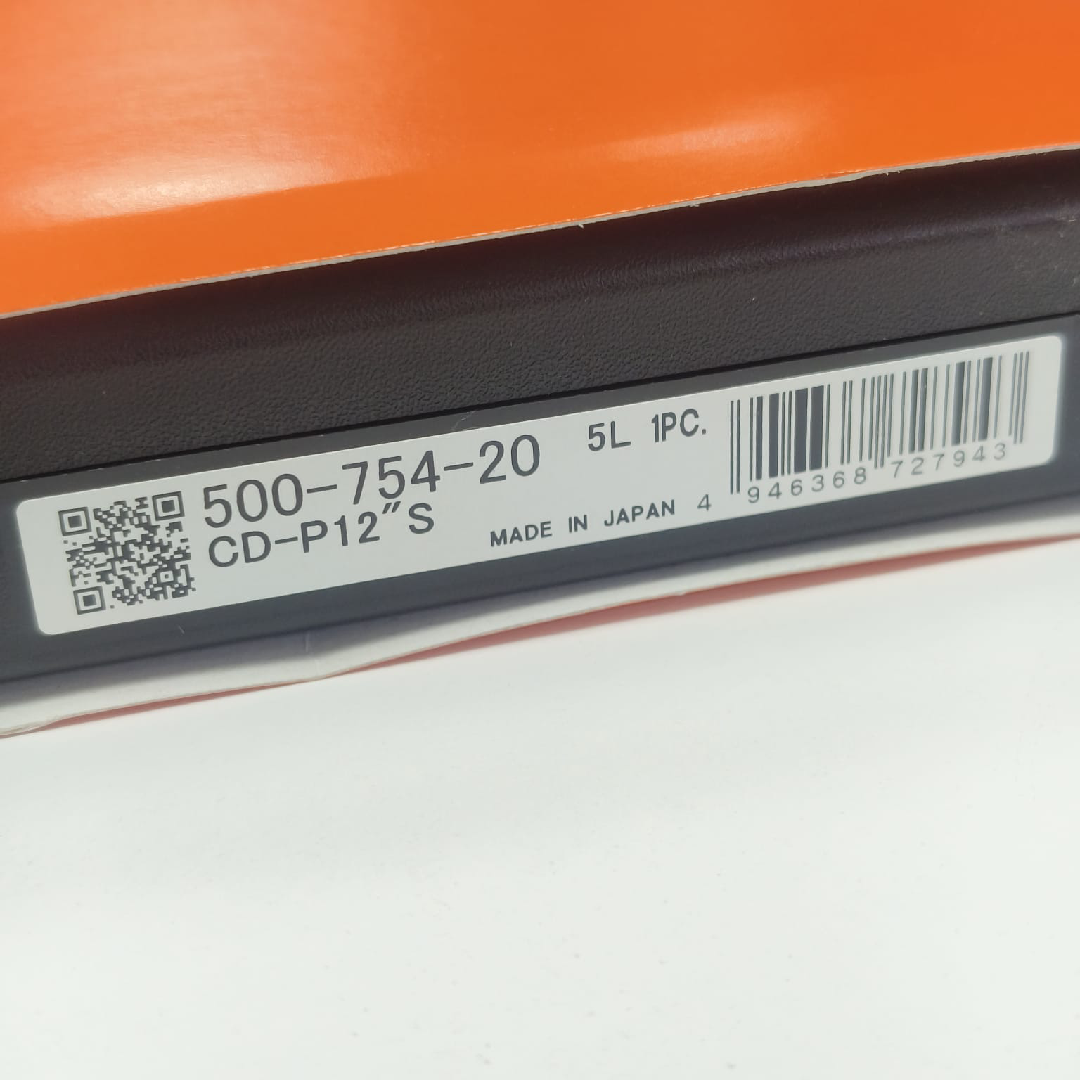

Model CD-P12"S
Measuring Range 0 to 300 mm / 0 to 12 inch
Display Resolution 0.01 mm / 0.0005 inch
Accuracy ±0.03 mm / ±0.0015 inch
Ingress Protection IP67
Measuring System ABSOLUTE Scale
Display Type LCD

Key Features

  • IP67 protection helps resist dust, coolant, water splash and temporary immersion.
  • ABSOLUTE measuring system maintains the origin reference.
  • 0.01 mm / 0.0005 inch digital resolution for precise inspection.
  • Clear LCD display supports quick shop-floor reading.
  • Measures outside, inside, depth and step dimensions.
  • Suitable for machining areas exposed to coolant and cutting oil.
  • Flat depth bar supports depth measurement.

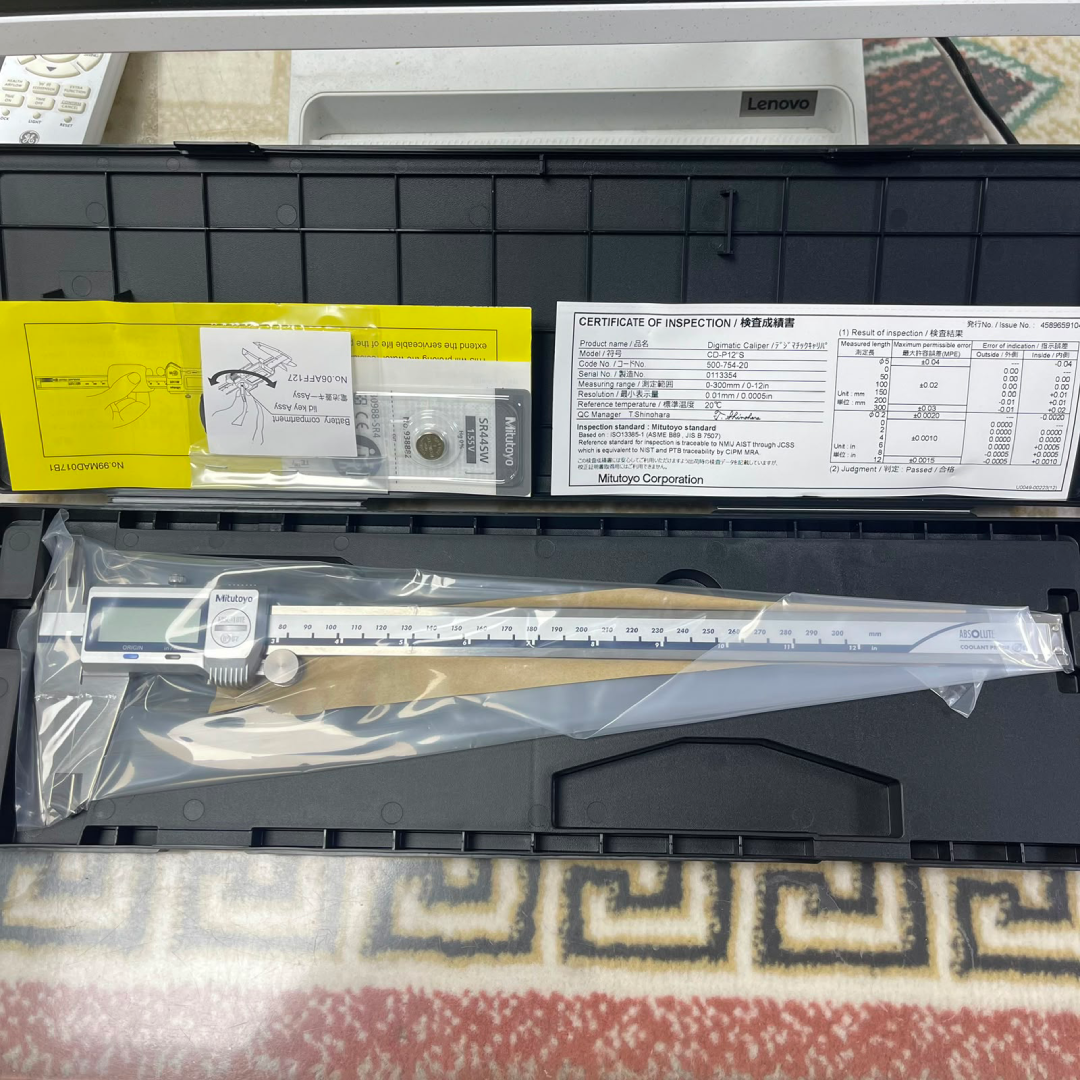

  • Includes: Certificate of Inspection, Operating Instructions paperwork and SR44 battery inside the box.
  • Made in Japan.

Description

Mitutoyo 500-754-20 is an IP67 ABSOLUTE coolant proof Digimatic caliper designed for reliable measurement in machine shops where coolant, water, dust and cutting oil may be present. It measures 0 to 300 mm / 0 to 12 inch with 0.01 mm / 0.0005 inch display resolution and supports outside, inside, depth and step measurement. The ABSOLUTE measuring system maintains the origin reference, while the clear LCD display supports fast inspection during CNC machining, production quality control, fabrication and maintenance work. A flat depth bar supports depth measurement.

Applications

  • CNC machining areas with coolant or cutting oil exposure.
  • Production and quality-control dimensional inspection.
  • Outside, inside, depth and step checks on machined components.
  • Maintenance, fabrication and industrial spare-parts measurement.

Documents

  • Mitutoyo-500-754-20 — Datasheet

    PDF, 2.0 MB

  • Mitutoyo Absolute Coolant Proof Caliper — Catalog

    PDF, 3.0 MB
