Dimensional Measuring Tools

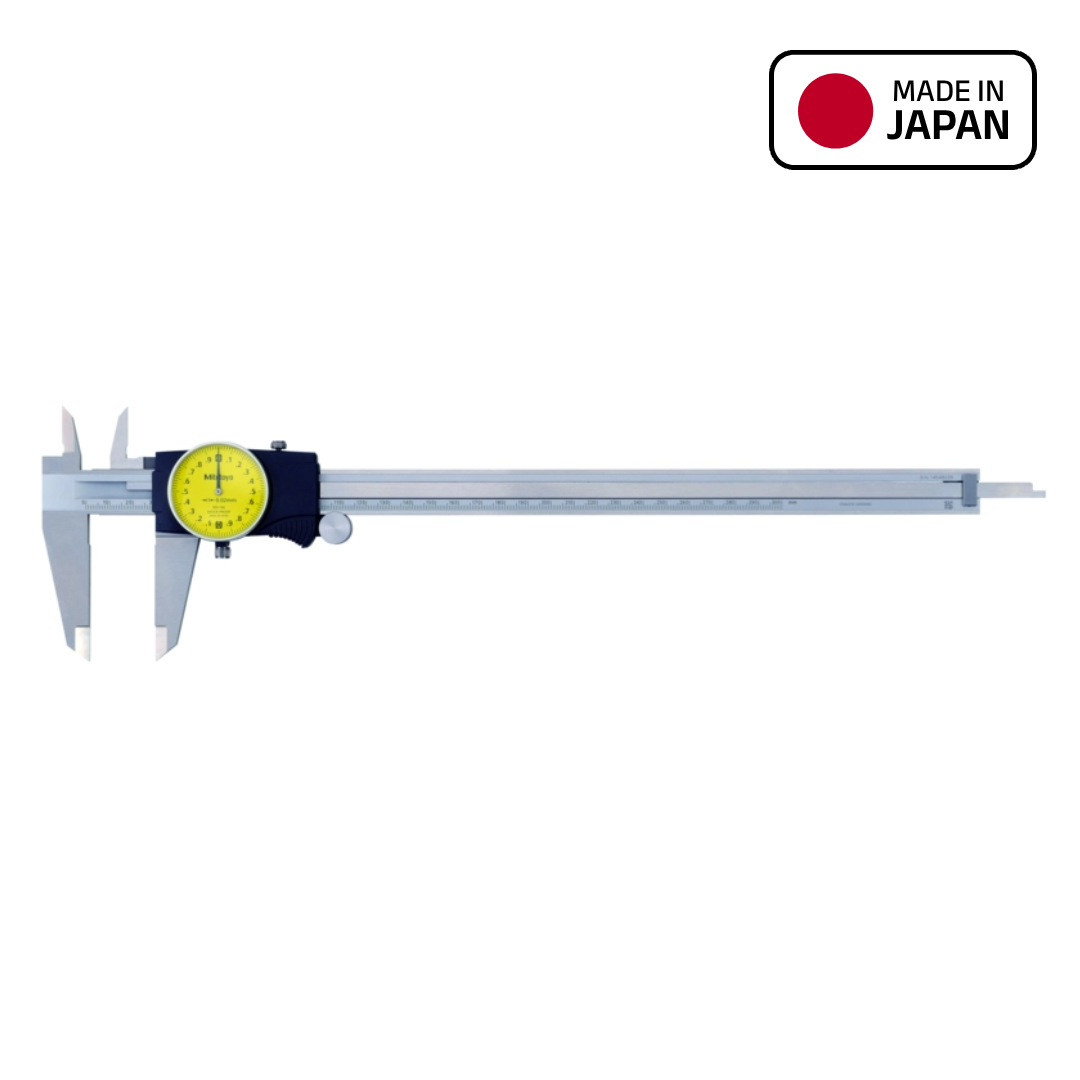

Mitutoyo Series 505 Dial Caliper, Metric, 0 to 300 mm Range, 505-745
Mitutoyo

Mitutoyo Series 505 Dial Caliper, Metric, 0 to 300 mm Range, 505-745

Mfr. part no.
505-745
SKU
MT-505-745

Specifications

Series 505 Series
Product Type Dial Caliper
Measuring Range 0 to 300 mm
Graduation 0.02 mm
Accuracy ±0.04 mm
Body Material Hardened Stainless Steel

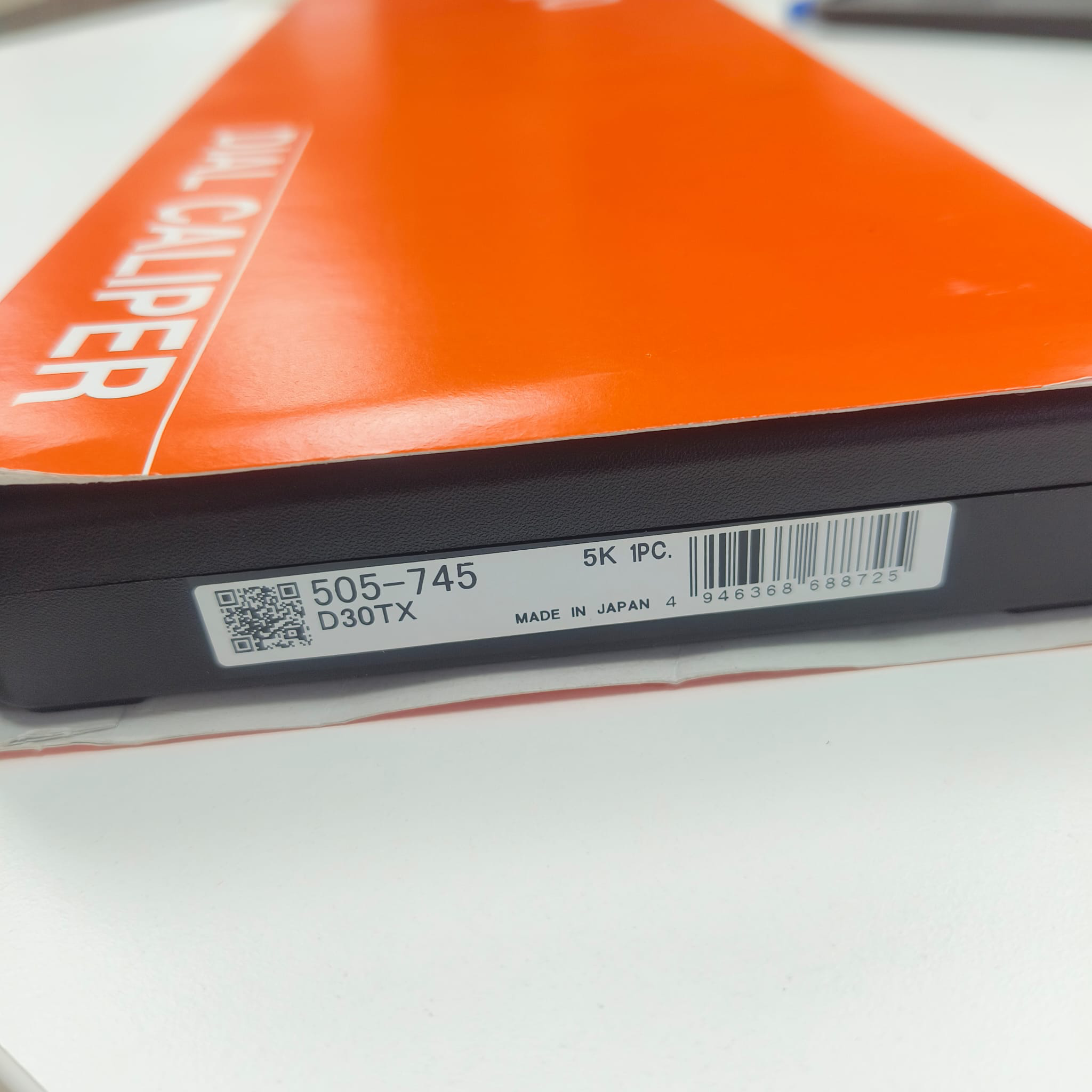

Model D30TX

Key Features

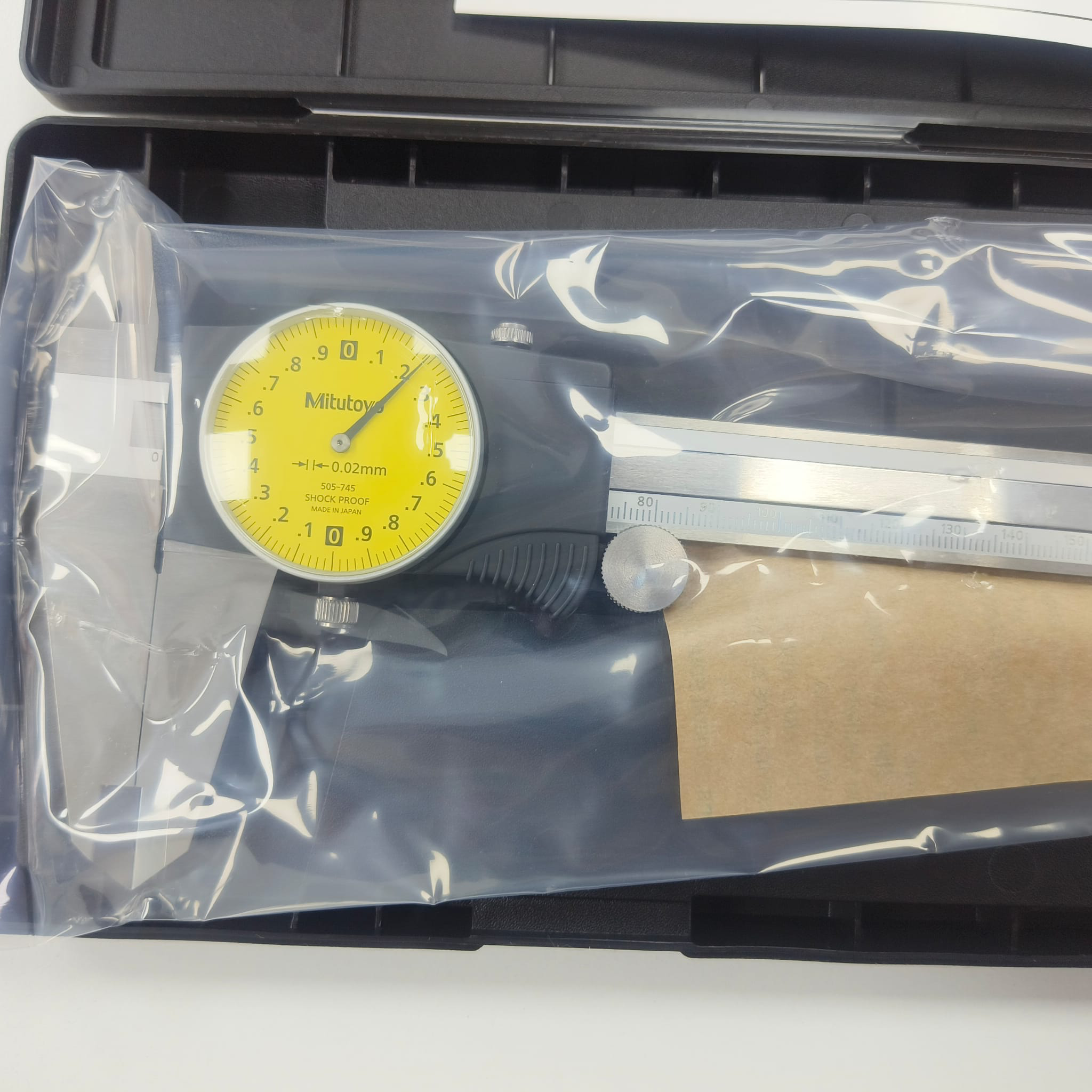

  • Mechanical dial reading is easy to read and does not need batteries.
  • 0 to 300 mm measuring range supports larger workshop and fabrication parts.
  • Standard jaws support outside and inside measurement.
  • Flat depth bar supports common depth checks.

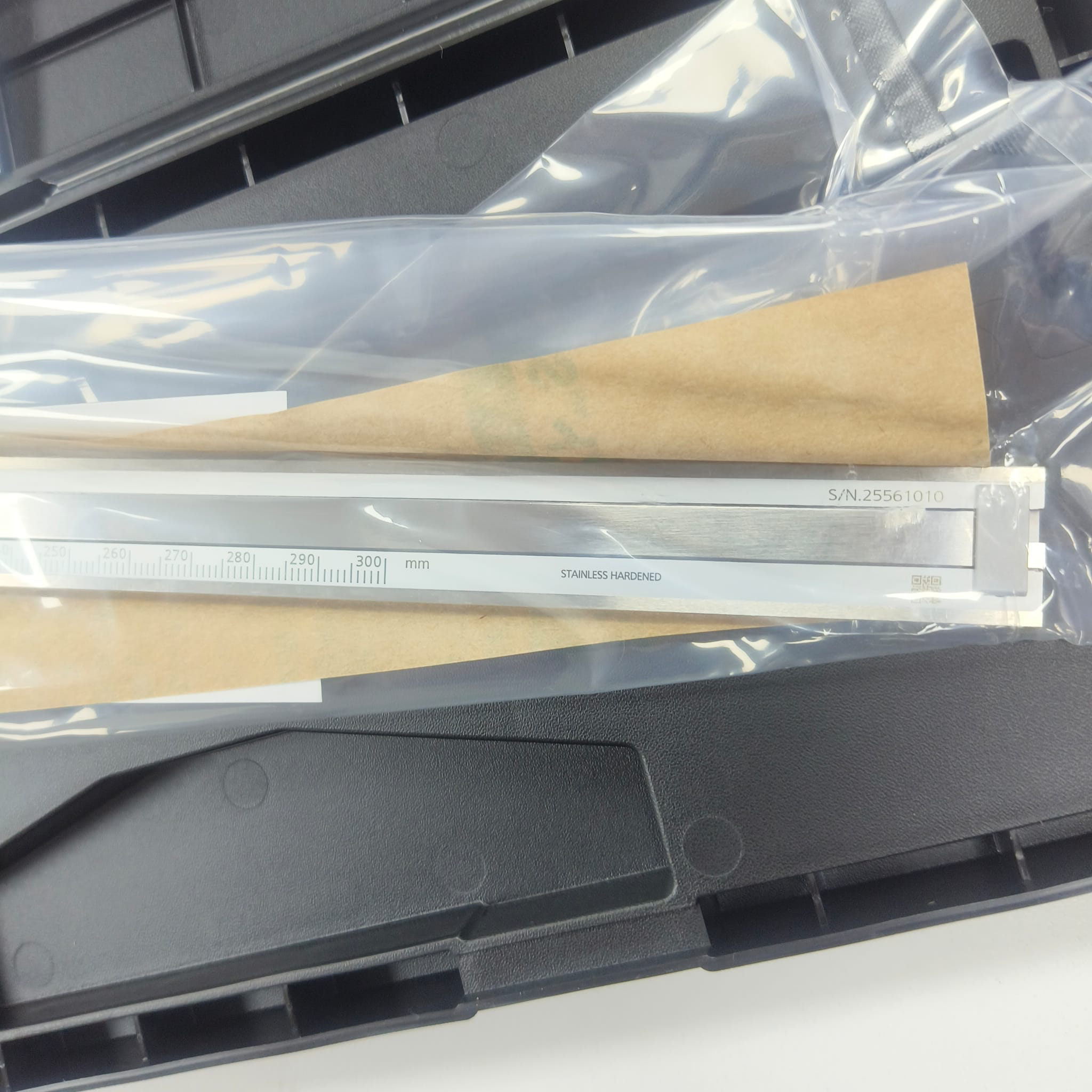

  • Hardened stainless steel body suits regular workshop use.

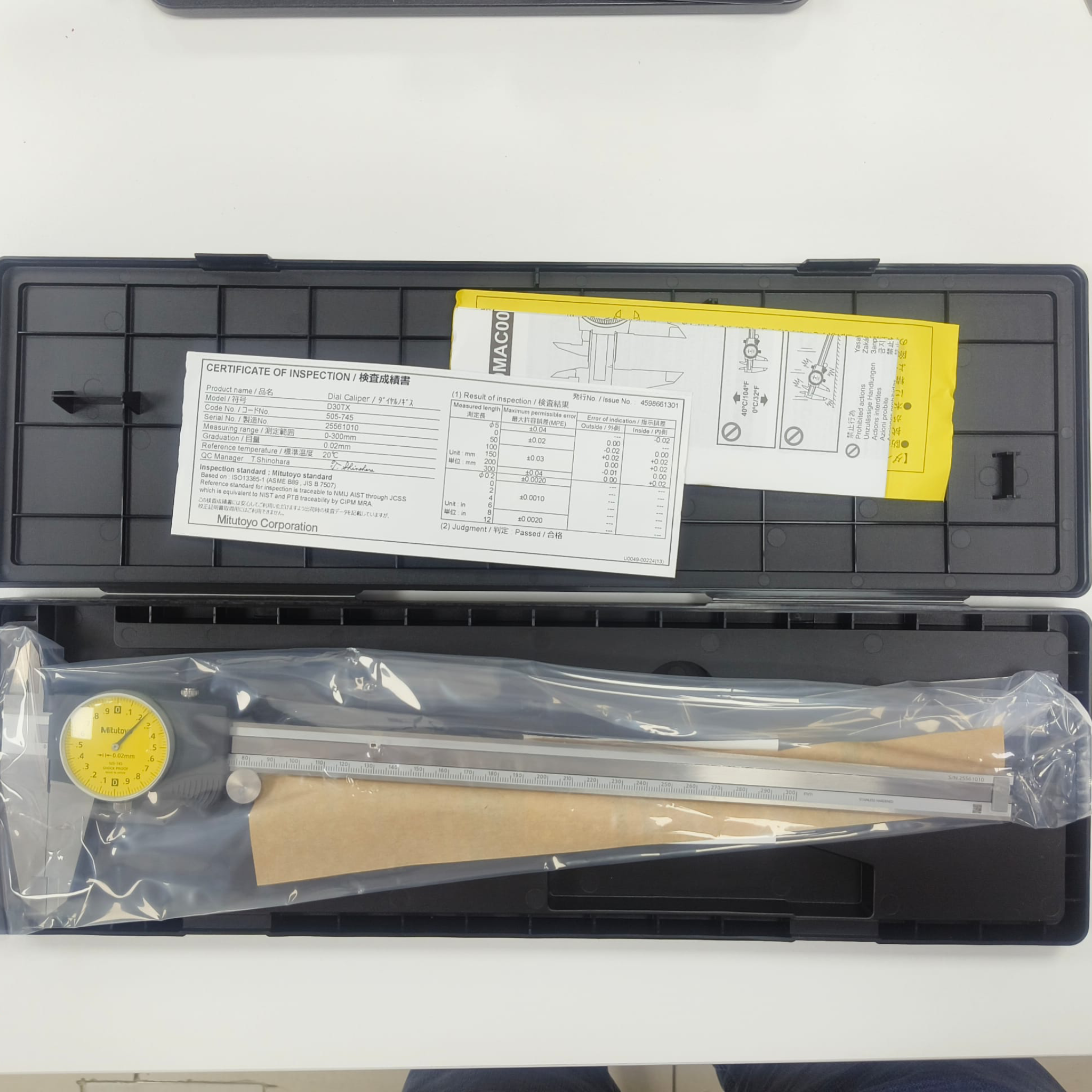

  • Includes: Plastic box, inspection certificate and user manual.
  • Made in Japan.

Description

Mitutoyo 505-745 / D30TX is a Series 505 metric dial caliper designed for reliable workshop and inspection measurement across a 0 to 300 mm range. It uses a mechanical dial reading with 0.02 mm graduation and 2 mm per revolution dial movement, making it practical for checking shafts, bushes, plates, grooves, steps and larger machined components without relying on batteries. The hardened stainless steel body, standard outside and inside jaws, flat depth bar and lock screw support daily machine shop, maintenance and receiving QC use, while the easy-to-read dial and high shock protection make it suitable for regular industrial measurement work.

Applications

  • Machine shop and fabrication dimensional inspection.
  • Maintenance measurement where a mechanical dial caliper is preferred.
  • Checking shafts, bores, slots, steps, plates and larger mechanical parts.

Documents

  • Mitutoyo-505-745 — Datasheet

    PDF, 446 KB

  • Mitutoyo-505 Series Dial Calipers — Catalog

    PDF, 256 KB
