Mitutoyo TI-123AX, Series 513 Dial Test Indicator, 1 mm Range, 0.01 mm Graduation, Plus Set, 513-415-10A
Mitutoyo

Mitutoyo TI-123AX, Series 513 Dial Test Indicator, 1 mm Range, 0.01 mm Graduation, Plus Set, 513-415-10A

Mfr. part no.
513-415-10A
SKU
MT-513-415-10A

Specifications

Product Type Dial Test Indicator
Model TI-123AX
Measurement Type Mechanical Lever-Type Contact Measurement
Measuring Range 0 to 1 mm
Display Resolution 0.01 mm
Measuring Face Carbide Contact Point, Ø2 mm
Output Signal None, Analog Dial Indication
Series Series 513

Key Features

  • 1 mm measuring range with fine 0.01 mm graduation.
  • 0-50-0 dial reading for comparative measurement.
  • Long 41 mm stylus with a 2 mm carbide contact point.
  • Maximum permissible error of 10 µm over the measuring range.
  • Glare-reducing dial crystal and O-ring sealed bezel.

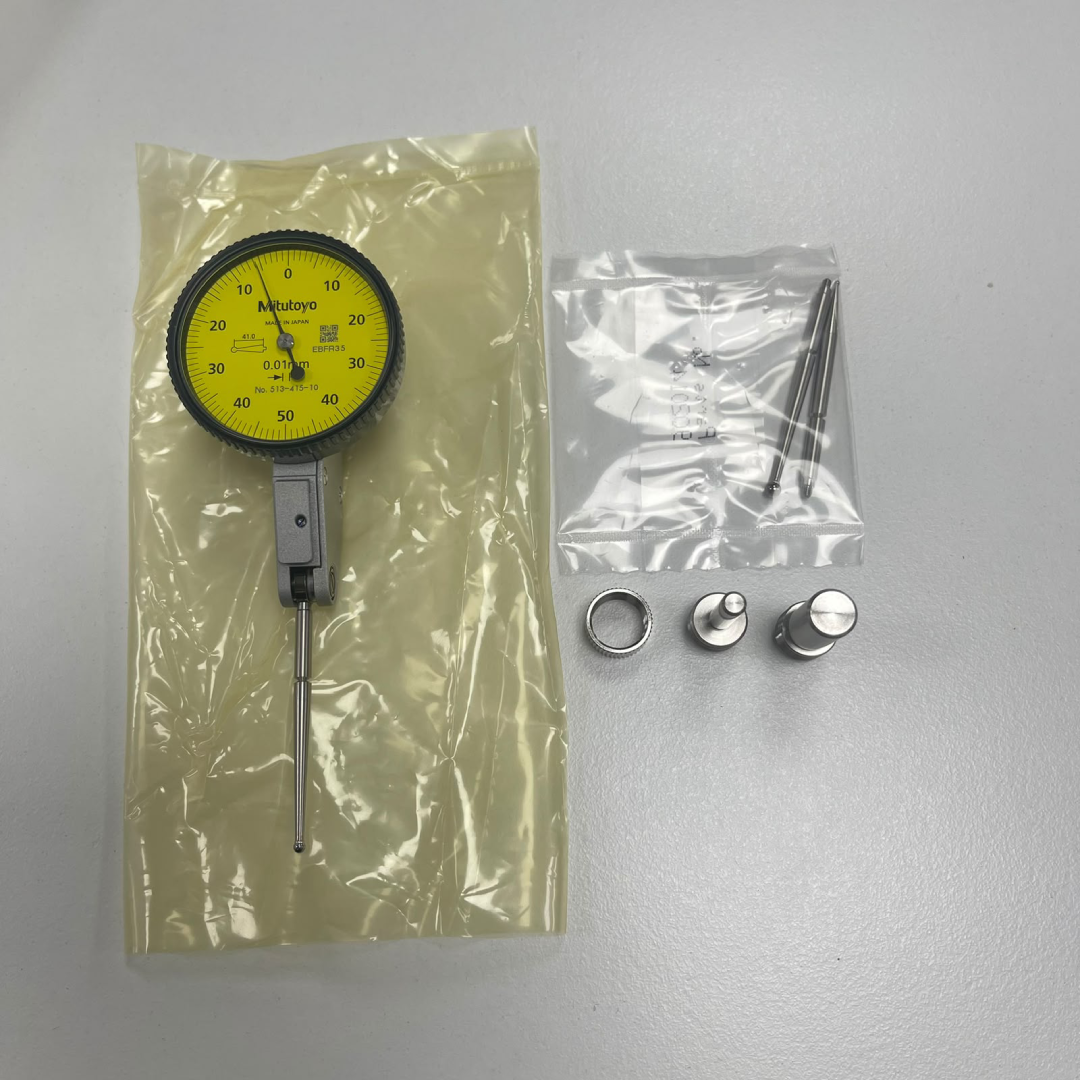

  • Plus Set includes mounting stems and interchangeable styli.
  • Made in Japan.

Description

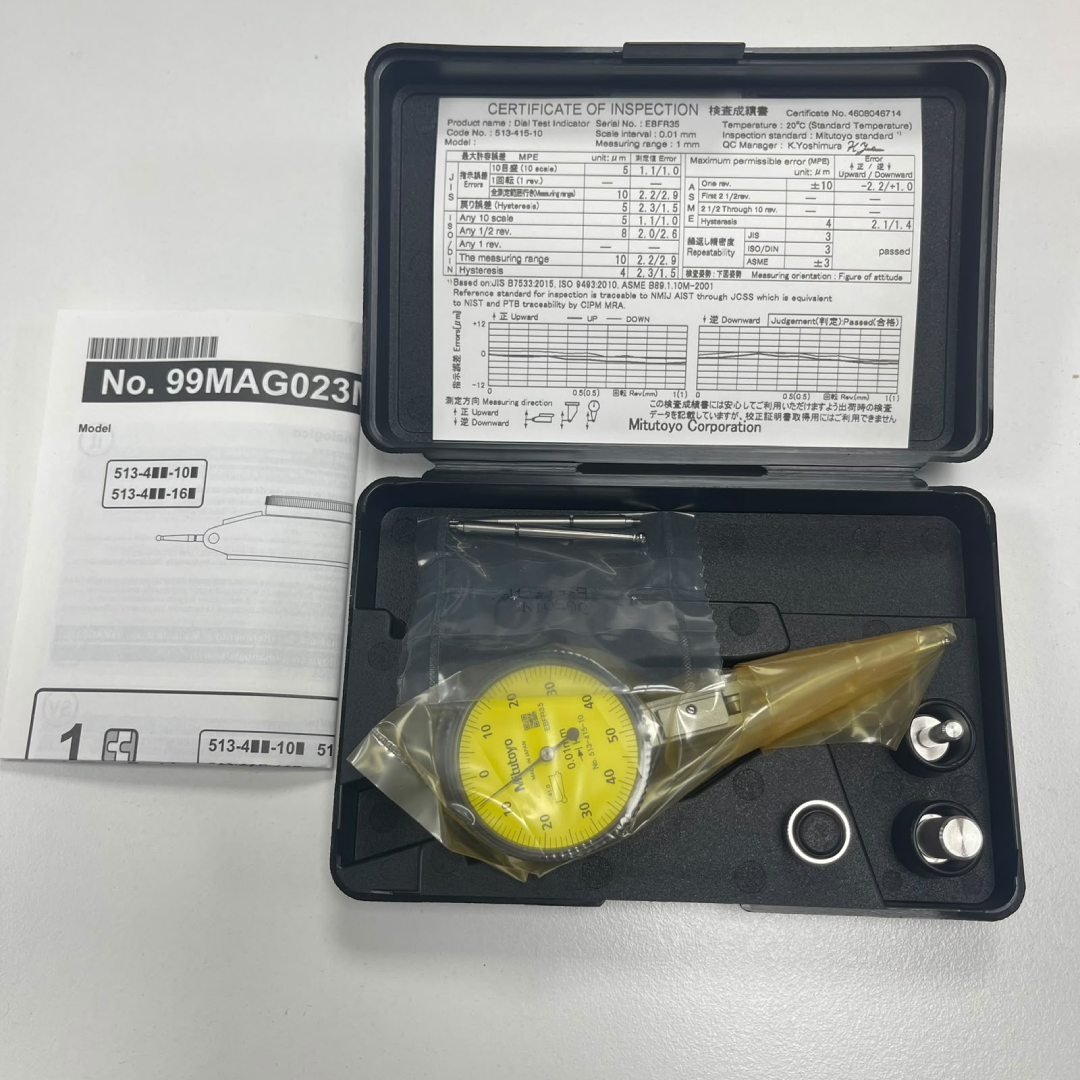

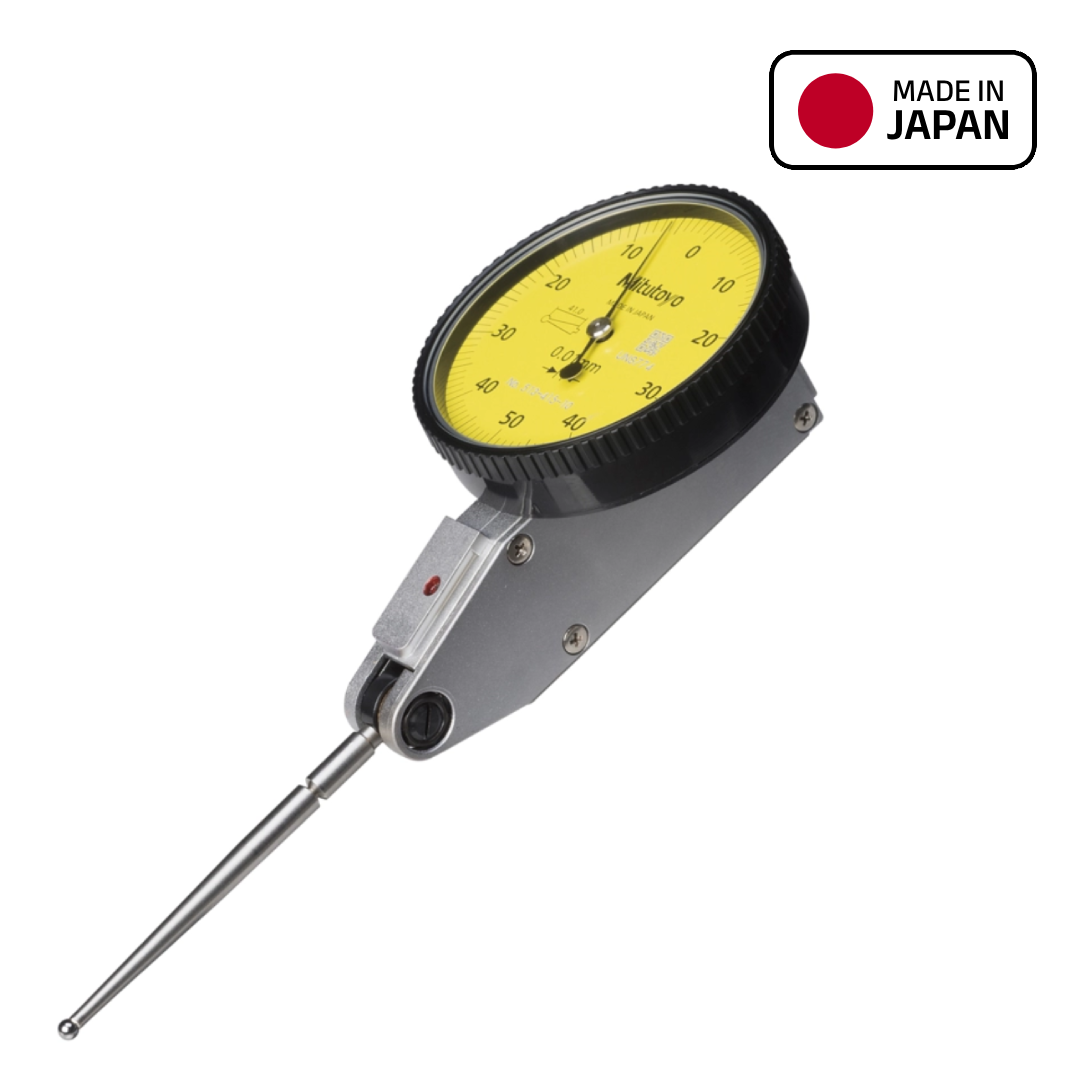

The Mitutoyo TI-123AX Series 513 horizontal dial test indicator has a 1 mm measuring range and 0.01 mm graduation for precise comparative measurement. Its 41 mm stylus and 2 mm diameter carbide contact point assist measurement in difficult-to-reach areas. The indicator features a glare-reducing dial crystal and O-ring sealed bezel that resists dust and oil penetration. The 513-415-10A Plus Set is supplied in a box with 4 mm and 8 mm mounting stems and carbide-tipped styli in 1 mm, 2 mm and 3 mm diameters for inspection, setup and runout measurement.

Applications

  • Runout inspection on shafts and rotating components.
  • Alignment of workpieces during machine setup.
  • Measurement of small deviations and surface variations.
  • Toolroom and precision manufacturing inspection.
  • Comparative measurement in metrology and quality control.

Documents

  • Mitutoyo-513-415-10A — Datasheet

    PDF, 2.8 MB
