Mitutoyo HW-30, Series 192 Dial Height Gauge, 0 to 300 mm, 0.01 mm Graduation, 192-130
Mitutoyo

Mitutoyo HW-30, Series 192 Dial Height Gauge, 0 to 300 mm, 0.01 mm Graduation, 192-130

Mfr. part no.
192-130
SKU
MT-192-130

Specifications

Product Type Dial Height Gauge
Model HW-30
Measurement Type Mechanical Vertical Height Measurement
Measuring Range 0 to 300 mm
Display Resolution 0.01 mm
Measuring Face Carbide-Tipped Scriber
Output Signal None, Mechanical Measurement
Series Series 192

Key Features

  • Measuring range of 0 to 300 mm with 0.01 mm graduation.
  • Maximum permissible error of ±0.03 mm.

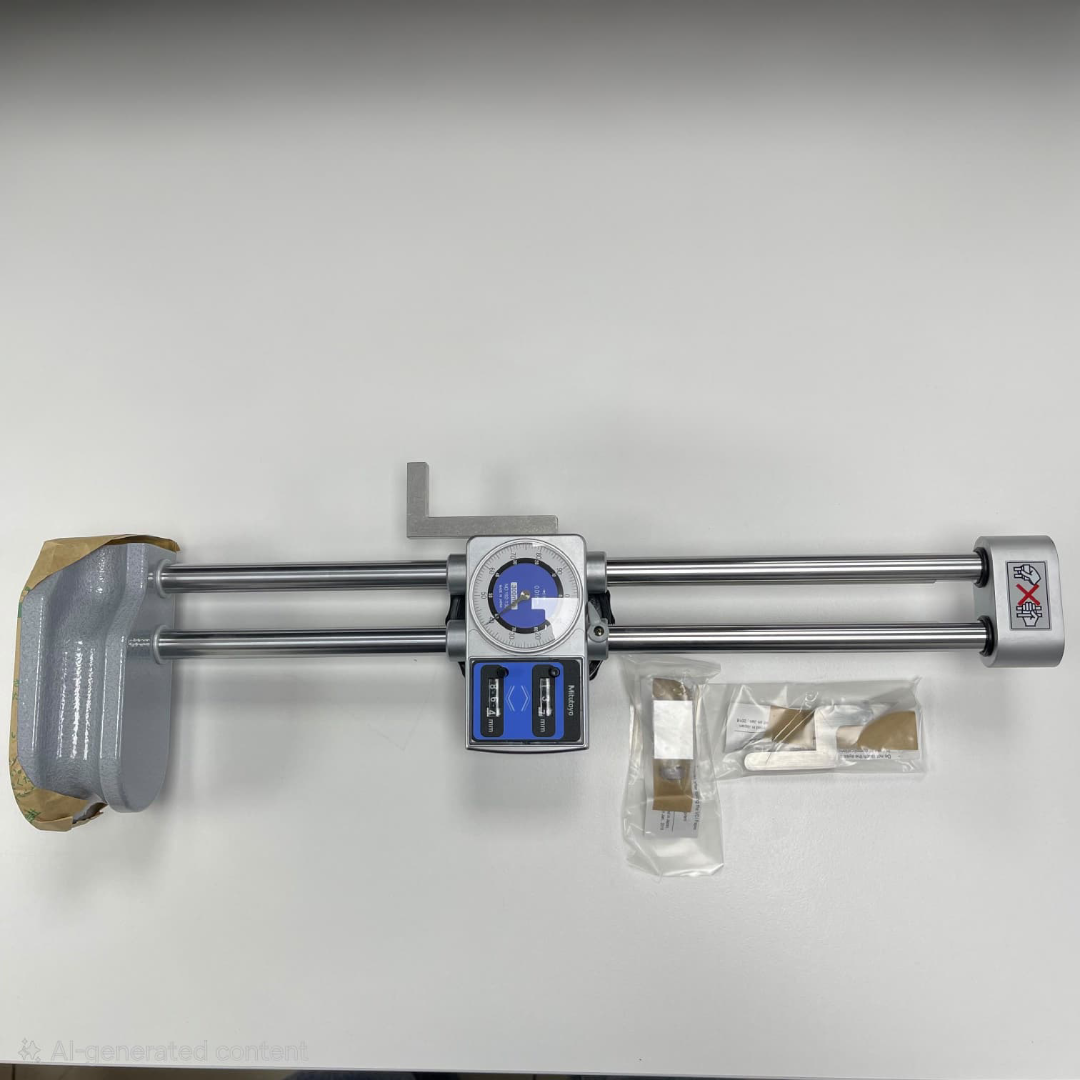

  • Twin mechanical counters and analog dial for clear readings.
  • Independently adjustable counters for up and down measurement.

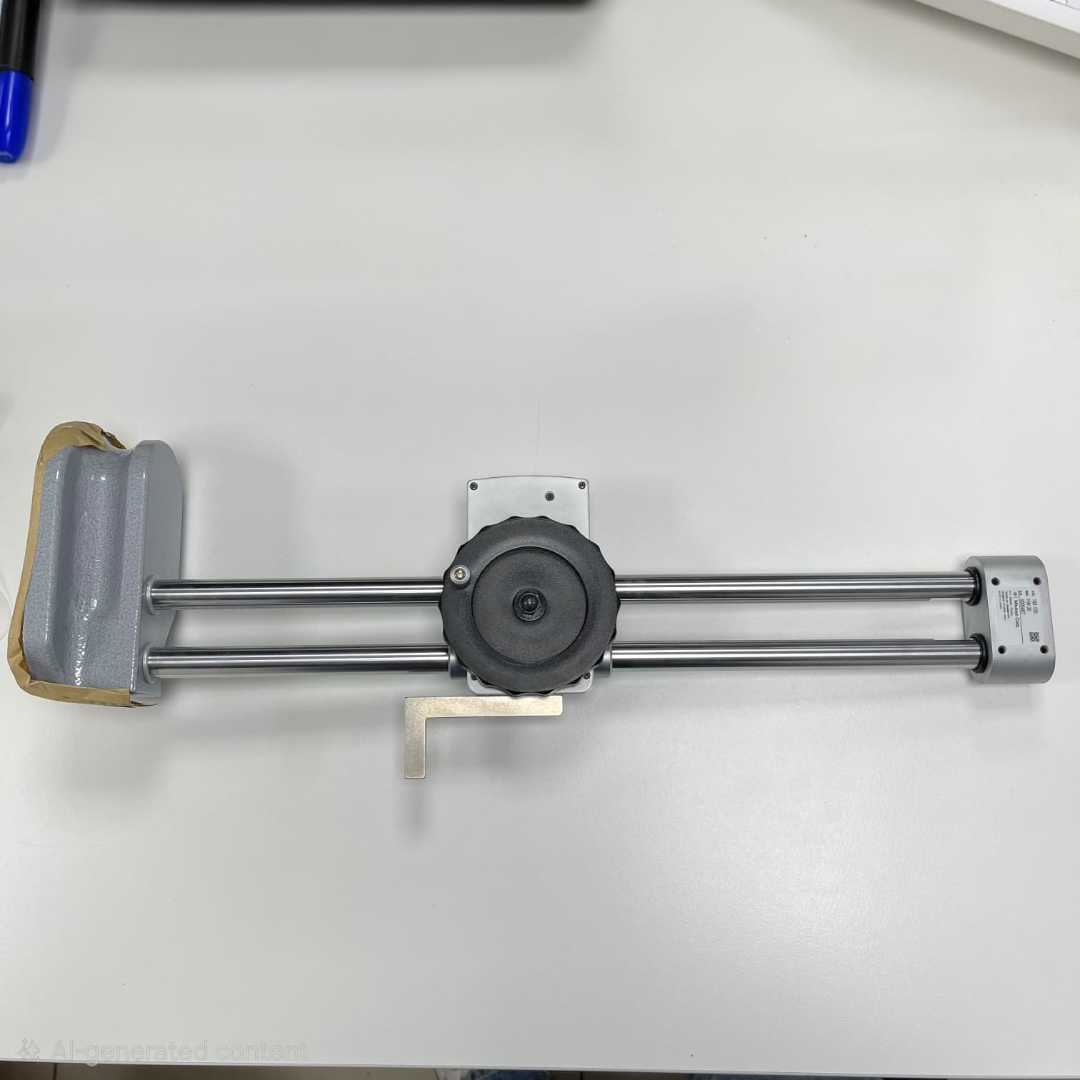

  • Feed wheel assists smooth slider positioning.

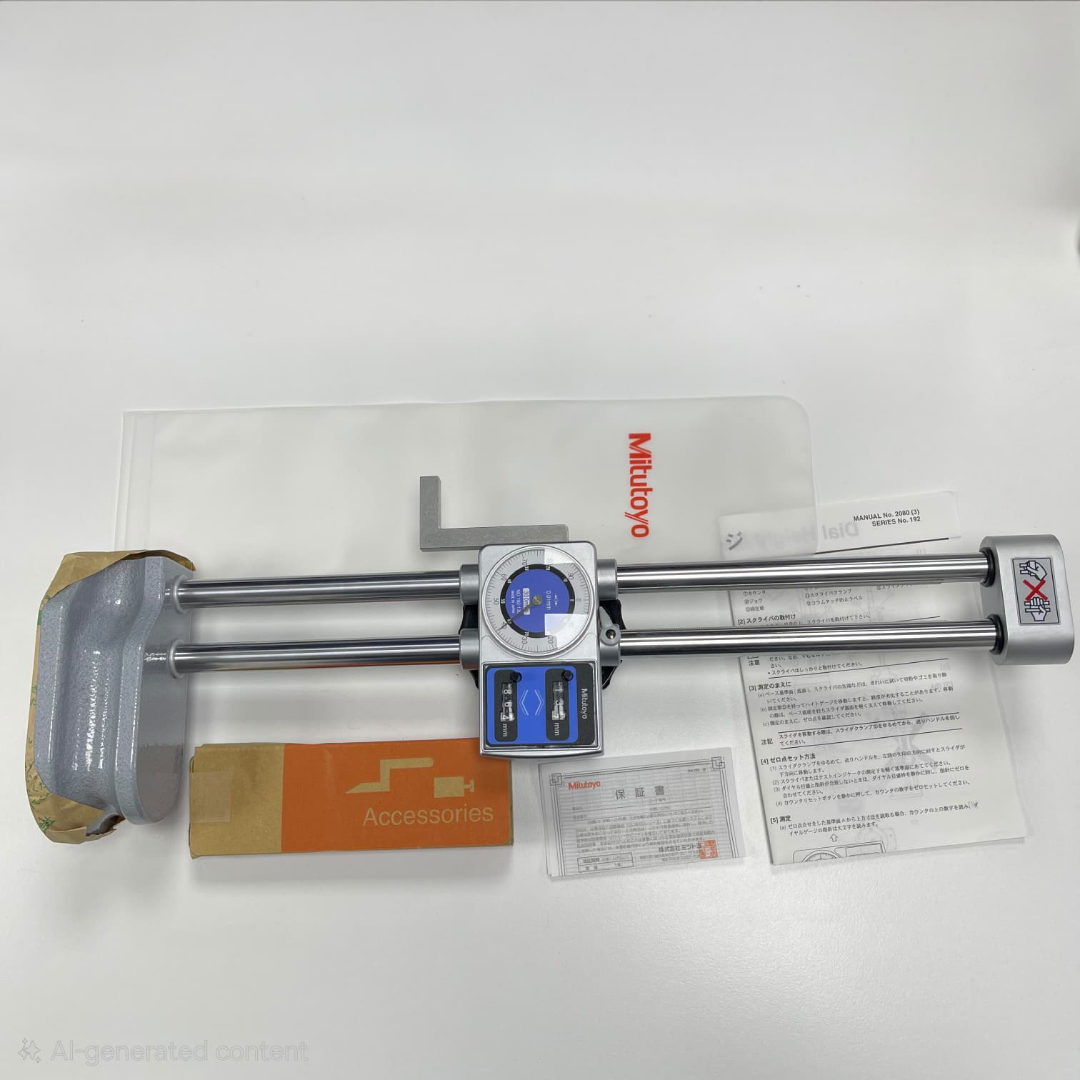

  • Supplied with carbide-tipped scriber and scriber clamp.
  • Made in Japan.
  • Made in Japan.

Description

The Mitutoyo HW-30 Series 192 dial height gauge measures vertical dimensions from 0 to 300 mm with 0.01 mm graduation and a maximum permissible error of ±0.03 mm. Its analog dial and independently adjustable mechanical counters support up and down measurements, while a feed wheel helps position the measuring slider. Supplied with a carbide-tipped scriber and scriber clamp, the instrument is suited to height measurement, layout and dimensional inspection on a surface plate.

Applications

  • Height measurements of machined workpieces.
  • Surface-plate dimensional inspection.
  • Precision marking and layout operations.
  • Measurement of steps and vertical distances.
  • Toolroom inspection and manufacturing quality control.

Documents

  • Mitutoyo-192-130 — Datasheet

    PDF, 1.3 MB
