Mitutoyo Standard Dial Indicator, 0 to 10 mm Measuring Range, Lug Back, 2046A
All Mitutoyo products
Mitutoyo Dimensional Measuring Tools
All Dimensional Measuring Tools (every brand)
Technical overview

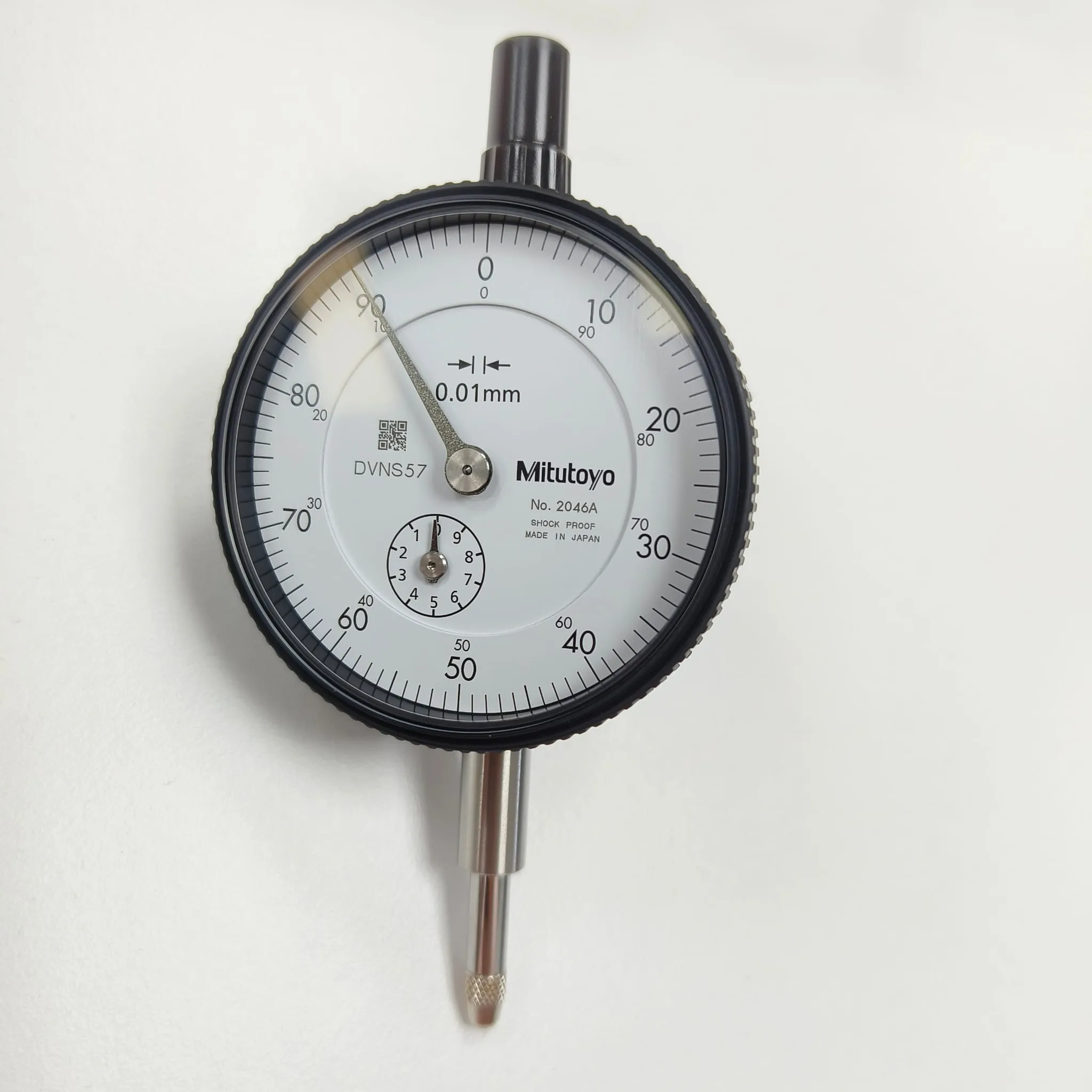

Mitutoyo 2046A is a standard ISO type analogue dial indicator with lug back, 57 mm bezel, 10 mm measuring range and 0.01 mm graduation for setup and inspection work. It has a carbide-tipped contact point, 8 mm stem, continuous dial, optional bezel clamp or lifting lever mounting, and an O-ring design that helps reduce water or oil penetration through the frame. This dial gauge is used for checking runout, alignment, flatness, machine setup, jig inspection and comparative measurement on rotating or machined parts.
Key Features
- 10 mm measuring range with clear 0.01 mm dial graduation.

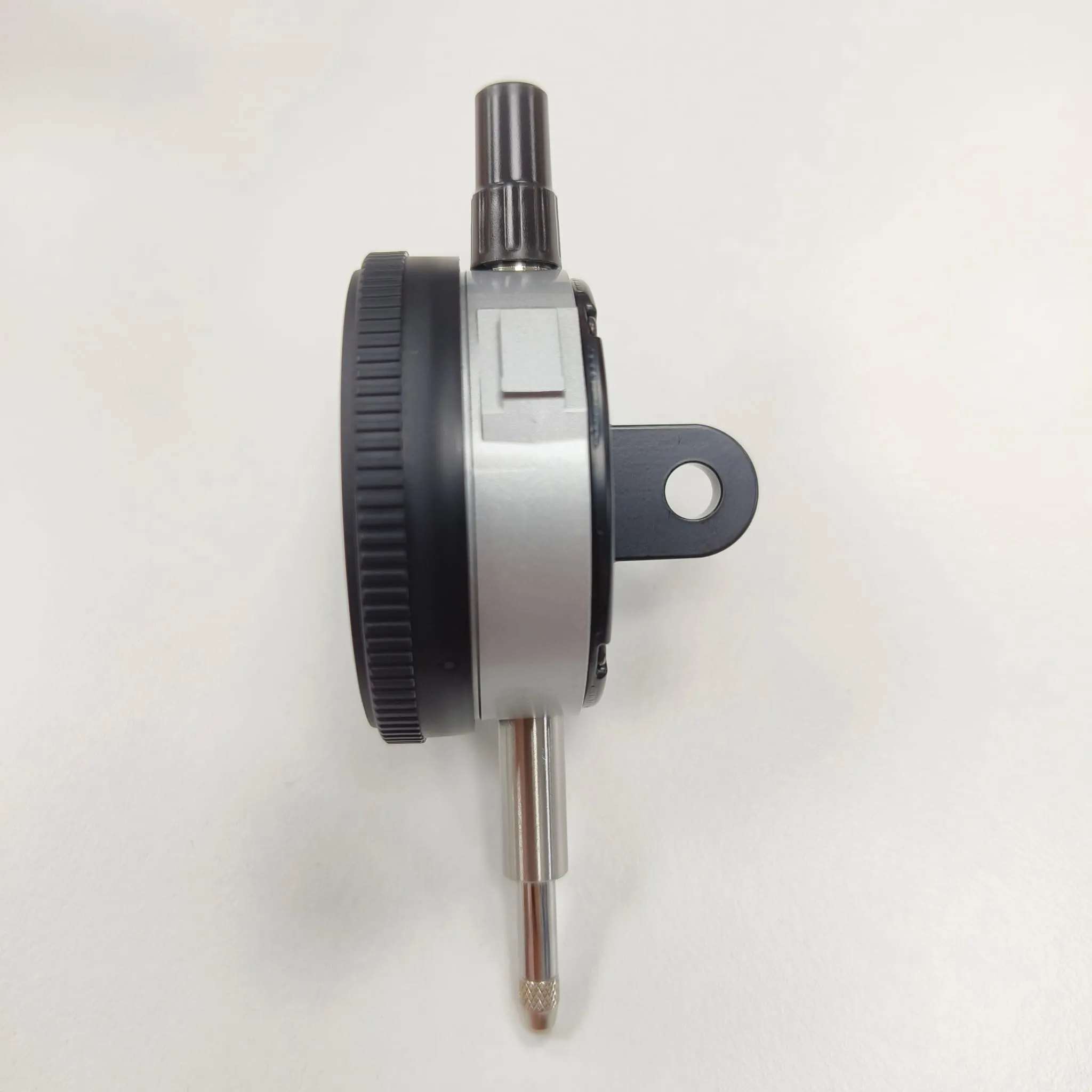

- Lug back design suits common holders and indicator stands.
- Bezel clamp and lifting lever can be fitted as optional accessories.
- Frame design helps reduce water and oil penetration through the body.
- Includes: Certificate of Inspection & Operating Instructions paperwork inside the box.
- Made in Japan.
Applications
- Runout checks on shafts, chucks and rotating parts.
- Machine alignment, setup and fixture inspection.
- Flatness, movement and comparative measurement on shop-floor parts.
Specifications
Product TypeDial Indicator
Measuring Range0 to 10 mm
Graduation0.01 mm
Accuracy±0.013 mm
Stem Diameter8 mm
Dial Size57 mm Bezel
Documentation
Mitutoyo-2046A-Datasheet
