Mitutoyo Series 188 Metric and Unified Screw Pitch Gage Set, 0.4 to 7 mm / 4 to 42 TPI, 188-151
All Mitutoyo products
Mitutoyo Dimensional Measuring Tools
All Dimensional Measuring Tools (every brand)
Technical overview

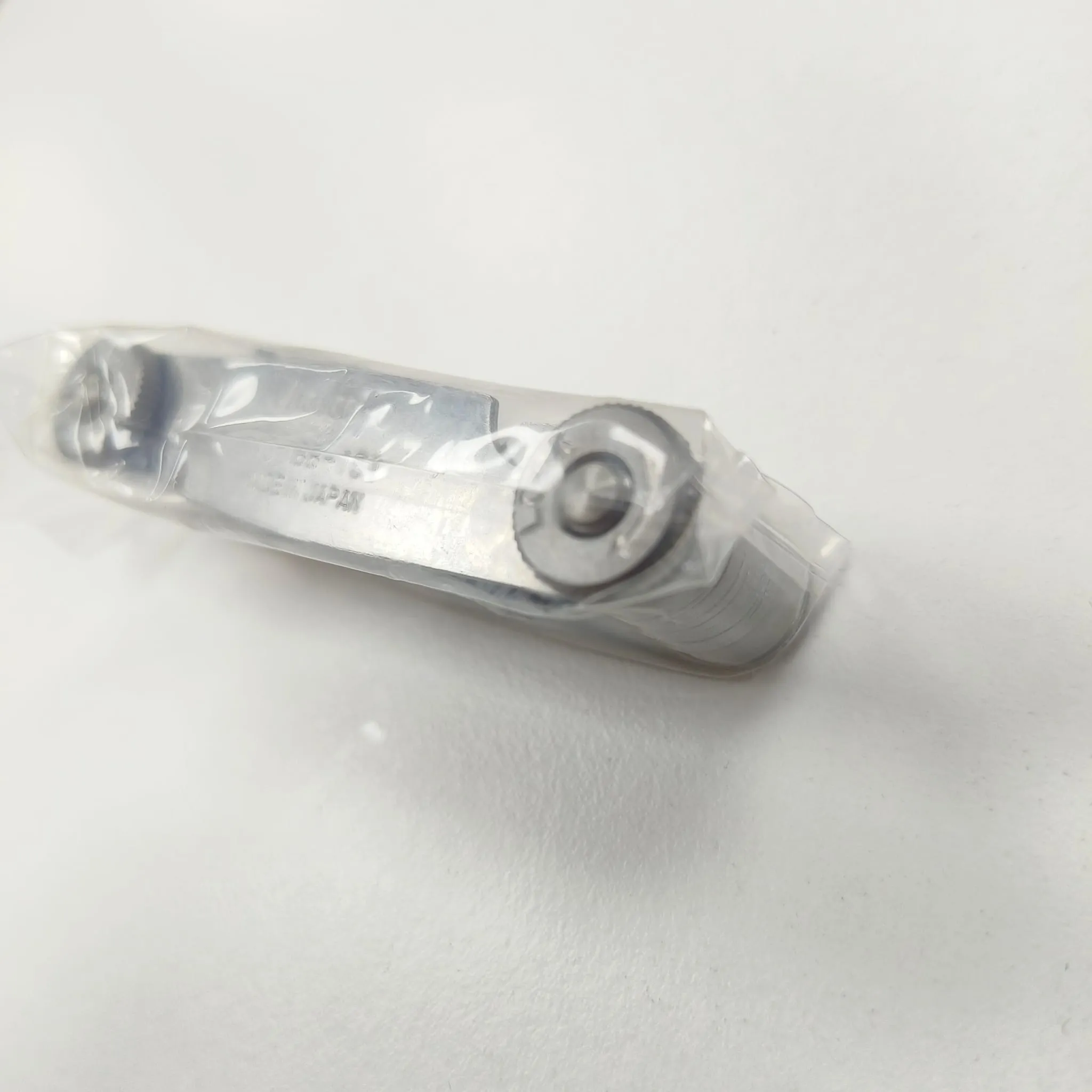

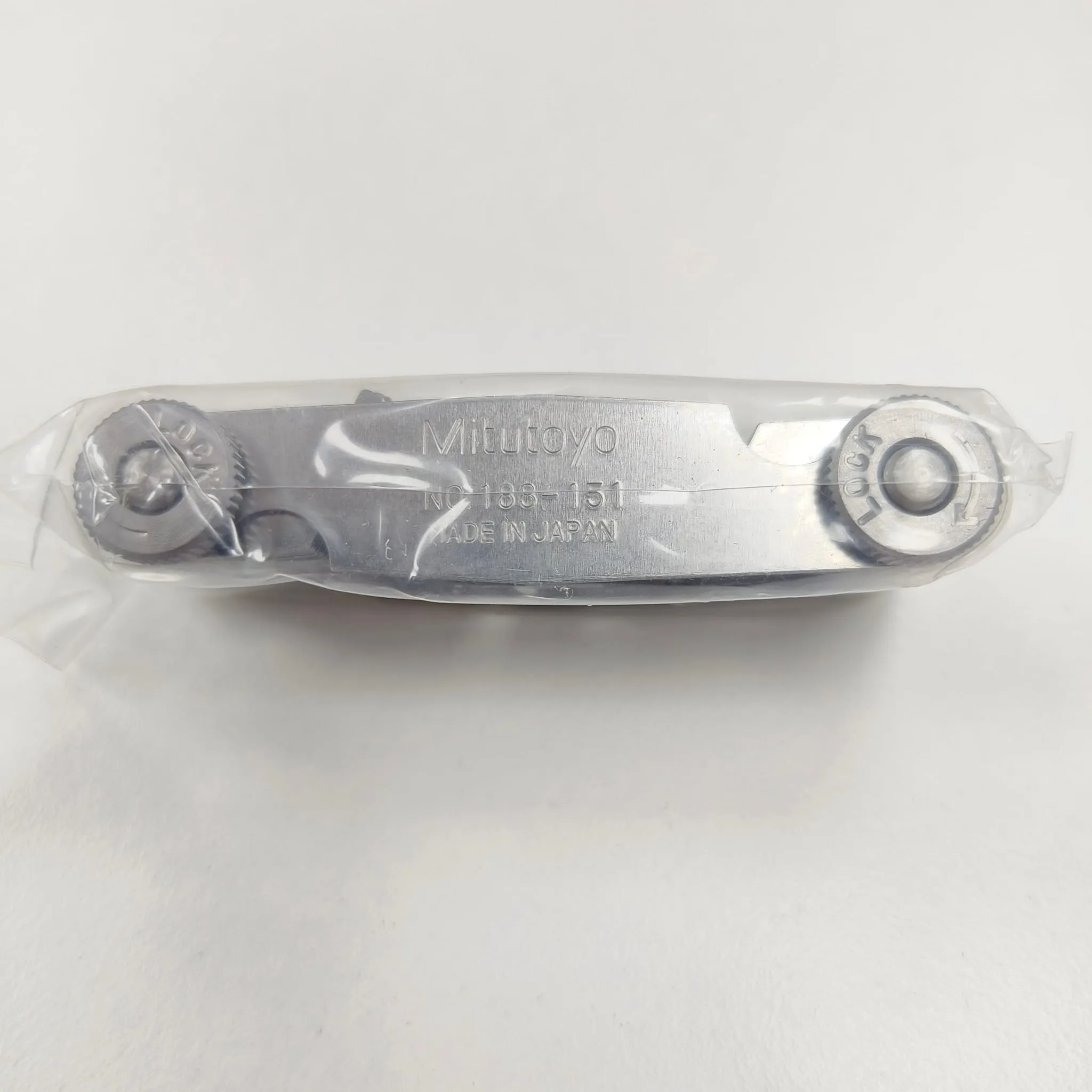

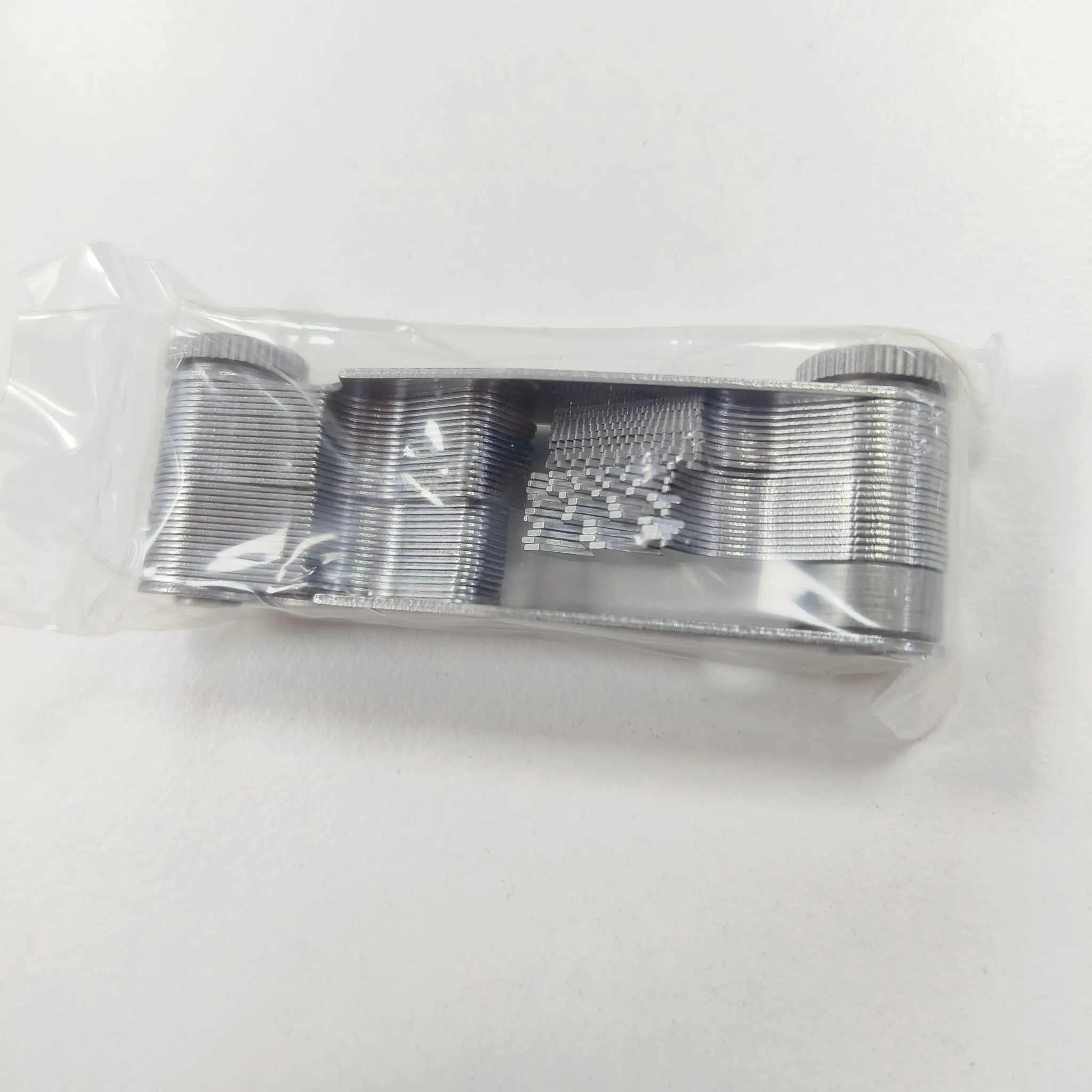

Mitutoyo 188-151 / PCG is a Series 188 metric and unified screw pitch gauge set for checking 60 degree thread pitch on bolts, screws, studs, fittings and threaded components. It covers 0.4 to 7 mm metric pitch and 4 to 42 TPI unified pitch with 51 leaves, combining the 188-122 metric gauge and 188-111 unified gauge in one set. Each thread pitch is stamped on the gauge leaf, making this thread pitch gauge practical for maintenance, machining, fabrication, stores inspection and identifying replacement threaded parts.
Key Features
- Combines metric and Unified pitch gages in one set.
- Pitch sizes are stamped on the individual gage leaves.
- Useful for fast thread identification in workshop and maintenance jobs.
- 51-leaf set covers 0.4 to 7 mm and 4 to 42 TPI thread pitches.
- Includes: Operating Instructions paperwork inside the box.
- Made in Japan.
Applications
- Identifying thread pitch on bolts, studs, screws and fittings.
- Machine shop, maintenance and industrial stores checking.
Specifications
Series188 Series
Product TypeScrew Pitch Gauge Set
Measuring Range0.4 to 7 mm / 4 to 42 TPI
Number of Leaves/Anvils51
ModelPCG
