Mitutoyo Series 7 Dial Thickness Gage, 0 to 10 mm Range, 7301A
All Mitutoyo products
Mitutoyo Dimensional Measuring Tools
All Dimensional Measuring Tools (every brand)
Technical overview

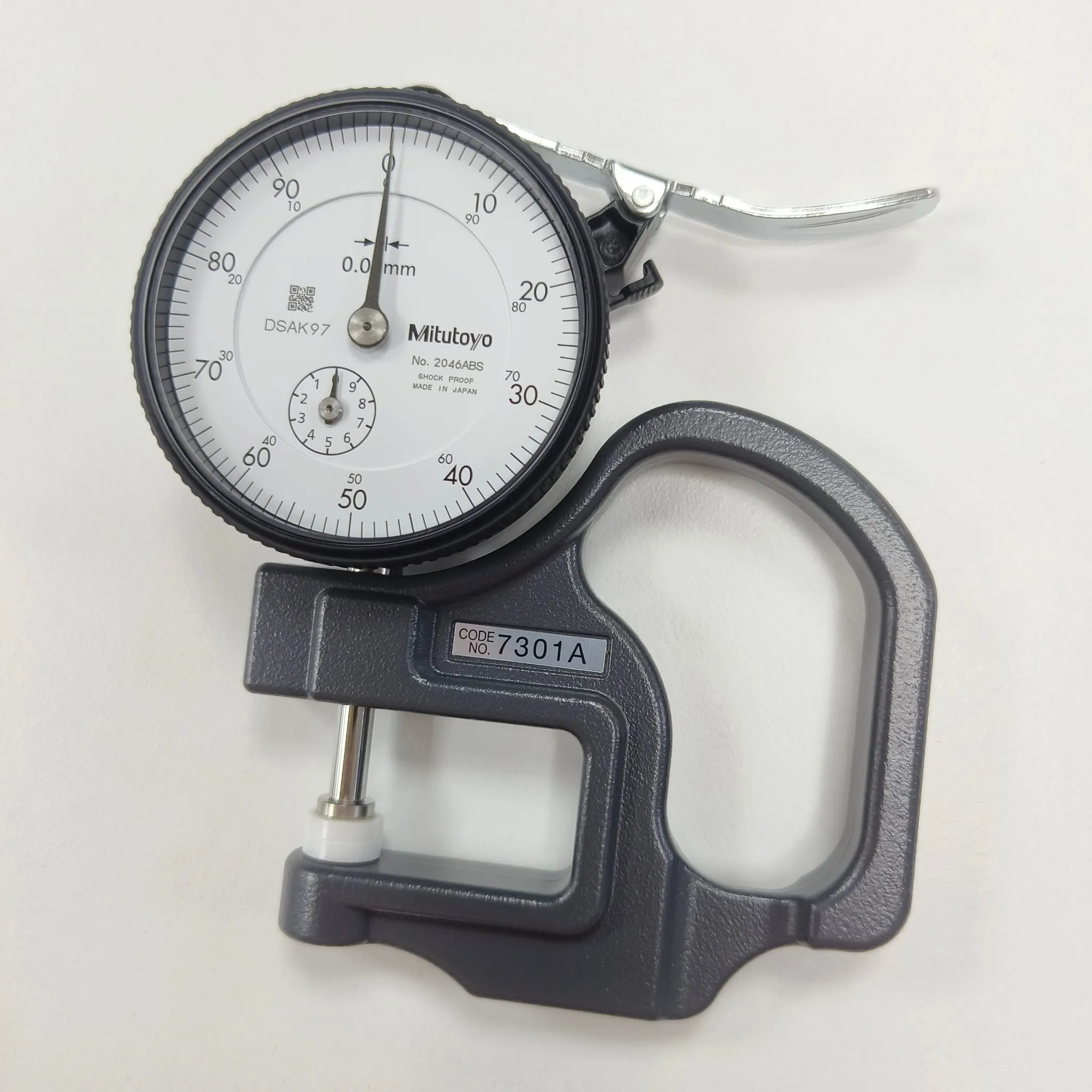

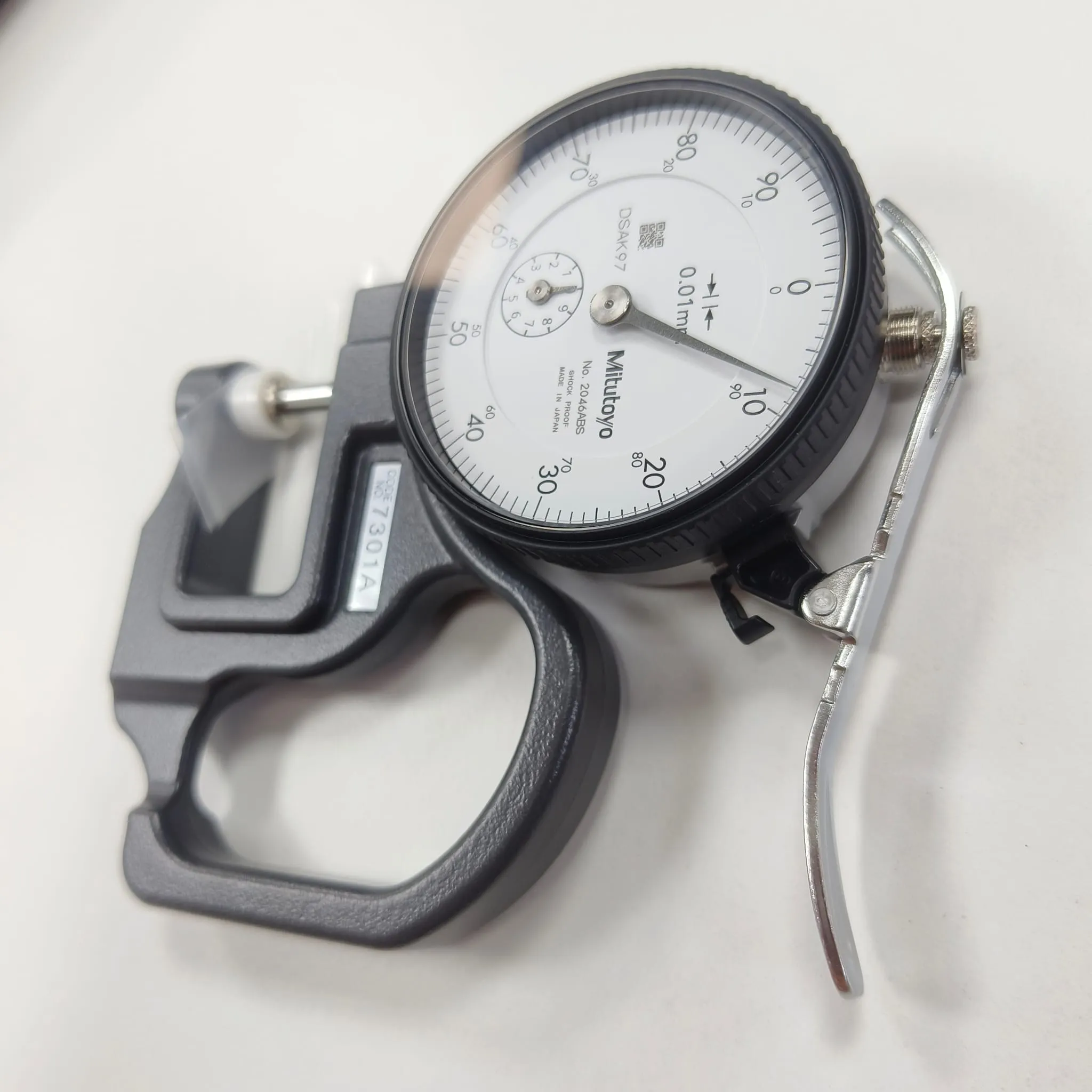

Mitutoyo 7301A is a Series 7 dial thickness gauge for quick thickness inspection of sheet material, film, paper, gasket material and similar flat components. It measures 0 to 10 mm with 0.01 mm graduation and uses ceramic disc contact points, 30 mm maximum measuring depth, 5 µm parallelism and measuring force up to 1.4 N for consistent contact. The grip handle, thumb trigger and spring-loaded spindle make it practical for workshop, laboratory, stores inspection and quality control checks.
Key Features
- 0 to 10 mm dial measurement range for thin material inspection.
- Ceramic disc contact points suit flat thickness measurement.
- 30 mm maximum measuring depth supports common sheet and film checks.
- Mechanical dial display allows quick battery-free thickness reading.

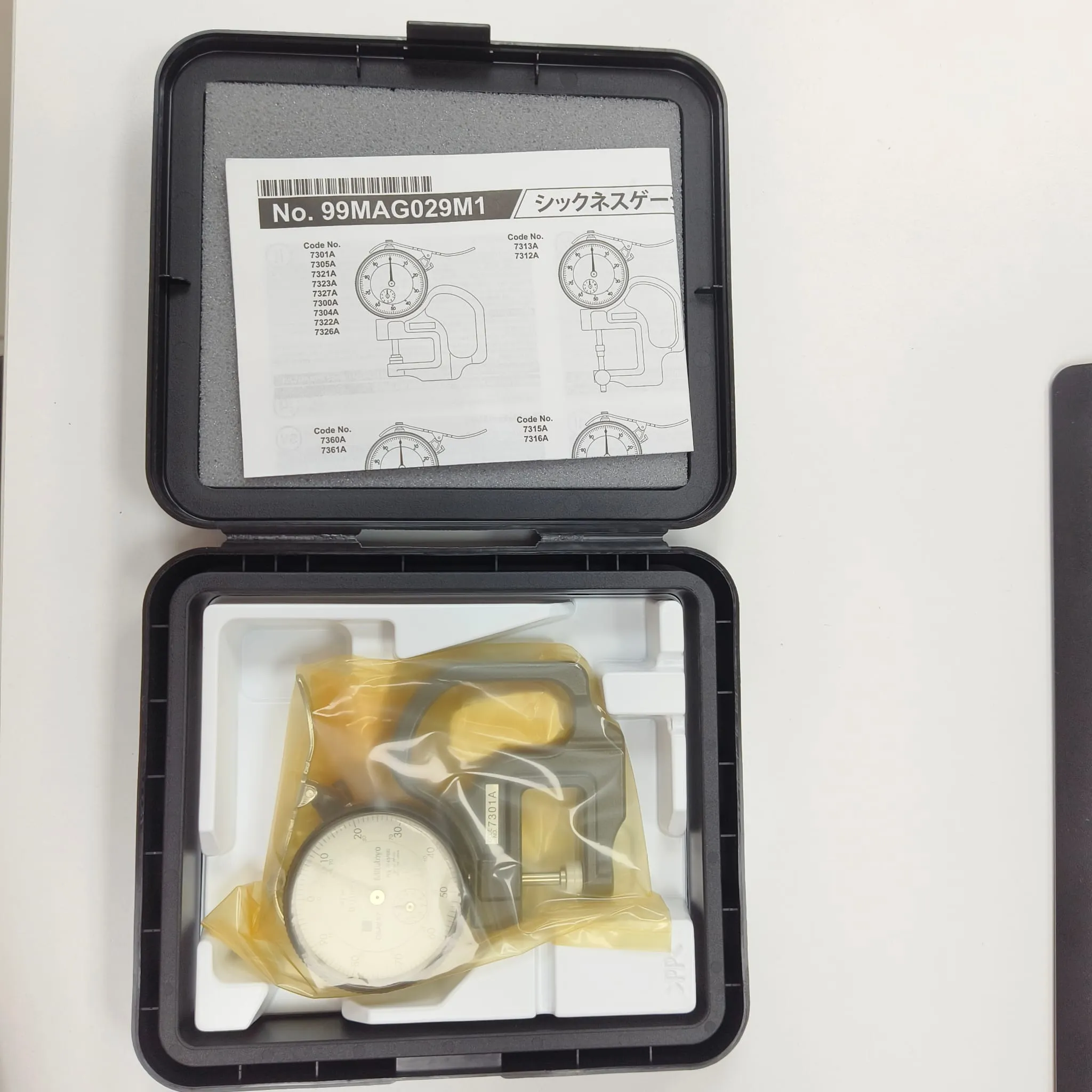

- Includes: Operating Instructions paperwork inside the box.
- Made in Japan.
Applications
- Thickness checks on sheet, film, paper and gasket material.
- Inspection of washers, small flat parts and tube wall sections.
- Production QC, stores inspection and maintenance measurement.
Specifications
SeriesSeries 7
Product TypeDial Thickness Gauge
Measuring Range0 to 10 mm
Graduation0.01 mm
Measuring Depth30 mm
Accuracy±0.015 mm
