Dimensional Measuring Tools
Mitutoyo Series 184 Thickness Feeler Gauge Set, 0.05 to 1.0 mm Range, 28 Leaves, 184-303S
Mitutoyo

Mitutoyo Series 184 Thickness Feeler Gauge Set, 0.05 to 1.0 mm Range, 28 Leaves, 184-303S

Mfr. part no.
184-303S
SKU
MT-184-303S

Specifications

Series 184 Series
Product Type Thickness Feeler Gauge Set
Measuring Range 0.05 to 1.0 mm
Number of Leaves/Anvils 28
Component Length Leaf 150 mm
Accuracy 0.05-0.15 mm ±0.005 mm
Model THG/0.05-1
Body Material Tempered Tool Steel

Key Features

  • 28 clearly marked leaves cover common metric clearance sizes.
  • Hardened and tempered tool steel blades support regular use.
  • Leaves can be folded back into the holder for storage and protection.
  • Suitable for gap, valve clearance and machine setup checks.
  • Includes: Operating Instructions paperwork inside the box.
  • Made in Japan.

Description

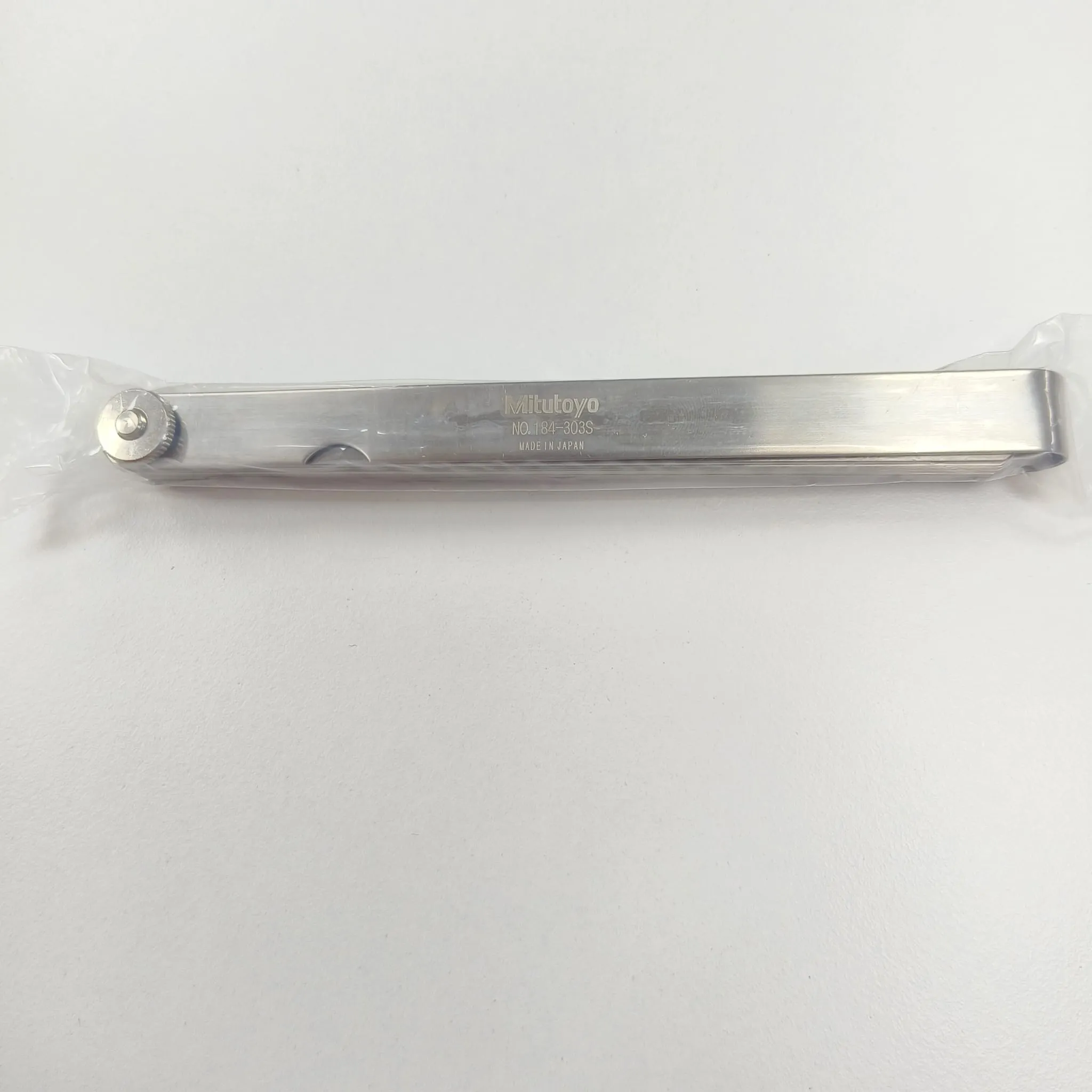

Mitutoyo 184-303S / THG/0.05-1 is a metric thickness feeler gauge set with 28 removable leaves for checking gaps, clearances and thin spacing in mechanical assemblies. The 150 mm long leaves are made from hardened and tempered tool steel and are clearly size marked, covering 0.05 to 0.15 mm by 0.01 mm and 0.2 to 1.0 mm by 0.05 mm. This long-leaf feeler gauge is useful for valve clearance, gasket gaps, machine setup, bearing and coupling clearances, shim checks and maintenance inspection work.

Applications

  • Gap and clearance checking in mechanical maintenance.
  • Machine setup, shim selection and alignment work.
  • Automotive, pump, valve and general industrial inspection.

Documents

  • Mitutoyo-184-303S — Datasheet

    PDF, 464 KB

  • Mitutoyo-184 Thickness Gages — Catalog

    PDF, 431 KB
