Mitutoyo 511 Series Dial Bore Gage Set, 18 to 35 mm Measuring Range, 511-721
All Mitutoyo products
Mitutoyo Dimensional Measuring Tools
All Dimensional Measuring Tools (every brand)
Technical overview

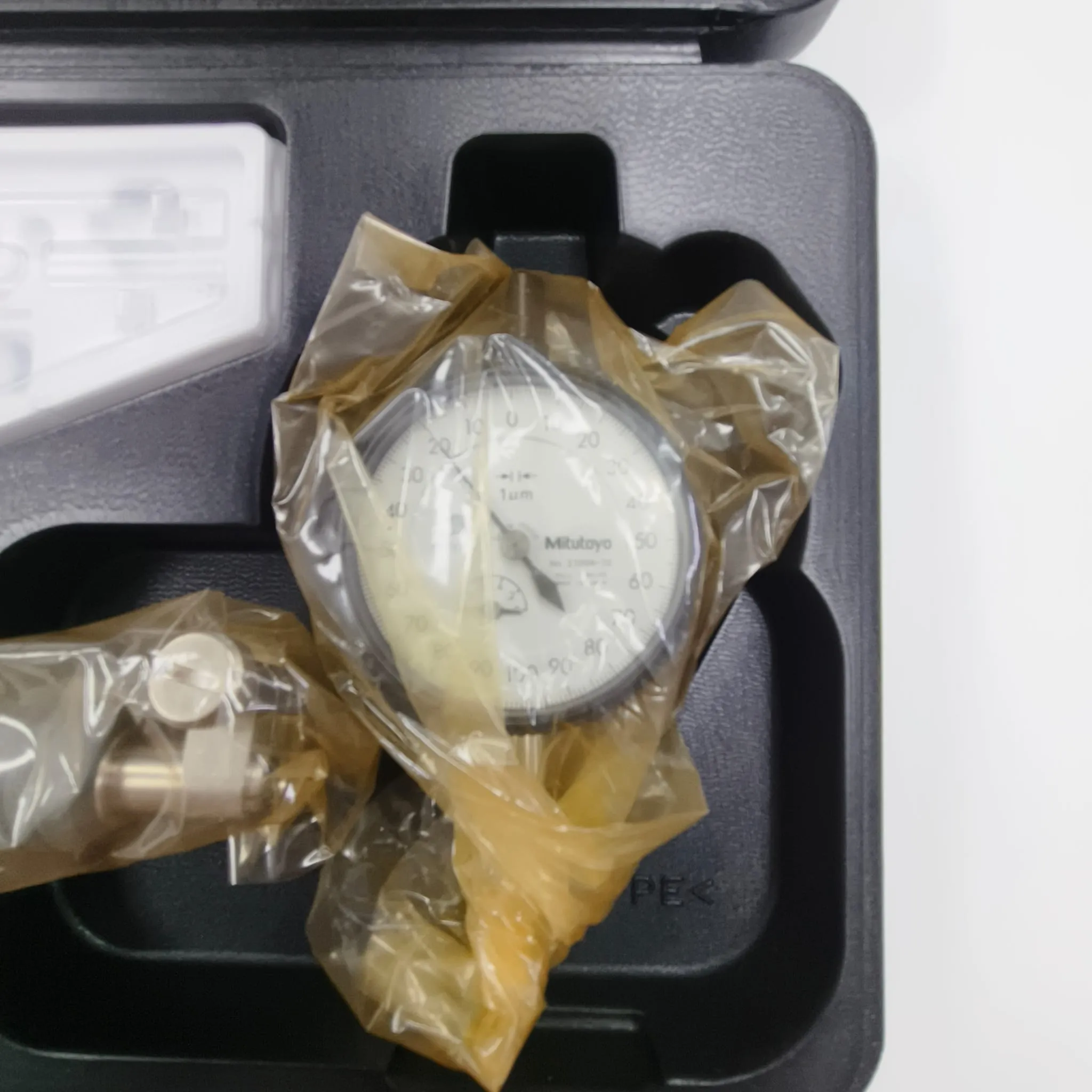

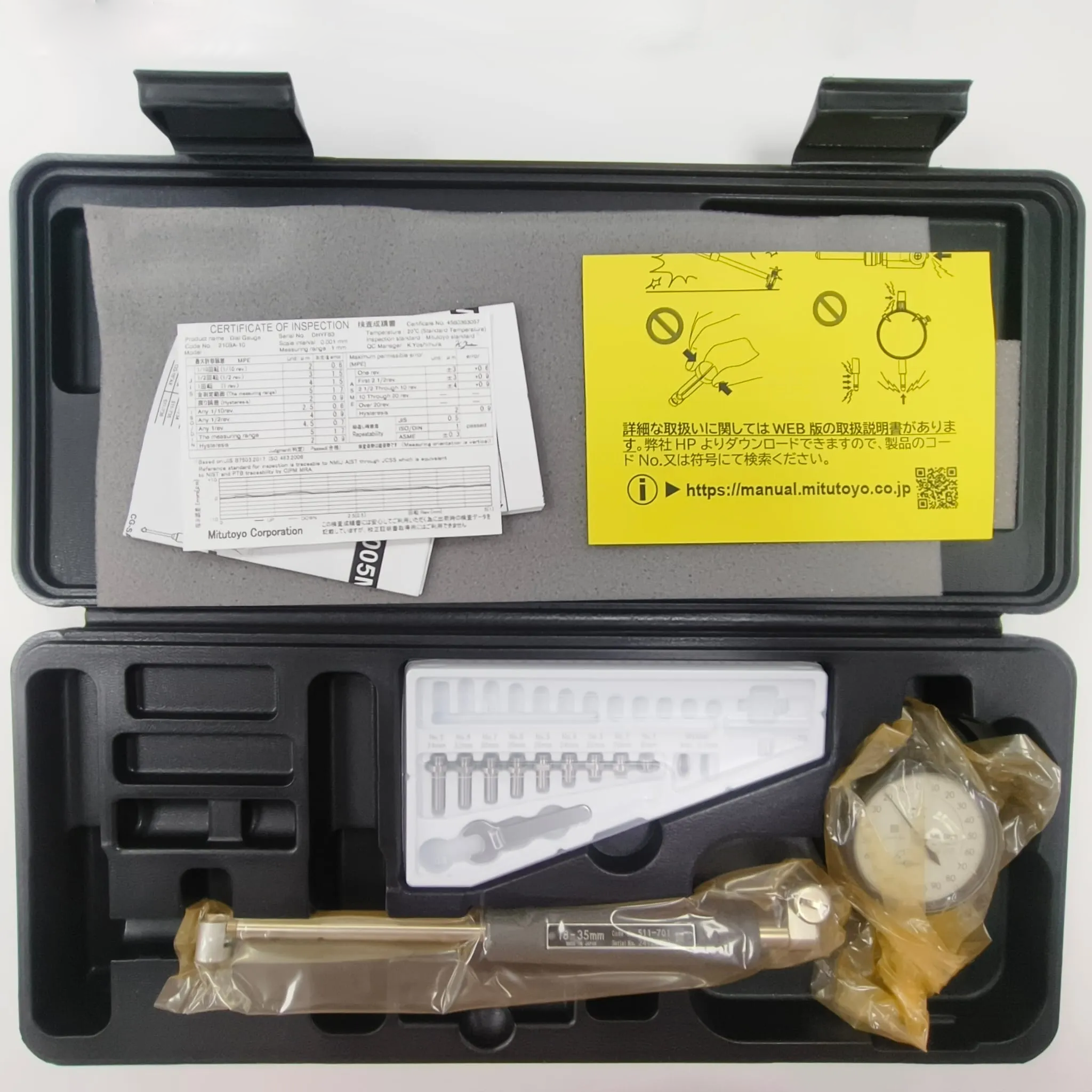

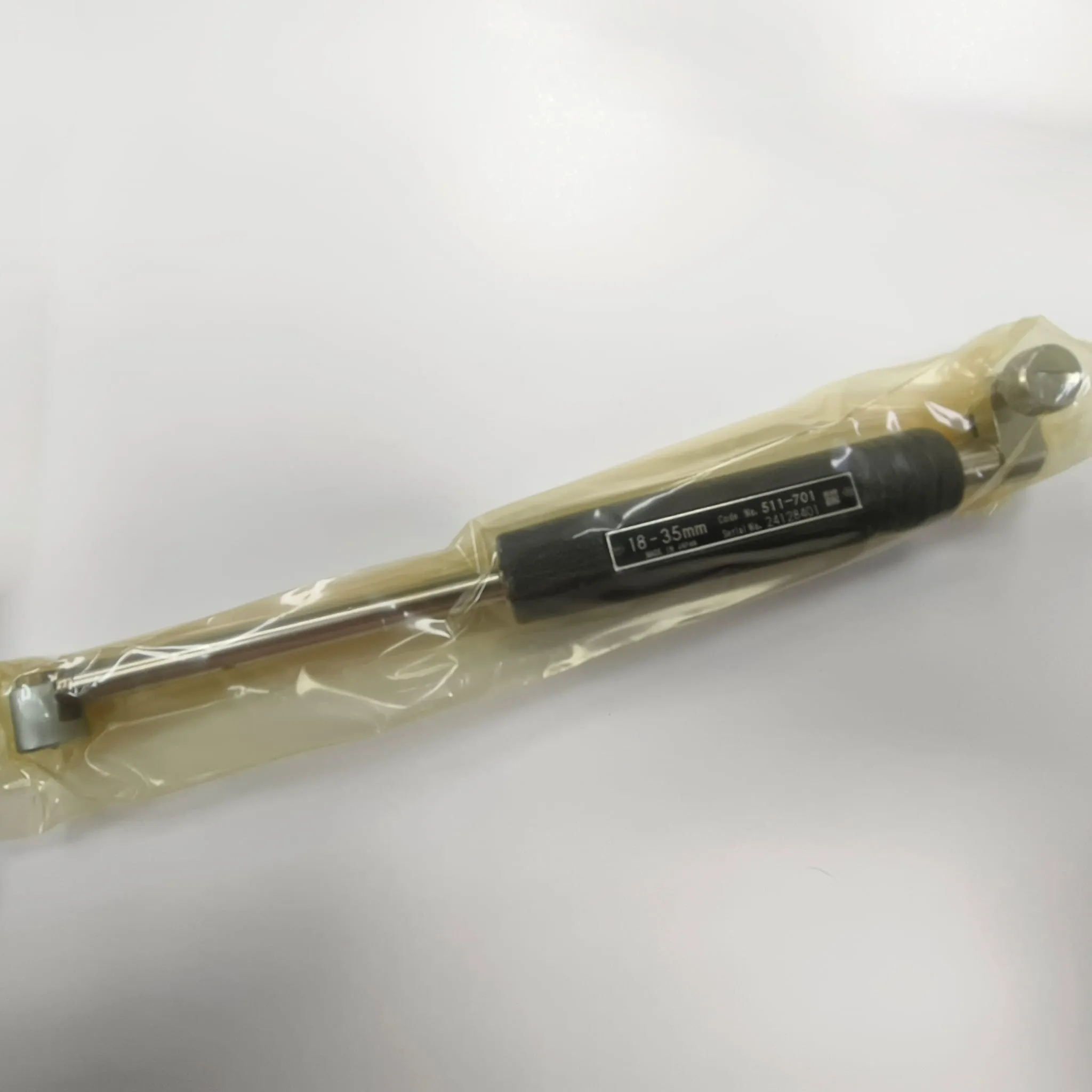

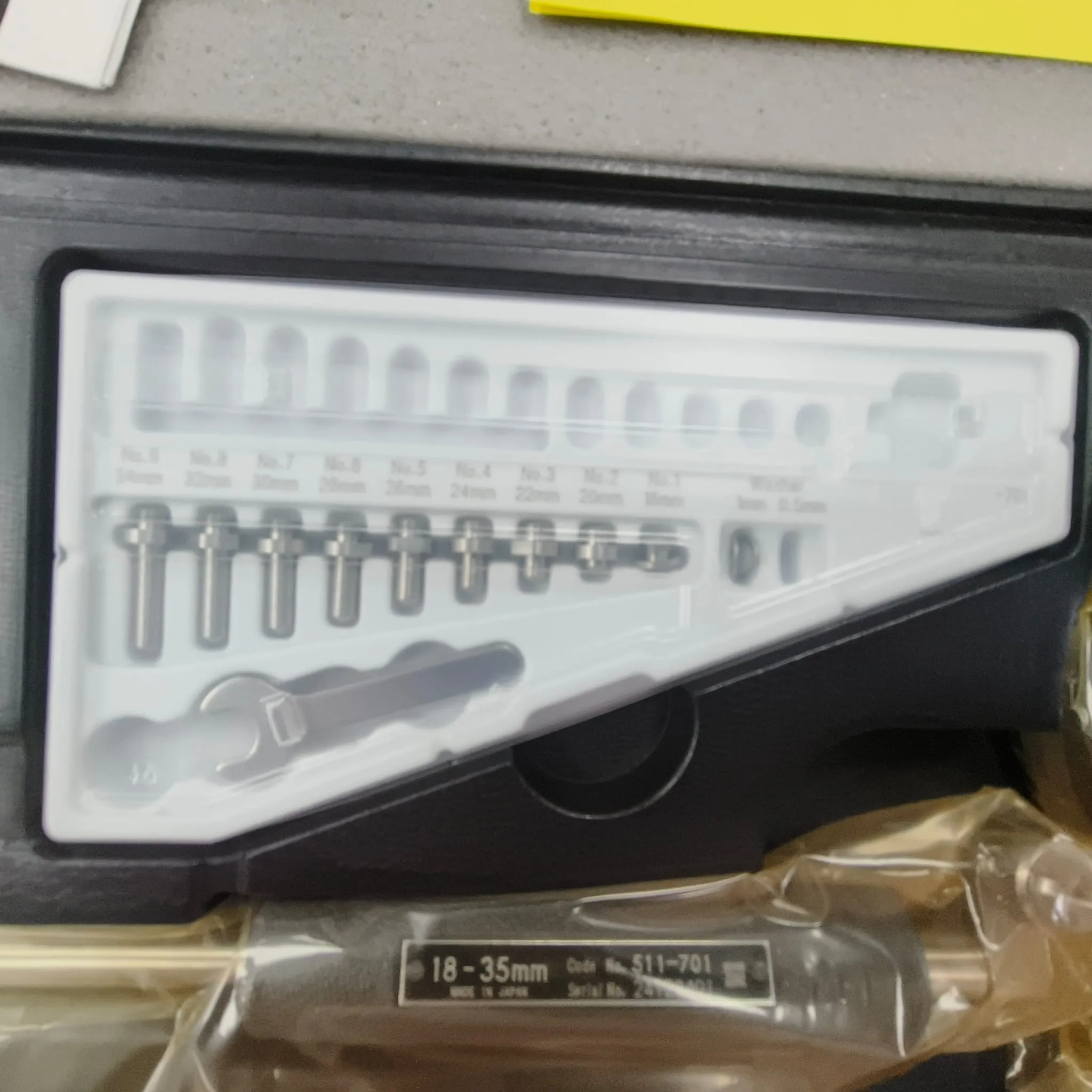

Mitutoyo 511-721 is a short range dial bore gage set used for checking internal diameters from 18 to 35 mm. This bore gauge / cylinder gauge is suitable for cylinder bores, bush housings, bearing seats, sleeves, holes and precision internal diameter checks where a normal outside measuring tool cannot be used. This set contains a 511-701 (CG-35AX) bore gage body with a Mitutoyo 2109A-10 1 µm dial indicator and a 701 marked anvil set including 9 anvils with 2 interchangeable washers & Spanner. The self-centering bore gage head helps the operator locate the true bore diameter, while the 0.001 mm dial indicator reading supports comparison measurement during machining, engine repair, tool room inspection and quality control.
Key Features
- Self-centering bore gage head helps reduce operator error.
- 0.001 mm dial graduation supports precision inside diameter checks.
- Carbide contact point supports repeated bore measurement.
- 18 to 35 mm measuring range suits small bore and hole inspection.
- Includes: Certificate of Inspection & Operating Instructions paperwork inside the box.
- Made in Japan.
Applications
- Inside diameter inspection of bores, sleeves and bearing housings.
- Cylinder, pump, valve and machined hole measurement.
- Machine shop QC, maintenance and precision repair work.
Specifications
Series511 Series
Product TypeDial Bore Gauge Set
Measuring Range18 to 35 mm
Graduation0.001 mm
Accuracy2 µm
Measuring Depth100 mm
Number of Leaves/Anvils9 anvils with 2 interchangeable washers & Spanner
Documentation
Mitutoyo-511-ID-Measurement-Bore-Gage-Catalog
Download
