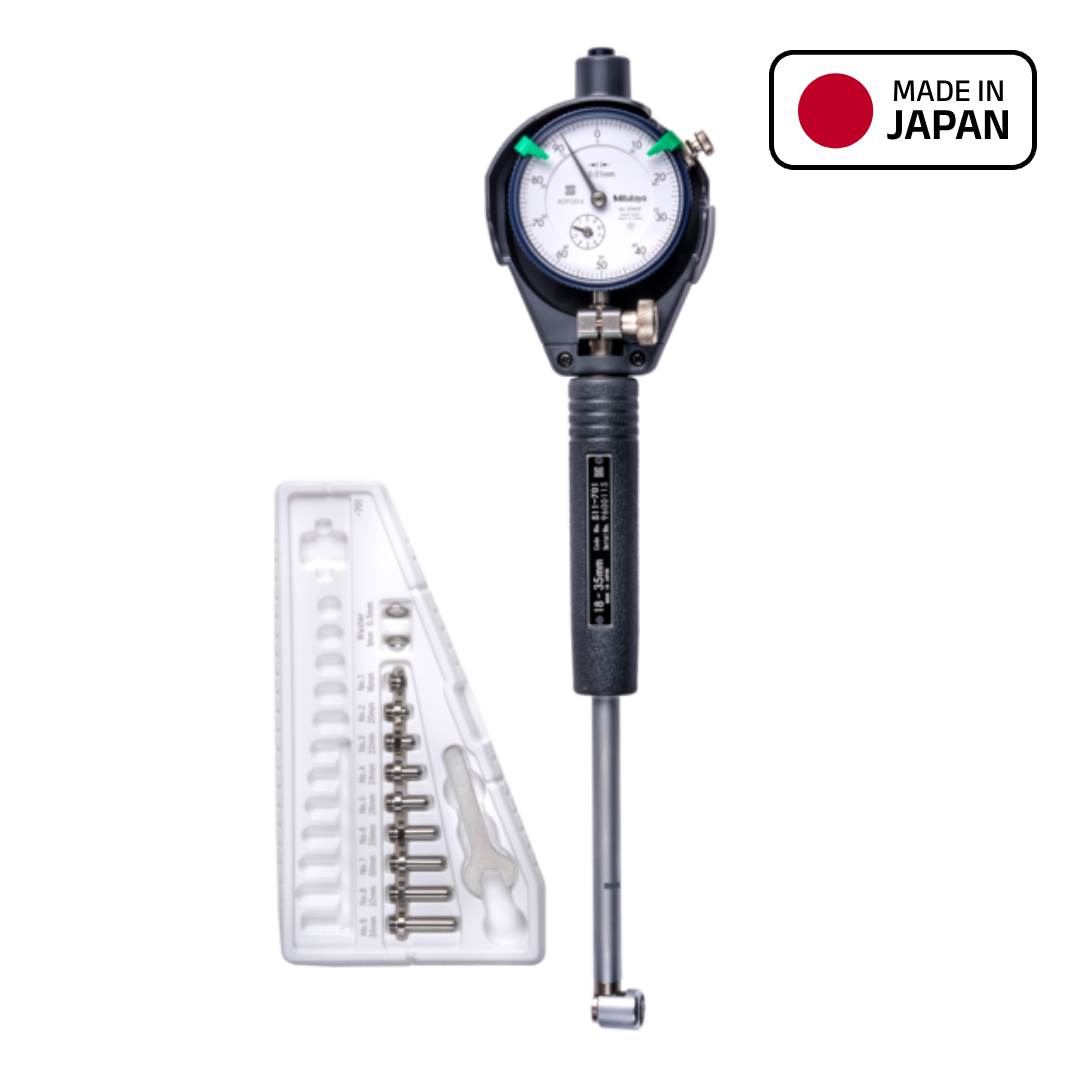

Mitutoyo 511 Series Dial Bore Gauge Set, 18 to 35 mm Range, 511-711
KWD 56.750
Lead time: 15 Days
All Mitutoyo products
Mitutoyo Dimensional Measuring Tools
All Dimensional Measuring Tools (every brand)
Technical overview
Mitutoyo 511-711 is a short range dial bore gauge set used for checking internal diameters from 18 to 35 mm. This bore gauge / cylinder gauge is suitable for cylinder bores, bush housings, bearing seats, sleeves, holes and precision internal diameter checks where a normal outside measuring tool cannot be used. This set contains Mitutoyo 511-701 (CG-35AX) bore gage body with a matching 0.01 mm dial indicator and a anvil set including 9 anvils, 2 interchangeable washers and spanner. The self-centering bore gage head helps the operator locate the true bore diameter, while the 0.01 mm dial indicator reading supports comparison measurement during machining, engine repair, tool room inspection and quality control.
Key Features
- Self-centering bore gage head helps reduce operator error.
- 0.01 mm dial graduation supports precision inside diameter checks.
- Carbide contact point and anvil tips support repeated bore measurement.
- 18 to 35 mm measuring range suits small bore and hole inspection.
- Includes 9 anvils, 2 interchangeable washers and spanner.
- Includes: Certificate of Inspection & Operating Instructions paperwork inside the box.
- Made in Japan.
Applications
- Inside diameter inspection of bores, sleeves and bearing housings.
- Cylinder, pump, valve and machined hole measurement.
- Machine shop QC, maintenance and precision repair work.
Specifications
Series511 Series
Product TypeDial Bore Gauge Set
Measuring Range18 to 35 mm
Graduation0.01 mm
Accuracy2 µm
Measuring Depth100 mm
Number of Leaves/Anvils9 anvils, 2 washers
Body MaterialSteel Body, Carbide Tips
