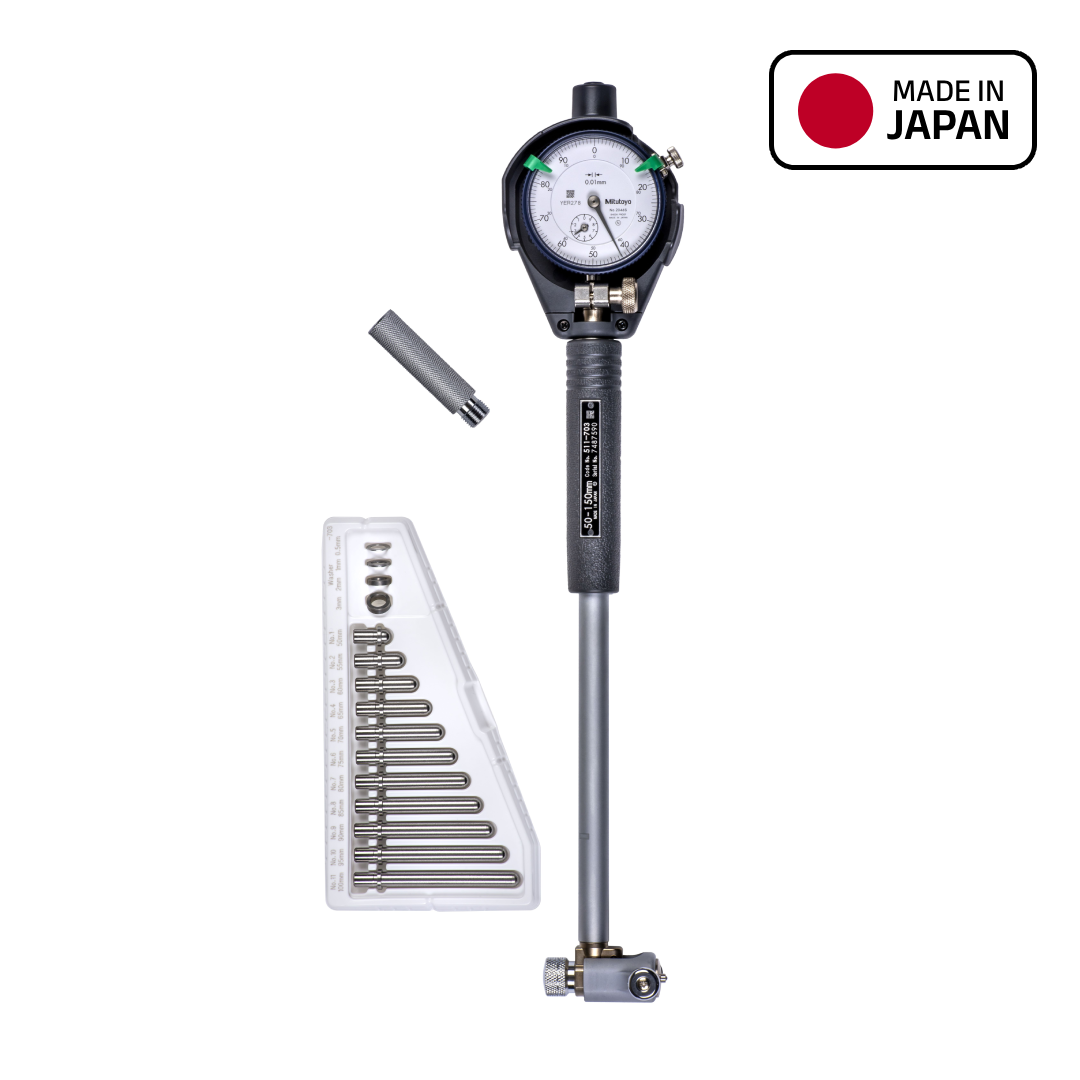

Mitutoyo 511 Series Dial Bore Gauge Set, 50 to 150 mm Range, 511-713
KWD 65.000
Lead time: 15 Days
All Mitutoyo products
Mitutoyo Dimensional Measuring Tools
All Dimensional Measuring Tools (every brand)
Technical overview
Mitutoyo 511-713 is a wide range dial bore gauge set used for checking internal diameters from 50 to 150 mm. This bore gauge / cylinder gauge is suitable for cylinder bores, bush housings, bearing seats, sleeves, holes and precision internal diameter checks where a normal outside measuring tool cannot be used. This set contains Mitutoyo 511-703 (CG-150AX) bore gage body with a matching 0.01 mm dial indicator and a anvil set including 11 anvils, 4 interchangeable washers and one 50 mm sub-anvil. The self-centering bore gage head helps the operator locate the true bore diameter, while the 0.01 mm dial indicator reading supports comparison measurement during machining, engine repair, tool room inspection and quality control.
Key Features
- Self-centering bore gage head helps reduce operator error.
- 0.01 mm dial graduation supports precision inside diameter checks.
- Carbide contact point and anvil tips support repeated bore measurement.
- 50 to 150 mm measuring range suits larger bore and cylinder inspection.
- Includes 11 anvils, 4 interchangeable washers and 50 mm sub-anvil.
- Includes: Certificate of Inspection & Operating Instructions paperwork inside the box.
- Made in Japan.
Applications
- Inside diameter inspection of bores, sleeves and bearing housings.
- Cylinder, pump, valve and machined hole measurement.
- Machine shop QC, maintenance and precision repair work.
Specifications
Series511 Series
Product TypeDial Bore Gauge Set
Measuring Range50 to 150 mm
Graduation0.01 mm
Accuracy2 µm
Measuring Depth150 mm
Number of Leaves/Anvils11 anvils, 4 washers & 50 mm sub-anvil
Body MaterialSteel Body, Carbide Tips
