WIKA A-10 Pressure Transmitter, 0...400 Bar Gauge, G 1/4 A DIN EN ISO 1179-2 Connection, Valve Connector, Size A, 12719341
Part no. 12719341
In stock, 2 available
| Measuring Range | 0...40 Bar Gauge |
|---|---|
| Output Signal | 4 ... 20 mA, 2-wire |
| Power Supply | 8...30 V DC |
| Wetted Parts | Stainless Steel 316 L |
| Process Connection | G 1/4 A DIN EN ISO 1179-2 Male Connection |
| Seal Material | NBR |
| Electrical Connection | Circular Connector M12x1, 4-pin |
| Pin Assignment | U+=1, U-=3 |
| Permissible Medium Temperature | 0...+80 °C |
| Approvals | cULus |
| Non-Linearity | 0.5% BFSL |
| Accuracy | ≤ ±1.2 % of span |
| Model | A-10 |
| Part no. | Measuring Range | Power Supply | Process Connection |
|---|---|---|---|
| 12719260 | 0...10 Bar Gauge | 8...30 V DC | G 1/4 A DIN EN ISO 1179-2 Male Connection |
| 12762831 | 0...10 Bar Gauge | 8...30 V DC | G 1/4 A DIN EN ISO 1179-2 Male Connection |
| 12777588 | 0...16 Bar Gauge | 8...30 V DC | G 1/4 A DIN EN ISO 1179-2 Male Connection |
| 12719308 | 0...25 Bar Gauge | 8...30 V DC | G 1/4 A DIN EN ISO 1179-2 Male Connection |
| 12778908 | 0...25 Bar Gauge | 8...30 V DC | G 1/4 A DIN EN ISO 1179-2 Male Connection |
| 12719316 | 0...40 Bar Gauge | 8...30 V DC | G 1/4 A DIN EN ISO 1179-2 Male Connection |
| 12762858 (This part) | 0...40 Bar Gauge | 8...30 V DC | G 1/4 A DIN EN ISO 1179-2 Male Connection |
| 12719383 | 0...100 Bar Gauge | 8...30 V DC | Male G 1/4 A DIN EN ISO 1179-2 |
| 12890449 | 0...100 Bar Gauge | 8...30 V DC | G 1/4 A DIN EN ISO 1179-2 Male Connection |
| 12719332 | 0...250 Bar Gauge | 8...30 V DC | G 1/4 A DIN EN ISO 1179-2 Male Connection |
| 12724859 | 0...250 Bar Gauge | 8...30 V DC | G 1/4 A DIN EN ISO 1179-2 Male Connection |
| 43492797 | 0-300 bar gauge | 14-30 V DC | G 1/4 A DIN EN ISO 1179-2 |
| 12751198 | 0...400 Bar Gauge | 8...30 V DC | G 1/4 A DIN EN ISO 1179-2 Male Connection |

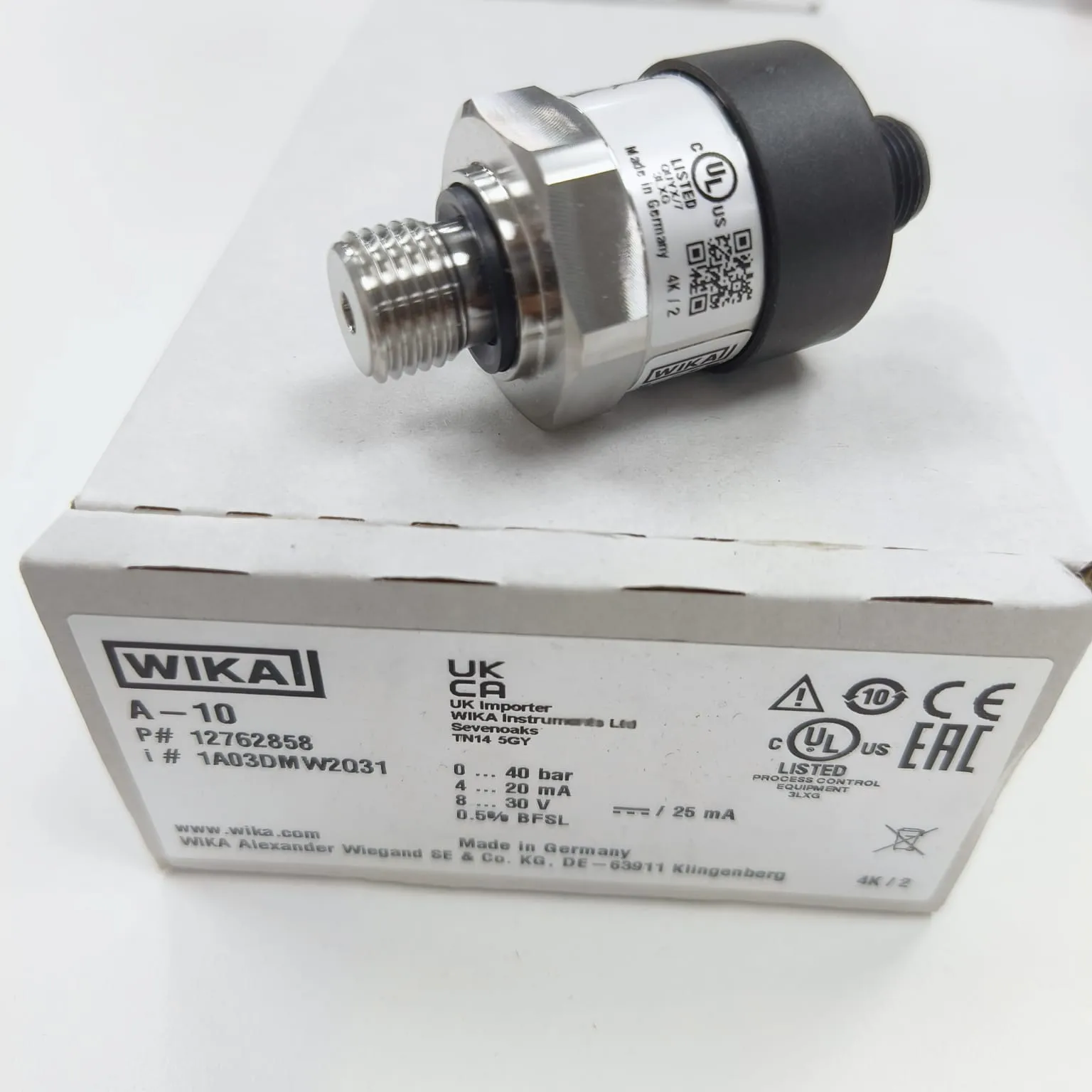

WIKA A-10 Pressure Transmitter measuring 0...40 bar gauge with G 1/4 A DIN EN ISO 1179-2 Male Connection and Circular Connector M12x1, 4-pin and converts pressure into a stable 4...20 mA, 2-wire signal for PLC/SCADA and industrial control loops. Designed as a field-proven all-rounder for general industrial applications, the A-10 is offered across many measuring ranges and configurable variants for straightforward integration into different machine and plant designs. Per WIKA data sheet PE 81.60, it uses robust stainless-steel wetted parts (316L), supports auxiliary power 8...30 V DC (option up to 8…35 V DC on request) for 4...20 mA versions, and with an M12 x 1 circular connector provides up to IP67 ingress protection when mated appropriately. Depending on the measuring range, service life is specified up to 100 million load cycles, and non-linearity is specified to ≤ ±0.5 % of span (with optional improved non-linearity), making it well-suited for machine building, measurement and control technology, hydraulics and pneumatics, pumps and compressors, and shipbuilding.
