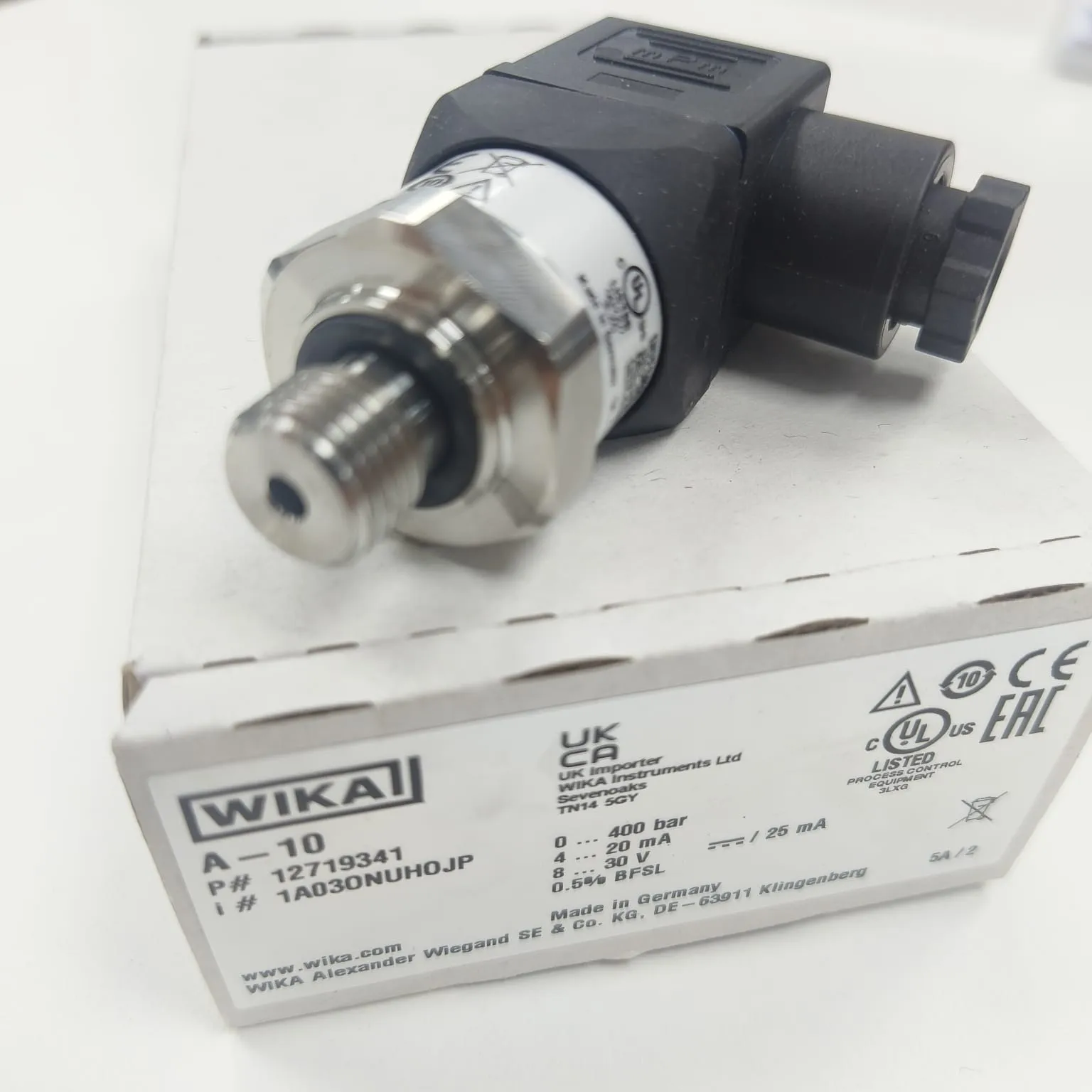

WIKA A-10 Pressure Transmitter, 0...400 Bar Gauge, G 1/4 A DIN EN ISO 1179-2 Connection, Valve Connector, Size A, 12719341

WIKA A-10 Pressure Transmitter measuring 0...400 bar gauge with G 1/4 A DIN EN ISO 1179-2 Male Connection and Valve Connector, Size A and converts pressure into a stable 4...20 mA, 2-wire signal for PLC/SCADA and industrial control loops. Designed as a field-proven all-rounder for general industrial applications, the A-10 is offered across many measuring ranges and configurable variants for straightforward integration into different machine and plant designs. Per WIKA data sheet PE 81.60, it uses robust stainless-steel wetted parts (316L), supports auxiliary power 8...30 V DC (option up to 8…35 V DC on request) for 4...20 mA versions, and with an M12 x 1 circular connector provides up to IP67 ingress protection when mated appropriately. Depending on the measuring range, service life is specified up to 100 million load cycles, and non-linearity is specified to ≤ ±0.5 % of span (with optional improved non-linearity), making it well-suited for machine building, measurement and control technology, hydraulics and pneumatics, pumps and compressors, and shipbuilding.
