General Industrial Pressure Transmitters

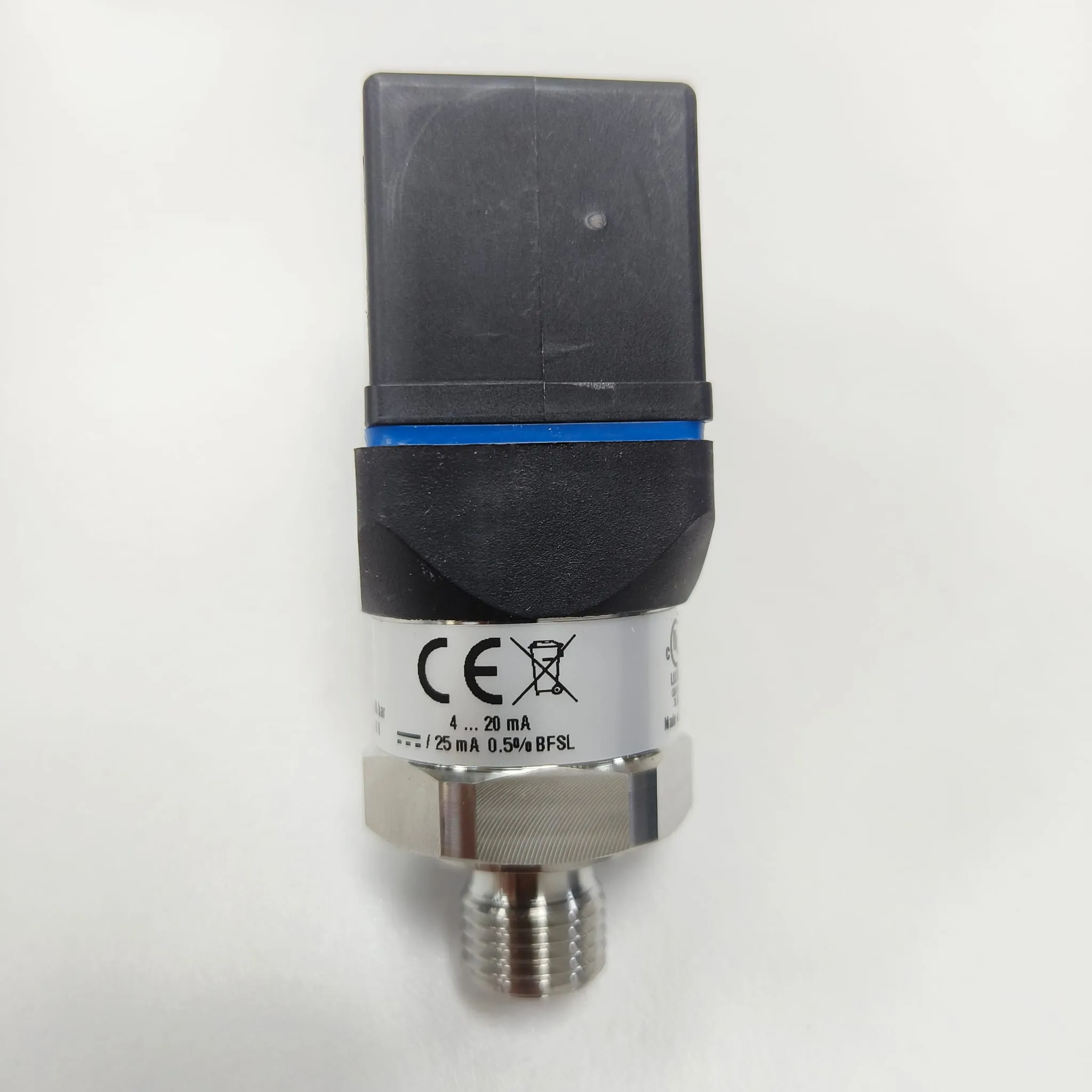

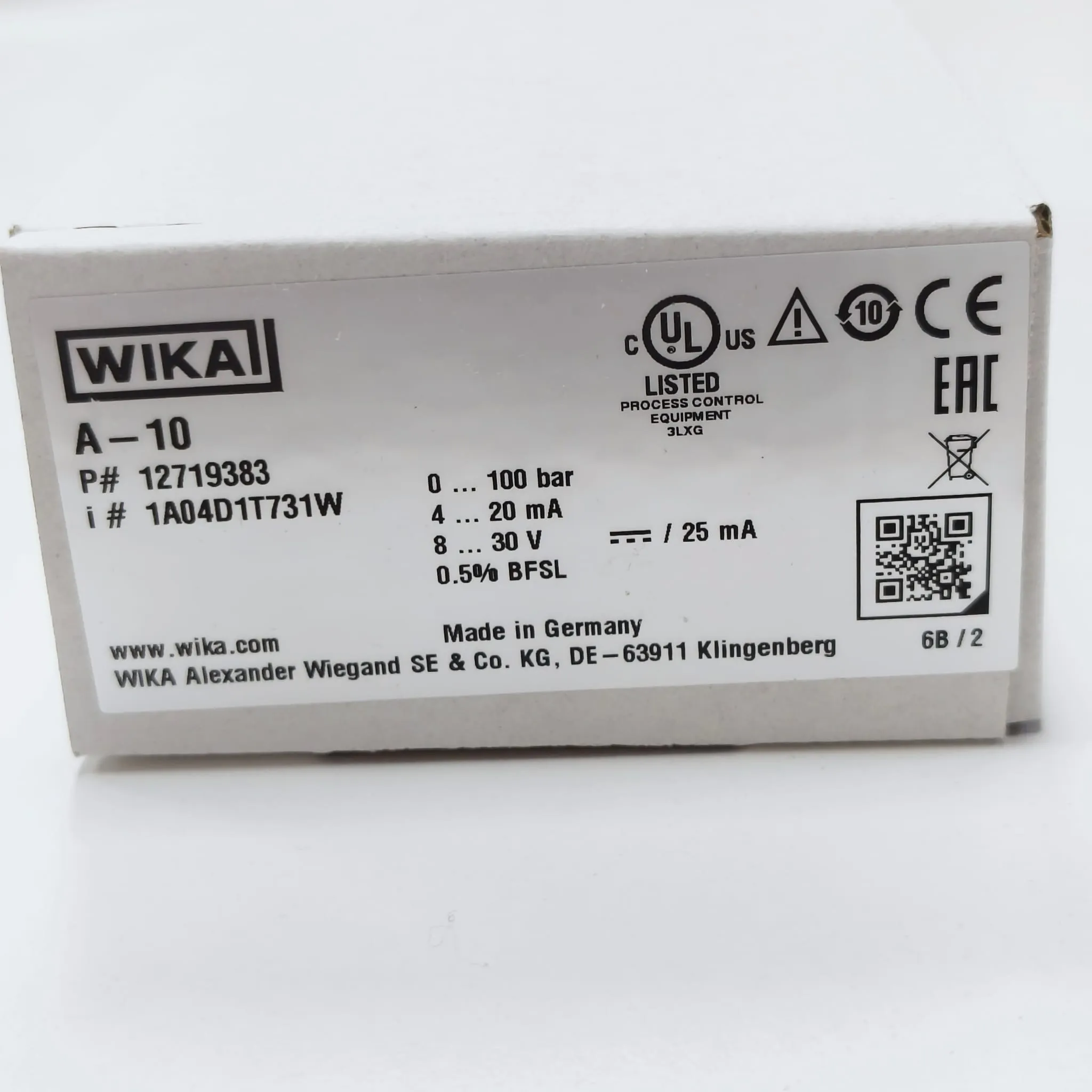

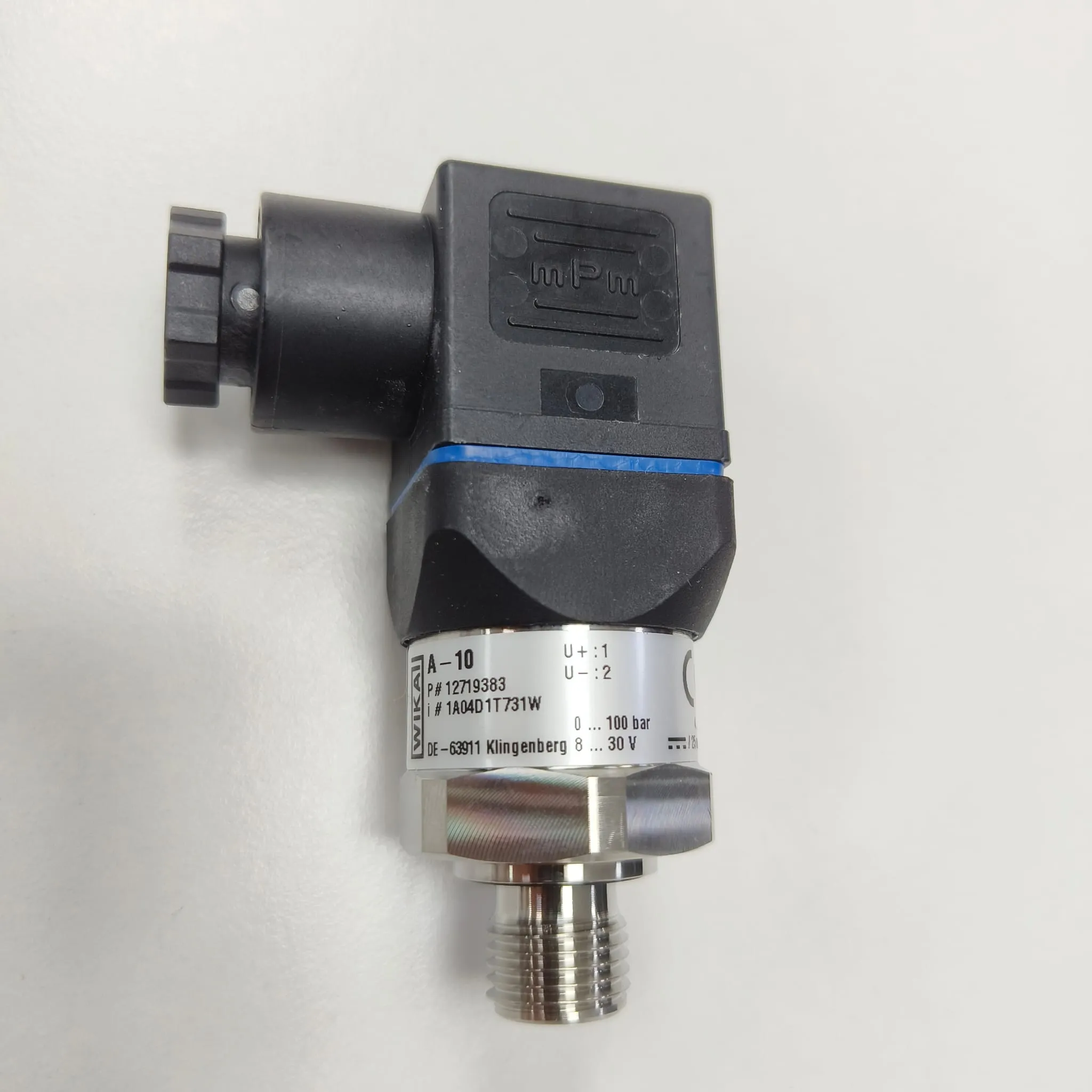

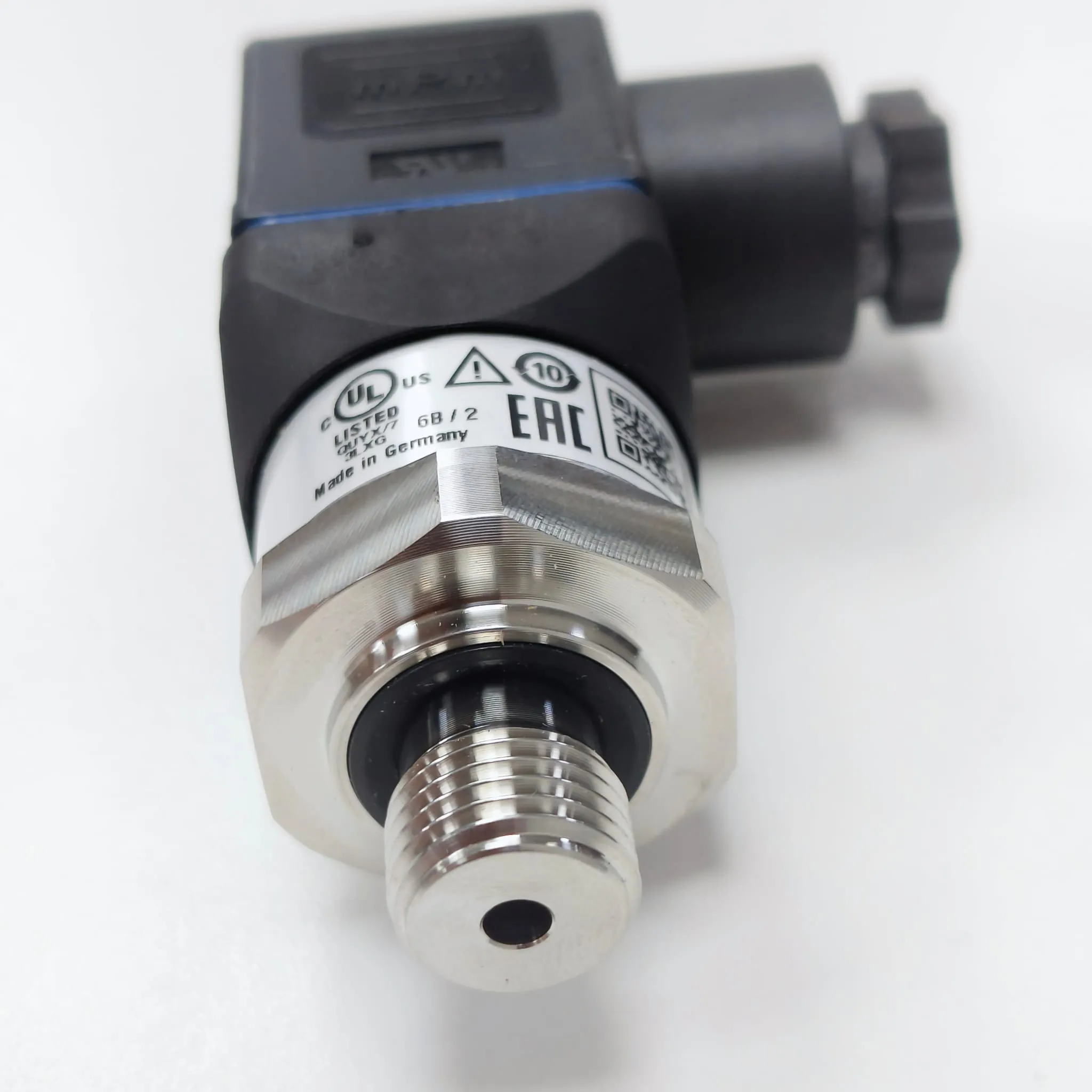

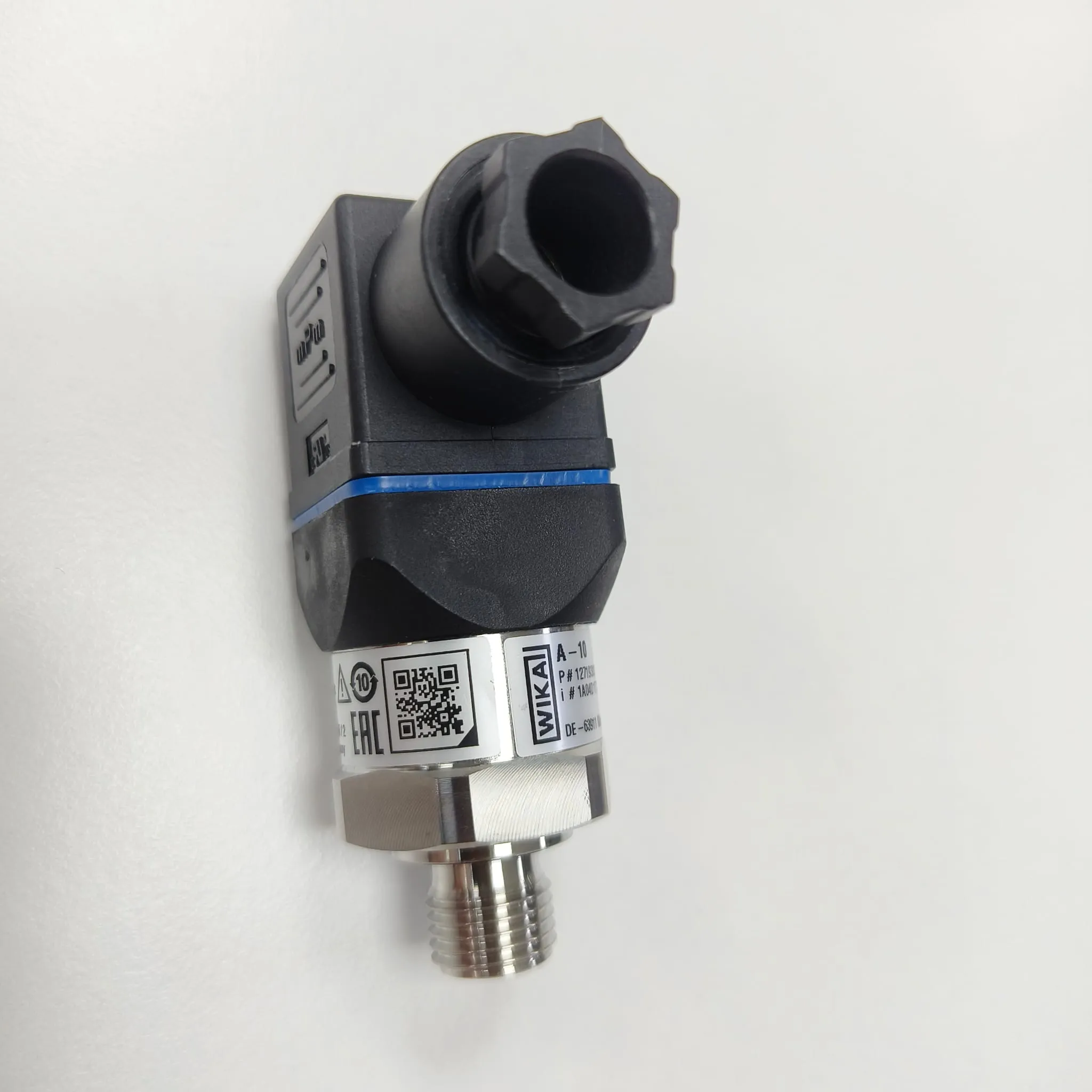

WIKA A-10 Pressure Transmitter, 0...100 Bar Gauge, G 1/4" A DIN EN ISO 1179-2 Connection, Valve Connector, 12719383
WIKA

WIKA A-10 Pressure Transmitter, 0...100 Bar Gauge, G 1/4" A DIN EN ISO 1179-2 Connection, Valve Connector, 12719383

Mfr. part no.
12719383
SKU
PT-A10-100BAR-VC-12719383

Specifications

Measuring Range 0...100 Bar Gauge
Output Signal 4 ... 20 mA, 2-wire
Power Supply 8...30 V DC
Process Connection Male G 1/4 A DIN EN ISO 1179-2
Electrical Connection Valve Connector, Size A
Wetted Parts Stainless Steel 316L
Non-Linearity 0.5% BFSL
Seal Material NBR

Key Features

  • Compact WIKA A-10 industrial pressure transmitter for general applications
  • Stable 4...20 mA signal for PLC, SCADA and control panel integration
  • Robust stainless-steel construction for machine and plant environments
  • Suitable for hydraulics, pneumatics, pumps, compressors and process equipment
  • Made in Germany

Description

WIKA A-10 Pressure Transmitter measuring 0...100 bar gauge with G 1/4 A DIN EN ISO 1179-2 process connection, NBR sealing and valve connector size A for simple installation in industrial control systems. This model converts pressure into a stable 4...20 mA, 2-wire signal for PLC, SCADA, control panel, data logger and machine automation use. Built with 316L stainless-steel wetted parts and case, it is suitable for general industrial pressure monitoring in hydraulics, pneumatics, pumps, compressors, water systems and process equipment. The transmitter is supplied as WIKA A-10 model 2.0 with 8...30 V DC supply, 0.5% BFSL non-linearity, 0...+80 °C permissible medium temperature and cULus approval.

Applications

  • Machine building and OEM equipment
  • Hydraulic and pneumatic pressure monitoring
  • Pumps, compressors and utility systems
  • PLC, SCADA and control panel feedback loops
  • General industrial maintenance and replacement use

Documents

  • Wika Datasheet-12719383

    PDF, 49 KB

  • Wika A-10 Model — Datasheet

    PDF, 926 KB

  • Wika A-10 Operating — Instructions

    PDF, 7.8 MB
