General Industrial Pressure Transmitters

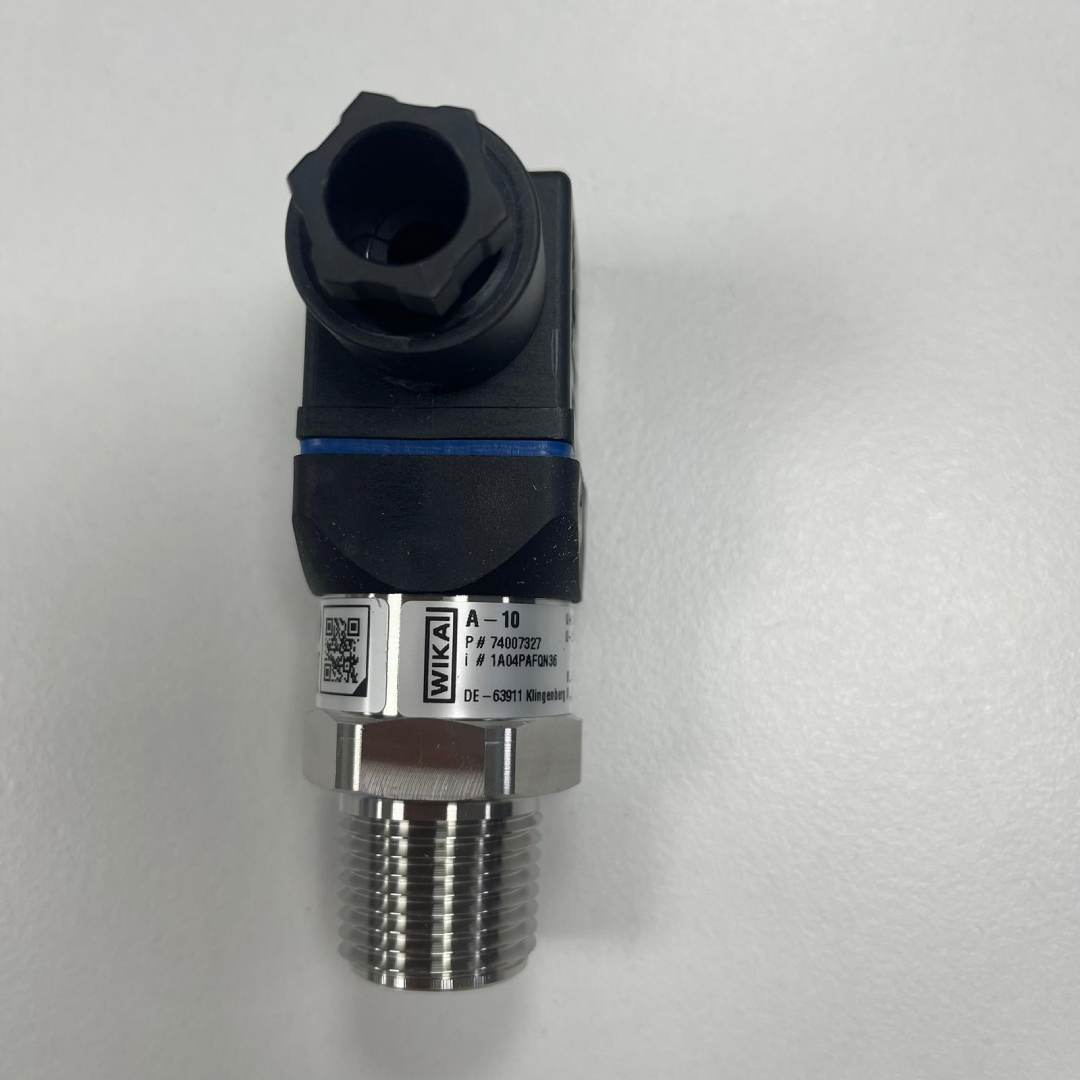

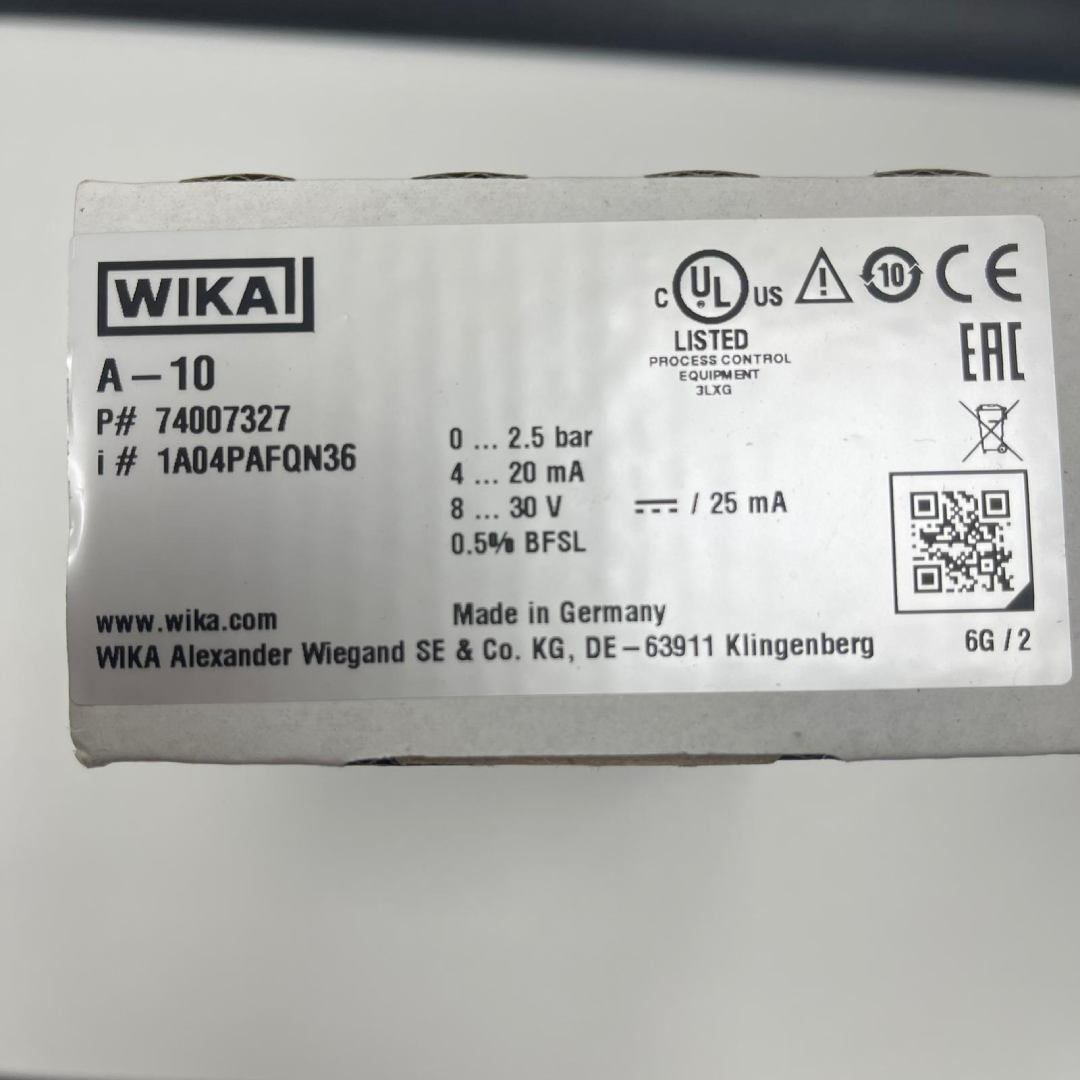

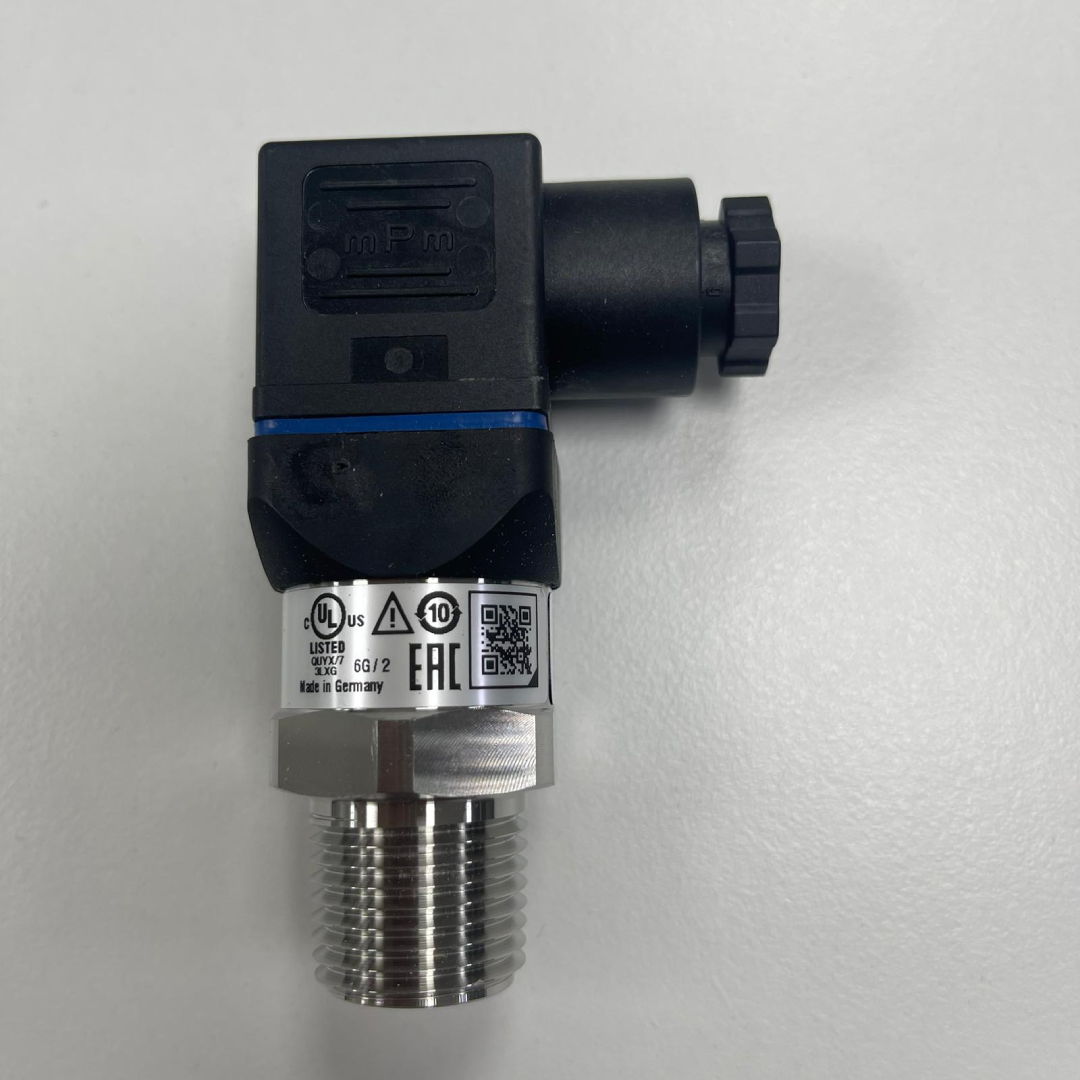

WIKA A-10 Pressure Transmitter, 0-2.5 Bar Gauge, 1/2 NPT, Valve Connector, 74007327
WIKA

WIKA A-10 Pressure Transmitter, 0-2.5 Bar Gauge, 1/2 NPT, Valve Connector, 74007327

Mfr. part no.
74007327
SKU
PT-A10-2.5BAR-VC-74007327

Specifications

Measuring Range 0-2.5 bar gauge
Output Signal 4-20 mA, 2-wire
Power Supply 8-30 V DC

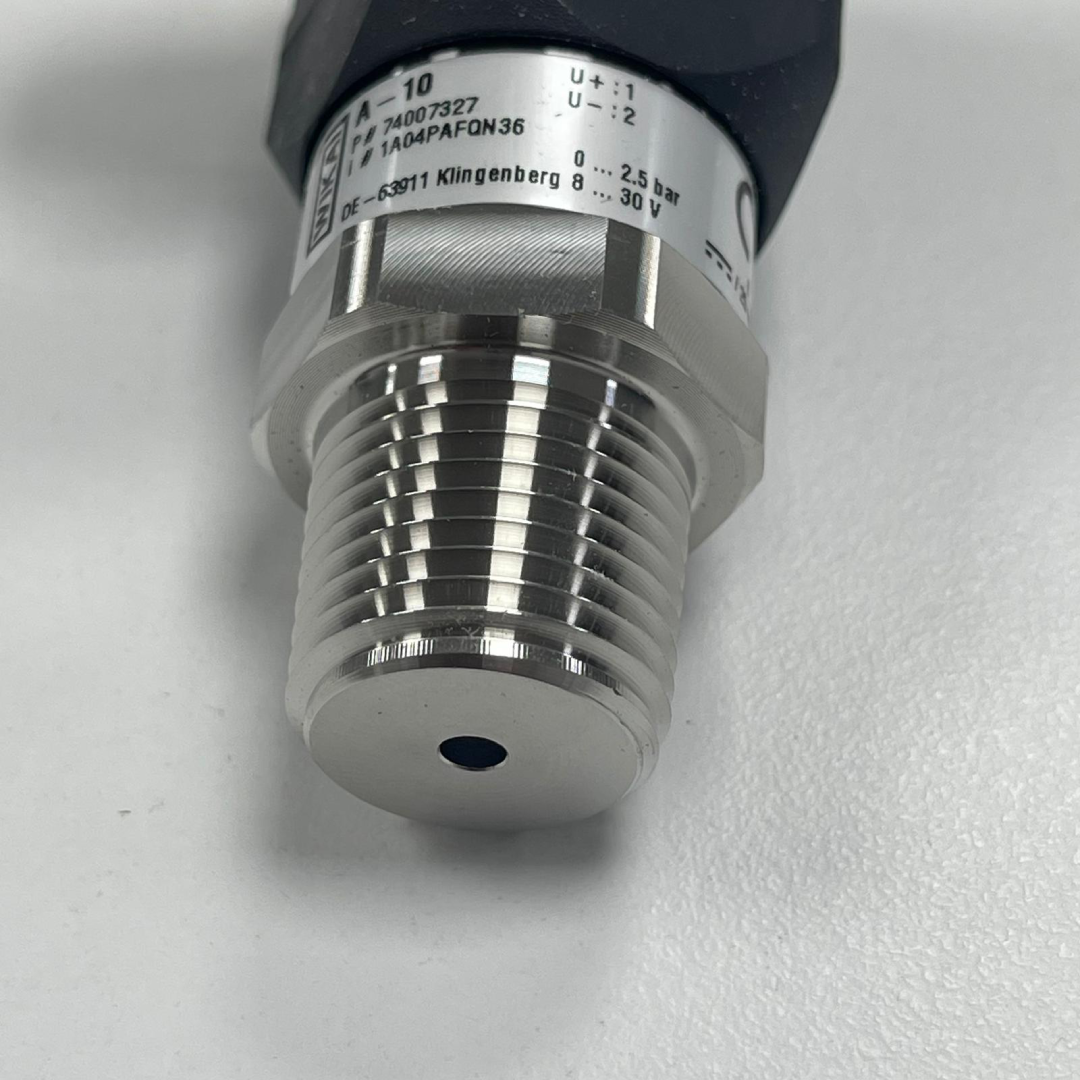

Process Connection 1/2 NPT
Electrical Connection Valve Connector, Size A
Wetted Parts 316L Stainless Steel
Non-Linearity 0.5% BFSL

Key Features

  • Measures gauge pressure from 0-2.5 bar
  • Standard 4-20 mA, 2-wire output for industrial control systems
  • Operates from an 8-30 V DC power supply
  • 1/2 NPT process connection for common industrial installations

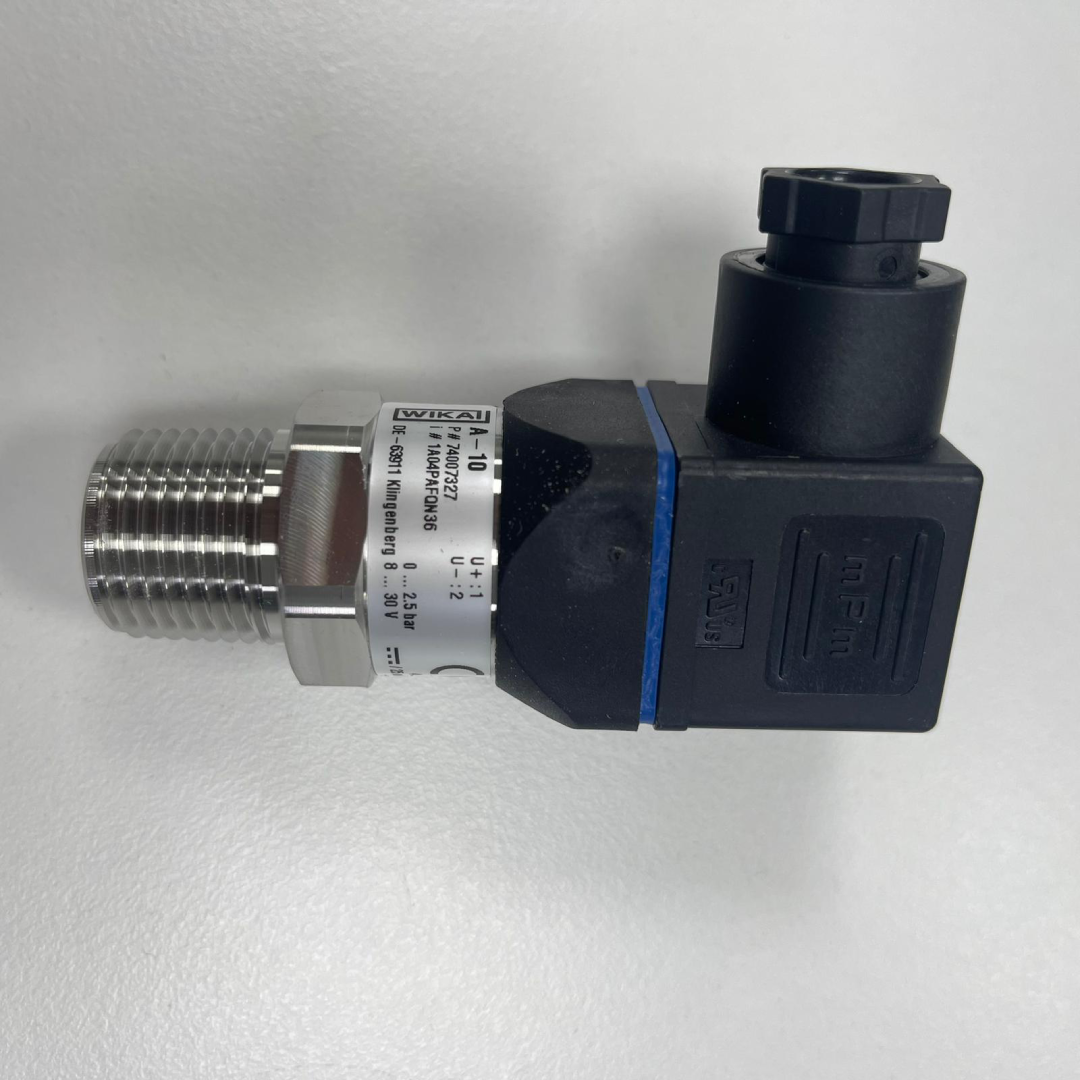

  • Valve connector size A with U+=1 and U-=2 pin assignment
  • 316L stainless-steel case and wetted parts
  • cULus approved configuration
  • Made in Germany

Description

The WIKA A-10 pressure transmitter, item 74007327, is designed for reliable pressure measurement in machinery and general industrial systems. It measures 0-2.5 bar gauge pressure and converts the reading to a standard 4-20 mA, 2-wire signal for connection to PLCs, controllers and monitoring equipment. This configuration features an 8-30 V DC supply, 1/2 NPT process connection, valve connector size A, 316L stainless-steel wetted parts and a permissible medium temperature range of 0-+80 °C.

Applications

  • Industrial machinery and equipment
  • Hydraulic pressure monitoring
  • Pneumatic systems
  • Pumps and compressor systems
  • PLC and industrial control installations
  • General pressure measurement and monitoring

Documents

  • wika-74007327 — Datasheet

    PDF, 48 KB

  • Wika A-10 Model — Datasheet

    PDF, 926 KB

  • Wika A-10 Operating — Instructions

    PDF, 7.8 MB
