General Industrial Pressure Transmitters

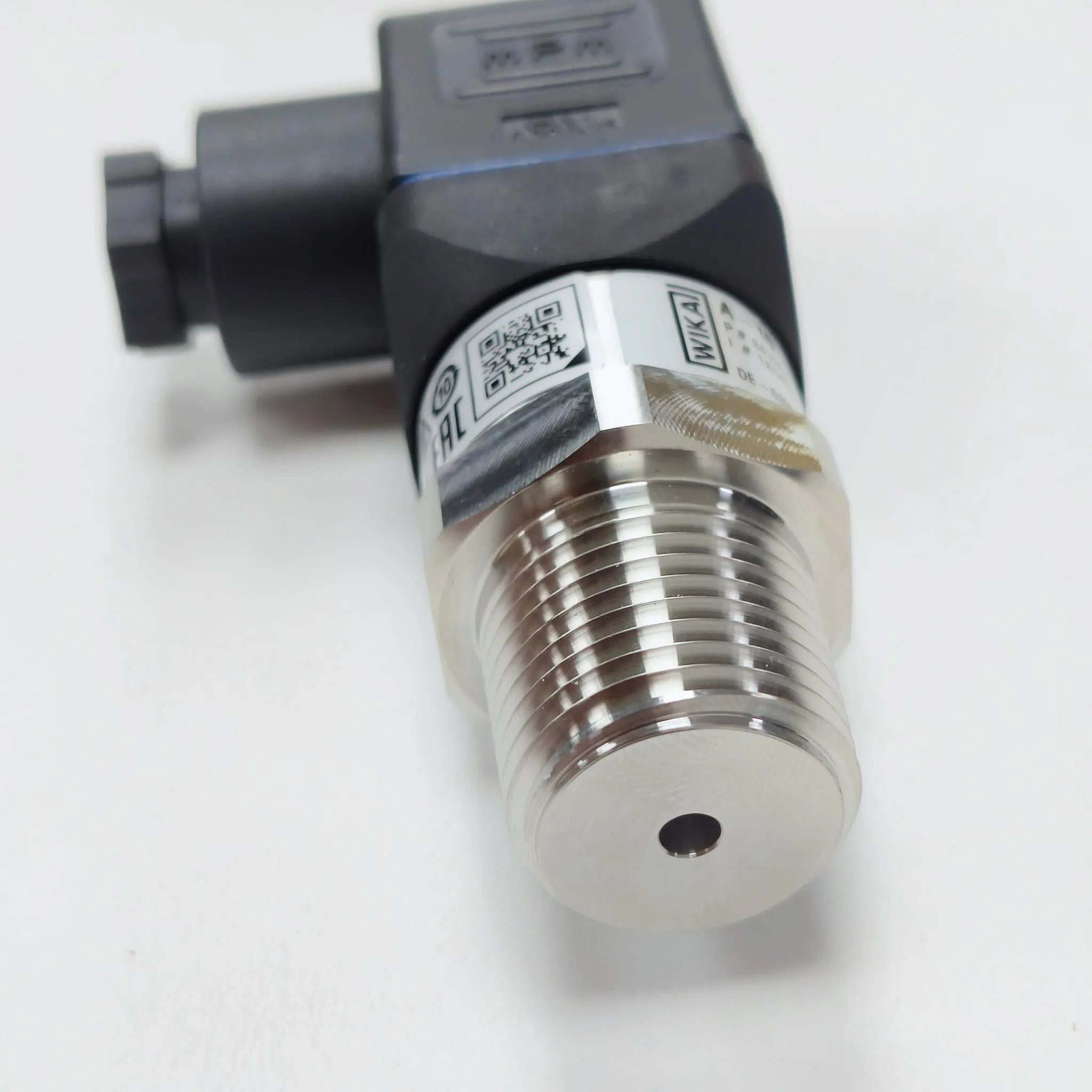

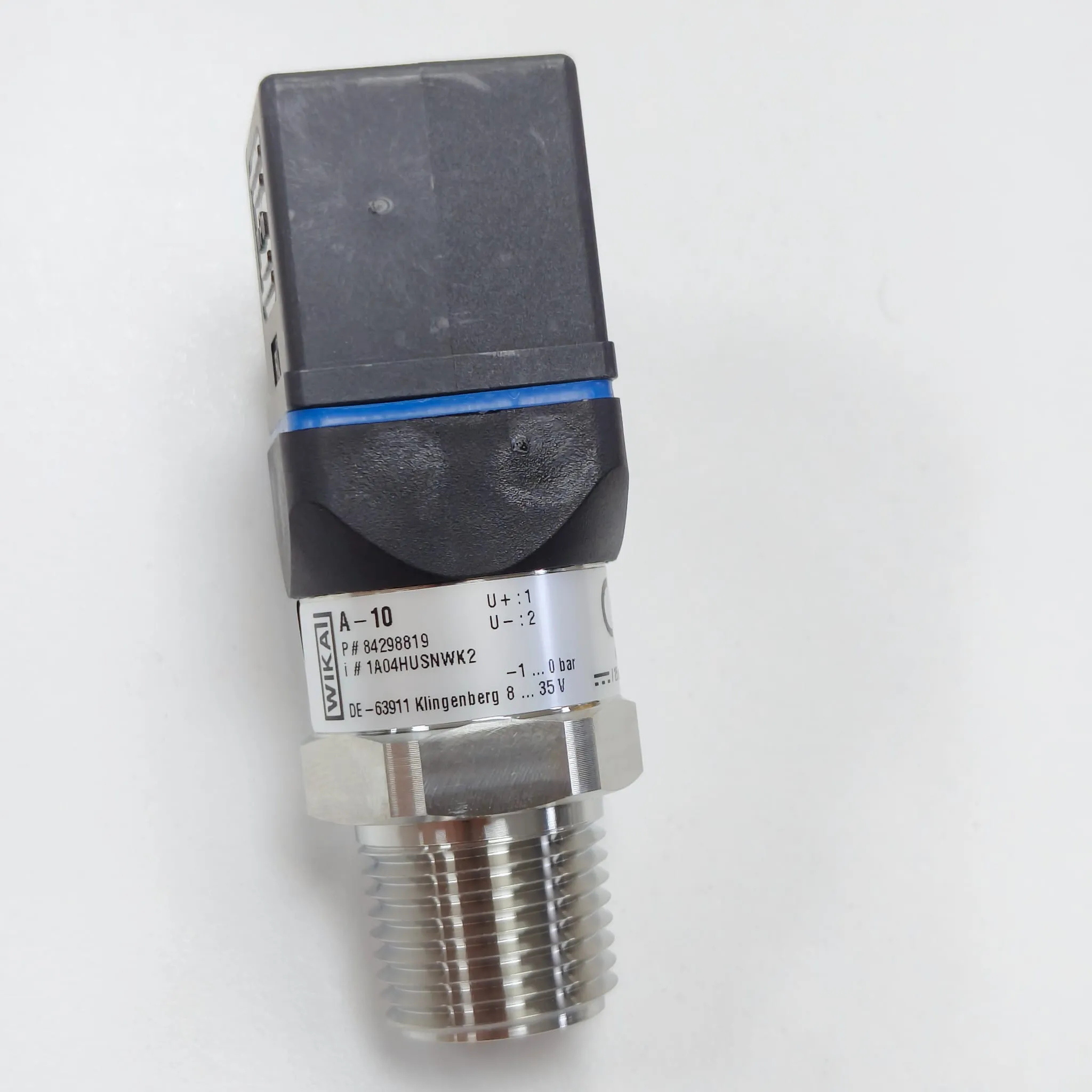

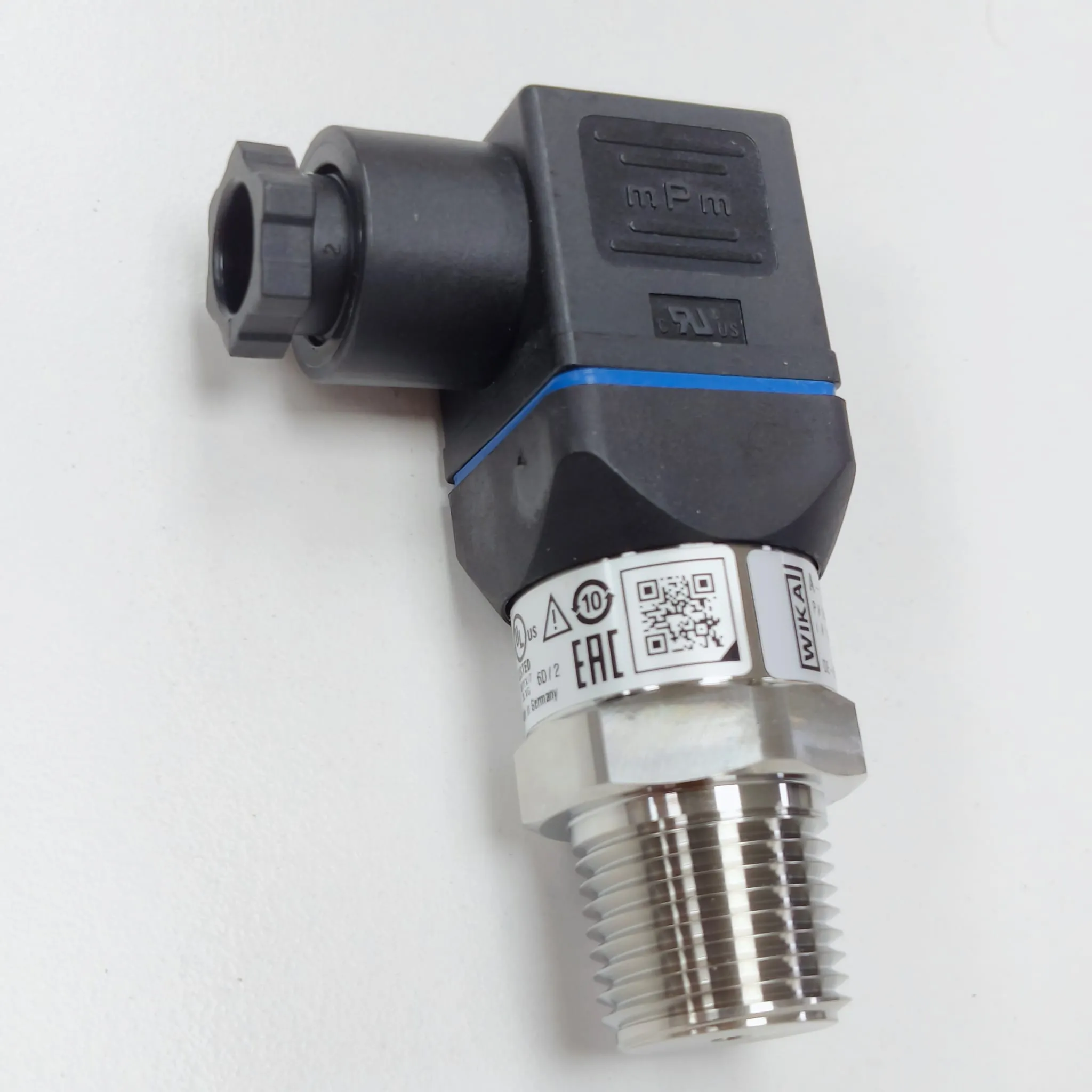

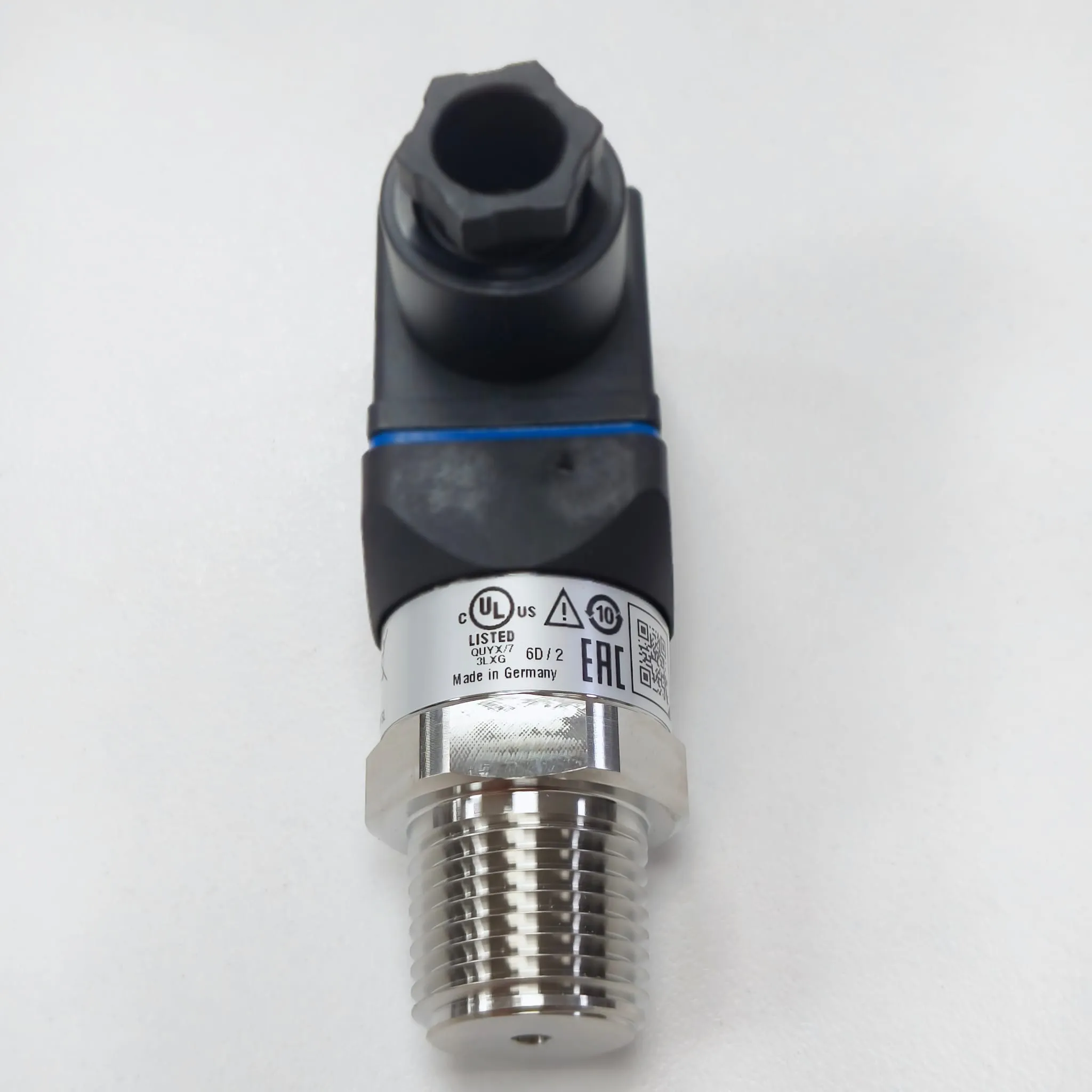

WIKA A-10 Pressure Transmitter, -1 ... 0 Bar Compound Gauge, 1/2" NPT Connection, Valve Connector, 84298819
WIKA

WIKA A-10 Pressure Transmitter, -1 ... 0 Bar Compound Gauge, 1/2" NPT Connection, Valve Connector, 84298819

Mfr. part no.
84298819
SKU
PT-A10-1-0BAR-84298819-8-35VDC

Specifications

Measuring Range -1 ... 0 Bar Compound Gauge
Output Signal 4 ... 20 mA, 2-wire
Power Supply 8...35 V DC
Process Connection 1/2 Male NPT
Electrical Connection Valve Connector, Size A
Wetted Parts Stainless Steel 316L
Non-Linearity 0.5% BFSL
Seal Material NBR

Key Features

  • Compact WIKA A-10 compound pressure transmitter for vacuum and low-pressure duties
  • Stable 4...20 mA signal for PLC, SCADA and control panel integration
  • Robust stainless-steel construction for machine and plant environments
  • Suitable for suction lines, vacuum systems, pumps, compressors and pneumatic circuits
  • Made in Germany

Description

WIKA A-10 Compound Pressure Transmitter for -1 ... 0 bar gauge measurement with 1/2 NPT process connection and valve connector size A for industrial vacuum and low-pressure monitoring. This compound pressure type version converts vacuum-range pressure into a stable 4...20 mA, 2-wire signal for PLC, SCADA, control panel, data logger and machine automation use. Built with 316L stainless-steel wetted parts and case, it is suitable for suction lines, vacuum systems, pneumatic circuits, pump protection, compressor equipment and general plant maintenance applications. It has 8...35 V DC supply, 0.5% BFSL non-linearity, U+=1 and U-=2 pin assignment, 0...+80 °C permissible medium temperature, cULus approval and 2.2 class and accuracy certification.

Applications

  • Vacuum and suction line monitoring
  • Pneumatic and low-pressure control systems
  • Pump protection and compressor equipment
  • PLC, SCADA and control panel feedback loops
  • General industrial maintenance and replacement use

Documents

  • Wika A-10 Model — Datasheet

    PDF, 926 KB

  • Wika A-10 Operating — Instructions

    PDF, 7.8 MB

  • Wika A-10 Datasheet-84298819

    PDF, 50 KB
