General Industrial Pressure Transmitters

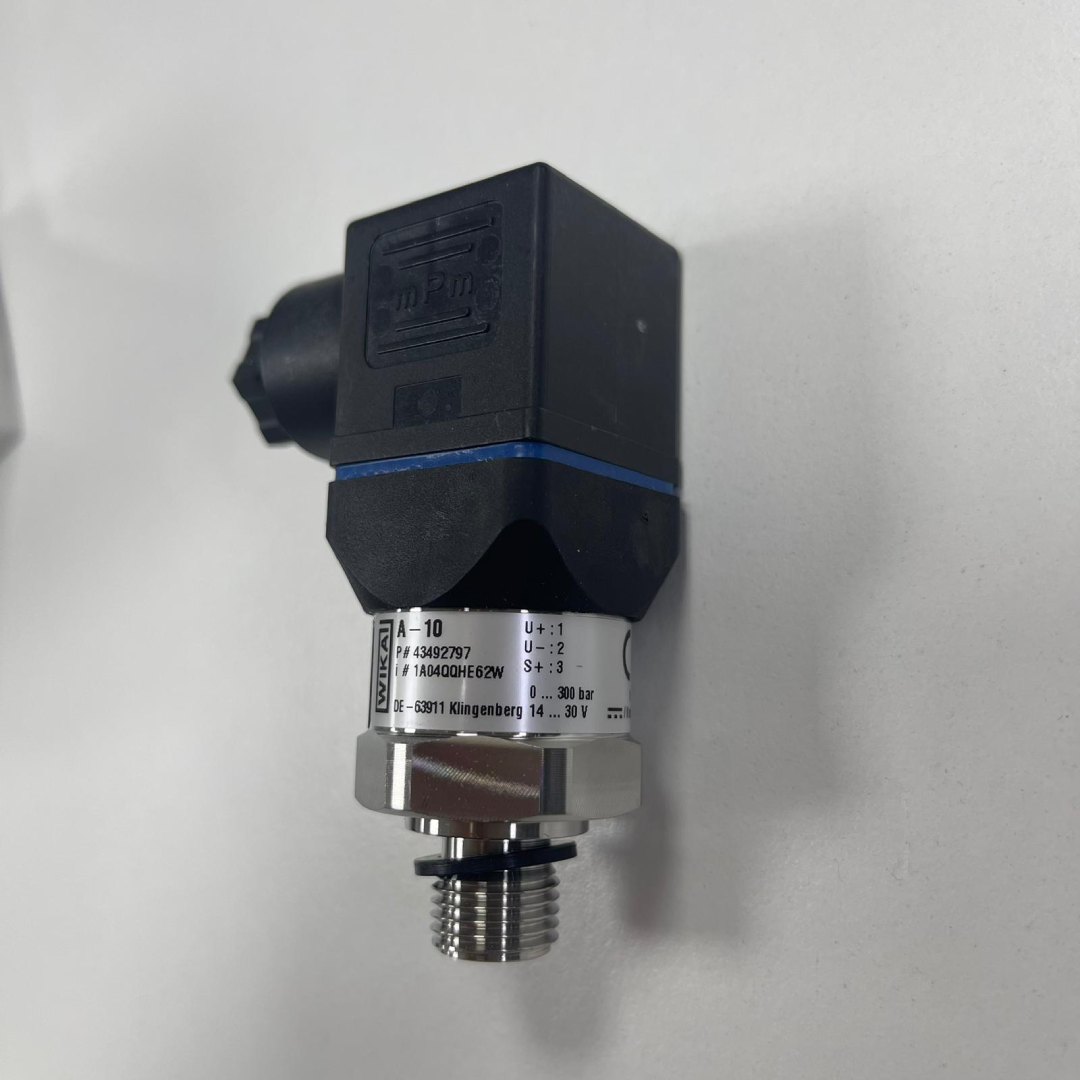

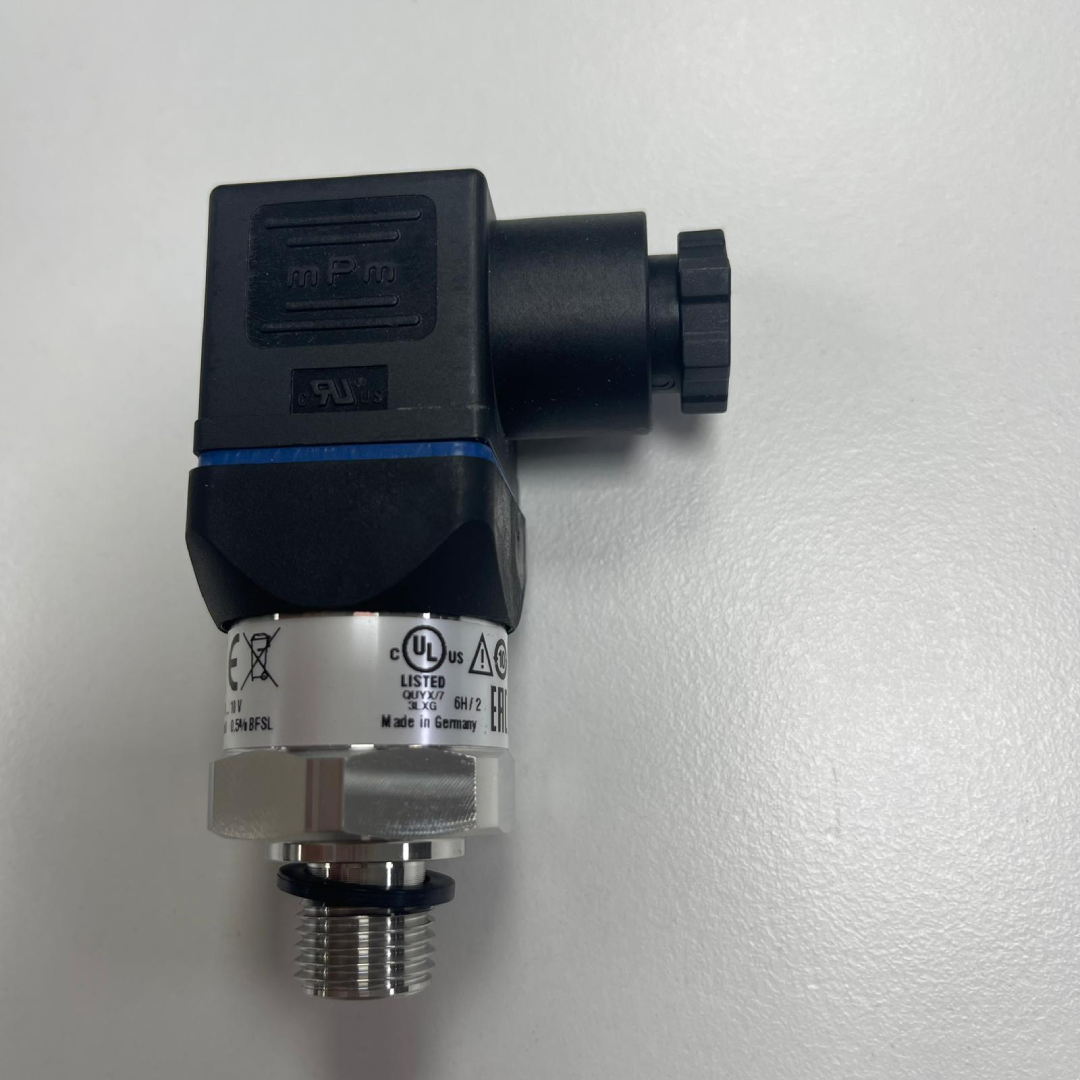

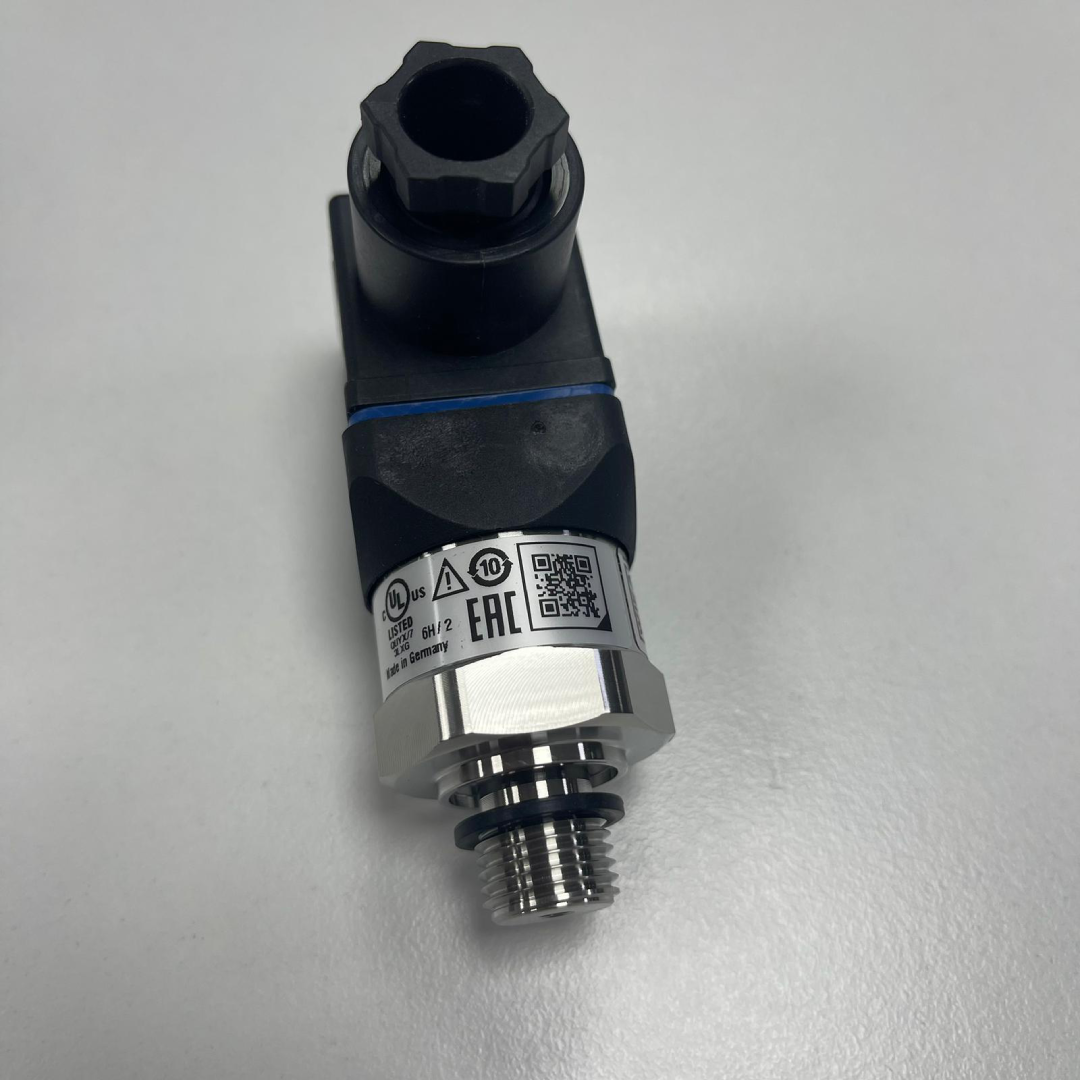

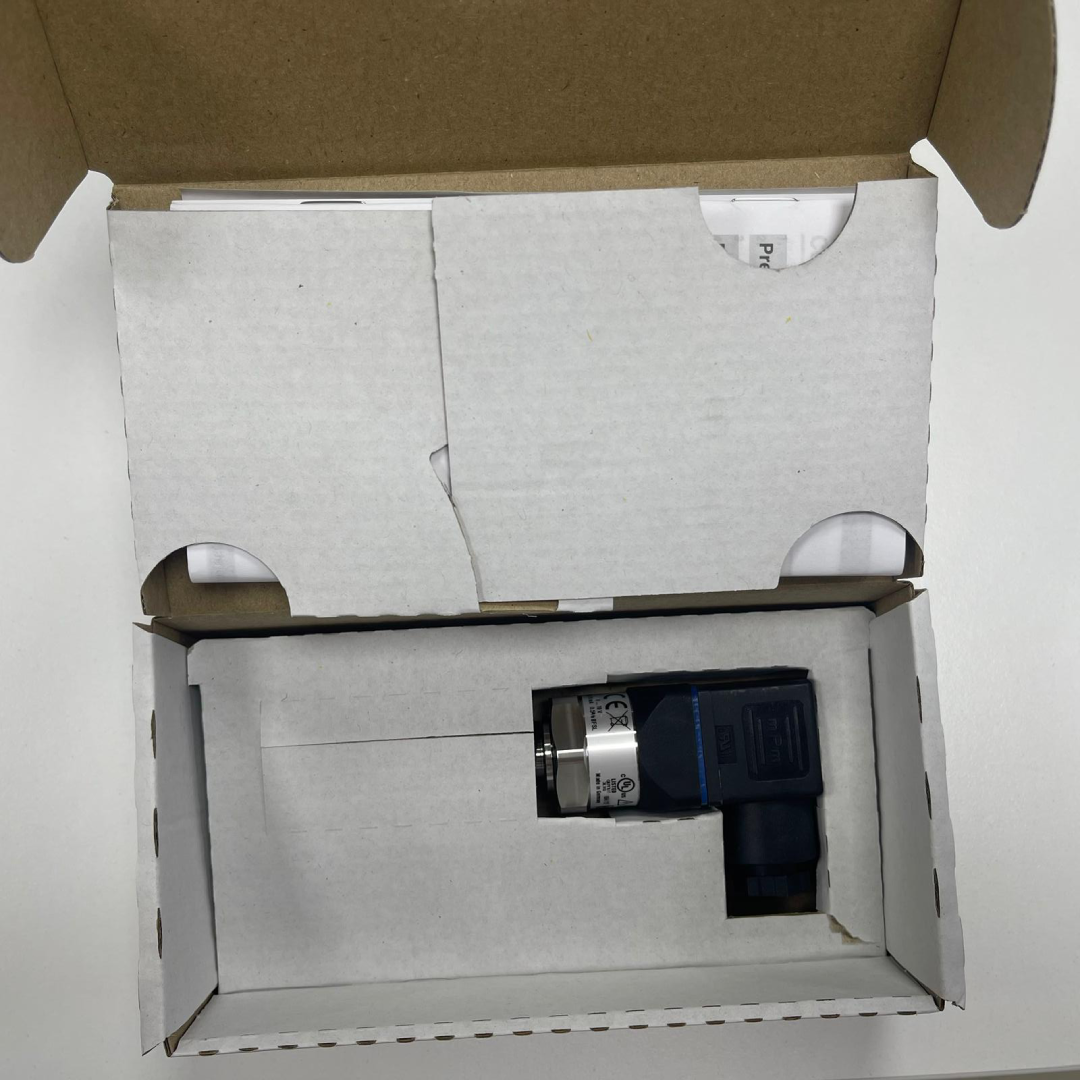

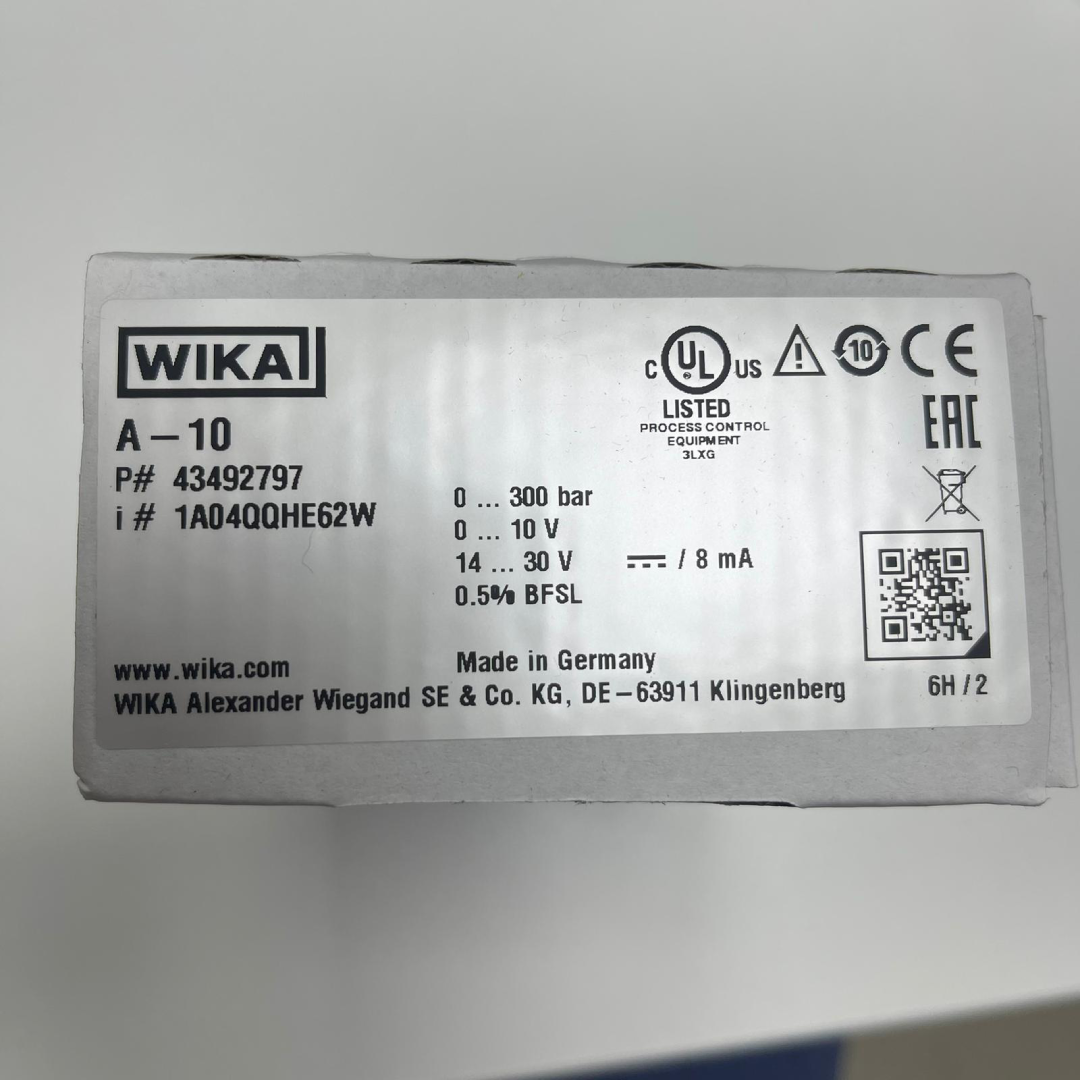

WIKA A-10 Pressure Transmitter, 0-300 Bar Gauge, G 1/4 A, 0-10 V, Valve Connector, 43492797
WIKA

WIKA A-10 Pressure Transmitter, 0-300 Bar Gauge, G 1/4 A, 0-10 V, Valve Connector, 43492797

Mfr. part no.
43492797
SKU
PT-A10-300BAR-VC-43492797

Specifications

Measuring Range 0-300 bar gauge
Output Signal 0-10 V, 3-wire
Power Supply 14-30 V DC
Process Connection G 1/4 A DIN EN ISO 1179-2
Electrical Connection Valve Connector, Size A
Wetted Parts 316L Stainless Steel
Non-Linearity 0.5% BFSL

Key Features

  • Measures gauge pressure from 0-300 bar
  • 0-10 V, 3-wire analogue output for industrial control systems
  • Operates from a 14-30 V DC power supply
  • G 1/4 A DIN EN ISO 1179-2 process connection
  • Valve connector size A for straightforward electrical installation
  • 316L stainless-steel case and wetted parts
  • Made in Germany

Description

The WIKA A-10 pressure transmitter, item 43492797, provides reliable pressure measurement for machinery and general industrial systems. This configuration measures 0-300 bar gauge pressure and supplies a 0-10 V, 3-wire output for connection to PLCs, controllers and monitoring equipment. It operates from 14-30 V DC and uses a G 1/4 A DIN EN ISO 1179-2 process connection with NBR sealing, a valve connector size A, 316L stainless-steel wetted parts and a permissible medium temperature range of 0-+80 °C.

Applications

  • Industrial machinery and equipment
  • Hydraulic pressure monitoring
  • Pneumatic systems
  • Pumps and compressor systems
  • Measurement and control equipment
  • PLC and automation systems

Documents

  • wika-43492797 — Datasheet

    PDF, 49 KB

  • Wika A-10 Model — Datasheet

    PDF, 926 KB

  • Wika A-10 Operating — Instructions

    PDF, 7.8 MB
