DK-LOK High Pressure Ball Valve, 20,000 psig, 9/16" Tube OD Connections, SS316, DK20BV-09-S
Part no. DK20BV-09-S
In stock, 31 available
| Series | V86A |
|---|---|
| Valve Function | 2-way on/off |
| Connection Size | 1/2" Tube OD |
| Body Material | 316 stainless steel (SS316) |
| Seat Material | PCTFE |
| Maximum Pressure | 6,000 psig |
| Temperature Range | -22 to 356°F (-30 to 180°C) |
| Stem Design | Blowout-proof, internally loaded stem |
| Handle | Lever handle, flow direction indication |
| Seal Material | FKM (Viton) end seal |
| Part no. | Temperature Range | Maximum Pressure | Connection Size |
|---|---|---|---|
| V86A-D-4T-PC | -22 to 356°F (-30 to 180°C) | 6,000 psig | 1/4" Tube OD |
| V86A-D-6T-PC | -22 to 356°F (-30 to 180°C) | 6,000 psig | 3/8" Tube OD |
| V86A-F-8N-PC | -22 to 356°F (-30 to 180°C) | 6,000 psig | 1/2" Female NPT |
| V86A-D-8T-PC (This part) | -22 to 356°F (-30 to 180°C) | 6,000 psig | 1/2" Tube OD |
| V86A-F-4N-PK | -65 to 500°F (-54 to 260°C) | 10,000 psig | 1/4" Female NPT |
| V86A-F-6N-PK | -65 to 500°F (-54 to 260°C) | 10,000 psig | 3/8" Female NPT |
| V86A-F-8N-PK | -65 to 500°F (-54 to 260°C) | 10,000 psig | 1/2" Female NPT |

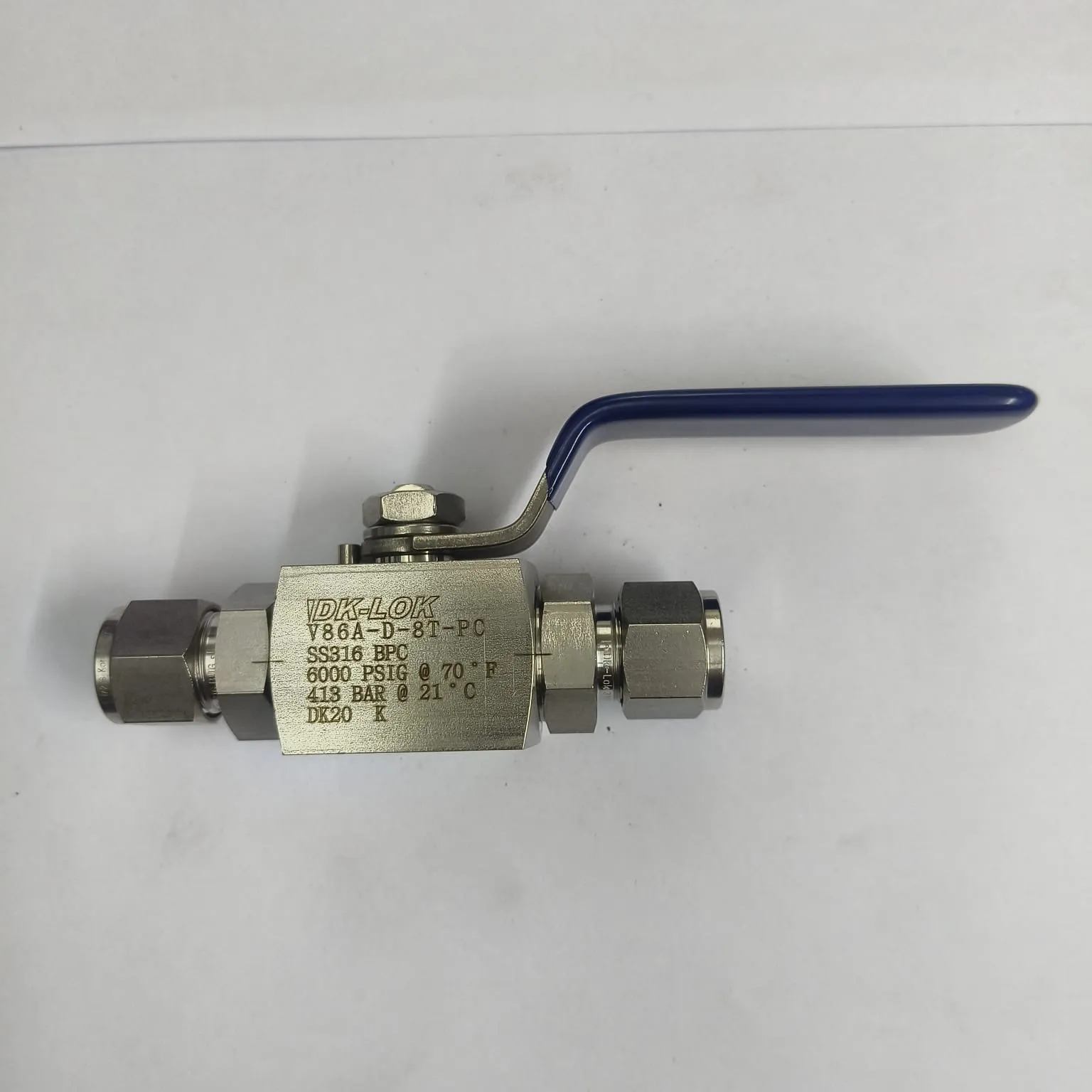

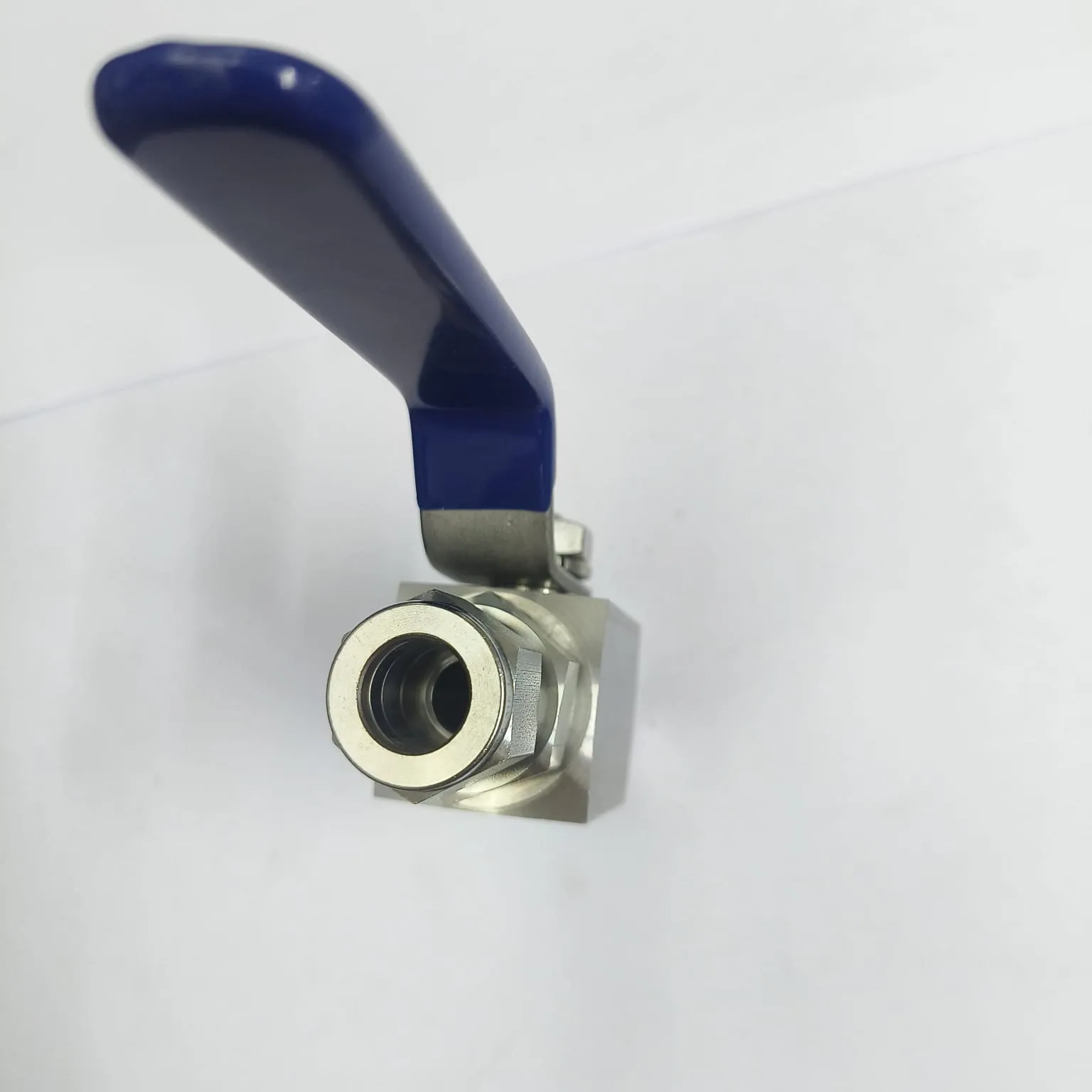

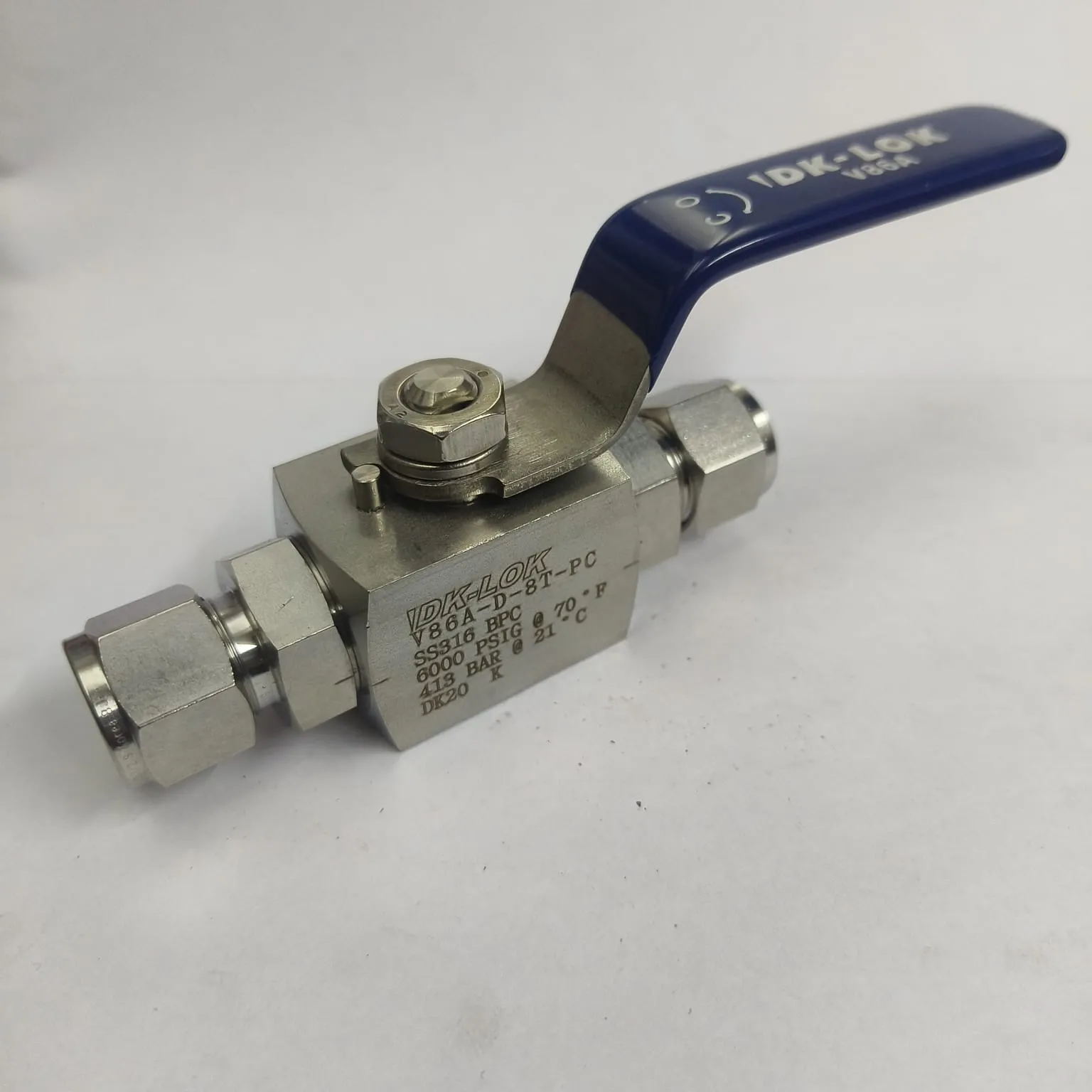

DK-LOK V86A Series ball valves are high-pressure, quarter-turn on/off valves designed for reliable shutoff in instrumentation and process service. Built with a blowout-proof internally loaded stem and a robust positive stop, the lever handle provides clear open/close indication and fast operation. The SS316 body with PCTFE seats delivers high flow capacity and dependable sealing, with a pressure rating 6,000 psig (413 bar) and temperature rating -22 to 356°F (-30 to 180°C). Commonly used for hydraulic, gas, and chemical service lines where compact size and safe, repeatable operation are required.
DK LOK-V86 Series Ball Valves — Catalog
PDF, 4.6 MB
