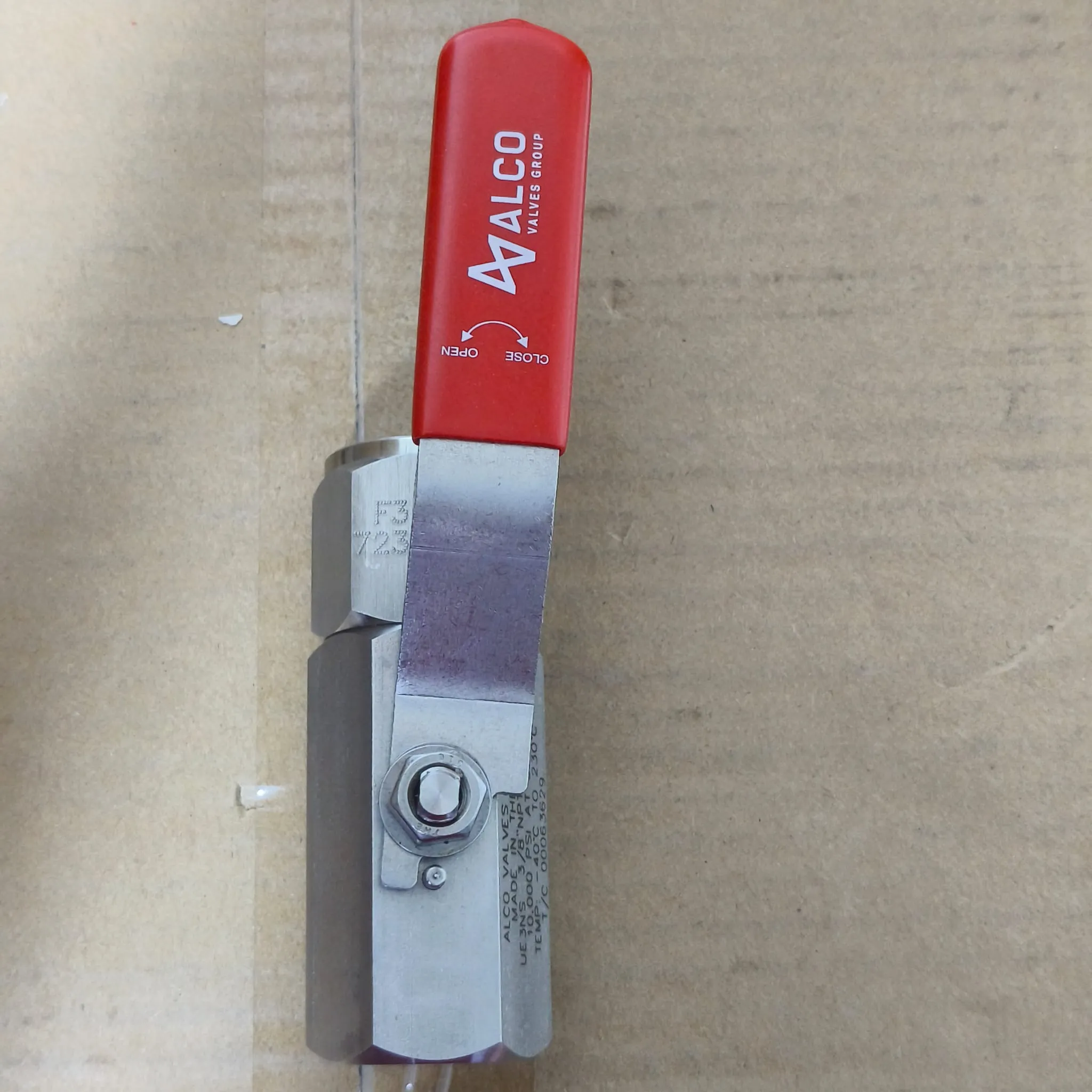

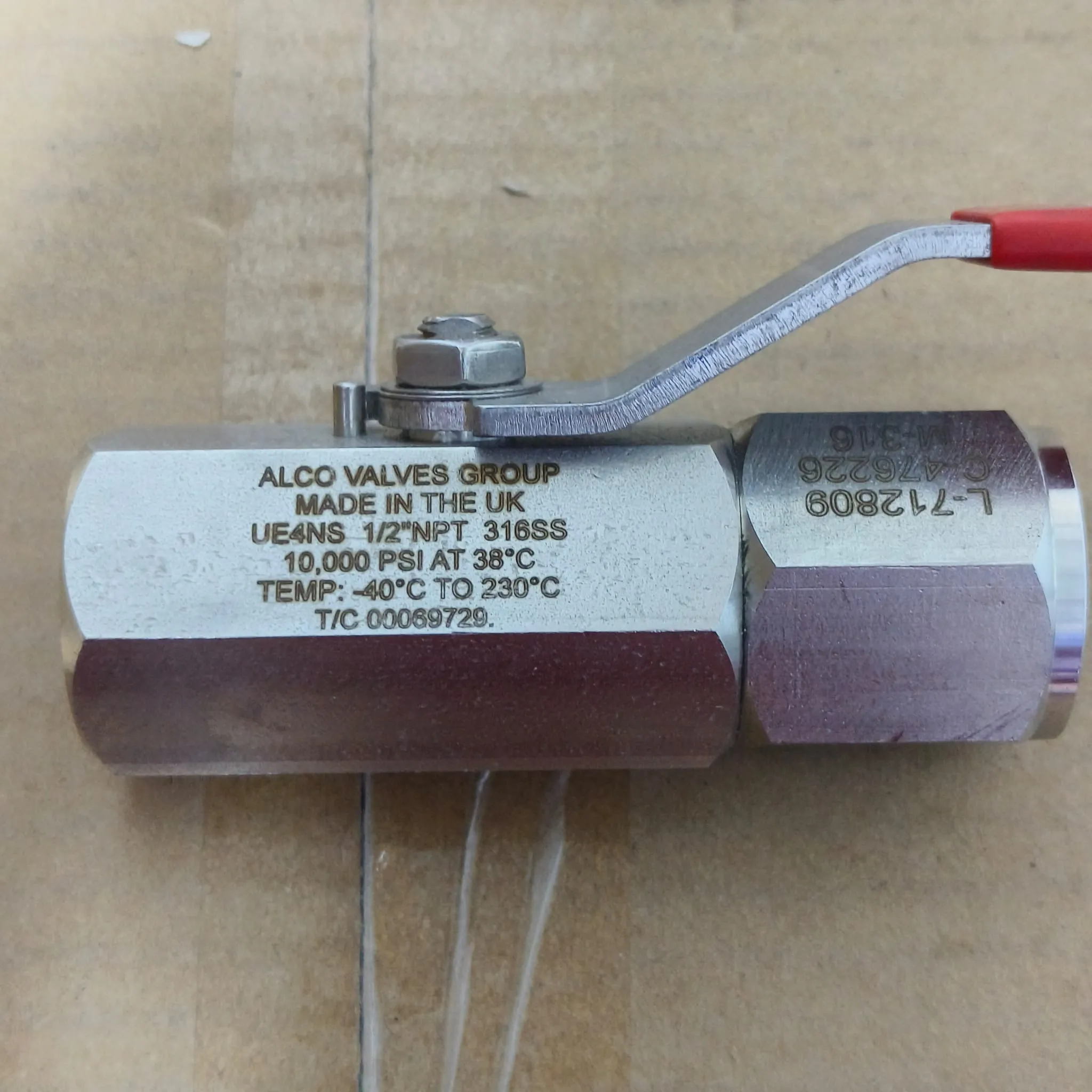

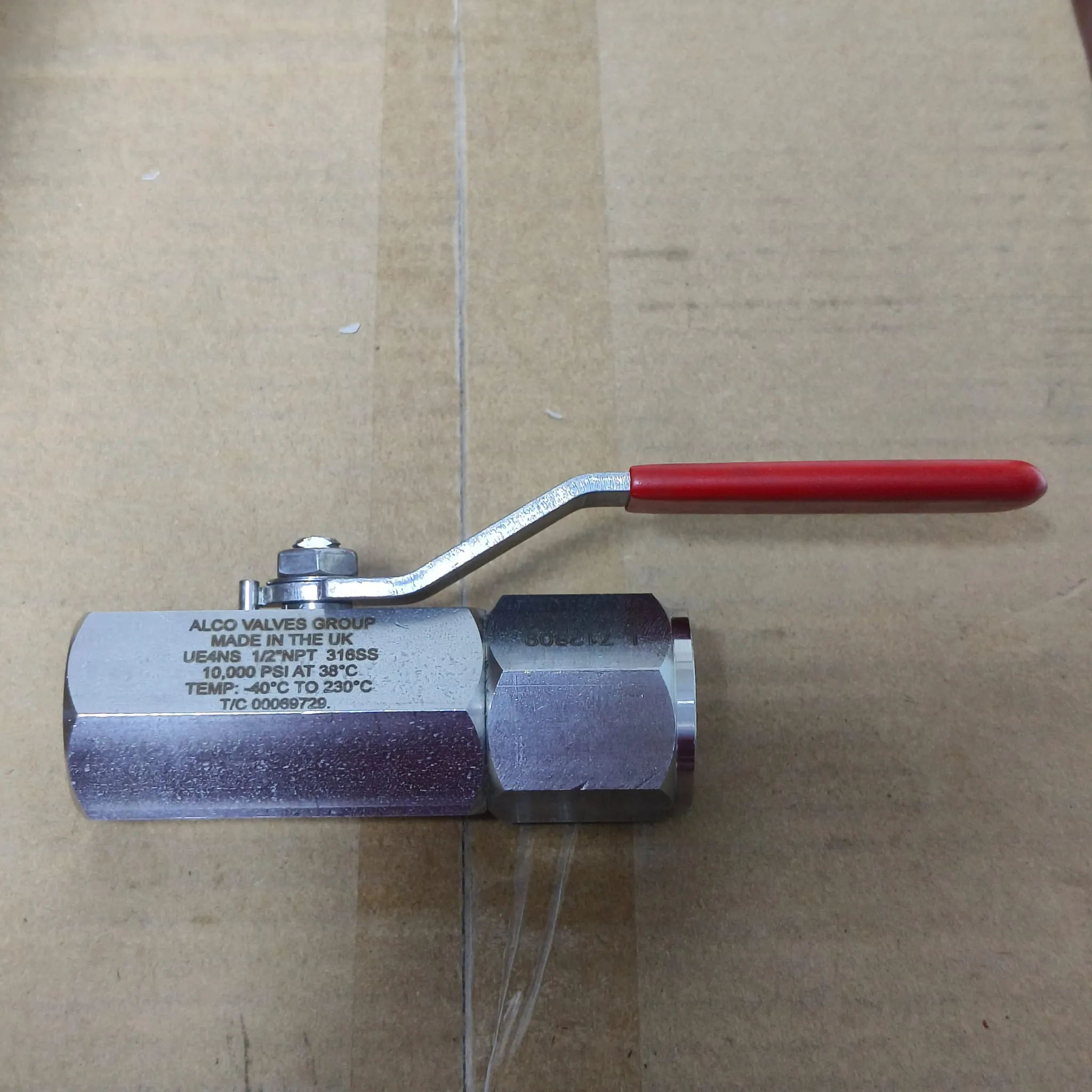

Alco UE Series High-Pressure Two-Piece Ball Valve, 1/2" Female NPT, 10,000 psi, SS316, UE4NS
Technical overview
The Alco UE4NS is a 1/2" female NPT two-piece ball valve rated to 10,000 psi at 38°C, with an operating temperature range of -40 to +230°C. It combines an SS316 floating-ball body with PEEK HPV seats, PTFE body seal, RTFE and PEEK stem seals, an anti-blowout internally loaded stem and a stainless steel lever handle. It is designed for rapid on/off isolation in high-pressure instrumentation, hydraulic, pneumatic and process systems.
Key Features
- Rated to 10000 psi at 38°C

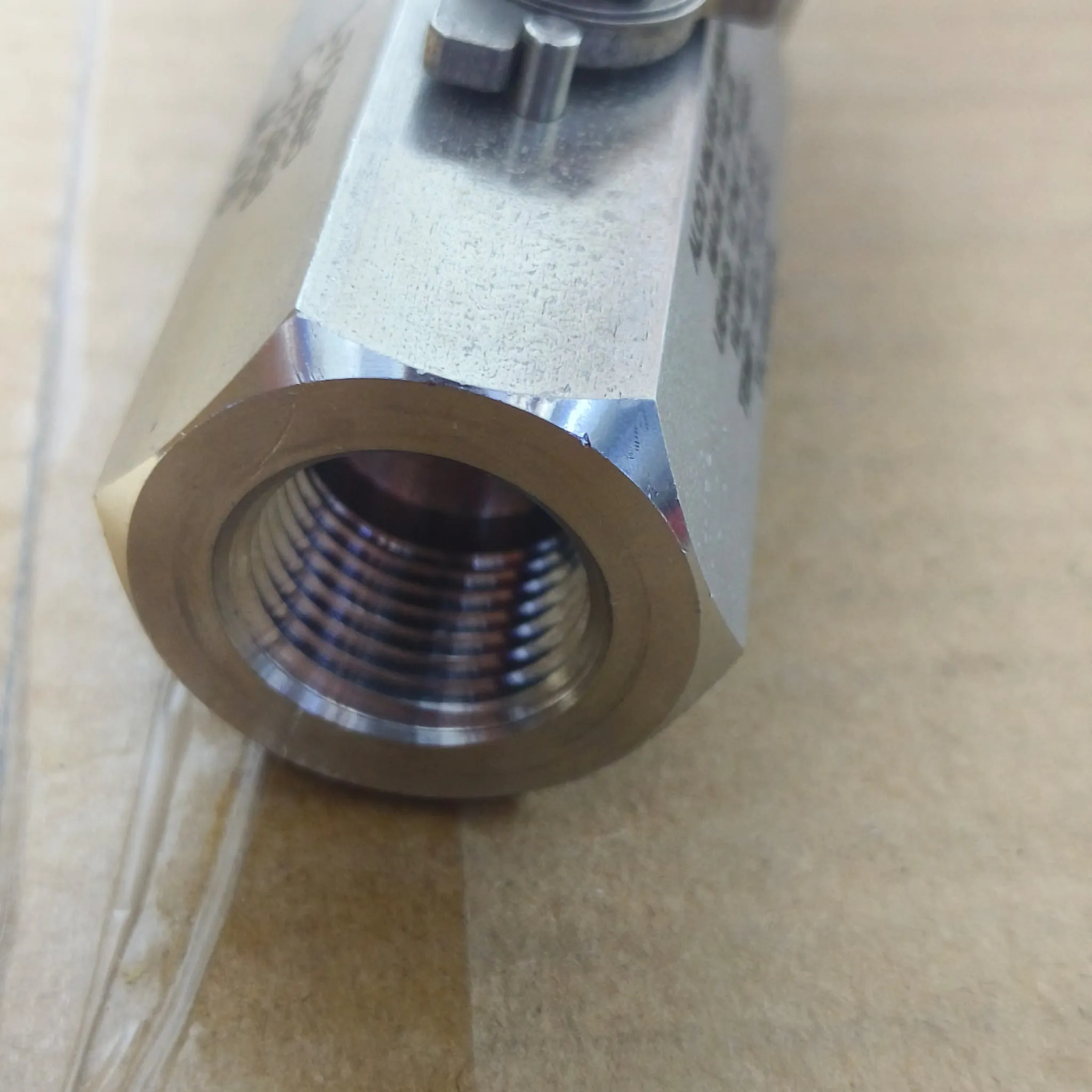

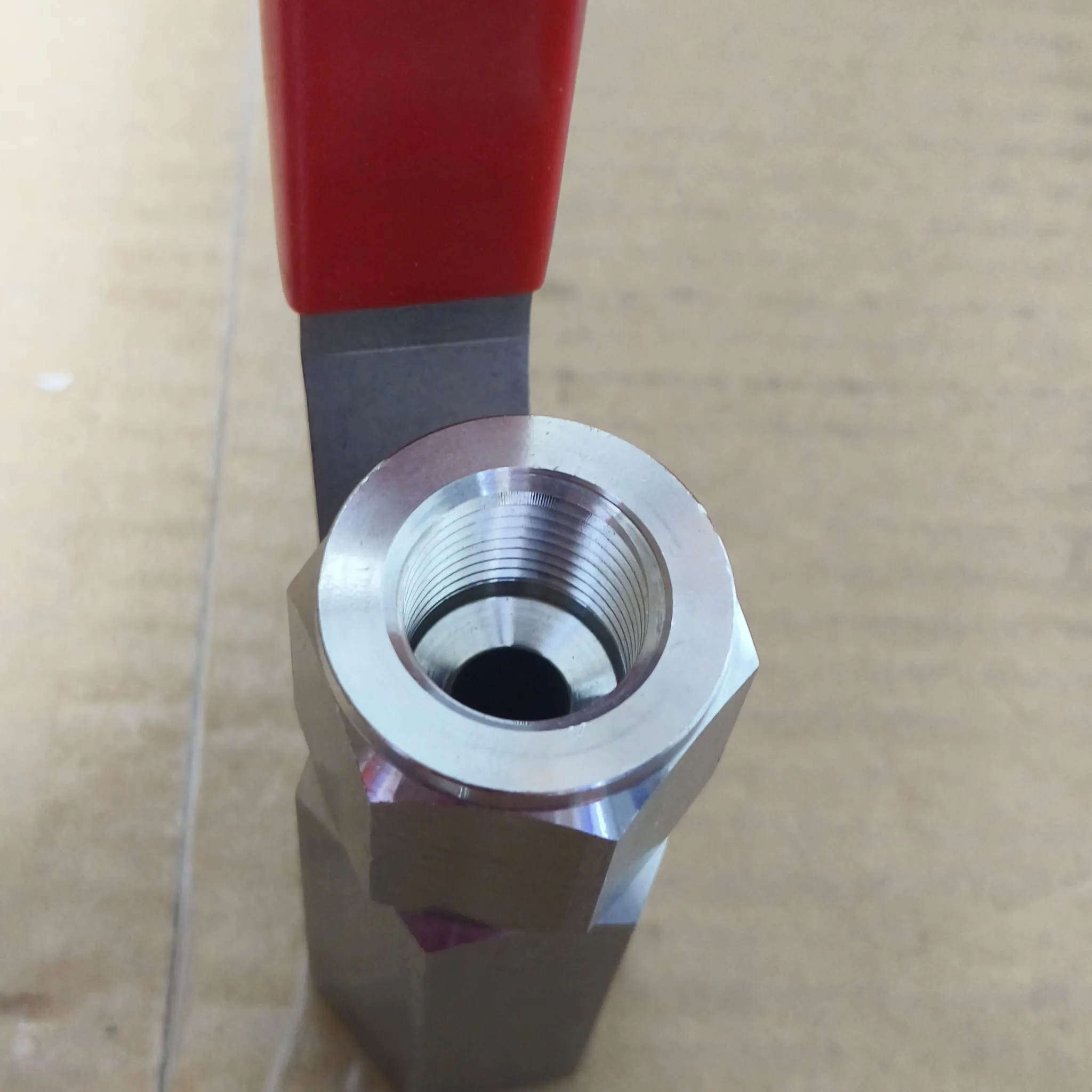

- 1/2" Female NPT end connection
- Quarter-turn 2-way on/off operation
- Compact SS316 two-piece floating-ball body
- PEEK HPV seats for dependable sealing
- Anti-blowout internally loaded stem
- Made in UK.
Applications
- Instrumentation impulse and isolation lines
- High-pressure sampling and test panels
- Hydraulic and pneumatic systems
- Oil, gas and petrochemical process service
- Utility and industrial gas distribution
Specifications
SeriesUE Series
Maximum Pressure10000 psi @ 38°C
Temperature Range-40 to +230°C
Connection Size1/2" Female NPT
Valve Function2-way on/off
Body Material316 Stainless Steel
Seat MaterialPEEK HPV
Seal MaterialPTFE body seal, RTFE and PEEK stem seals
Stem DesignAnti-blowout, internally loaded
