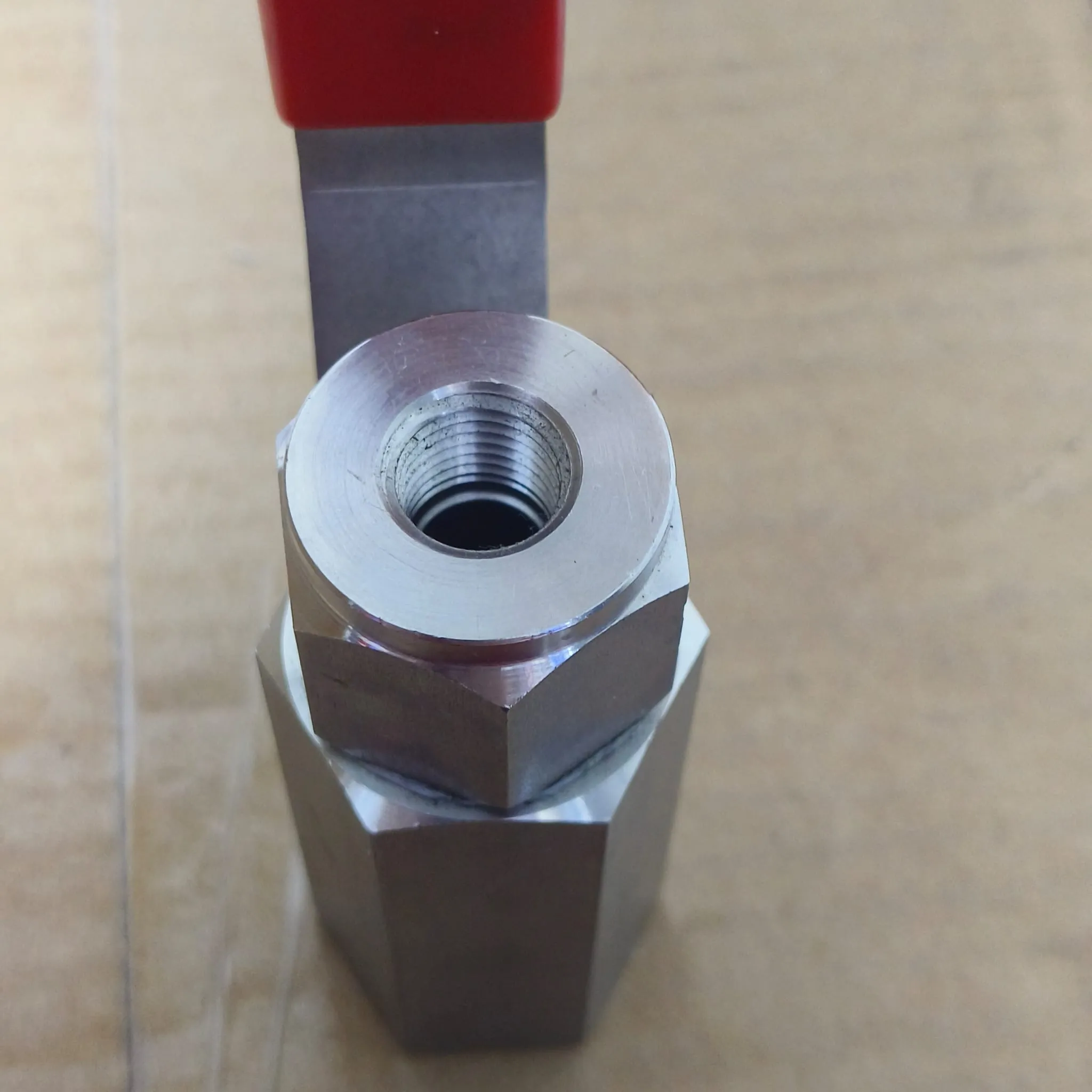

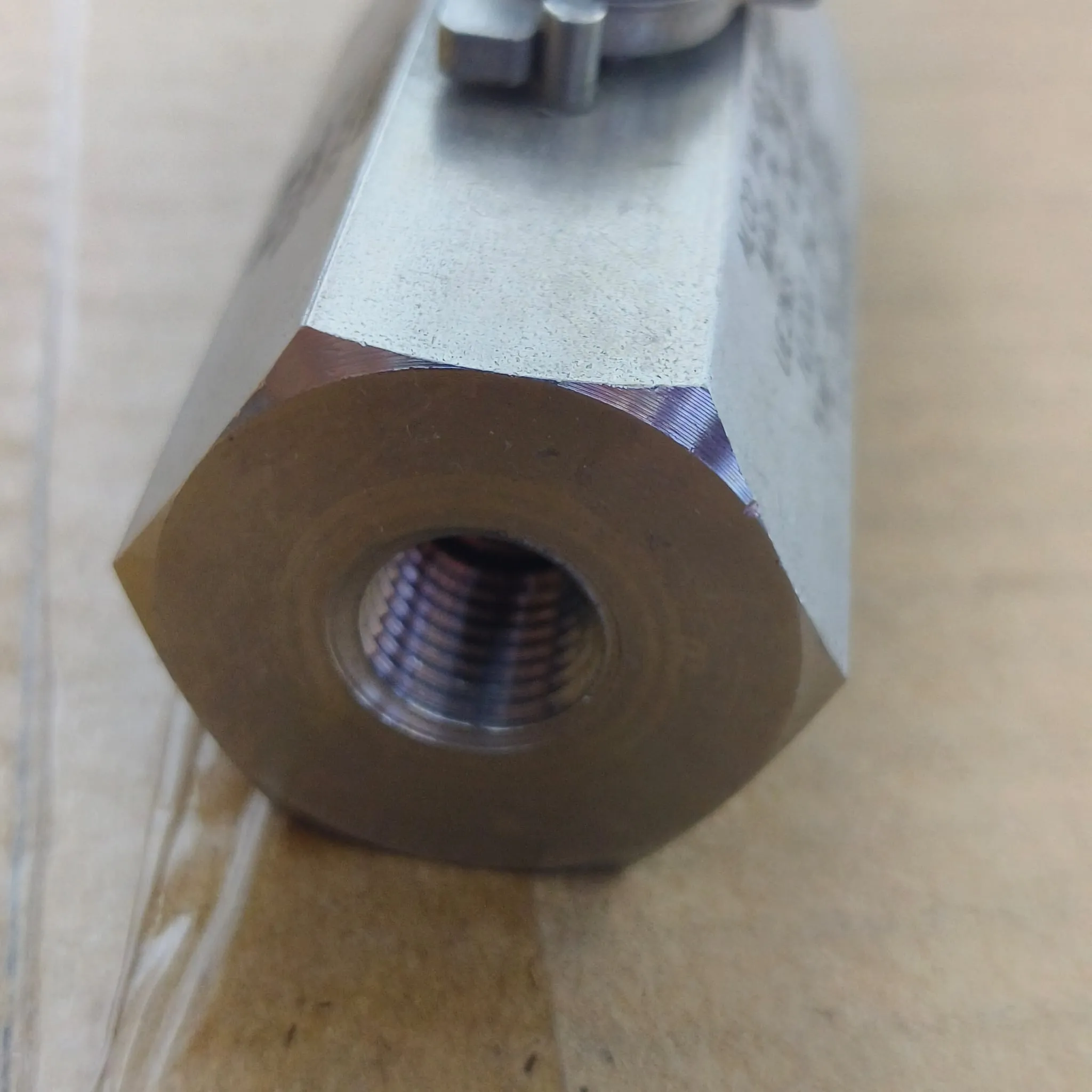

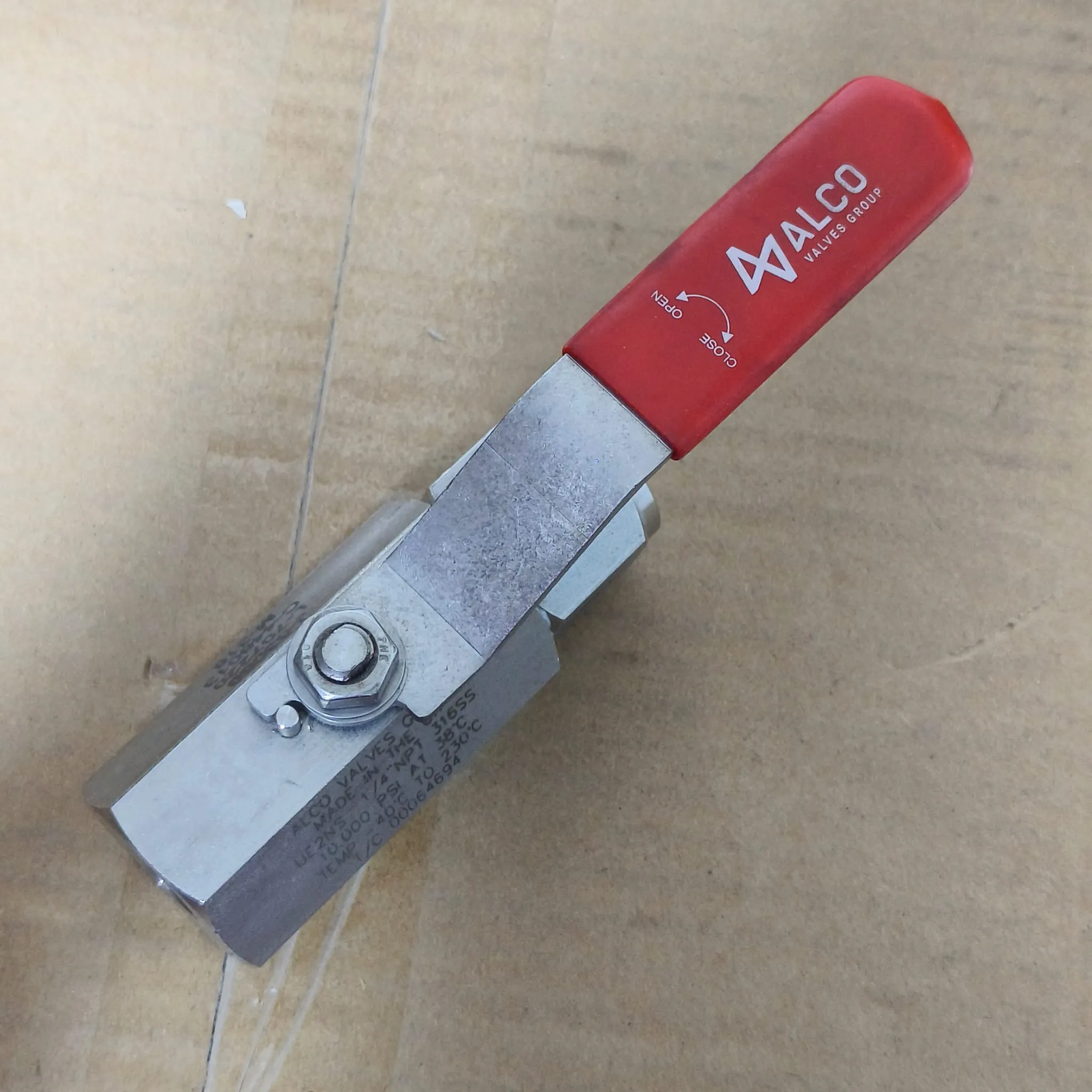

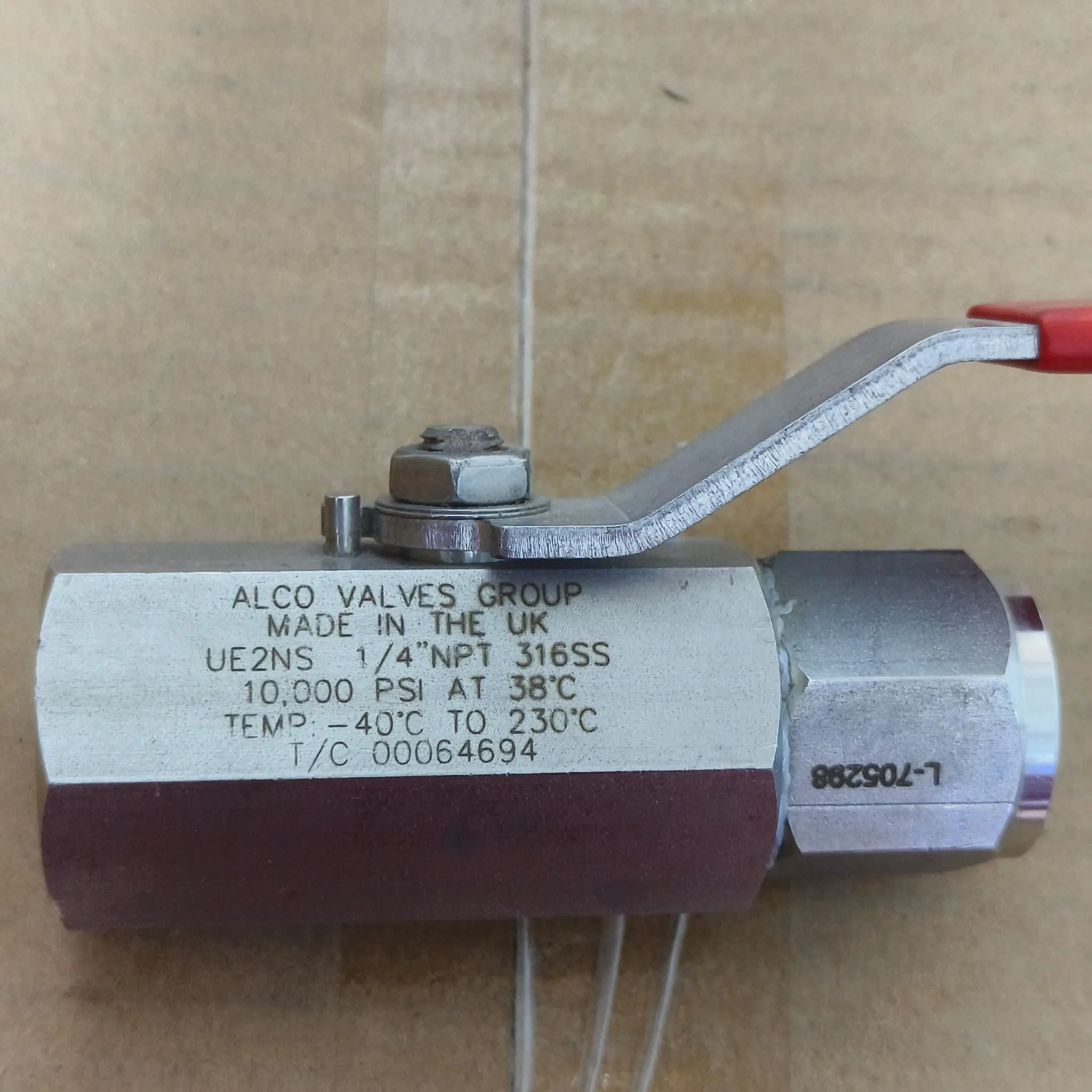

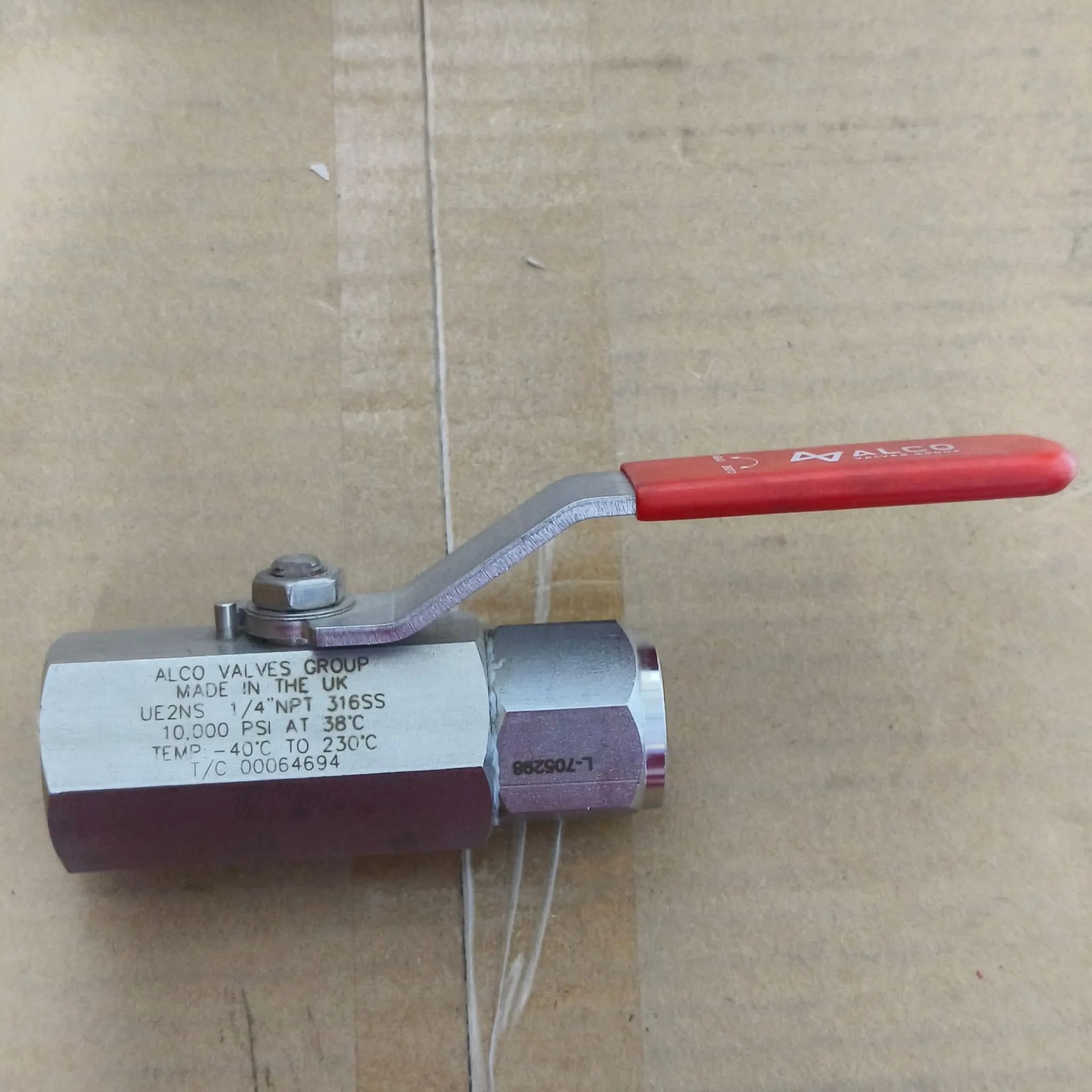

Alco UE Series High-Pressure Two-Piece Ball Valve, 1/4" Female NPT, 10,000 psi, SS316, UE2NS
Technical overview
The Alco UE2NS is a 1/4" female NPT two-piece ball valve rated to 10,000 psi at 38°C, with an operating temperature range of -40 to +230°C. It features an SS316 floating-ball body, PEEK HPV seats, PTFE body seal, RTFE and PEEK stem seals, an anti-blowout internally loaded stem and a stainless steel lever handle. Its quarter-turn operation provides fast, reliable isolation for instrumentation, sampling, hydraulic, pneumatic and high-pressure process lines.
Key Features
- Rated to 10000 psi at 38°C
- 1/4" Female NPT end connection
- Quarter-turn 2-way on/off operation
- Compact SS316 two-piece floating-ball body
- PEEK HPV seats for dependable sealing
- Anti-blowout internally loaded stem
- Made in UK.
Applications
- Instrumentation impulse and isolation lines
- High-pressure sampling and test panels
- Hydraulic and pneumatic systems
- Oil, gas and petrochemical process service
- Utility and industrial gas distribution
Specifications
SeriesUE Series
Maximum Pressure10000 psi @ 38°C
Temperature Range-40 to +230°C
Connection Size1/4" Female NPT
Valve Function2-way on/off
Body Material316 Stainless Steel
Seat MaterialPEEK HPV
Seal MaterialPTFE body seal, RTFE and PEEK stem seals
Stem DesignAnti-blowout, internally loaded
