Ball Valves

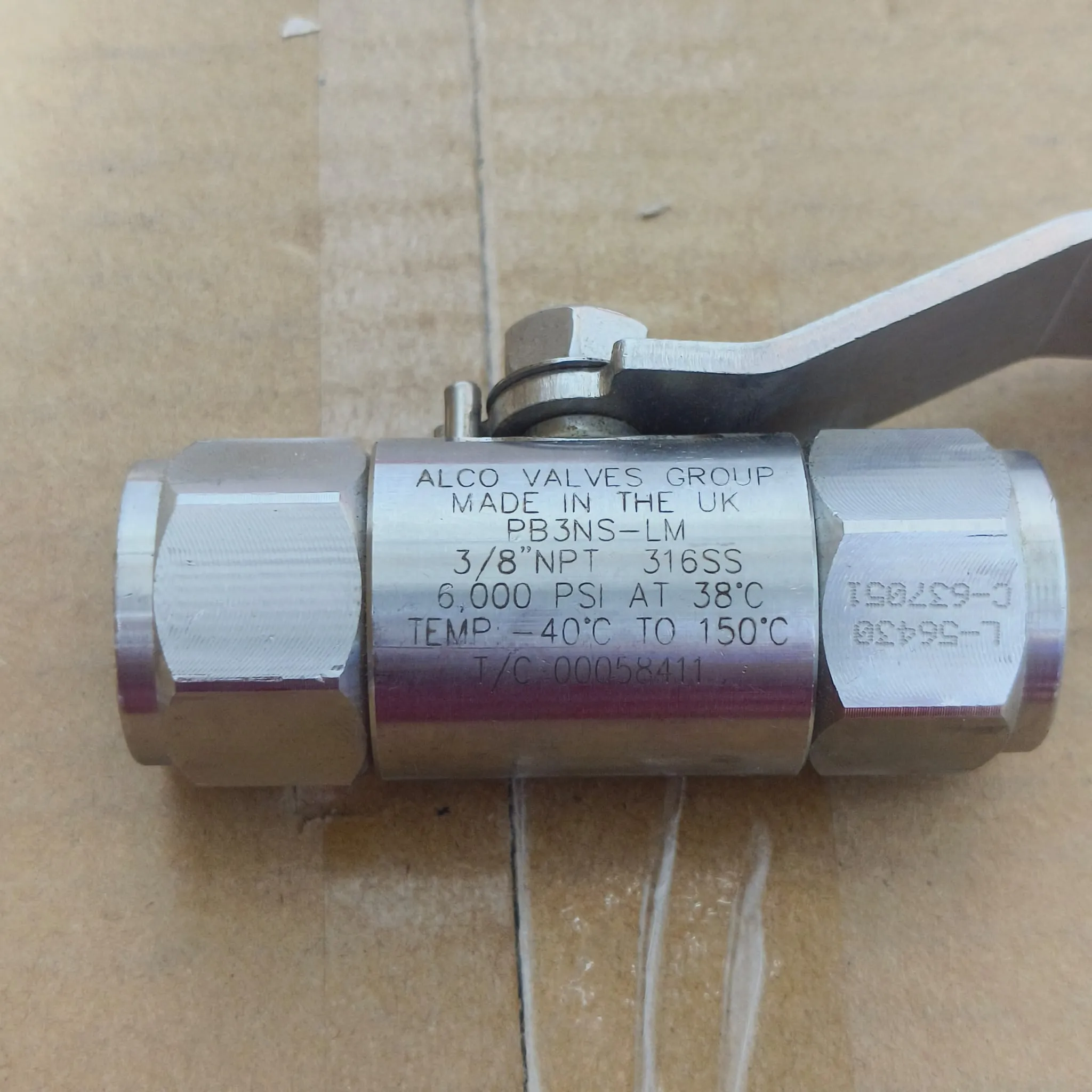

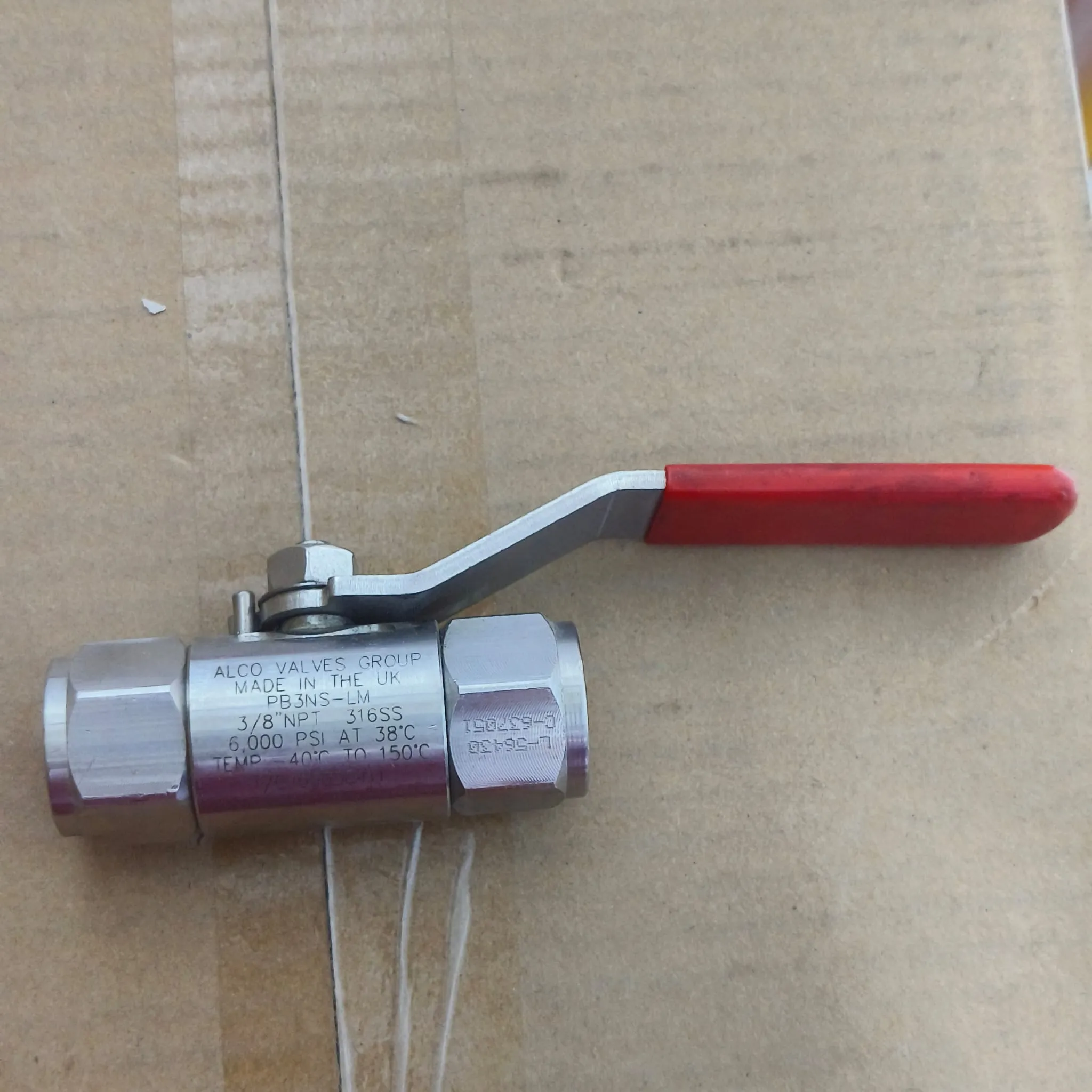

Alco PB Series High-Pressure Three-Piece Ball Valve, 3/8" Female NPT, 6000 psi, SS316, PB3NS-LM
Alco

Alco PB Series High-Pressure Three-Piece Ball Valve, 3/8" Female NPT, 6000 psi, SS316, PB3NS-LM

Mfr. part no.
PB3NS-LM
SKU
SSBV-UK-6K-06

Specifications

Series PB Series
Maximum Pressure 6000 psi @ 38°C
Temperature Range -40 to +150°C
Connection Size 3/8" Female NPT
Valve Function 2-way on/off
Body Material 316 Stainless Steel
Seat Material PVDF
Seal Material PTFE body seals, RTFE stem seals
Stem Design Anti-blowout, internally loaded

Key Features

  • Rated to 6000 psi at 38°C

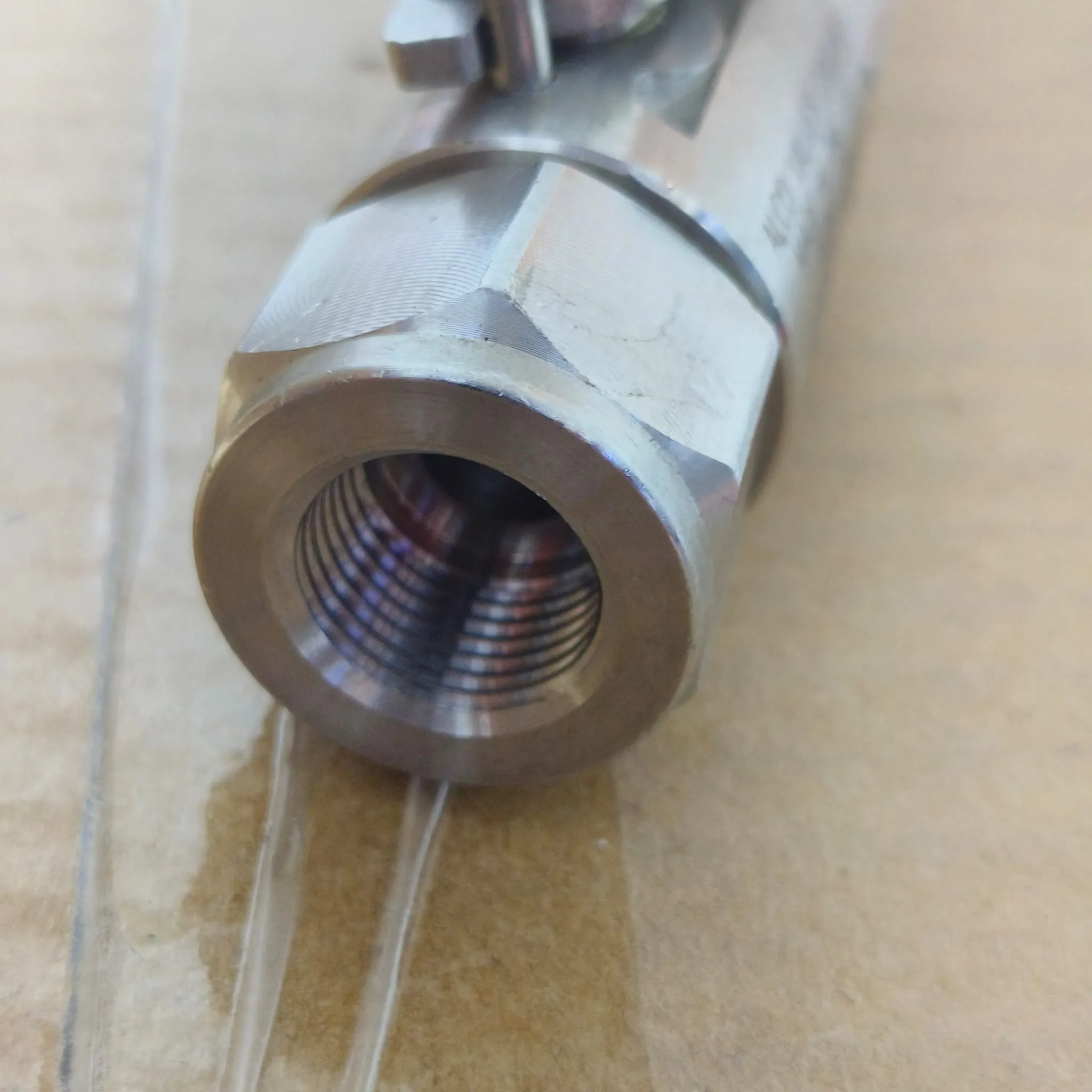

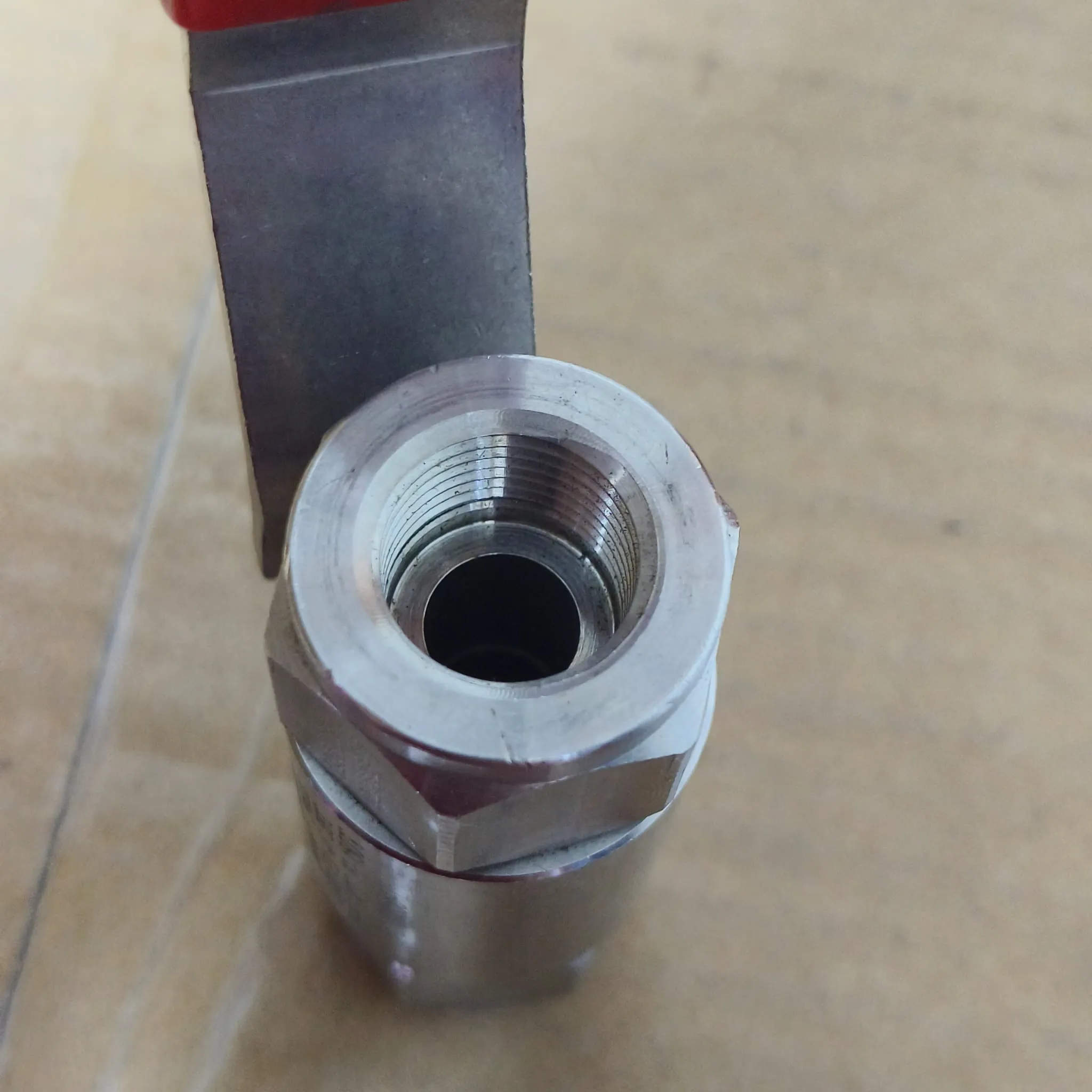

  • 3/8" Female NPT end connection

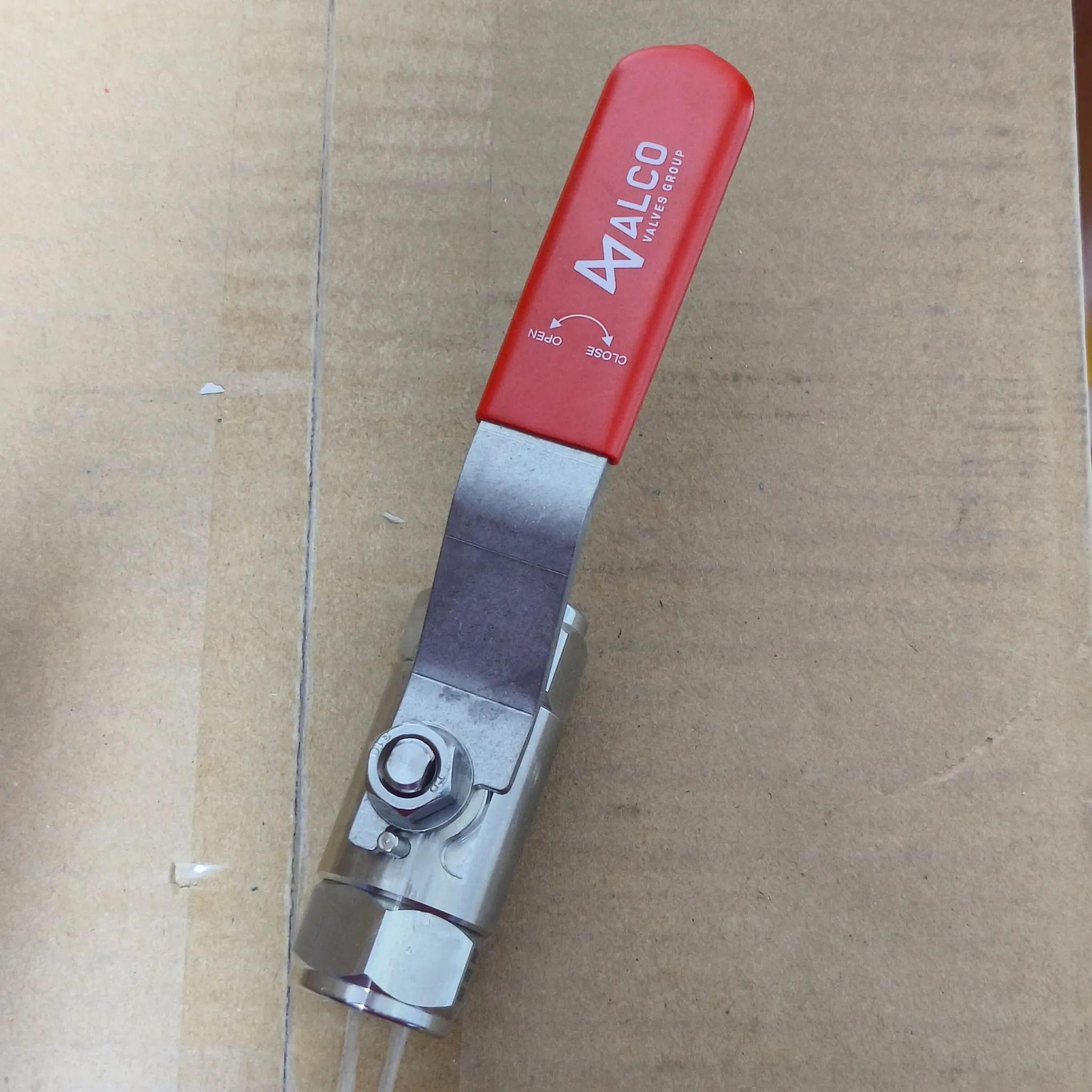

  • Quarter-turn 2-way on/off operation
  • Compact SS316 three-piece floating-ball body
  • PVDF seats for dependable sealing
  • Anti-blowout internally loaded stem
  • Made in UK.

Description

The Alco PB3NS-LM is a 3/8" female NPT three-piece ball valve rated to 6,000 psi at 38°C, with an operating temperature range of -40 to +150°C. Its SS316 floating-ball construction includes PVDF seats, PTFE body seals, RTFE stem seals, HNBR O-rings, an anti-blowout internally loaded stem and a stainless steel lever handle. It is suitable for quick and reliable isolation in instrumentation, sampling, hydraulic, pneumatic and general high-pressure process service.

Applications

  • Instrumentation impulse and isolation lines
  • High-pressure sampling and test panels
  • Hydraulic and pneumatic systems
  • Oil, gas and petrochemical process service
  • Utility and industrial gas distribution

Documents

  • Alco Valves RTG Range — Catalog

    PDF, 3.2 MB

  • Alco Ball Valves PB UE Series — Datasheet

    PDF, 149 KB
