Ball Valves
DK-LOK V86A Series Ball Valve, 10,000 psig, 3/8" Female NPT Connections, SS316, V86A-F-6N-PK
DK-LOK

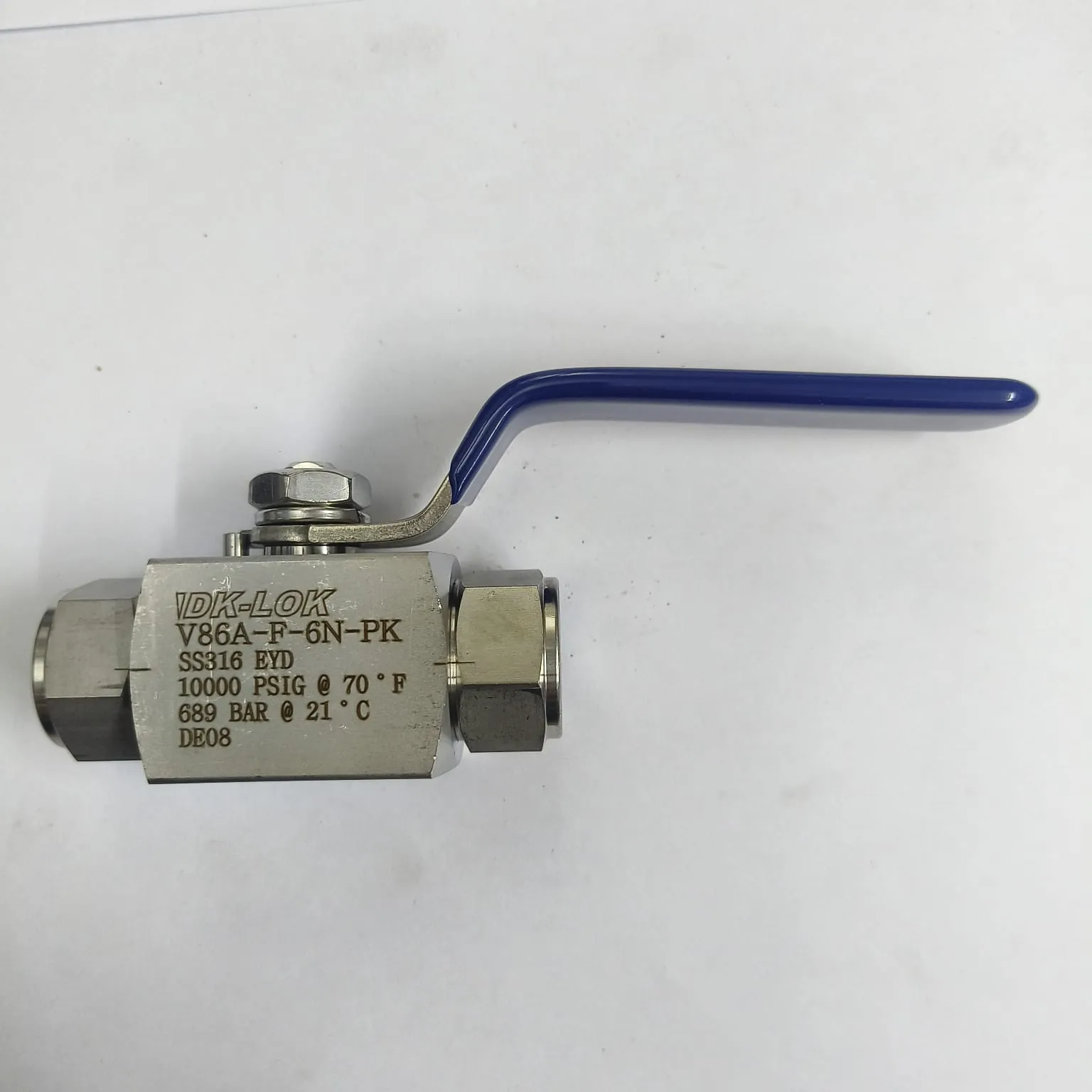

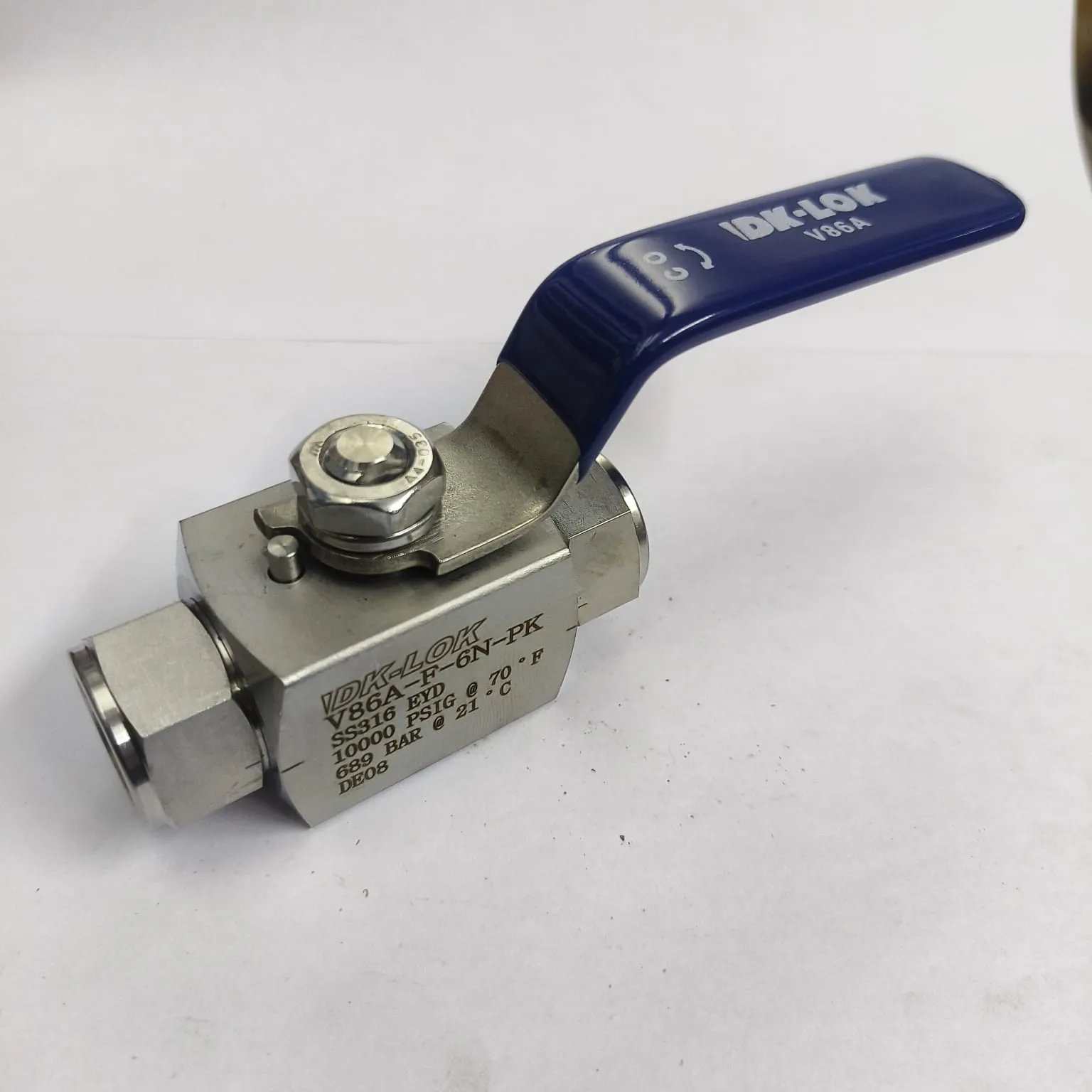

DK-LOK V86A Series Ball Valve, 10,000 psig, 3/8" Female NPT Connections, SS316, V86A-F-6N-PK

Mfr. part no.
V86A-F-6N-PK
SKU
DK-SSBV-06-10K

Specifications

Series V86A
Valve Function 2-way on/off
Connection Size 3/8" Female NPT
Body Material 316 stainless steel (SS316)
Seat Material PEEK
Maximum Pressure 10,000 psig
Temperature Range -65 to 500°F (-54 to 260°C)
Stem Design Blowout-proof, internally loaded stem
Handle Lever handle, flow direction indication
Seal Material FKM (Viton) end seal

Key Features

  • Pressure rating 10,000 psig (depends on seat material)
  • Quarter-turn 2-way on/off operation
  • Blowout-proof design with internally loaded stem
  • Positive stop with robust stop pin
  • Handle indicates flow direction / open-close position
  • High flow rate with maximum orifice design
  • Panel mounting option available on select models

Description

DK-LOK V86A Series ball valves are high-pressure, quarter-turn on/off valves designed for reliable shutoff in instrumentation and process service. Built with a blowout-proof internally loaded stem and a robust positive stop, the lever handle provides clear open/close indication and fast operation. The SS316 body with PEEK seats delivers high flow capacity and dependable sealing, with a pressure rating 10,000 psig (689 bar) and temperature rating -65 to 500°F (-54 to 260°C). Commonly used for hydraulic, gas, and chemical service lines where compact size and safe, repeatable operation are required.

Applications

  • Instrumentation impulse and isolation lines
  • Hydraulic and pneumatic systems
  • Oil & gas, petrochemical and general process service
  • High-pressure sampling and test panels
  • Utility and industrial gas distribution lines

Documents

  • DK LOK-V86A F-6N PK S — Datasheet

    PDF, 127 KB

  • DK LOK-V86 Series Ball Valves — Catalog

    PDF, 4.6 MB
