WIKA Vacuum Gauge 213.53.063, -1...0 bar, 2nd Scale mmHg, 2.5" Dial, 1/4" Male NPT Lower Mount, 33065371
Technical overview

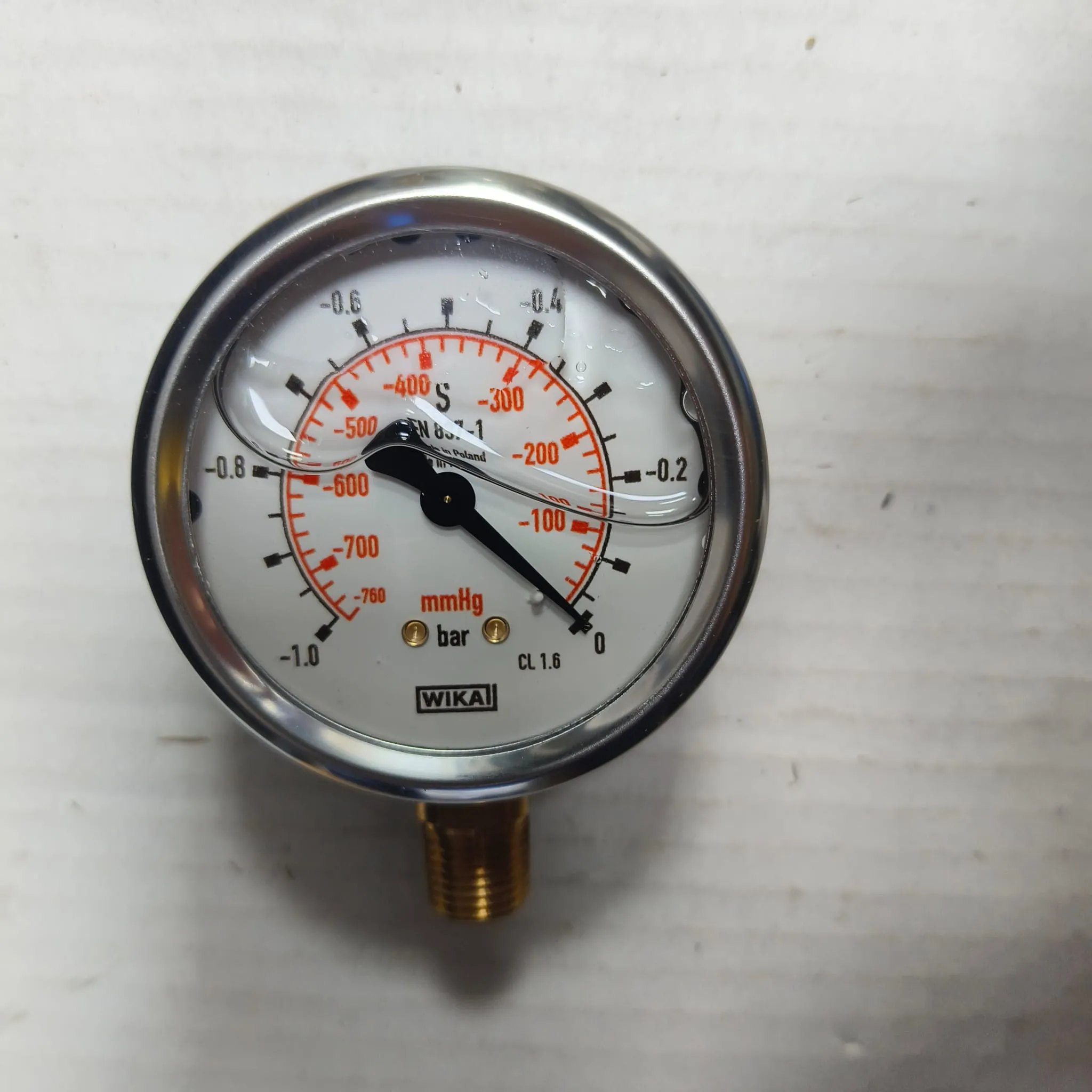

This WIKA 213.53 vacuum gauge is designed for dependable vacuum monitoring in pumps, compressors and general industrial systems. It has a 2.5" dial with a 1/4" Male NPT brass lower connection and a stainless steel case for dependable everyday service. The gauge is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a -1...0 bar measuring range with a black primary bar scale and a red secondary mmHg scale for quick reading.
Key Features
- Stainless steel case and copper alloy wetted parts support dependable industrial service.
- 1/4" Male NPT lower mount connection suits common installation points.
- Primary bar scale is supported by a red secondary mmHg scale for quick reading.
- Prepared-for-filling construction suits applications with vibration or pulsation.
- 63 mm / 2.5" dial size and Class 1.6 accuracy support clear everyday reading.
- Made in Poland
Applications
- Vacuum pumps
- Air compressors
- Process vacuum lines
- General industrial service
- Pulsation service
Specifications
Model213.53.063
Gauge TypeVacuum
Measuring Range-1...0 bar
Dial Size63 mm / 2.5"
Measuring SystemBourdon Tube
Secondary Scale2nd scale mmHg
Process Connection1/4" Male NPT
Mounting PositionLower mount
Accuracy ClassClass 1.6
Case FillingDry Case, Prepared for filling
Wetted PartsCopper alloy
Case MaterialStainless steel 1.4301
Case DesignCrimp ring case (version 53)
WindowPlastic, clear
