Bourdon Tube Pressure Gauges
WIKA Pressure Gauge 213.53.063, 0...150 psi / 0...10 bar, 2.5" Dial, 1/4" Male NPT Lower Mount, 14094911
WIKA

WIKA Pressure Gauge 213.53.063, 0...150 psi / 0...10 bar, 2.5" Dial, 1/4" Male NPT Lower Mount, 14094911

Mfr. part no.
14094911
SKU
PW25-00150

Specifications

Model 213.53.063
Measuring System Bourdon Tube
Dial Size 63 mm / 2.5"
Measuring Range 0...150 psi / 0...10 bar
Secondary Scale 2nd scale bar
Process Connection 1/4" Male NPT
Mounting Position Lower mount
Case Filling Dry case, prepare for filling
Wetted Parts Copper alloy
Case Material Stainless steel 1.4301
Case Design Crimp ring case (version 53)
Accuracy Class Class 1.6
Window Plastic, clear

Key Features

  • Stainless steel case provides strong protection for industrial pressure monitoring.
  • 1/4" Male NPT brass lower connection supports common installation points.
  • Dual scale dial shows psi as the primary scale with a red bar secondary scale.
  • Dry case prepared for liquid filling allows the gauge to be filled when required.
  • Clear plastic window and class 1.6 accuracy support easy everyday reading.
  • Made in Poland

Other versions in this series

Other versions in this series
Part no. Measuring Range Mounting Position Case Filling
39939479 0...60 psi / 0...4 bar Back mount Dry case, prepare for filling
14094910 0...60 psi / 0...4 bar Lower mount Dry case, prepare for filling
39939574 -30 inHg...+100 psi / -1...7 bar Lower mount Dry Case, Prepared for filling
84254731 0...100 psi / 0...6.8 bar Back mount Dry case, prepare for filling
39939455 0...100 psi / 0...6.8 bar Lower mount Dry case, prepare for filling
39939481 0...150 psi / 0...10 bar Back mount Dry case, prepare for filling
14094911 (This part) 0...150 psi / 0...10 bar Lower mount Dry case, prepare for filling
39902225 -30 inHg...+160 psi / -1...11 bar Lower mount Dry Case, Prepared for filling
39939484 0...160 psi / 0...11 bar Back mount Dry case, prepare for filling
39939456 0...160 psi / 0...11 bar Lower mount Dry case, prepare for filling
39939486 0...200 psi / 0...13.5 bar Back mount Dry case, prepare for filling
84187108 0...200 psi / 0...13.5 bar Lower mount Dry case, prepare for filling
39607097 0...16 bar / 0...230 psi Lower mount Dry case, prepare for filling

Description

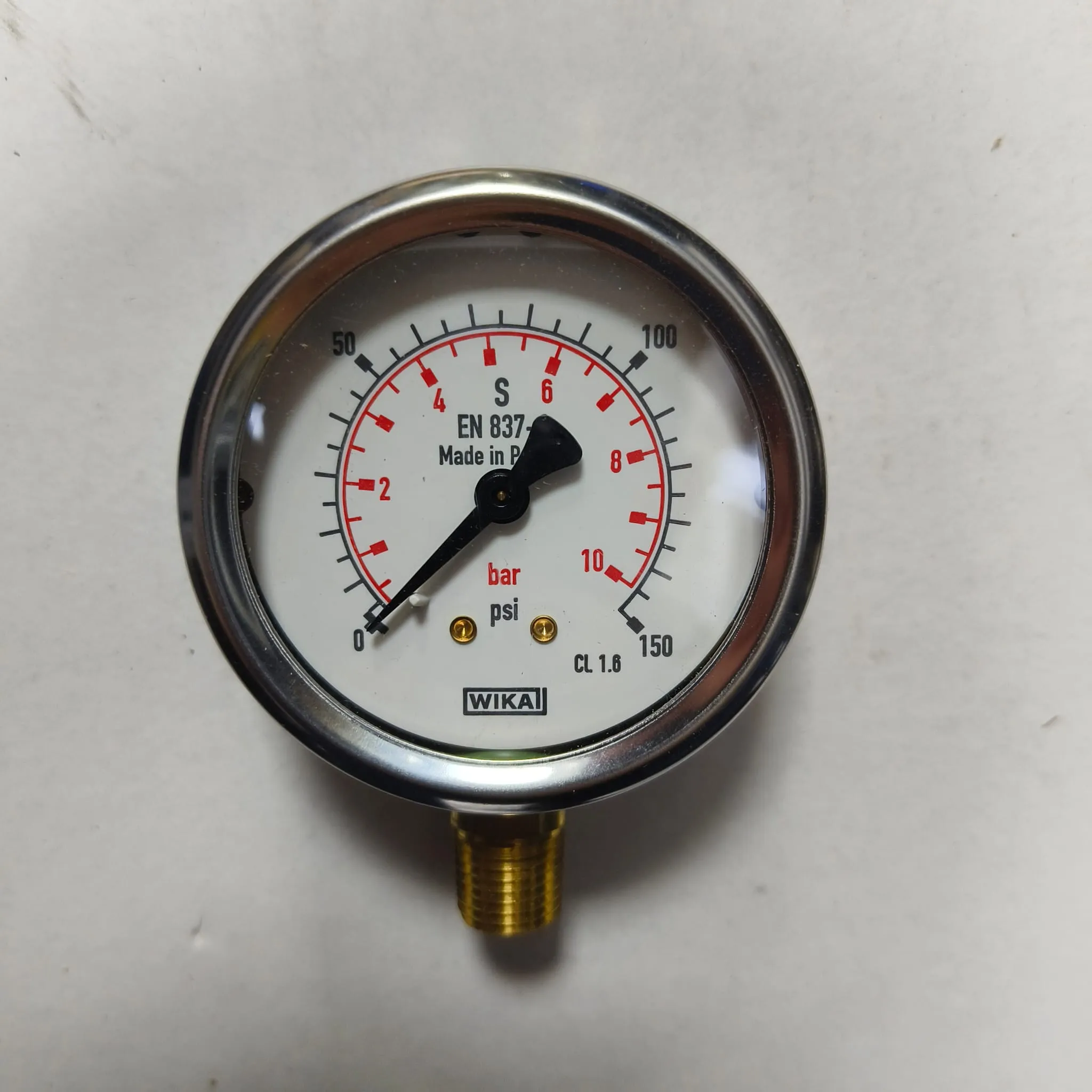

This WIKA 213.53 bourdon tube pressure gauge is designed for accurate pressure monitoring in hydraulic equipment, compressors, pumps and general industrial systems. It has a 2.5" dial with a 1/4" Male NPT brass lower connection and a stainless steel case for dependable everyday service. The gauge is supplied as a dry case and is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a 0...150 psi range and a clear white dial that is easy to read. The dial shows a black primary psi scale with a red secondary bar scale for quick cross reference. This model is a practical choice for reliable pressure indication across a wide range of industrial duties. This gauge can also marked as WIKA's current part number 39885597, which corresponds to the exact matching configuration of this product.

Applications

  • Hydraulic systems
  • Air compressors
  • Pump skids
  • Industrial utilities
  • Vibration service

Documents

  • Wika Datasheet-39885597

    PDF, 49 KB

  • Wika-213.53 Model Pressure Gauge — Datasheet

    PDF, 878 KB

  • Wika Operating Instructions for Pressure Gauges

    PDF, 1.3 MB
