WIKA Pressure Gauge 213.53.063, 0...16 bar, Dual Scale, 2.5" Dial, 1/4" Male NPT Back Mount, 84154644
Technical overview
This WIKA 213.53.063 bourdon tube pressure gauge is designed for accurate pressure monitoring in hydraulic equipment, compressors, pumps and general industrial systems. It has a 2.5" dial with a 1/4" Male NPT back mount connection and a stainless steel case with polished SS front flange for dependable panel installation. The gauge is supplied as a dry case and is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a 0...16 bar primary range with a red secondary psi scale (0...230 psi) for quick cross reference. This model is a practical choice for reliable pressure indication across a wide range of industrial duties.
Key Features
- Back mount 1/4" NPT connection with polished stainless steel front flange supports panel mounting.
- Stainless steel case provides strong protection for industrial pressure monitoring.

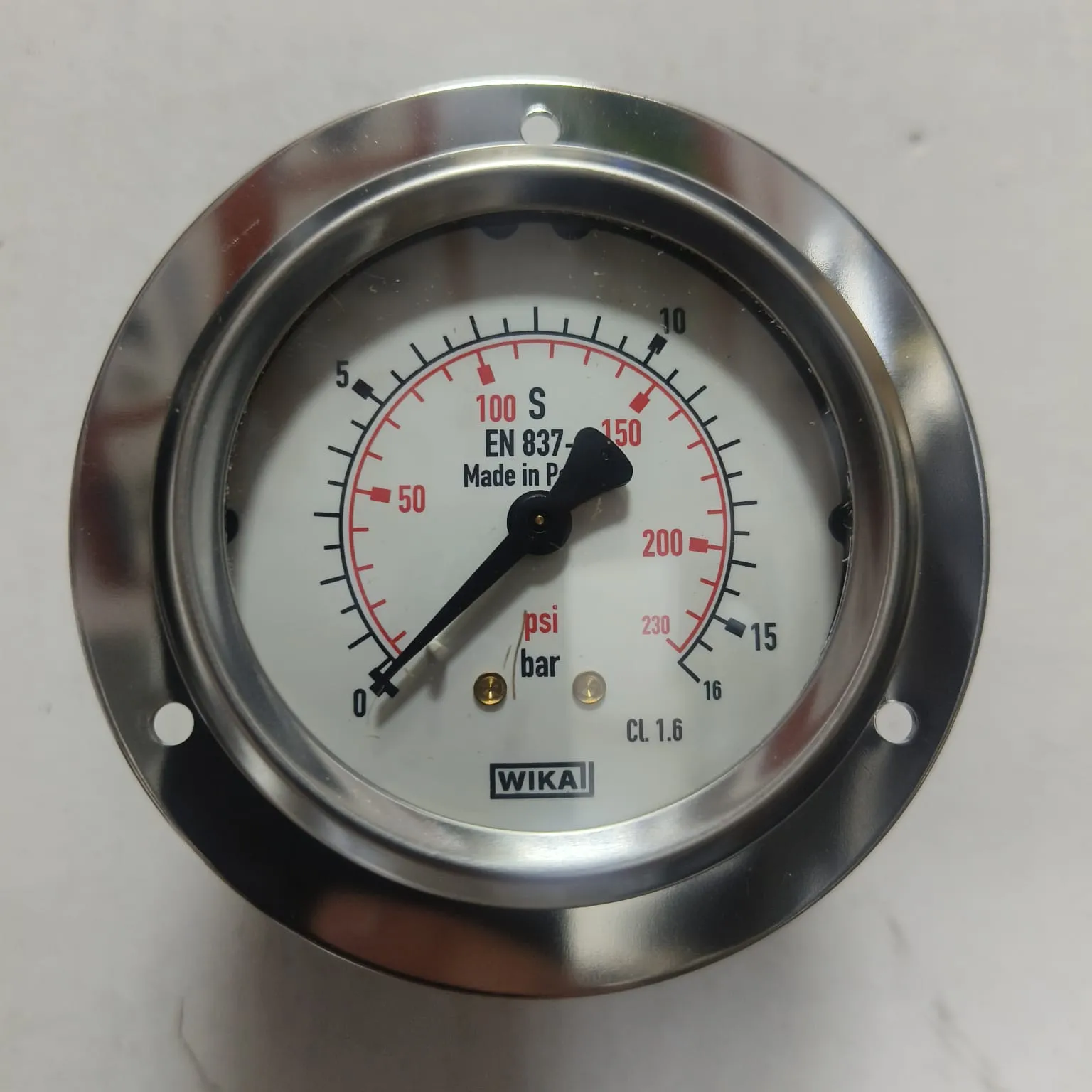

- Dual scale dial shows bar as the primary scale with a red secondary psi scale (0...230 psi).
- Dry case prepared for liquid filling allows the gauge to be filled when required.
- Clear plastic window and class 1.6 accuracy support easy everyday reading.
- Made in Poland
Applications
- Hydraulic systems
- Air compressors
- Pump skids
- Industrial utilities
- Vibration service
Specifications
Model213.53.063
Measuring SystemBourdon Tube
Dial Size63 mm / 2.5"
Measuring Range0...16 bar
Secondary Scale2nd scale psi
Process Connection1/4" Male NPT
Mounting PositionBack mount
Mounting FlangePolished SS front flange
Case FillingDry case, prepare for filling
Wetted PartsCopper alloy
Case MaterialStainless steel 1.4301
Case DesignCrimp ring case (version 53)
Accuracy ClassClass 1.6
WindowPlastic, clear
