Bourdon Tube Pressure Gauges
WIKA Pressure Gauge 213.53.063, 0...300 psi, Dual Scale, 2.5" Dial, 1/4" Male NPT Back Mount, 39939488
WIKA

WIKA Pressure Gauge 213.53.063, 0...300 psi, Dual Scale, 2.5" Dial, 1/4" Male NPT Back Mount, 39939488

Mfr. part no.
39939488
SKU
PW25-BC-00300

Specifications

Model 213.53.063
Measuring System Bourdon Tube
Dial Size 63 mm / 2.5"
Measuring Range 0...300 psi
Secondary Scale 2nd scale bar
Process Connection 1/4" Male NPT
Mounting Position Back mount
Mounting Flange Polished SS front flange
Case Filling Dry case, prepare for filling
Wetted Parts Copper alloy
Case Material Stainless steel 1.4301
Case Design Crimp ring case (version 53)
Accuracy Class Class 1.6
Window Plastic, clear

Key Features

  • Back mount 1/4" NPT connection with polished stainless steel front flange supports panel mounting.
  • Stainless steel case provides strong protection for industrial pressure monitoring.

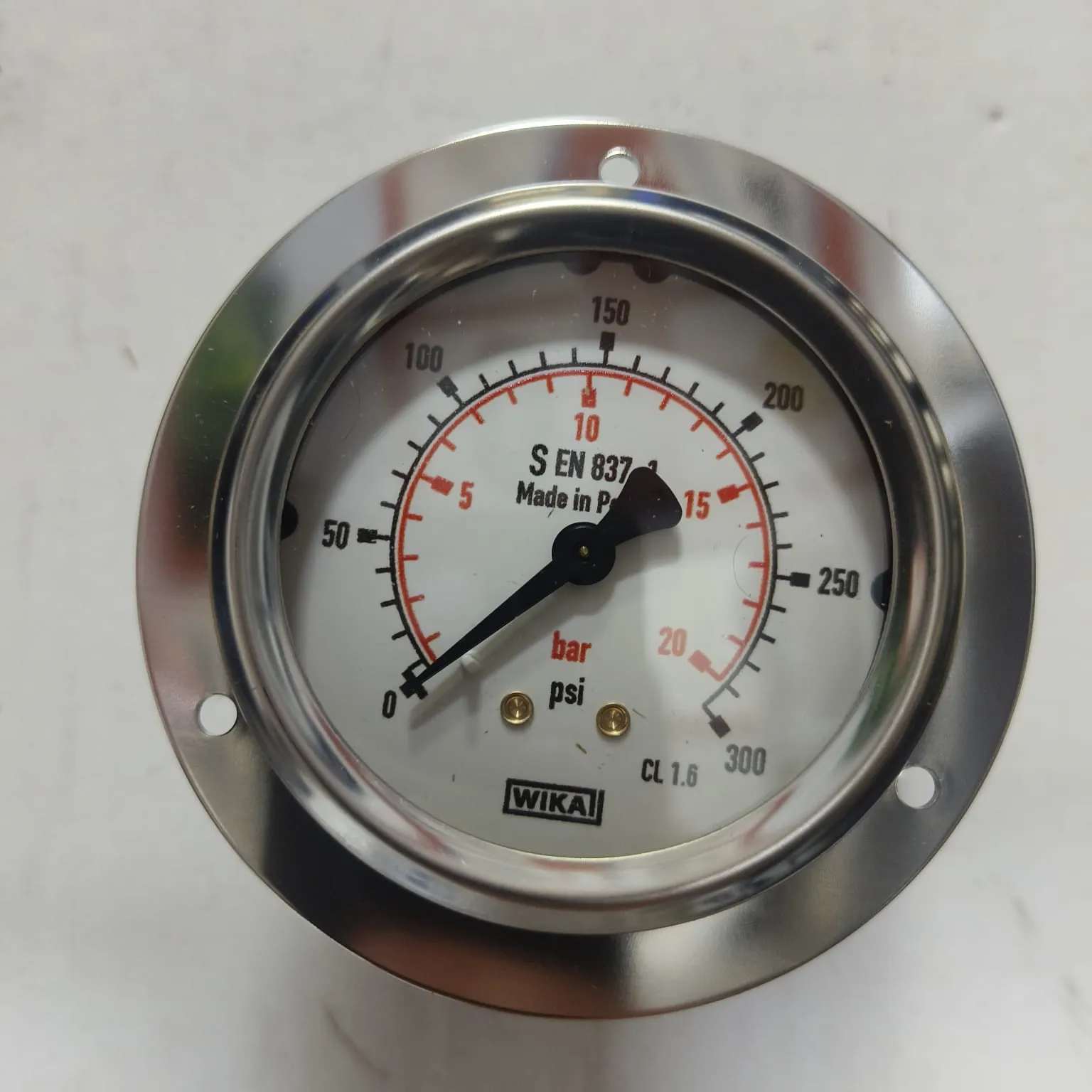

  • Dual scale dial shows psi as the primary scale with a red bar secondary scale.
  • Dry case prepared for liquid filling allows the gauge to be filled when required.
  • Clear plastic window and class 1.6 accuracy support easy everyday reading.
  • Made in Poland

Description

This WIKA 213.53.063 bourdon tube pressure gauge is designed for accurate pressure monitoring in hydraulic equipment, compressors, pumps and general industrial systems. It has a 2.5" dial with a 1/4" Male NPT back mount connection and a stainless steel case with polished SS front flange for dependable panel installation. The gauge is supplied as a dry case and is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a 0...300 psi range and a clear white dial that is easy to read. This model is a practical choice for reliable pressure indication across a wide range of industrial duties.

Applications

  • Hydraulic systems
  • Air compressors
  • Pump skids
  • Industrial utilities
  • Vibration service

Documents

  • Wika Datasheet-39939488

    PDF, 49 KB

  • Wika-213.53 Model Pressure Gauge — Datasheet

    PDF, 878 KB

  • Wika Operating Instructions for Pressure Gauges

    PDF, 1.3 MB

Cross-reference

The closest equivalent from another brand, with the differences stated so you can check before you order.

Winters Instruments PFQ907-DRY-25FF

Winters PFQ 2.5" SS Bourdon Gauge, 0-300 psi, 1/4" NPT Back Mount, Dual Scale

Winters PFQ series stainless steel Bourdon tube pressure gauge with a 2-1/2 inch dial, 0-300 psi range and a 1/4 inch male NPT centre-back connection, supplied dry rather than liquid filled and fitted with a front flange for panel mounting. Construction is a 304 stainless steel case with crimp-on bezel, brass socket and movement, phosphor bronze Bourdon tube and a polycarbonate lens, with accuracy of plus or minus 1.5 percent of full scale. Used for pressure indication on hydraulic equipment, pumps and compressors. One difference to note before you order: the Winters gauge carries a kPa secondary scale, while the gauge shown on this page carries a bar secondary scale. The psi primary range, dial size, connection size and type, back mounting, front flange, case material and copper alloy wetted parts are the same on both.

Specifications of the Winters Instruments part

Dial Size
2.5 inch
Pressure Range
0-300 psi
Connection
1/4" Male NPT
Mount Type
Back mount
Case Material
Stainless Steel
Dial
Dual scale psi/kPa
Fill
Dry, glycerin-fillable
Accuracy
±2-1-2% full scale

We carry 39939488 as the indSpare-stocked equivalent. Looking for a different brand? Request a quote →

Browse every published equivalence
