WIKA Pressure Gauge 213.53.063, 0...30 psi, Dual Scale, 2.5" Dial, 1/4" Male NPT Lower Mount, 84254728
Technical overview

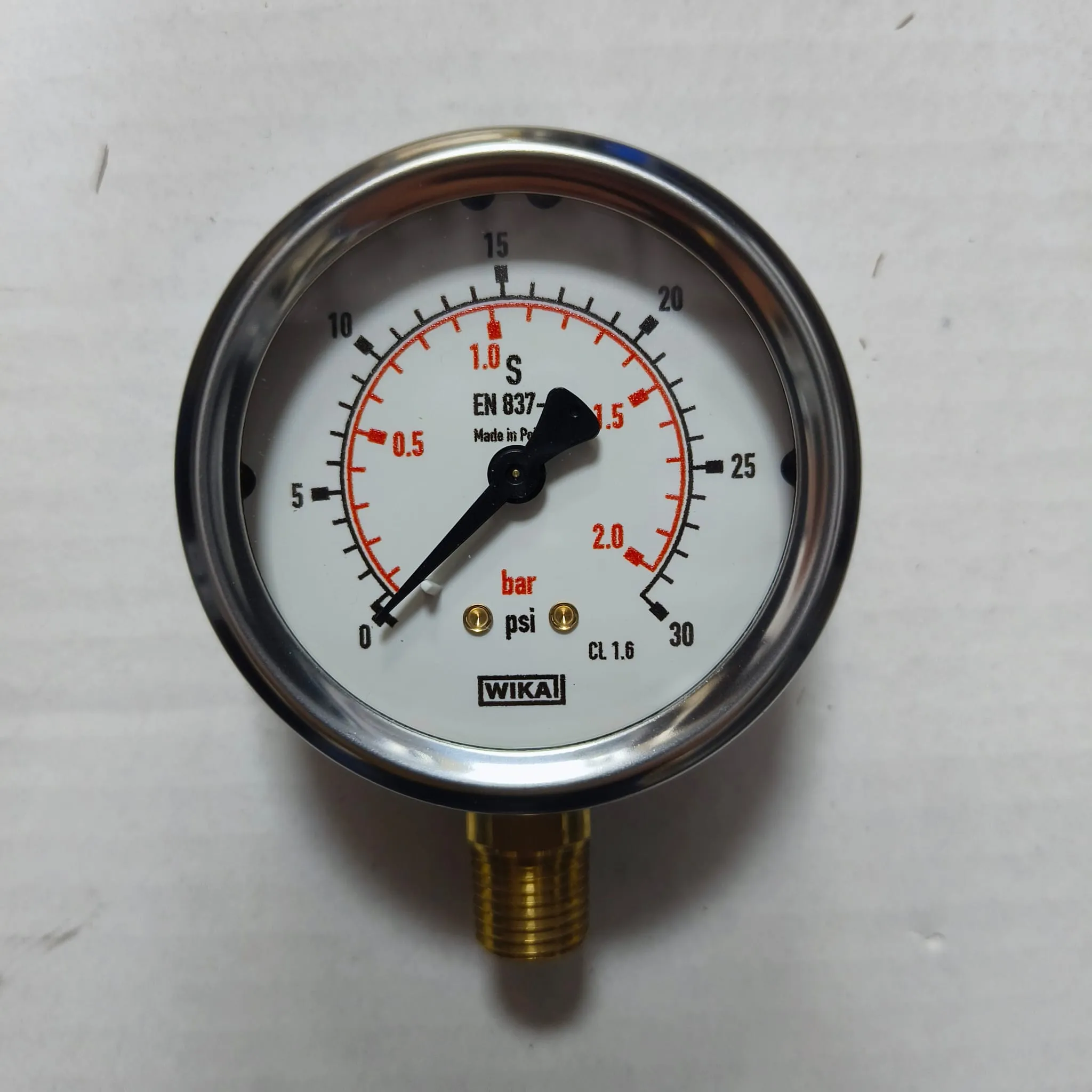

This WIKA 213.53 bourdon tube pressure gauge is designed for accurate pressure monitoring in hydraulic equipment, compressors, pumps and general industrial systems. It has a 2.5" dial with a 1/4" Male NPT brass lower connection and a stainless steel case for dependable everyday service. The gauge is supplied as a dry case and is prepared for liquid filling, which makes it suitable for installations where vibration resistance may be required. It features a 0...30 psi range and a clear white dial that is easy to read. The dial shows a black primary psi scale with a red secondary bar scale for quick cross reference. This model is a practical choice for reliable pressure indication across a wide range of industrial duties.
Key Features
- Stainless steel case provides strong protection for industrial pressure monitoring.
- 1/4" Male NPT brass lower connection supports common installation points.
- Dual scale dial shows psi as the primary scale with a red bar secondary scale.
- Dry case prepared for liquid filling allows the gauge to be filled when required.
- Clear plastic window and class 1.6 accuracy support easy everyday reading.
- Made in Poland
Applications
- Hydraulic systems
- Air compressors
- Pump skids
- Industrial utilities
- Vibration service
Specifications
Model213.53.063
Measuring SystemBourdon Tube
Dial Size63 mm / 2.5"
Measuring Range0...30 psi
Secondary Scale2nd scale bar
Process Connection1/4" Male NPT
Mounting PositionLower mount
Case FillingDry case, prepare for filling
Wetted PartsCopper alloy
Case MaterialStainless steel 1.4301
Case DesignCrimp ring case (version 53)
Accuracy ClassClass 1.6
WindowPlastic, clear
